D-Link DAP-1330 User manual
DAP-1330
Quick Install Guide
N300 Wi-Fi Range Extender
2DAP-1330 Install Guide
Package Contents
DAP-1330 N300 Wi-Fi Range Extender
Wi-Fi Conguration Card
Quick Install Guide
If any of the above items are missing, please contact your reseller.
• Make sure the area that you want to plug the extender into has a solid
connection to your router. Use a wireless laptop, tablet, or mobile
phone in that area to test the connection to verify.
• If your wireless router or access point does not support WPS, follow
the steps under Congure the DAP-1330 Using a Web Browser to
connect to the DAP-1330 and run the Setup Wizard. If you are not
sure how to enable WPS on your wireless router, please refer to your
router’s user manual.
Before You Begin
DAP-1330 Install Guide 3
Product Overview
LED Color Status Description
Status LED
Red Solid The device is powering on/booting up.
Amber Blinking The device is ready but not connected to an uplink
router.
Green
Solid Indicates that the DAP-1330 is securely connected
to your wireless router or access point.
Blinking The WPS button has been pushed and the device is
processing a connection.
Status LED
Signal
Strength
Indicators
WPS Button
Ethernet Port Reset Button
Signal Strength Indicators
Poor (Amber) OK (Green) Good Best
4DAP-1330 Install Guide
Connect to Your Router
Using WPS
1Find an available outlet near your wireless router.
Plug in the DAP-1330 and wait until the Status
LED is blinking amber.
2Press the WPS (Wi-Fi Protected Setup) button
on your wireless router.
Within one minute, press the WPS button on
the DAP-1330. The Status LED will start to blink.
3
DAP-1320
DAP-1330 Install Guide 5
4When the Status LED turns solid green, this indicates that the DAP-1330 is
securely connected to your wireless router or access point. You can now unplug
and move the DAP-1330 to a location between your wireless router and the
area that you need wireless coverage.
If the signal strength indicators are showing one single
amber bar or if the DAP-1330 is not connecting, move
the DAP-1330 to a wall outlet closer to your wireless
router or access point.
6DAP-1330 Install Guide
Connect Your Wireless Devices
5
6Your device is now connected to the DAP-1330 and can connect to your wireless
router. If you want to change your network settings, password, etc., follow the
steps on the next page to congure the DAP-1330. To connect additional
devices, repeat step 5.
Your setup is complete!
Extended network
Original network
From your wireless device go to the Wireless Utility to display the available
wireless networks.
The SSID on the DAP-1330 will automatically be assigned the following:
• 2.4GHz (Your Router’s SSID)-EXT
The Wi-Fi password for the DAP-1330 will be the same as your router.
Repeat step 5 to connect additional Wi-Fi devices to the DAP-1330.
DAP-1330 Install Guide 7
Congure the DAP-1330
Using a Web Browser
Wi-Fi Name(SSID):
dlink-2c19
Wi-Fi Password:
gccnu80856
Web browser link:
http://dlinkap2c19.local.

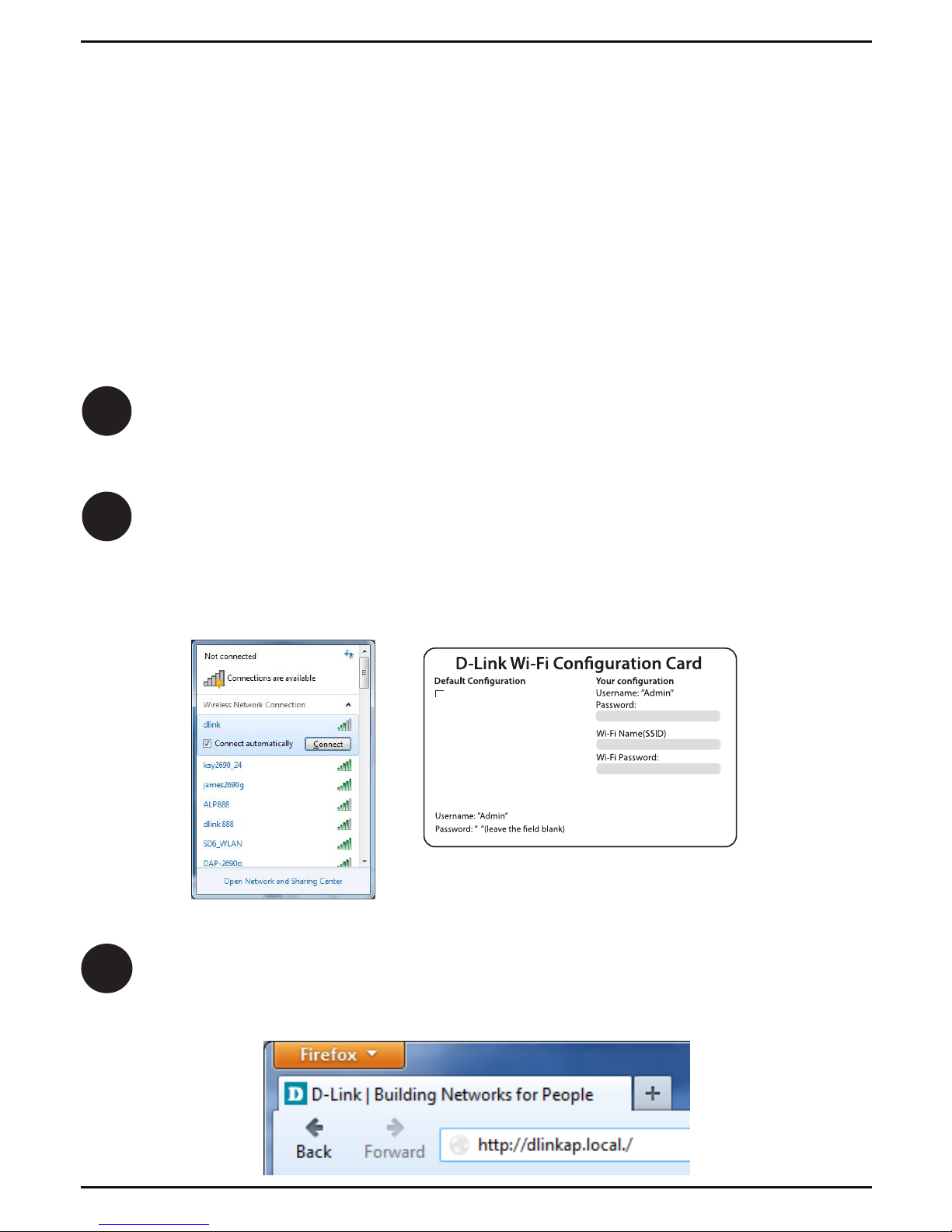

Open the wireless utility on your wireless device or computer. Select the Wi-Fi
Network name (from the Wi-Fi Conguration Card) and enter the password. You
may also connect the DAP-1330 to your router or computer using an Ethernet
cable.
2
You may log into the web-based conguration utility on the DAP-1330 to perform the
following tasks:
• Upgrade rmware
• Change wireless and network settings
• Change the login password
1Plug the DAP-1330 in an available outlet near your router. You may move it to a
more suitable location after conguration.
Open a web browser (e.g., Internet Explorer, Firefox, Safari, or Chrome) and enter
http://dlinkap.local./. You may also enter the IP address of the DAP-1330.
3
8DAP-1330 Install Guide
Once you connect, the login page will appear. Enter your password and click
Log in. By default the password is blank.
Note: If this is the rst time logging in to the DAP-1330, you will be directed to the
Wizard automatically. Skip to step 6.
4
Note: The default IP address is 192.168.0.50. Once the DAP-1330 connects to your
router, it will get assigned a new IP address based on your router/network’s DHCP
settings. You will need to log in to your router and view the DHCP table to see what
IP address was assigned to the DAP-1330. The MAC address is printed on the label
on the device.
The home page will display your current status. A green check mark represents
a successful connection to your wireless router or Access Point (AP). A red X
means there is not a connection to your router or access point. Click the Uplink
Router icon.
5
DAP-1330 Install Guide 9
Select your language from the drop-down menu and then click Next.
6
The WPS process will be started on the DAP-1330 automatically. Press the WPS
button on your wireless router or access point.
If you want to manually select the wireless network you want to extend, click
Extend an existing wireless network and go to the next page. If you want to
connect the DAP-1330 to a wired network using an Ethernet cable, click Add
wireless to your wired network and skip to page 11.
7
10 DAP-1330 Install Guide
A list of detected wireless networks within range of the DAP-1330 will appear.
Click on the network you want to extend. If you want to manually type in the
Wi-Fi network name (SSID), click Manual at the bottom.
8
If your wireless network is secure/encrypted, enter the Wi-Fi password and
click Next to continue.
9
If you clicked“Extend an existing wireless network”
If you clicked Manual, enter the SSID and security information (Wi-Fi password)
of the wireless network you want to extend and click Next to continue.
Skip to page 12 to continue
