D-Link PowerLine DHP-302 User manual

2D-Link DHP-302 User Manual

Table of Contents

Product Overview ........................................................ 3

Package Contents ................................................... 3

System Requirements ............................................. 3

Introduction..............................................................4

Features .................................................................. 4

Hardware Overview ................................................. 5

LEDs ..................................................................5

Connection......................................................... 6

Hardware Installation .................................................. 7

Push Button Security ...............................................8

Using the Setup Wizard ............................................ 11

Conguration............................................................. 13

Setup ..................................................................... 15

Security.................................................................. 17

Application QoS ..................................................... 18

Advanced QoS ...................................................... 19

Reset ..................................................................... 20

Troubleshooting ........................................................ 21

Technical Specications........................................... 22

Table of Contents

3D-Link DHP-302 User Manual

Section 1 - Product Overview

• D-Link DHP-302 Powerline HD Ethernet Adapter

• CAT5 Ethernet Cable

• CD-ROM with Software and Manual

• Quick Installation Guide

System Requirements

• Windows Vista®, XP (with Service Pack 2) or 2000 (with Service Pack 4)

• PC with 233MHz Processor, 64MB Memory

• Ethernet Adapter (100MBit/s)

Product Overview

Package Contents

4D-Link DHP-302 User Manual

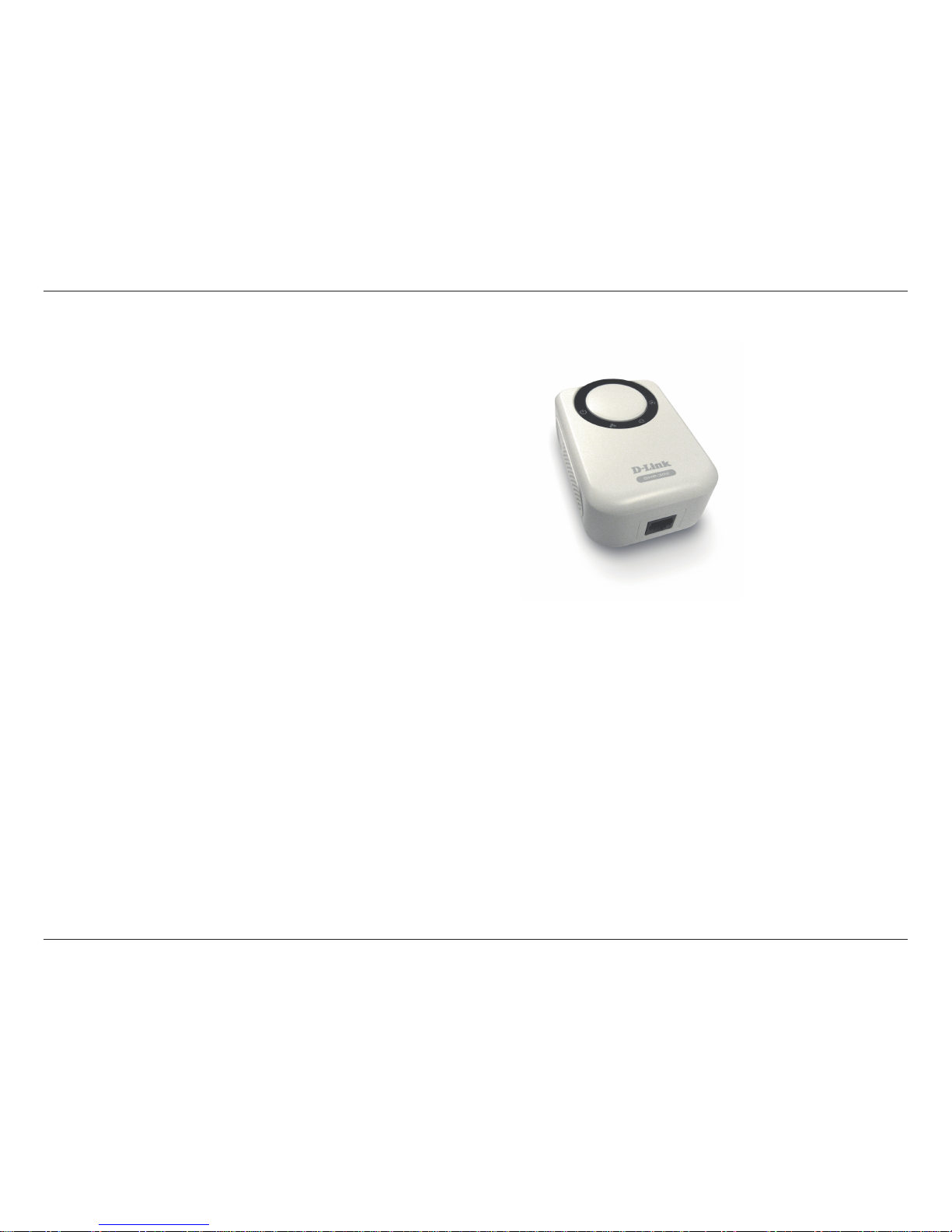

Section 1 - Product Overview

Introduction

D-Link announces a fast, 200Mbps Powerline HD Ethernet Adapter which allows you to network your home computers,

networking devices and gaming devices through the most pervasive medium in your house - the electric powerlines

- and share Internet connections, printers, transfer les, play games, and more. This kit can be used to network two

computers with a 10/100Base-T adapter through powerlines.

Features

• Provides Ethernet to Powerline Connection

• Fast Data Transfer Rate of Up to 200Mbps

• One 10/100 Ethernet port

• Plug & Play, Easy Installation

• Easy to use Management Software

• Congurable QoS for video streaming, VoIP and Gaming

• Congurable encryption key for security

• Firmware Upgrade Support

• Push button security

• Throughput LED

• Power Saving

• LLTD Support

5D-Link DHP-302 User Manual

Section 1 - Product Overview

Hardware Overview

LEDs

Power LED

A solid light indicates that the

device is receiving power.

Throughput LED

A solid green light indicates that the master device has detected another

Powerline device on the network.

Green LED: Power Line speed > 20Mbps (non master unit)

Amber LED: Power Line speed < 20Mbps or > 6Mbps (non master unit)

Red LED: Power Line speed < 6Mbps or link is down. (non master unit)

Ethernet LED

A solid light indicates a connection on

the Ethernet port. The LED blinks during

data transmission.

AP LED

A solid light indicates that the device

is the master unit in the powerline

network.

6D-Link DHP-302 User Manual

Section 1 - Product Overview

Hardware Overview

Connection

Ethernet Port

Connect CAT5 Ethernet cable

to the DHP-302 Ethernet port.

Depressable push button

Press to secure your network. Refer

to page 8 for more information.

7D-Link DHP-302 User Manual

Section 2 - Installation

Hardware Installation

Power

Plug in the DHP-302 into an AC wall outlet or power strip.

Note: Power source is conrmed when the green LED Power Indicator on the DHP-302 is illuminated.

Connect the Ethernet Cable

Connect the included Ethernet cable to the network cable connector located on the DHP-302 and attach the

other end of the Ethernet cable to the network or PC. Network Connectivity is conrmed when the green LED

Indicator on the DHP-302 located left of the Power LED is illuminated.

8D-Link DHP-302 User Manual

Section 2 - Installation

Plug in all the adapters to be congured.

Note: It is strongly recommended to designate the local adapter as the one that is directly connected to your router.This local adapter will act

as the security key master in the network. Each additional adapter you proceed to add afterwards will be referred to as a ‘remote’ adapter.

Local adapter

Press and hold the push button down until the local adapter AP LED begins to ash. Wait until the AP LED stops ashing (up to 30

seconds). At this point the local adapter is now assigned as the master adapter in your network.

To proceed securing the remote adapters follow the 3-step process below

Push Button Security

Press and hold the button

Local Adapter Local Adapter

9D-Link DHP-302 User Manual

Section 2 - Installation

1. Local adapter

Begin by pressing the push button until its AP LED starts to ash. During this ashing phase the adapter is actively waiting for other

adapters to sync

2. Remote (additional) adapters

Push the button on the remote adapter until the AP LED begins ashing. (It is important to ensure the local adapter AP LED is still in the

ashing state while you do this).

Local Adapter

Remote Adapter

Press and hold the button

10D-Link DHP-302 User Manual

Section 2 - Installation

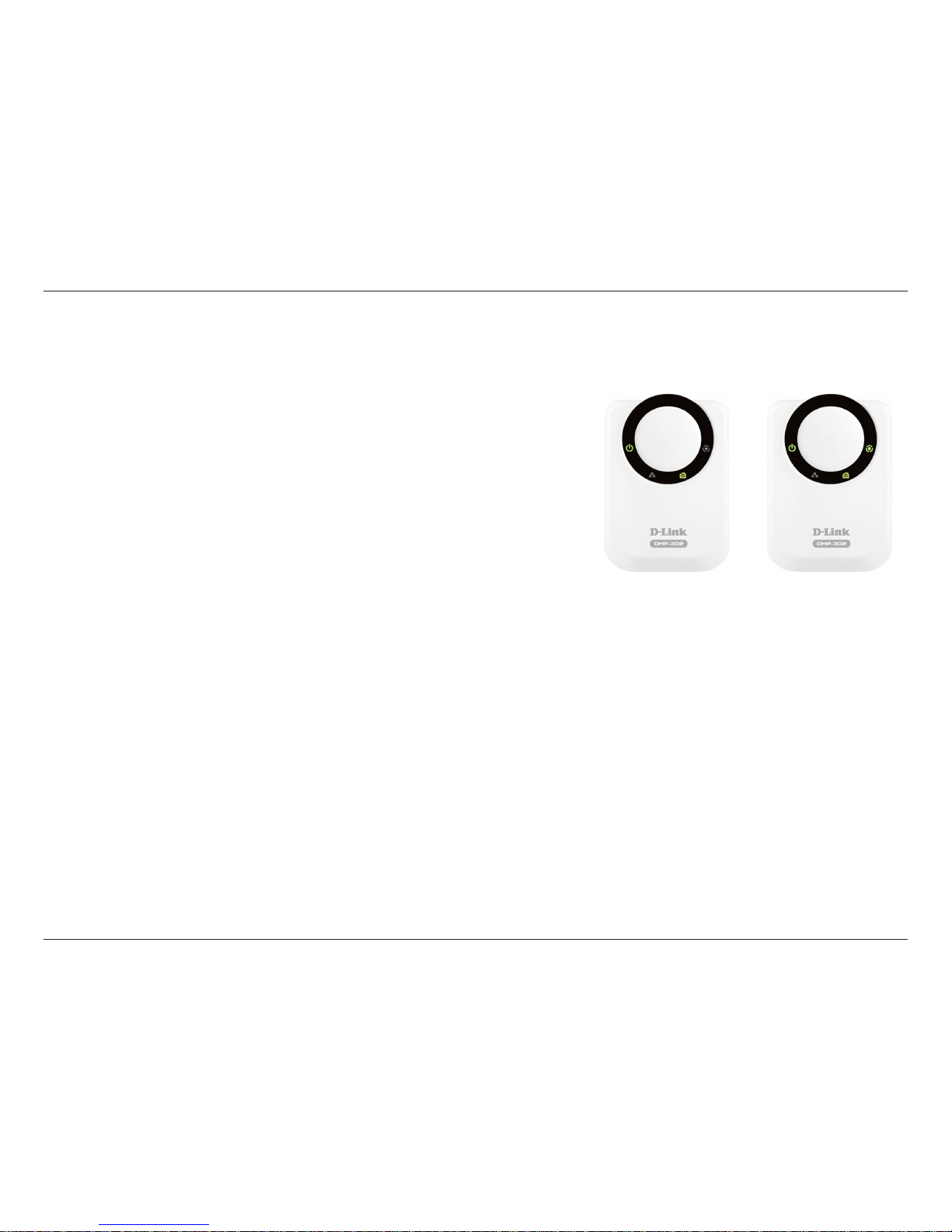

3. Synchronization complete

After a few seconds, successful synchronization should occur. This is visible when the remote adapter’s AP LED switches off indicating

that it is securely congured. The local adapter AP LED however, will continue to remain solidly lit and the throughput LED should turn

Green.

Note: When adding more adapters, repeat steps 1 to 3. At the end of this process, only the local adapter should have the AP LED lit.

Also, the adapters will keep their security settings even after the power is removed from the units. To reset / switch-off any adapter security

back to default: Depress and hold (up to 15 seconds) the push button until the AP LED turns off. This will reset the unit back to the factory

default settings

Remote Adapter Local Adapter
