D-Link DWL-P100 User manual

DWL-P100

Power-Over-Ethernet Adapters

Manual

IntroductionIntroduction

About Power Over Ethernet (POE)

The DWL-P100 Power Over Ethernet (POE) Adapters are design to supply

operational power to a Wireless Access Point. These Power Over Ethernet

Adapters give users the ability to mount an Access Point virtually anywhere

in a building no matter where the power outlet is located such as ceilings,

attics, or roofs. It eliminates the need to use an AC-DC power supply at the

Access Point making the setup more convenient. D-Link’s DWL-P100 Power

Over Ethernet Adapters take advantage of the unused cable pairs within

Ethernet Cat 5 cabling. The Base Unit inserts DC voltage into the unused

wires therefore allowing the single Category 5 cable to carry both Ethernet

data and DC power to an Access Point. The POE Terminal Unit splits the data

and DC power apart, which is then supplied to the Access Point.

Contents of PackageContents of Package

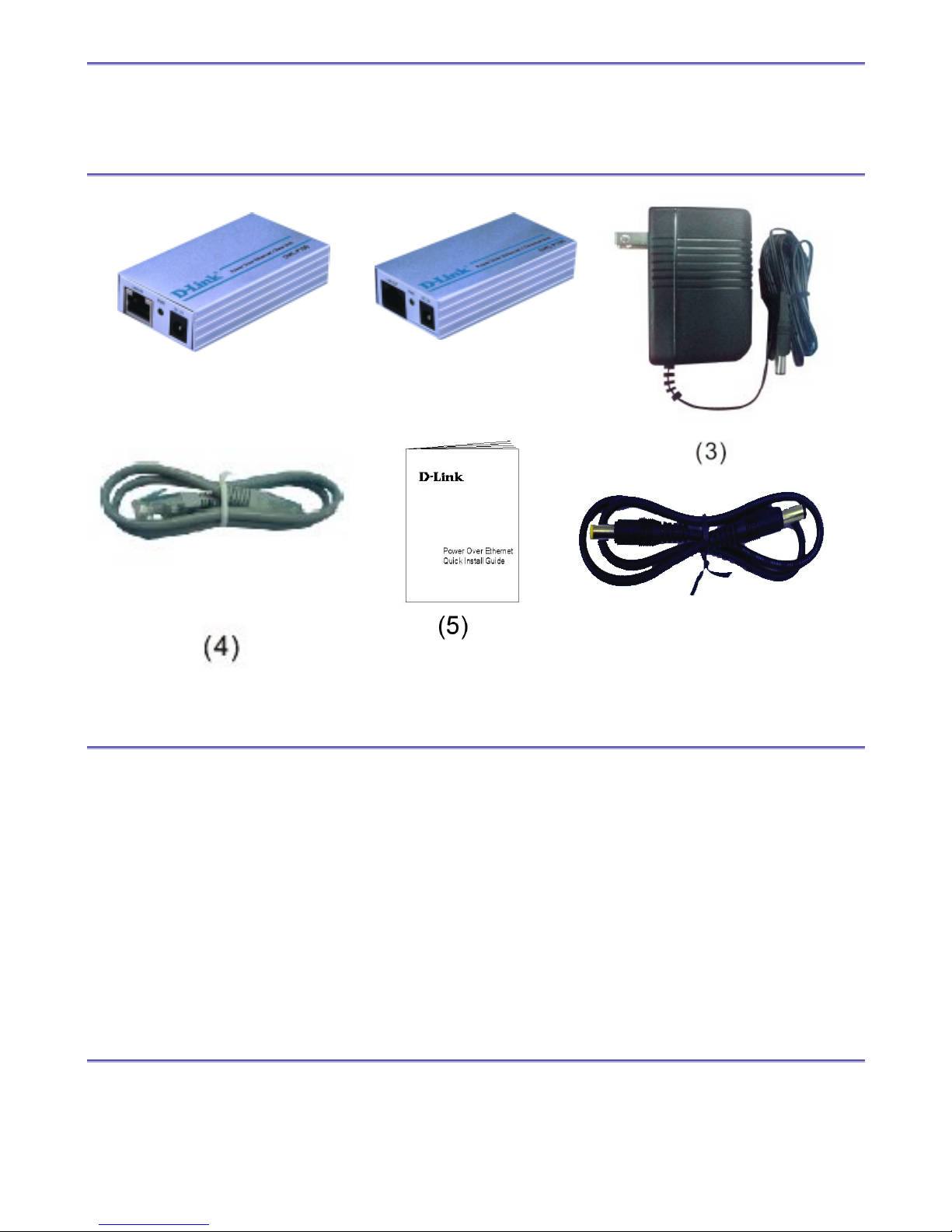

(1) (2)

(6)

1. D-Link Power Over Ethernet / Base Unit

2. D-Link Power Over Ethernet / Terminal Unit

3. AC/DC power Adapter

4. Ethernet Cable

5. Quick Installation Guide

6. DC Power cable

The DThe D--Link DWLLink DWL--P100P100

The DWL-P100 includes two modules:

•Power Over Ethernet / Base Unit

•Power Over Ethernet / Terminal Unit

The Base Power Over Ethernet module plugs into the wall AC outlet and also

connects to the wired hub. This will supply both low-voltage DC power and

data over the existing Category 5 cabling. The Terminal Power Over

Ethernet module separates the DC power and data, and connects conveniently

to the Wireless Access Point.

FeaturesFeatures

§Provides DC power over existing Category 5 cabling to Access Points

§Transforms incoming AC power into low-voltage DC power

§Base and Terminal Power Over Ethernet modules powers any Wireless

Access Point requiring 5V/1A DC input

§Protects Access Point from possible damages due to power-surges

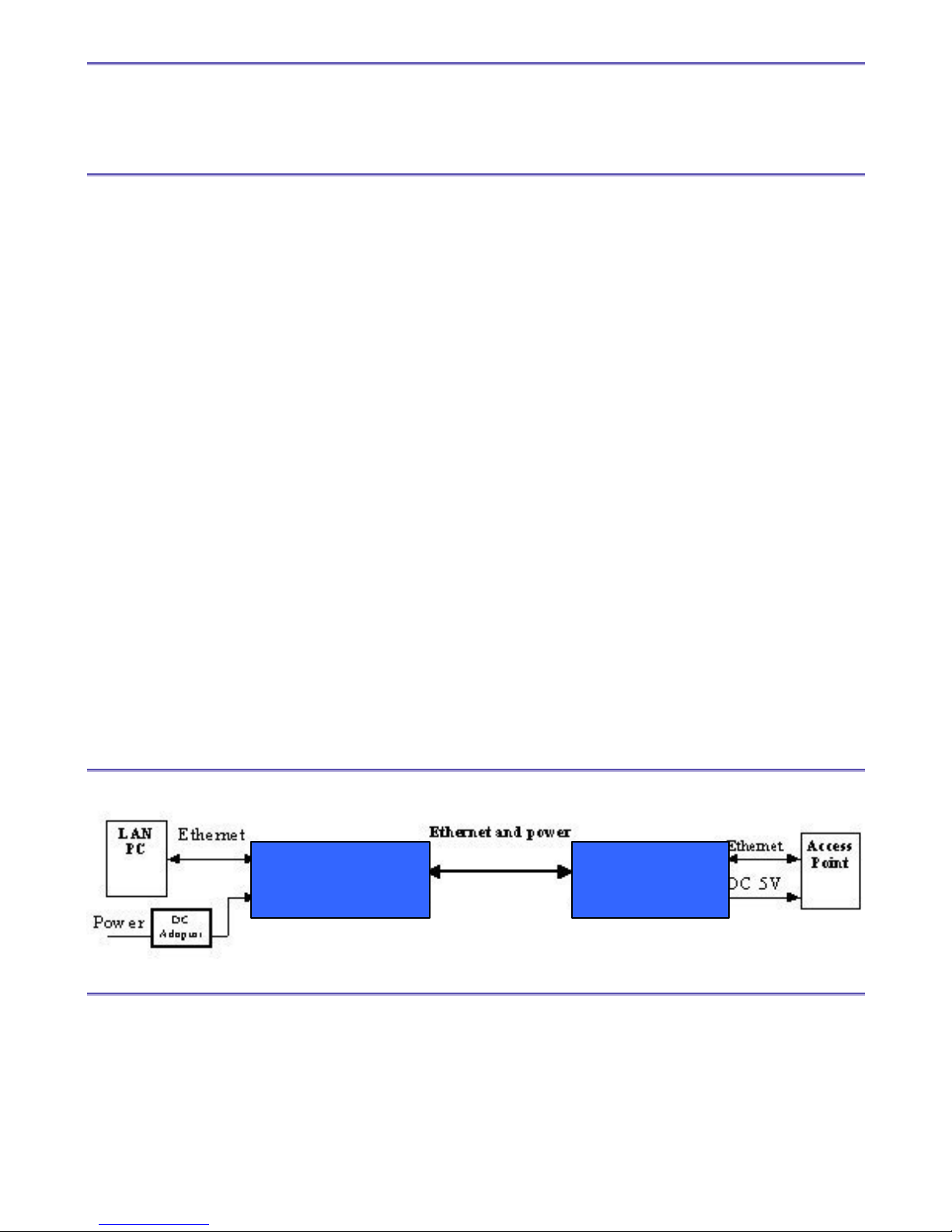

Connection ArchitectureConnection Architecture

SpecificationsSpecifications

§Category 5 pin power usages: 4/5 , 7/8

§Output Voltage 5VDC/1A (Terminal side)

§Ethernet Connector: RJ-45

§Ethernet Data Rate: 10/100 Mbps

§Number of AP’s it can power: 1

§Ethernet Data Cable: TIA/EIA-568, Category 5 Cable

§Device Weight (pair): 0.269 lbs

§Dimensions: 3.15in x 1.73in

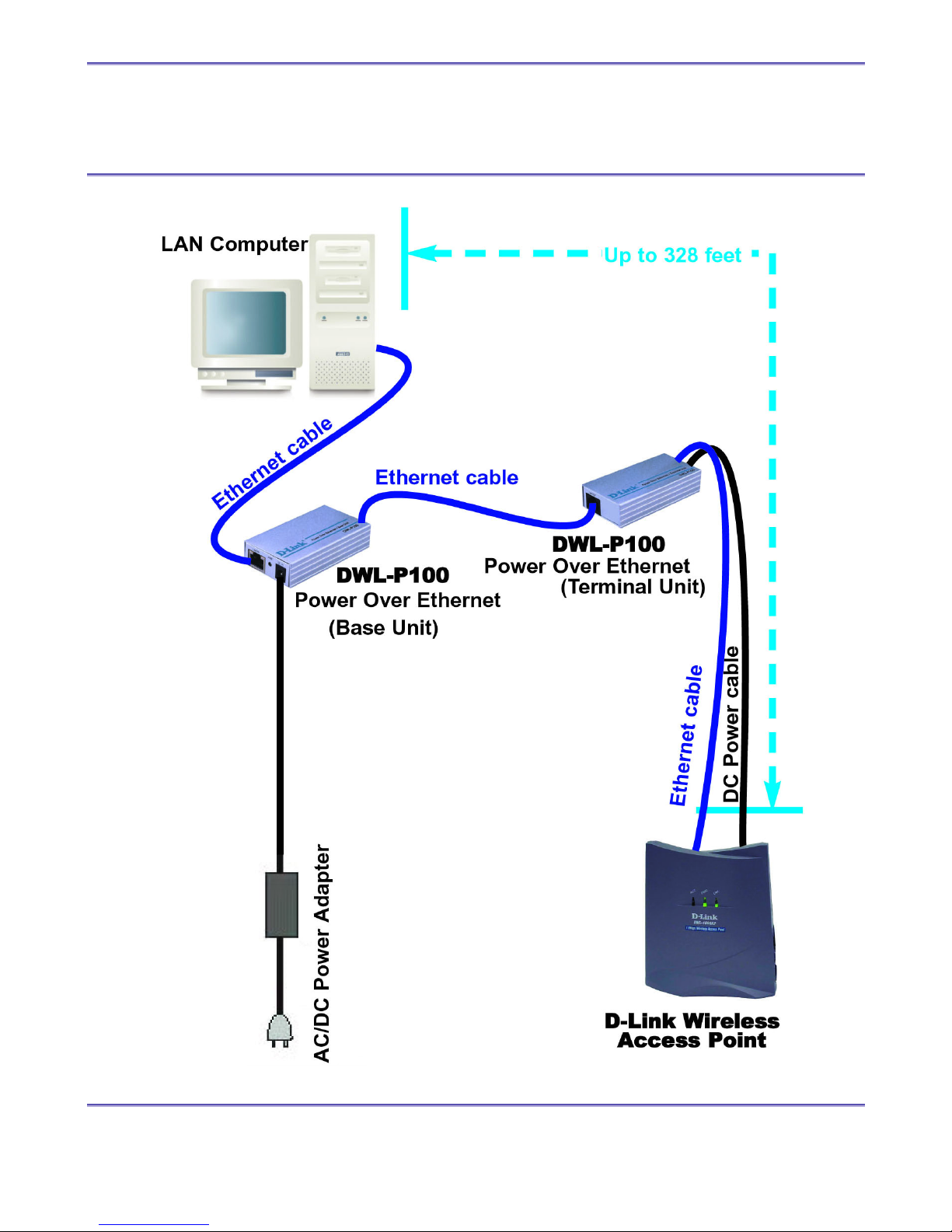

Hardware InstallationHardware Installation

1. Connect the cable from the PC/Hub/Switch to the Base Unit “LAN IN”

2. Connect the Power Adapter to the Base Unit “DC 15V IN.” The green

PWR LED on the Base Unit should light up.

3. Connect the cable from the Base Unit “LAN OUT” to the “LAN IN” of

the Terminal Unit. (max cable length up to 328ft/100m, as defined by

IEEE 802.3)

4. Connect an Ethernet cable from the Terminal Unit “LAN OUT” to the

LAN port of the Wireless Access Point (AP).

5. Connect the “DC 5V OUT” from the Terminal Unit to the DC 5V input

port of the AP using the power cable provided. The green PWR LED of

the Terminal Unit should light up.

6. Operate the Wireless Access Point normally.

Contacting Technical SupportContacting Technical Support

You can find the most recent software and user documentation on the

D-Link website.

D-Link provides free technical support for customers within the United

States for the duration of the warranty period on this product.

U.S. customers can contact D-Link technical support through our web site,

e-mail, or by phone.

United States technical support is available Monday through Friday from

6:00 a.m. to 6:00 p.m. (PST.)

Web:http://www.support.dlink.com

Email:[email protected]

Phone:949-790-5290

If you are a customer residing outside of the United States, please refer to

the list of D-Link locations that is included in this manual.
