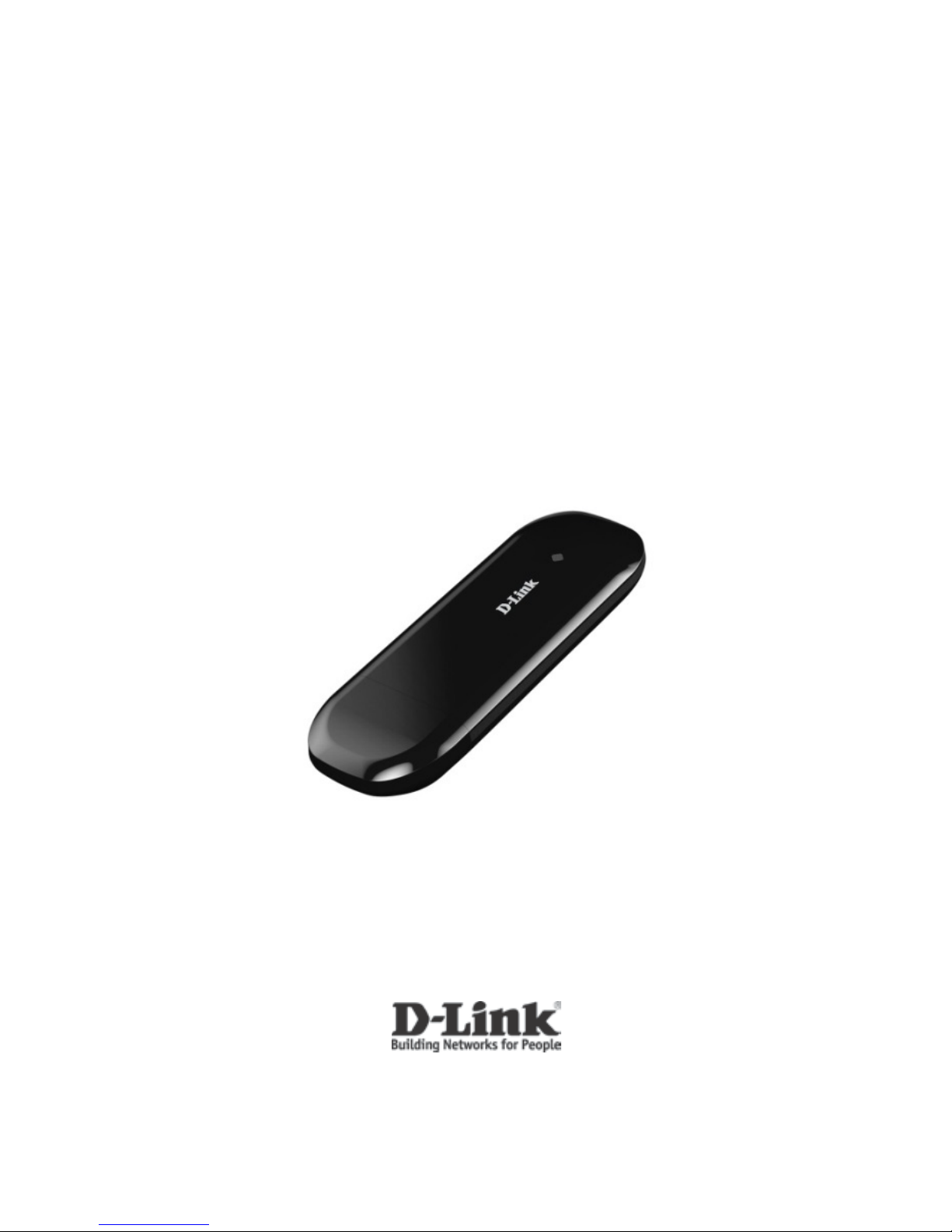

D-Link DWM-221 User manual

DWM-221

User Manual

2014/07/07

Ver. 1.00(EU)

Index

LTE USB Adapter Introduction .......................................2

Internet service ..............................................................5

SMS service ....................................................................6

Contacts .......................................................................10

USSD.............................................................................13

STATISTICS....................................................................14

Settings ........................................................................15

FAQs .............................................................................19

Technical Specifications ...............................................20

LTE USB ADAPTER INTRODUCTION

1. To launch the Network Connect, double-click the shortcut icon

on the desktop. It should be noted that:

If the PIN code enabled, enter the correct one, then click OK.

The (U)SIM will be locked after three retries of incorrect PIN

code inputting;

Enter the correct PUK to retrieve the default PIN code. After

ten retries of incorrect PUK code inputting, please contact with

your service provider;

With the wrong PIN and PUK, all the network services are

unavailable.

2. Main interface introduction

: Connection

: Access to the Text Message

: Access to the Phonebook interface

: Access to USSD

: Access to check usage statistics

: Set parameters options

: Help (User Manual)

3. Status information

Status Description

New message New message(s) arrived.

Message full Indicates the (U)SIM’s storage of SMS

No device Indicates that system cannot find the

device.

Initializing Indicates that the device is in the process

Searching The device is searching for the network.

No service No suitable network.

No (U)SIM card (U)SIM card not inserted or the device

Invalid (U)SIM card The (U)SIM is out of service.

Network signal

Indicate the signal strength of

Network type

GSM/GPRS, UMTS, LTE

Data service

EDGE available, HSPA

4. LED Indicator description

State of LED indicator Description

RED Solid On No SIM card/ Error

Green Solid On Register to network (not connect)

Green blinking Connected to network

*Green blinking: Flash once every 0.5 seconds)

INTERNET SERVICE

1. Connecting with the default connection profile

Click to set up the connection;

2. Statistics information

The following window will be displayed at lower right corner of

main interface when connecting to the internet.

3. Disconnect from the internet

Click to disconnect the internet

connection.

SMS SERVICE

Click to enter SMS (Short Message Service) service interface.

1. Creating and sending a message.

Click :

Input the recipient number by one of the following

options:

Enter the number directly;

Click Send to, choose the recipient number from

the phonebook and add to the sending list , then

click OK.

Enter the message content;

Click Send or Save to Draft. The message will be saved in

the Draft when failed to send.

Note:

You can group send a message at most 100

recipients;

Each number should be separated by “,”;

The message cannot expand 2,048 characters at most.

2. Inbox

The following prompt box will be displayed when

received a new message;

Reply : Access the edit interface, write the content,

click Send or Save to Draft;

Forward : Forward the selected message;

Delete : Delete the selected message.

Note:

The new message will be saved in PC when LTE Connect

running only, else in (U)SIM instead;

You can use “Shift” or “Ctrl” to selected several

messages;

3. Outbox

The message in the Outbox can be deleted or forwarded.

4. Draft

The MSG sent unsuccessfully will be saved in the Draft .

Click the selected message;

Confirm the recipient and the content, and click Send or

Save to Draft.

5. Recycle

All deleted information will be saved in the Recycle.

6. The selected SMS can be operated as follows:

Save number:

To save the sender’s information to the (U)SIM card or

PC.

Delete text message: To delete the selected message.

Move to:

To move the selected message to Outbox or Draft.

Copy to:

To copy the selected message to Outbox or Draft.

SMS Export

Right-click the selected the message;

Click SMS Export ;

Specify the path and the file name, and click Save.

Note: The exported message will be saved as a *.csv file.
