D-Link Express EtherNetwork DNS-120 User manual

DWL-AG700AP Install Guide

Version 1.1

DNS-120

Network Storage Adapter

2 D-Link Systems, Inc.

DNS-120 Install GuideSystem Requirements

System Requirements

Computer with Windows XP or 2000 with an installed

Ethernet Adapter

Internet Explorer 6.0 or Netscape Navigator 7.0 and above

USB Hard Drive

Manual and Software

on CD

Package Contents

D-Link DNS-120

Wireless Storage Adapter

Ethernet Cable 5V 2.5A Power Supply

D-Link Systems, Inc. 3

DNS-120 Install Guide Hardware Overview

Front Panel

Solid green indicates an

Ethernet connection. Blinking

green indicates activity on the

Ethernet network.

Ethernet LED

Solid green indicates

a good power source

connection.

Power LED

Blinking green indicates when the

USB drive is initially connected to the

DNS-120. Solid green indicates the

USB drive is ready for use.

USB LED

4D-Link Systems, Inc.

DNS-120 Install GuideHardware Overview

Rear Panel

Press this button to safely

disconnect USB drives from

the DNS-120.

Disconnect Button

Connects to your router or

switch using the included

Ethernet cable.

Ethernet Port

Receptor for the provided

power adapter.

Power Receptor

This button will restore the

factory default settings.

Reset Button

Connects your USB 1.1 or

2.0 drives to the DNS-120.

USB Ports

D-Link Systems, Inc. 5

DNS-120 Install Guide Installation Overview

Installation Overview

Once you’ve completed your DNS-120 installation, your network

may appear similar to the diagram below.

6D-Link Systems, Inc.

DNS-120 Install GuideHardware Installation

Installing the Hardware

Attach the provided Ethernet cable to the Ethernet port on the rear panel.

Attach the other end of the Ethernet cable to an available Ethernet port on

your router or switch.

Plug the AC adapter into the receptor located on the back of the DNS-120.

Plug the other end of the AC Adapter into a power strip or wall outlet.

4Attach your USB drive(s) to the USB port(s) located on the rear panel of

the DNS-120. The USB LED on the front panel will blink until the drive has

been installed. Once the USB LED is solid green, your USB drive is ready

for use.

D-Link Systems, Inc. 7

DNS-120 Install Guide Conﬁ guration

To access the web-based conﬁ guration, insert the DNS-120 CD into

your CD-ROM drive.

Conﬁ guration

Type admin for the

user name and leave

the password ﬁ eld

blank.

Click Conﬁ g

Click Launch D-Link

Easy Search Utility.

Highlight an available

DNS-120 and click

Conﬁ guration to access

the web-based utility.

8D-Link Systems, Inc.

DNS-120 Install GuideConﬁ guration

Click Run Wizard.

Click Next.

Enter your new password for

the DNS-120.

Click Next.

Conﬁ guration (continued)

D-Link Systems, Inc. 9

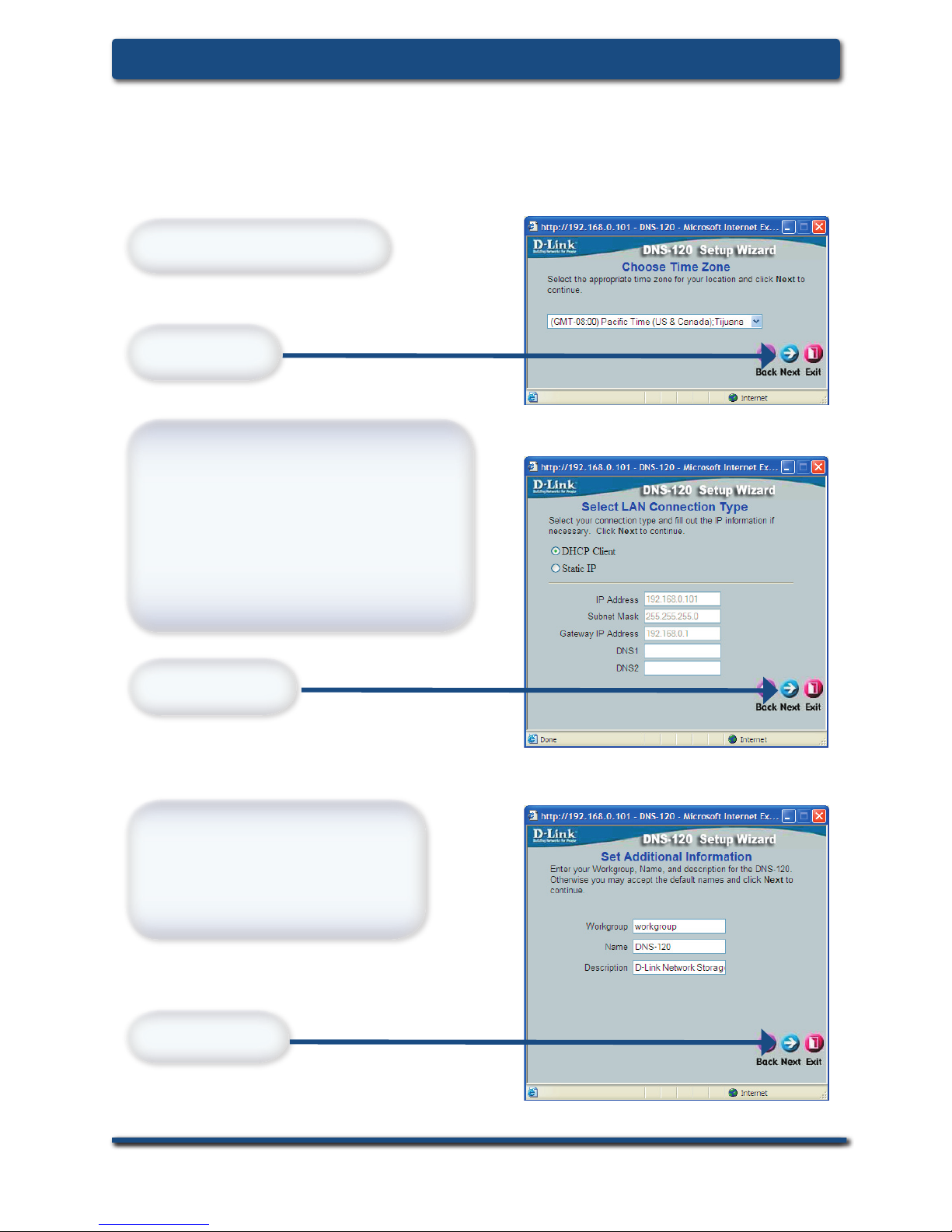

DNS-120 Install Guide Conﬁ guration

Enter the workgroup name

of your network. Enter a

name and a description for

the DNS-120.

Conﬁ guration (continued)

Click Next.

Leave DHCP Client enabled if

your network contains a DHCP

server. If not, select Static IP and

enter the IP address information

to be used. The IP address must

be in the same range as your

network.

Click Next.

Select your Time Zone.

10 D-Link Systems, Inc.

DNS-120 Install GuideConﬁ guration

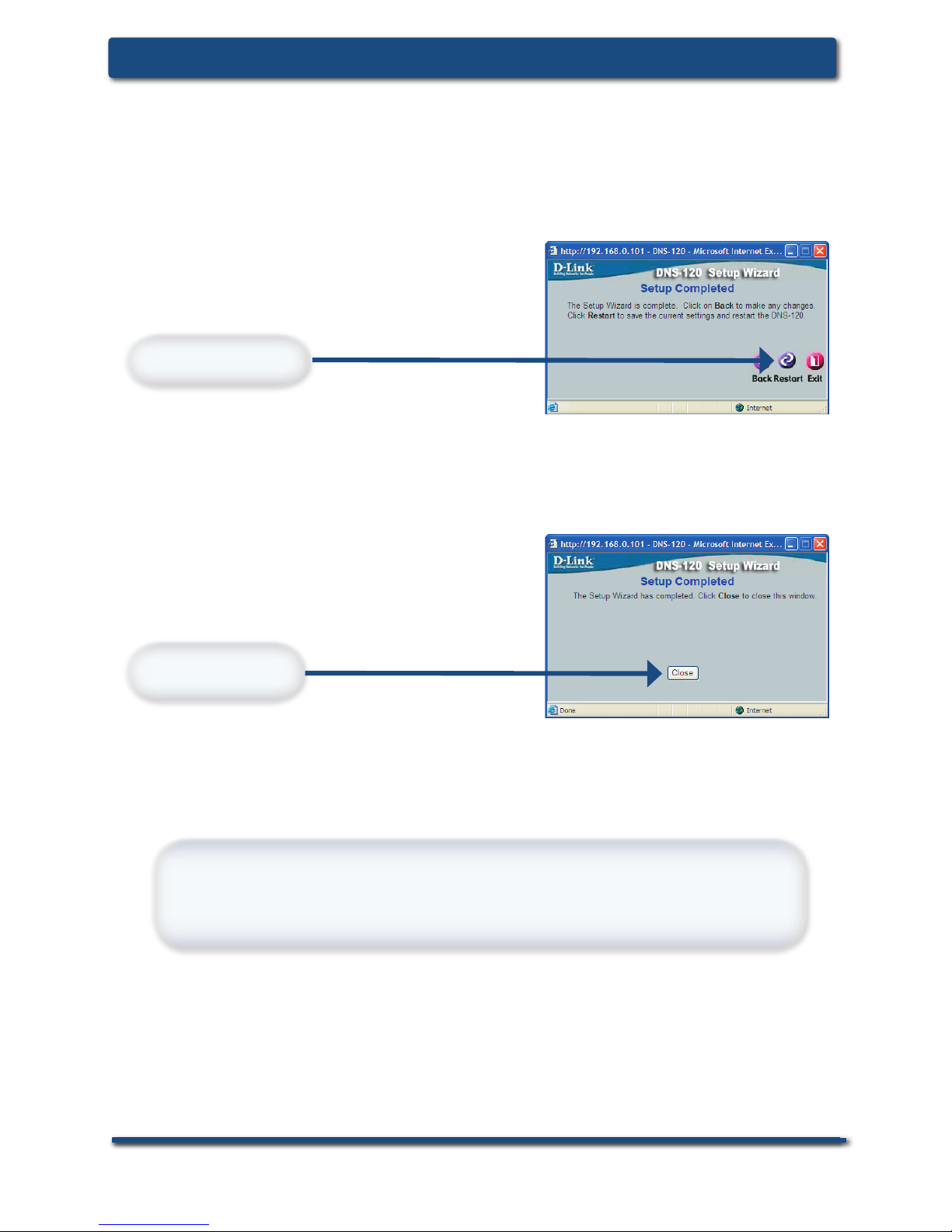

Your setup is complete. Please close all web browser windows.

Use the Easy Search Utility to locate and continue advanced

conﬁ guration of the DNS-120.

Conﬁ guration (continued)

Click Close.

Click Restart.
