D-Link DWL-G820 - AirPlus Xtreme G User manual
DWL-AG700AP Install Guide
Version 2.0
DWL-G820
Wireless 108G Gaming/Bridge Adapter
2 D-Link Systems, Inc.
DWL-G820 Install GuideSystem Requirements
Manual and Warranty on CD
D-Link DWL-G820
Wireless 108G
Gaming/Bridge Adapter
Package Contents
System Requirements
An Ethernet-Enabled Game Console
A Wireless Router or Access Point
A Broadband Internet Connection
A Computer with an Ethernet Adapter
Xbox® Live™ users must have the necessary Xbox®
Live™ equipment and an account.
Cat5 UTP Ethernet Cable
5VDC 2A Power Adapter
Quick Install Guide
If any of the above items are missing, please contact your reseller.
Your DWL-G820 purchase includes the following items:
D-Link Systems, Inc. 3
DWL-G820 Install Guide Hardware Overview

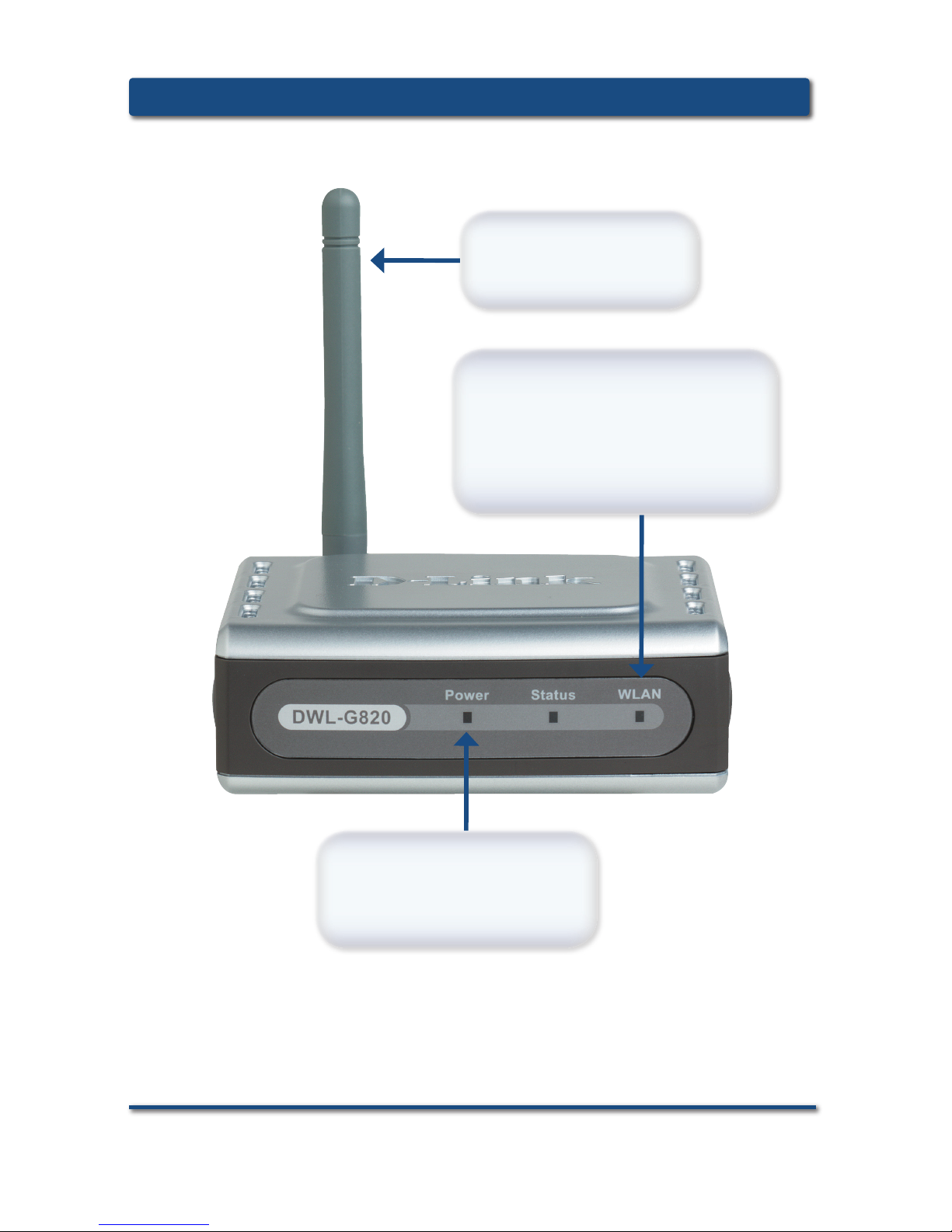

Hardware Overview
A steady light indicates
a proper connection to a
power source.
Power LED
A steady light indicates a wireless
connection. A blinking light
indicates that the DWL-G820 is
receiving/transmitting from/to the
wireless network.
WLAN LED
Note: The status light is currently inactive.
Wirelessly connect to
Wi-Fi networks*.
Antenna
* Maximum wireless signal rate derived from IEEE Standard 802.11g specifi cations. Actual data
throughput will vary. Network conditions and environmental factors, including volume of network
traffi c, building materials and construction, and network overhead, lower actual data throughput
rate.
4D-Link Systems, Inc.
DWL-G820 Install GuideHardware Overview
Hardware Overview
This button will restore the
factory default settings of the
DWL-G820.
Reset Button
Receptor for the provided
power adapter.
Power Receptor
LAN Port
Connects to the gaming
console using a standard
Ethernet cable.
D-Link Systems, Inc. 5
DWL-G820 Install Guide Hardware Overview
After completing the installation, your DWL-G820 setup should look
similar to the diagram below:
6D-Link Systems, Inc.
DWL-G820 Install GuideHardware Installation
The Ethernet port on the DWL-G820 is Auto MDI/MDI-X.
Meaning you can use a straight-through or crossover cable to
the Ethernet Port.
A. Connect the power adapter to the Power Receptor on the rear
panel of the DWL-G820 and then plug the other end to a wall
outlet or power strip. The power LED will turn on to indicate
proper operation.
Installing the DWL-G820
If you do not have a D-Link® Wireless Router or Access Point
that is using the default SSID and channel settings, please
complete the steps in section Using the Setup Wizard before
proceeding.
B. Insert one end of the Ethernet cable (included) to the Ethernet
port on the rear panel.
D-Link Systems, Inc. 7
DWL-G820 Install Guide Hardware Installation
C. Connect the other end to the Ethernet port located on your gaming
console. The LED light will blink when data is transferred through
the wireless connection.
Xbox®
PlayStation® 2
Xbox® Live™ is a fee-based
subscription service, you must
have an Xbox® Live™ account
and any required equipment to
connect.
Most PlayStation® 2 units do
not have a built-in Ethernet
connection and will require an
optional Network Adapter kit.
New systems will come with a
built-in adapter.
GameCube™ does not have a
built-in Ethernet connection.
You must have an optional
Broadband Adapter kit.
GameCube™
8D-Link Systems, Inc.
DWL-G820 Install GuideUsing the Setup Wizard
The log-in pop-up screen
will appear.
Type admin for the user
name and leave the
password fi eld blank.
Connect a standard Ethernet cable from the DWL-G820 to an Ethernet
port on the computer that will be used to confi gure the DWL-G820.
You must assign your computer a static IP address within the same
range as the IP address of the DWL-G820. The DWL-G820’s default
IP address is 192.168.0.35 with a Subnet Mask of 255.255.255.0. See
the Appendix if you need assistance in assigning a static IP address
for your network adapter.
Open your Web browser and
type http://192.168.0.35 into
the URL address box. Then
press the Enter or Return key.
D-Link® Wireless Router/Access Point Users: If you are using the
default SSID and channel settings, the DWL-G820 will connect right out
of the box. No confi guration is needed! Simply connect the hardware
as shown on pages 6-7.
The DWL-G820 must be connected directly to your computer for
confi guration. You cannot confi gure this device if it is connected
to a hub or router.
Click OK.
D-Link Systems, Inc. 9
DWL-G820 Install Guide Using the Setup Wizard
Once you have logged in, the Home screen will appear.
Click Run Wizard.
Click Next.
Enter a new password.
Click Next.
Click Next.
Enter the SSID and Channel
(ad-hoc mode only) of your
wireless network. You may click
Site Survey and select the
wireless network you would like
to connect to.
10 D-Link Systems, Inc.
DWL-G820 Install GuideUsing the Setup Wizard
You have completed the confi guration of the DWL-G820! Complete
the hardware installation steps on pages 6-7 to complete your
DWL-G820 setup.
Click Next.
Enter the security settings
of your wireless network
(if any).
Click Restart.
If you selected WEP, enter the
encryption settings.
If you selected WPA-PSK,
enter the WPA passphrase.
Click Next.
Click Next.
