D-Link Express EtherNetwork DNS-120 User manual

DNS-120

Express EtherNetwork™

USB to Ethernet

Network Storage Adapter

5V 2.5ADC PowerAdapter

BefBef

Beforor

oror

ore Ye Y

e Ye Y

e You Beginou Begin

ou Beginou Begin

ou Begin

ChCh

Check Yeck Y

eck Yeck Y

eck Your Pour P

our Pour P

our Packack

ackack

ackagag

agag

age Cone Con

e Cone Con

e Contenten

tenten

tentsts

tsts

DNS-120 Express EtherNetwork™USB to Ethernet

Network Storage Adapter

CD-ROM with Manual and Software

Ethernet (CAT5 UTP) Cable

If any of the above items are missing, please contact your reseller.

Using a power supply

with a different voltage

ratingwilldamageand voidthe

warrantyofthis product.

Softwareandspecificationssubjecttochangewithout notice. DNS-120.009092004

• You must have an Ethernet Network and a USB storage device.

The DNS-120 is DHCP enabled by default. If a DHCP server is not detected on your

network, the DNS-120 will automatically configure itself with a static IP address of

192.168.0.101. Additional IP configuration is necessary if this default IP address is not

withintherangeof your existingnetwork.Please refer to thepage37 of the UserManual

ontheCD-ROM for details.

This product works with the following

operating system software:

Windows XP, Windows 2000,

Windows Me

Hardware OverviewHardware Overview

Hardware Overview

Ethernet Port: Connects to

your router or switch using

theincludedEthernet cable.

Receptorforthe

provided Power

Adapter

Power LED: Solid green

indicates a good power

sourceconnection.

Front Panel

Rear Panel

Ethernet LED: Solid green

indicatesan Ethernetconnection.

Blinkinggreenindicatesactivityon

theEthernetnetwork.

USBLED:TheUSBLEDwillblinkgreenwhen

a USB drive is being connected. When the

USB drive is fully connected the USB LED

willappear solidgreen. TheUSB LEDblinks

redwhenthedriveis beingdisconnected.

USBPorts:Connects

your USB drives to

theDNS-120.

Disconnect button: Press this

button to safely disconnect USB

drivesfrom theDNS-120.

Resetbutton: Thisbutton

will restore the DNS-120

factory default settings.

Hardware InstallationHardware Installation

Hardware Installation

Attach the provided Ethernet

cable to the Ethernet Port on the

rear panel of the DNS-120.

Attach the Power Adapter to the

power receptor on the rear

panel of the DNS-120.

Attach the other end of the

provided Ethernet cable to an

available Ethernet port on your

router or switch.

Attach your USB drive(s) to the

USB port(s) on the rear panel of

the DNS-120.

Configuring the DNS-120Configuring the DNS-120

Configuring the DNS-120

Insert the DNS-120 CD-ROM into

yourCD-ROMdrive.

Click on Launch D-Link

Easy Search Utility

Select the DNS-120

Clickthe Configurationbutton

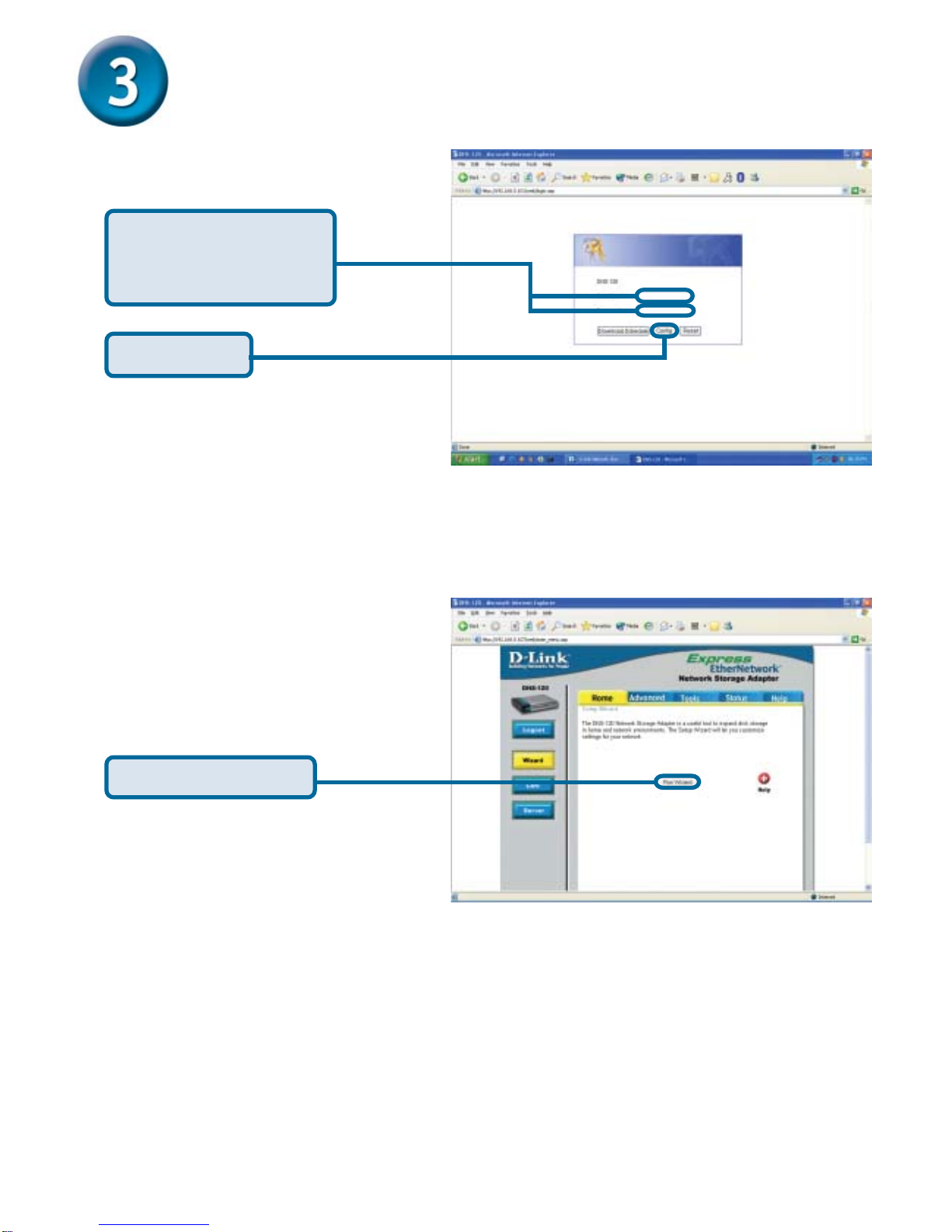

Onceyouhavelogged in, the

Home screen will appear.

Click Run Wizard

Thelogonscreen willappear.

Type adminfortheUser

Name and leave the

Passwordfieldblank.

Click Config

Configuring the DNS-120 (continued)Configuring the DNS-120 (continued)

Configuring the DNS-120 (continued)

Click Next

Set up your new password.

You have the option to

establishapassword.Thereis

nopasswordby default.

Choose your Time Zone.

Select the appropriate time

zonefromthepull-downmenu.

Click Next

You will see the

followingscreen.

Click Next

Configuring the DNS-120 (continued)Configuring the DNS-120 (continued)

Configuring the DNS-120 (continued)

Select LAN Connection Type

Leave DHCP Client enabled if

your network contains a DHCP

server.Ifnot,selectStaticIPand

entertheIP addressinformation

tobe usedforthe DNS-120.The

IP address of the DNS-120

should be in the same range as

yournetwork.

Click Next

ClickRestart

Click Next

TheDNS-120Setup Wizardiscomplete! Pleaseclose allwebbrowser windows.Usethe

Easy Search Utility to locate and continue further configuration of the DNS-120.

Configuring the DNS-120 (continued)Configuring the DNS-120 (continued)

Configuring the DNS-120 (continued)

Set Additional Information

Enter the workgroup name of

your network. Enter a name for

theDNS-120.Enteradescription

forthe DNS-120.

Disconnecting DrivesDisconnecting Drives

Disconnecting Drives

Mapping Drive LettersMapping Drive Letters

Mapping Drive Letters

Launch the D-Link Easy Search Utility as shown on page 4.

Selecttheappropriatefolder

listing.

Select a drive letter to assign.

Click theConnect button.

A message will appear indicating the

success of the operation.

• Press the Disconnect button on the rear panel of the DNS-120.

• The USB LED will flash red for a few seconds and turn off.

• You may now safelyremoveboth USB drives.

NOTE:Both drivesaredisconnected whenthe Disconnectbutton ispressed.Youmust

remove both drives from the USB ports. This is a safety feature to reduce the risk of

dataloss.Afterbothdrives havebeenremoved youmayreconnect adriveat anytime.

Enabling FTP AccessEnabling FTP Access

Enabling FTP Access

Select the DNS-120

Click theConfiguration button

You can enableFTPaccess to allowInternet/Intranetusers FTPaccess tothedrive(s) or

folder(s) that you want to share.

Select the Advanced tab

Select theFTP Server button

Click the Open button

Unlessadditionalprecautionsaretaken,useofanFTPservertoaccessfilesoverthe

Internetdoesnotprovidesecureorencryptedtransmission.Itisrecommendedthat

theenduserutilizeaVirtualPrivateNetwork(VPN)toestablishasecureFTPsession.

Enabling FTP Access (continued)Enabling FTP Access (continued)

Enabling FTP Access (continued)

Select avolumeor folder

Click OK

The FTP Server Status is

displayed at the bottom of

the screen. Scroll down to

confirm the FTP Server has

beenstarted.

Pressapplyto save settings

and start the FTPserver.
