D-Link DUB-E100 User manual

D-Link™ DUB-E100

USB 2.0 Fast Ethernet Adapter

Manual

First Edition (June 2007)

Printed in Taiwan

RECYCLABLE

Table of Contents

INTRODUCTION..............................................................3

System Requirements ......................................................3

Features ...........................................................................3

INSTALLATION ...............................................................4

Unpack and Inspect..........................................................4

Installing the Adapter........................................................4

connecting the network cable………………………………3

software installation………………………………………….4

TROUBLESHOOTING...................................................19

SPECIFICATIONS .........................................................23

Introduction

Thank you for choosing the D-Link DUB-E100. The D-Link DUB-E100 is a Hi-Speed USB 2.0 10/100Mbps

Fast Ethernet Adapter specifically designed to plug into an available Universal Serial Bus (USB) port on a

desktop or laptop PC running Microsoft Windows Vista, XP, Server 2003, 2000,ME 98SE ,Mac OS X, and

Linux. Based on USB 2.0, the DUB-E100 extends the transfer speed of earlier USB Fast Ethernet adapters

to true 10/100Mbps connectivity. Power for the DUB-E100 is provided directly by the USB bus, eliminating

the need for an external power adapter. It also supports USB's energy saving suspend and resume

functions to minimize power consumption, which is especially useful for laptop/notebook users.

System Requirements

Before installing the DUB-E100, check your system for the following minimum configuration requirements.

200MHz or above based computer with a minimum of 32MB RAM

One available USB port

Windows Vista x64/86, XP x32/x64 Edition, Server 2003 x32/x64 Edition, 2000, Me, 98SE, Linux or

Mac OS X

Features

Designed for versatility and performance, the DUB-E100 USB 2.0 Fast Ethernet Adapter provides the

following:

•Compliant with USB 2.0 and USB 1.1 specifications

•Universal Bus support 3.3V

•Compliance with IEEE 802.3u Fast Ethernet standards and IEEE 802.3 Ethernet standards.

•Plug-and-Play installation

•Supports half and full duplex at 10Mbps, half and full-duplex at 100Mbps.

•One built-in RJ-45 connector

•Auto-negotiation to the highest available speed

•Two LED indicators: Link/ TX/RX

•Driver support:

√Microsoft Windows Vista (x86 ,x64) √Linux (kernel 2.6.9~13)

√Microsoft Windows XP (x32/x64 Edition) √Linux (kernel 2.6.14 & above)

√Microsoft Windows Server 2003 (x32/x64

Edition)

√Macintosh OSX (10.x)

√Windows 98SE/ME

√Microsoft Windows 2000

Installation

Unpack and Inspect

Open the shipping carton and carefully remove all items. Ensure that the following items are included:

•One DUB-E100 USB 2.0 Fast Ethernet Adapter

•DUB-E100 Drivers and Manual on CD-ROM

•Quick Installation Guide

If any of these items are missing or damaged, please contact your local reseller for replacement.

Installing the Adapter

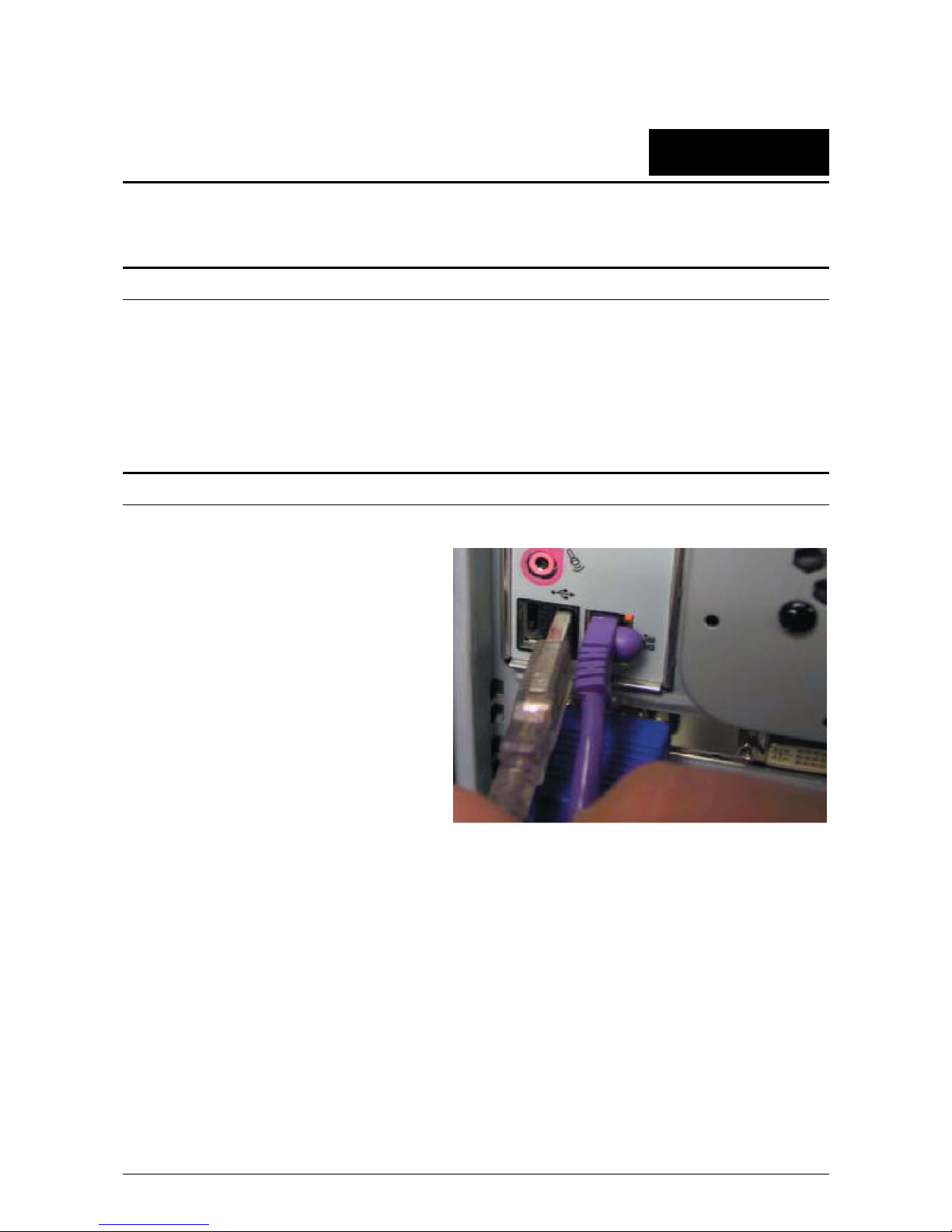

Plug the DUB-E100’s USB cable into an available USB port on your computer.

Windows will detect new hardware and prompt you for the drivers. The installation process varies slightly for

each operating system. Insert the DUB-E100 CD into your CD-ROM drive. Then proceed to the appropriate

installation section on the following pages for your operating system.

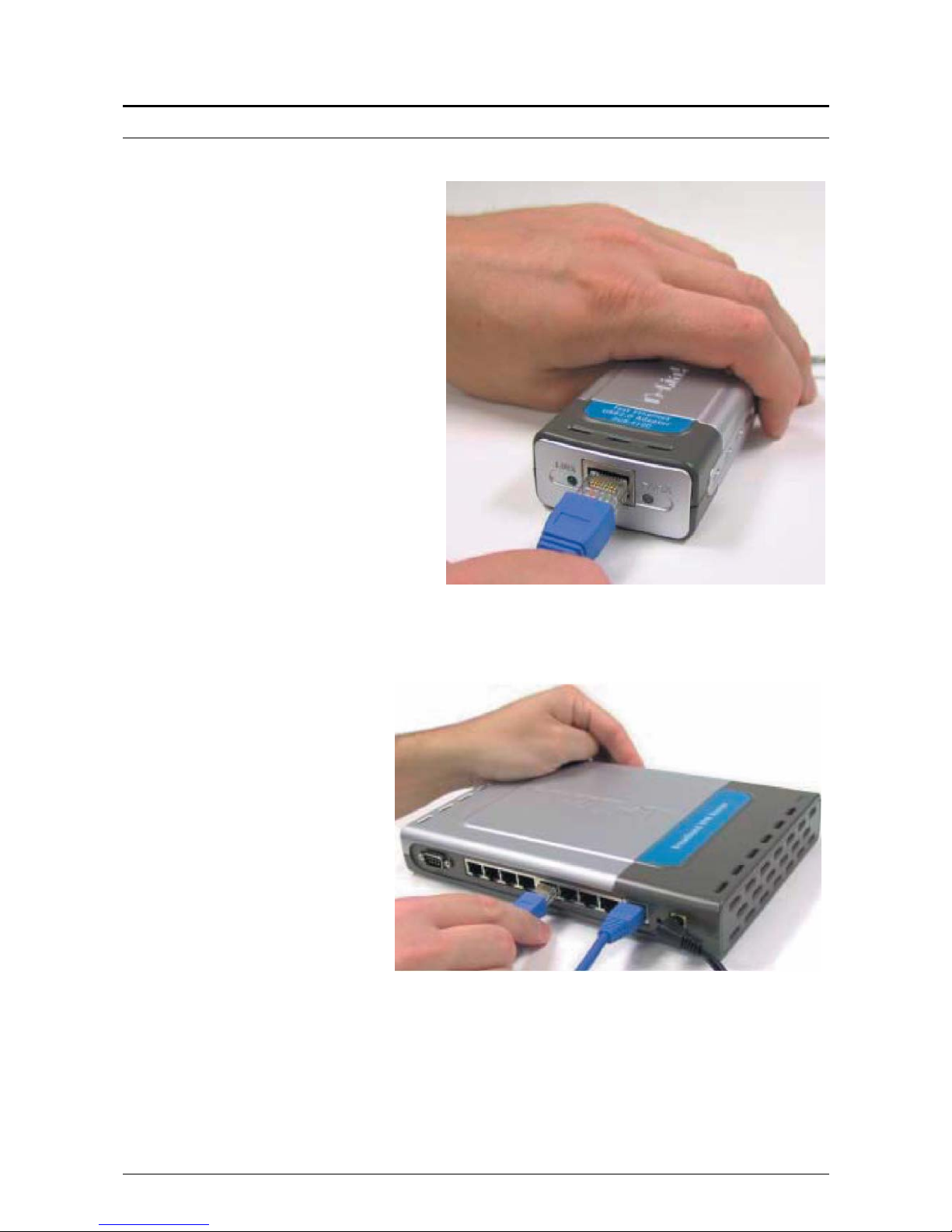

Connecting the Network Cable

A. Attach an Ethernet cable to the Ethernet port on the DUB-E100.

B. Attach the other end of the Ethernet cable to your network switch, hub, or router.

Software Installation

Insert the DUB-E100 CD into your CD-ROM drive. Then proceed to the appropriate installation section

on the following pages for your operating system.

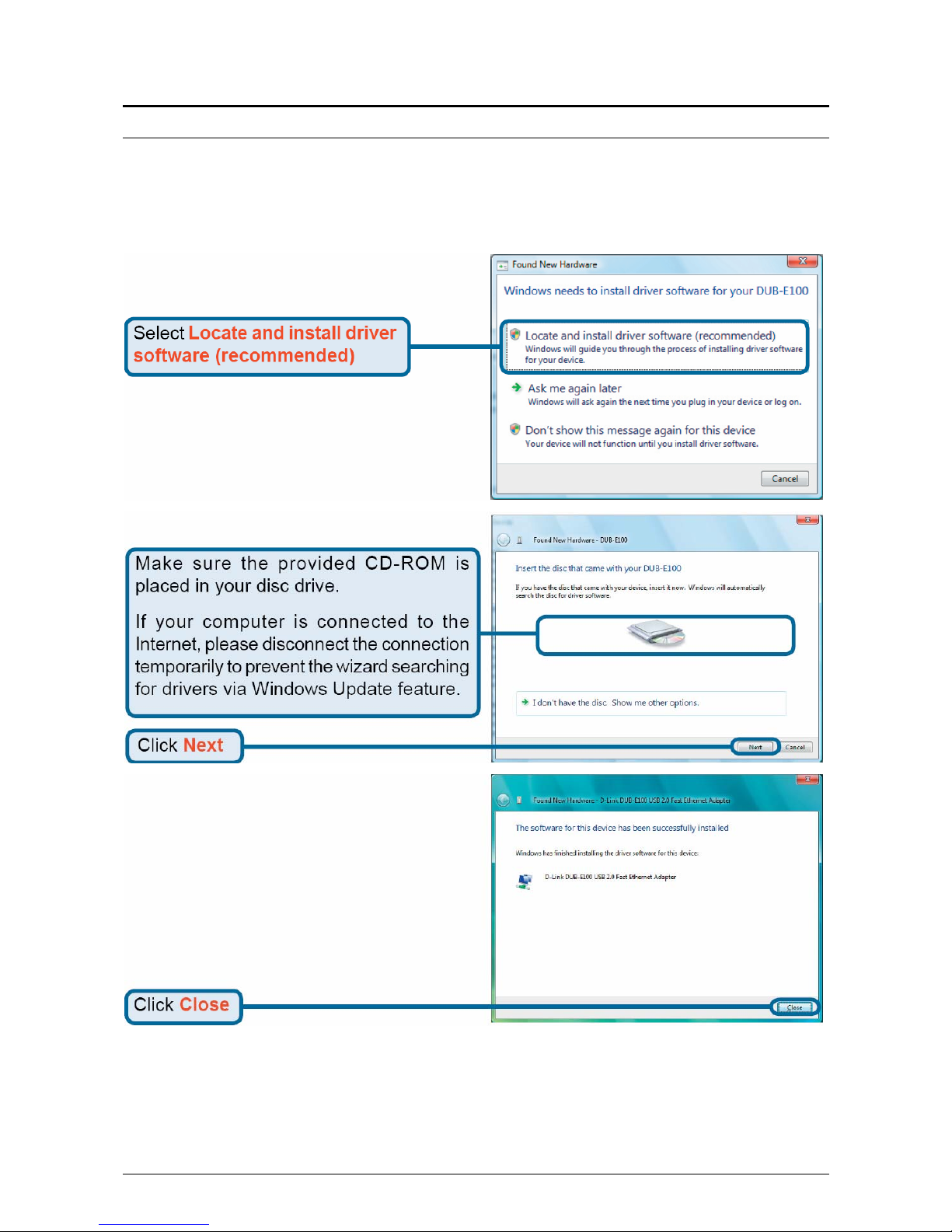

Windows Vista x64/86

Windows Vista driver installation is complete. Now you may connect the DUB-E100 to a network using an

Ethernet cable.

Software Installation (continued)

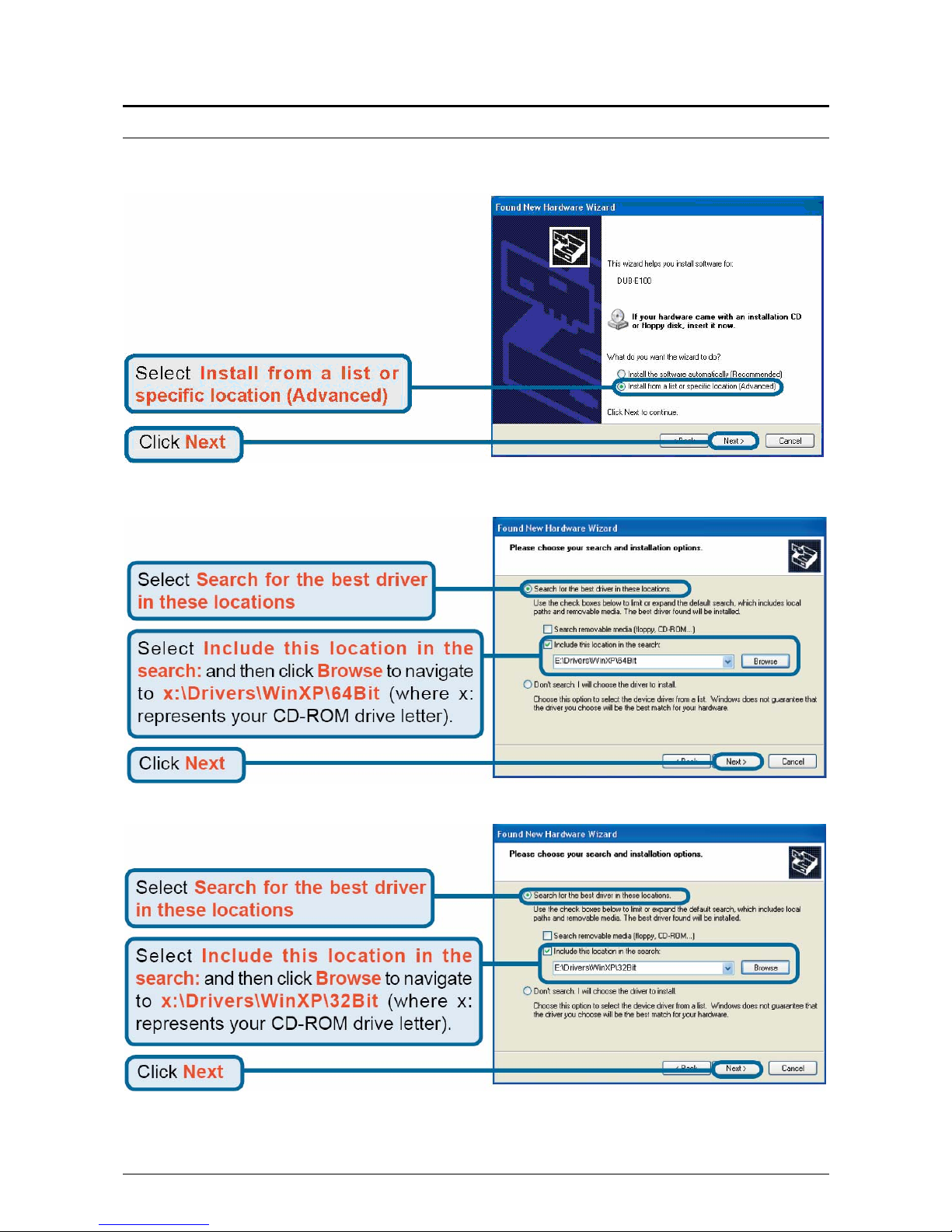

Windows XP

For Windows XP 64 Edition

For Windows XP 32 Edition

Software Installation (continued)

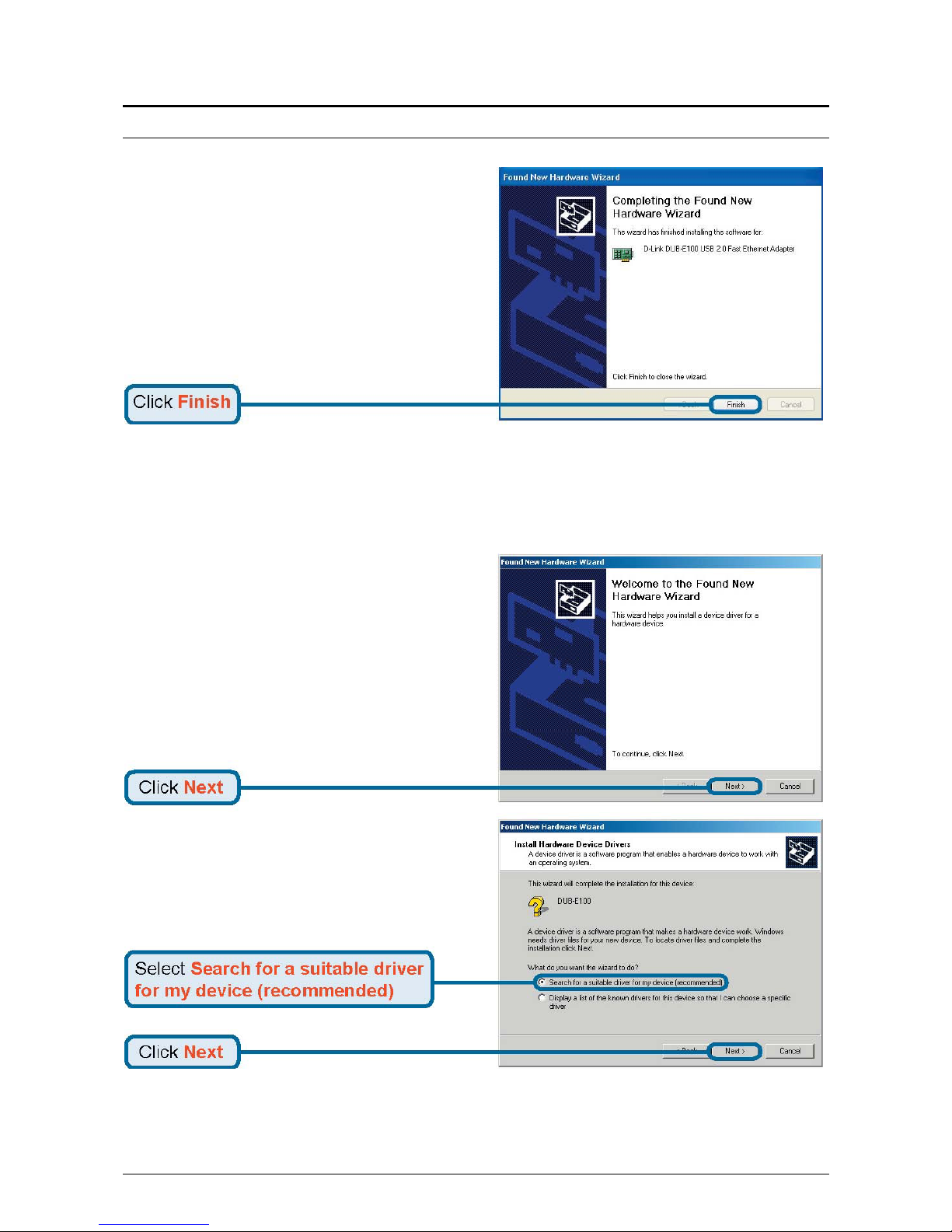

Windows XP driver installation is complete. Now you may connect the DUB-E100 to a network using an

Ethernet cable.

Windows 2000

Software Installation (continued)

Windows 2000 driver installation is complete. Now you may connect the DUB-E100 to a network using an

Ethernet cable.

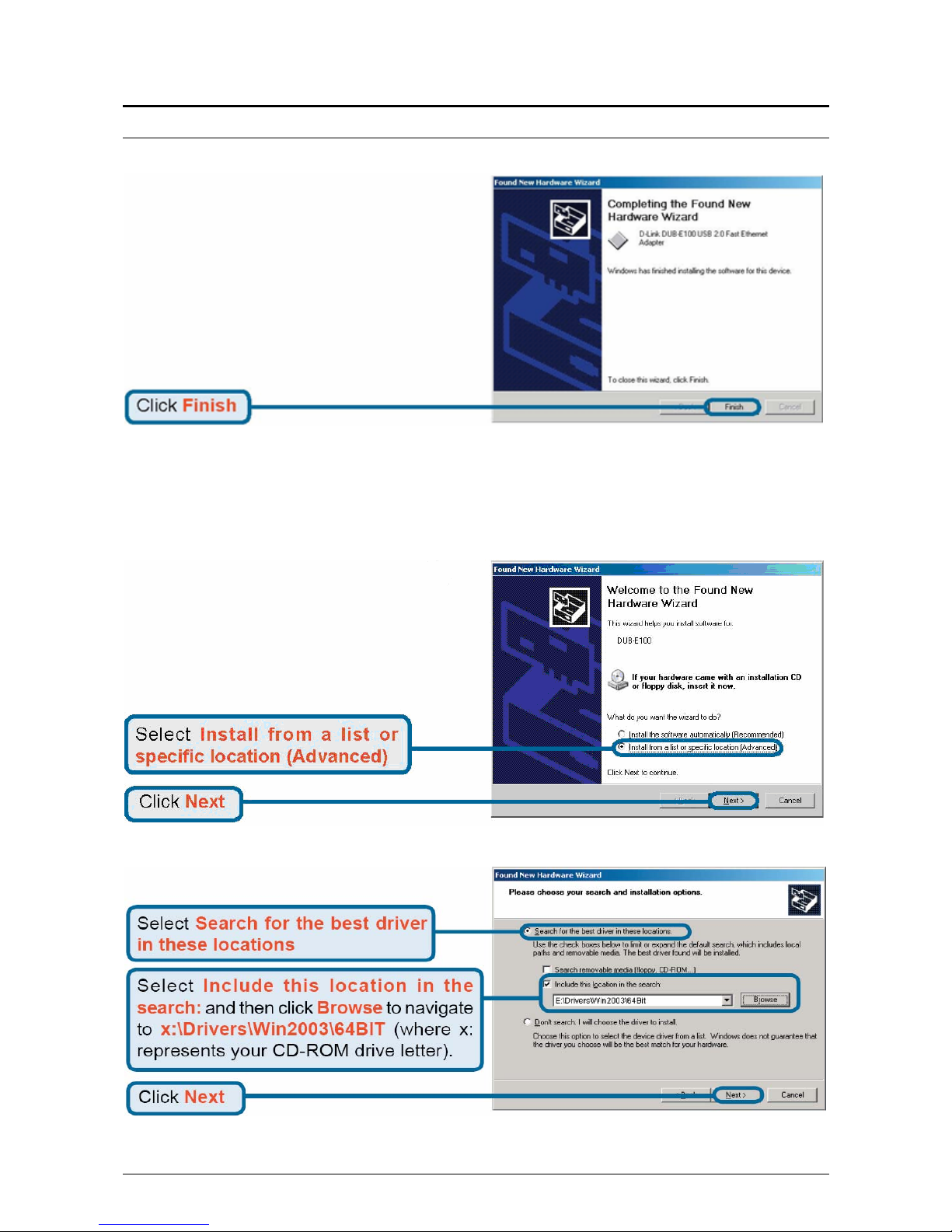

Windows 2003

For Windows Server 2003 x64 Edition
