D-Link PowerLine DHP-500AV User manual

2D-Link DHP-500AV User Manual

Table of Contents

Product Overview..............................................................................3

Package Contents ........................................................................................... 3

System Requirements.................................................................................... 3

Introduction ...................................................................................................... 4

Features .............................................................................................................. 4

Hardware Overview........................................................................................ 5

LEDs ............................................................................................................ 5

Connection............................................................................................... 6

Hardware Installation .......................................................................7

Push Button Security......................................................................... 8

Using the Setup Wizard...................................................................10

Conguration..................................................................................................11

Security .............................................................................................................13

Troubleshooting ..............................................................................15

Technical Specications..................................................................16

Contacting Technical Support ........................................................17

Warranty...........................................................................................18

Registration ...............................................................................................23

Table of Contents

3D-Link DHP-500AV User Manual

Section 1 - Product Overview

One D-Link DHP-500AV PowerLine AV 500 Adapter

One CAT5 Ethernet Cable

CD-ROM with Software and User Manual

Quick Install Guide

System Requirements

Product Overview

Package Contents

• Windows® 7, Windows Vista®, XP (with Service Pack 3)

• PC with 233MHz Processor, 64MB Memory

• Ethernet Adapter (100Mbit/s)

4D-Link DHP-500AV User Manual

Section 1 - Product Overview

Introduction

D-Link announces a fast, 500Mbps* PowerLine AV 500 Adapter that allows you to connect your home computers, networking devices and gaming

devices through the most pervasive medium in your house, the electric Power lines. With the PowerLine AV 500 Adapter, you can share high speed

connection of up to 500Mbps for quality gaming, superior HD media streaming, and faster le transfer.

Features

• Provides Ethernet to PowerLine Connection

• Fast Data Transfer Rate of Up to 500Mbps*

• One Gigabit Ethernet port

• Plug & Play, Easy Installation

• Easy to use Management Utility

• Firmware Upgrade Support

• Push Button Security

• Power Saving mode

* Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of trac and network

overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect the performance of this

product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other PowerLine devices that do not follow the HomePlug AV standard.

5D-Link DHP-500AV User Manual

Section 1 - Product Overview

Hardware Overview

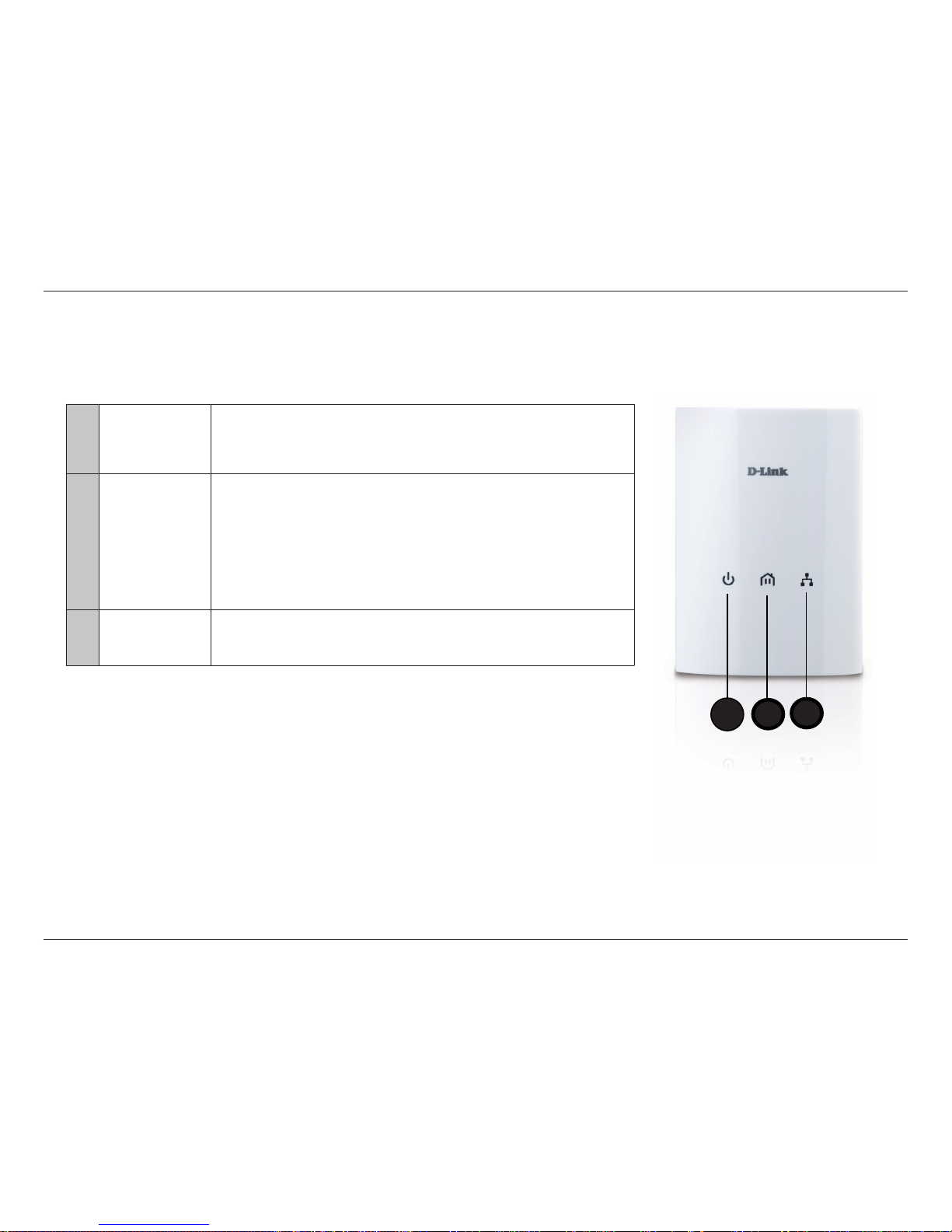

LEDs

1Power LED

• Solid. The device is receiving electrical power.

• Blinking. The device is setting itself up after reset or security button was pressed

or power saving mode enabled.

• O. The device is not receiving electrical power.

2PowerLine LED

• Solid. The device is connected to a PowerLine network.

• Blinking. The device is transmitting data.

• O. The device has not found any other compatible PowerLine

devices using the same encryption key.

The color indicates the PowerLine link rate:

• Green. The PowerLine link rate is faster than 80 Mbps.

• Amber. The PowerLine link rate is between 50 Mbps and 80 Mbps.

• Red. The PowerLine link rate is less than 50 Mbps.

3Ethernet LED

• Solid. The Ethernet port is linked but there is no data trac.

• Blinking. The device is transmitting data.

• O. There is no Ethernet connection.

123

6D-Link DHP-500AV User Manual

Section 1 - Product Overview

Hardware Overview

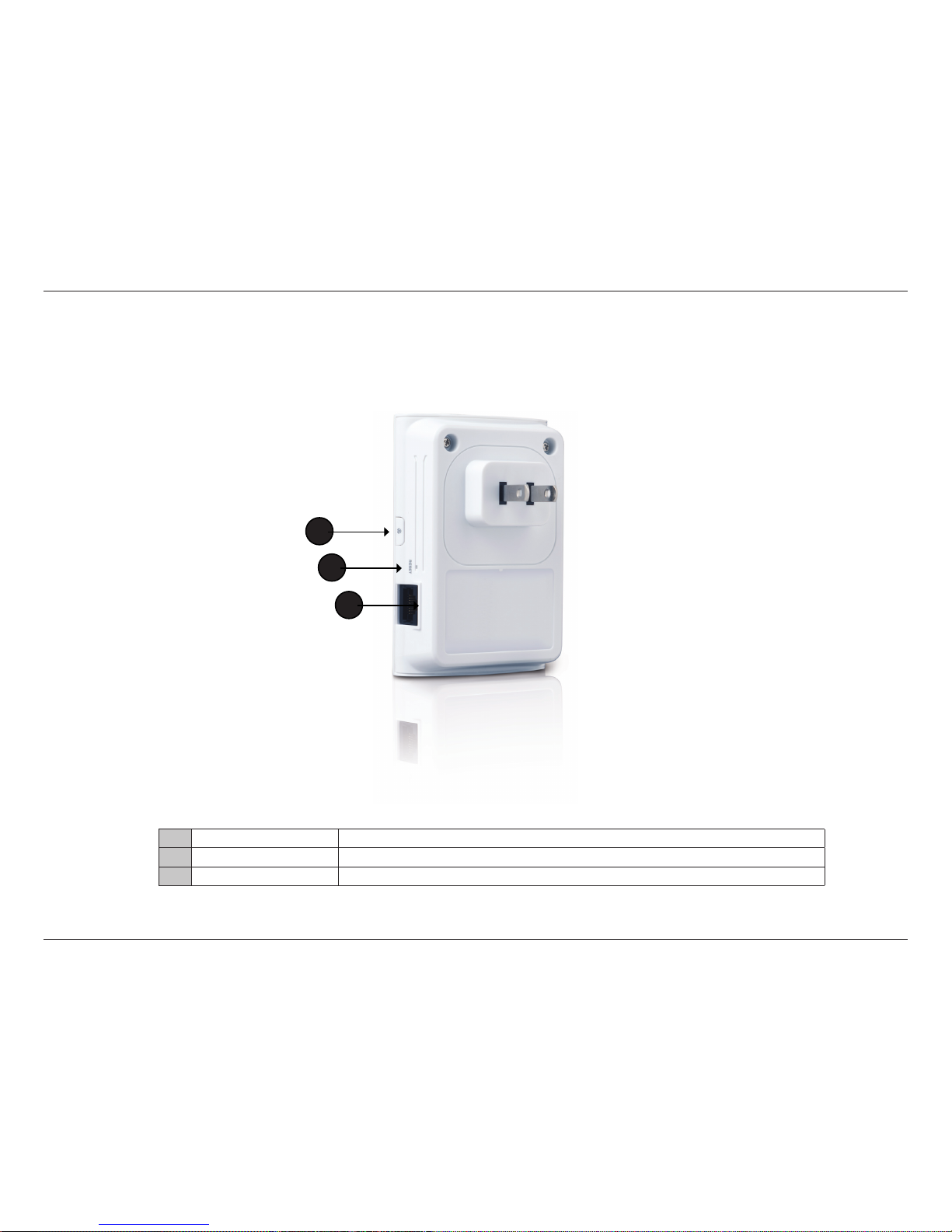

Connection

1Simple Connect Button Press to secure your network. Refer to page 8 for more information.

2Reset Button Press and hold the button for 1 second to reset to factory default.

3Gigabit Ethernet Port Connect the CAT5 Ethernet cable to the DHP-500AV Gigabit Ethernet port.

7D-Link DHP-500AV User Manual

Section 2 - Installation

Hardware Installation

Power

Plug in the PowerLine AV 500 Adapter into an AC wall outlet.

Note: Power source is conrmed when the Power LED on the Adapter is illuminated.

Recommendations:

• For optimal results, use in a regular wall outlet without other products plugged into the same outlet. Connecting this product to a power strip or

a surge protector may adversely aect the performance of this product.

• Avoid using the PowerLine AV 500 Adapter in an electrical outlet that is located near an appliance that uses a lot of power, such as a washer or

dryer or refrigerator.

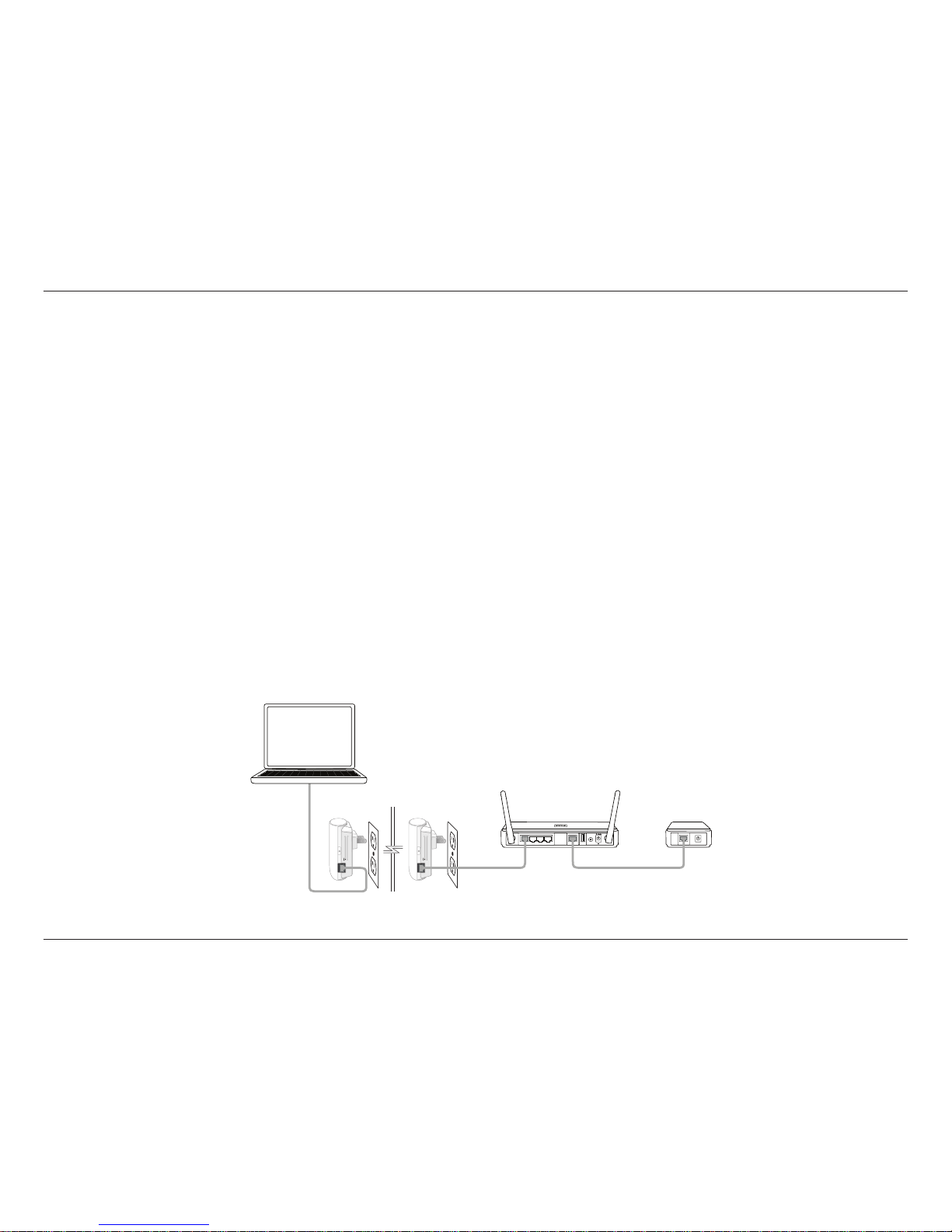

Connect the Ethernet Cable

Connect the included Ethernet cable to the network cable connector located on the Adapter and attach the other end of the Ethernet cable to the

network or PC. Network Connectivity is conrmed when the Ethernet LED on the Adapter is illuminated.

5V- - - 3A

1 2 LAN 3 4 INTERNET USB

RESET

INTERNET

Wireless Router Cable/DSL Modem

8D-Link DHP-500AV User Manual

Section 2 - Installation

Push Button Security

Understanding PowerLine AV Network Security

The PowerLine AV 500 Adapter on the same network must use an identical encryption key. The default encryption key of each PowerLine AV 500

Adapter is HomePlugAV. All PowerLine AV devices with default encryption key can communicate with each other.

It’s recommended to create a private encryption key for network security purpose. The private encryption key allows you to protect your network

from unauthorized access via the PowerLine network. To create a private encryption key instead of the default encryption key, please follow below

steps:

1. PowerLine AV 500 Adapter

Press the Simple Connect button on the adapter for no more than two seconds. The Power LED will start blinking after you

release the button. The adapter will create a private, randomly generated encryption key that each PowerLine AV 500 Adapter

will use.

2. Additional Adapters in your existing PowerLine Network

Within two minutes of pushing the Simple Connect button of the PowerLine AV adapter, press the Security Button on any

additional adapter in your PowerLine Network for no more than two seconds. The Power LED will start blinking after you

release the button.

Note: Both Security buttons must be pressed within two minutes.

3. PowerLine Network

After the above network security setup steps, your PowerLine network will be securely congured with the same network

encryption key. The adapters will memorize the security settings even if they are unplugged.

Note: To change the private encryption key, please reset the adapter back to its default value by pressing the Reset button

for 2 seconds and then follow the security setup procedure above.

9D-Link DHP-500AV User Manual

Section 3 - Conguration

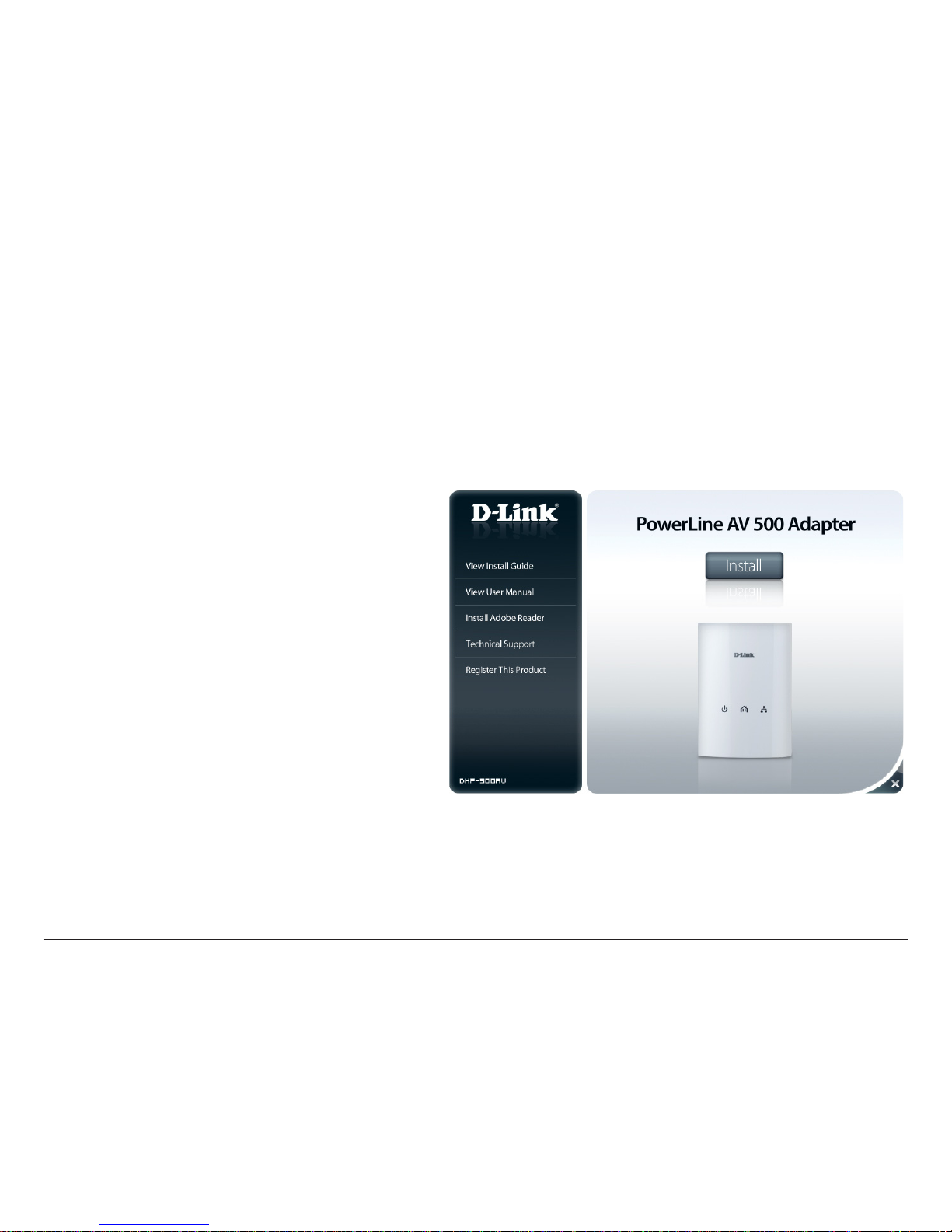

Using the Setup Wizard

Follow the simple steps below to run the Setup Wizard to guide you quickly through the installation process. Insert the D-Link DHP-501AV CD into

your CD-ROM drive. If the CD Autorun function does not automatically start on your computer, click Start > Run. In the Run command box type

“D:\autorun.exe”, where D: represents the drive letter of your CD-ROM. If it does start, proceed to the next screen.

Click on Install to begin.

Note: In order to properly install the PowerLine AV utility, you will

rst need to install WinPcap.

10D-Link DHP-500AV User Manual

Section 3 - Conguration

Conguration

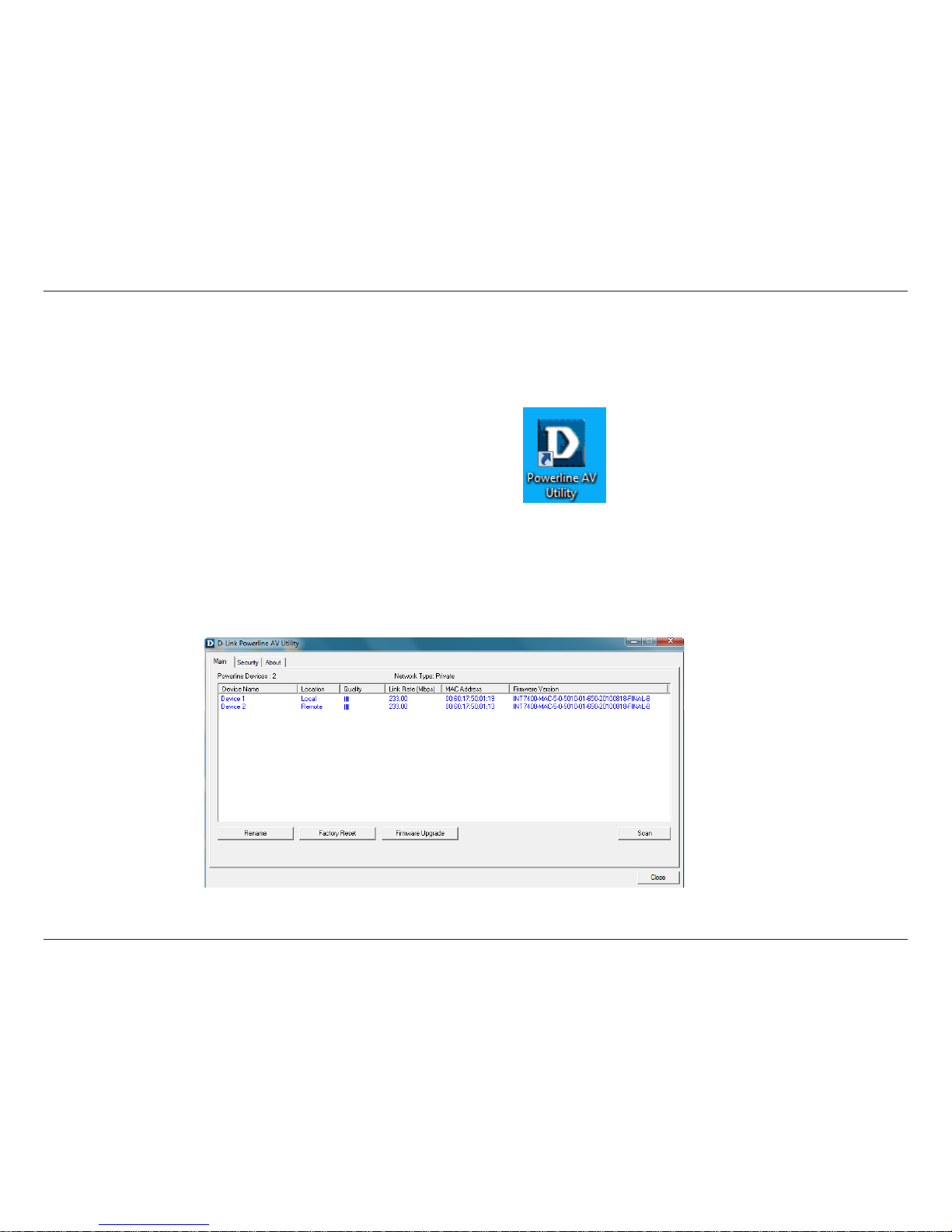

After you have completed the D-Link PowerLine AV Utility installation wizard, double-click the D-Link PowerLine AV Utility icon on your desktop to

start the conguration of the DHP-500AV.

The D-Link PowerLine AV Utility provides you the option of setting your own PowerLine network and the network information for the connected

PowerLine devices.

Double-click the D-Link PowerLine AV Utility icon
