Cypress CYW943907AEVAL1F User manual

CYW943907AEVAL1F EVALUATION KIT QUICK START GUIDE

CYW943907AEVAL1F EVALUATION KIT

1. Register on Cypress WICED Community

and then download and install WICED

Studio 5.0 (or later) at

www.cypress.com/products/wiced-software.

2. Plug the kit into a USB port on your

computer.

3. Open a Serial Terminal Emulator with a

baud rate of 115200.

4. Every 5 seconds the kit will scan for

Wi-Fi networks.

Note : If drivers do not install automatically,

they can be found in the SDK installation folder

www.cypress.com/CYW943907AEVAL1F

Kit Contents:

1 CYW943907AEVAL1F

Evaluation board

2 USB Standard-A to Micro-B cable

3 Quick Start Guide (this document)

1 2

1. Download the kit user guide from

www.cypress.com/CYW943907AEVAL1F.

2. Follow the instructions in the user guide

to program the kit, and use the provided

examples.

3. The example pre-programmed into the

kit is called snip.scan in WICED Studio.

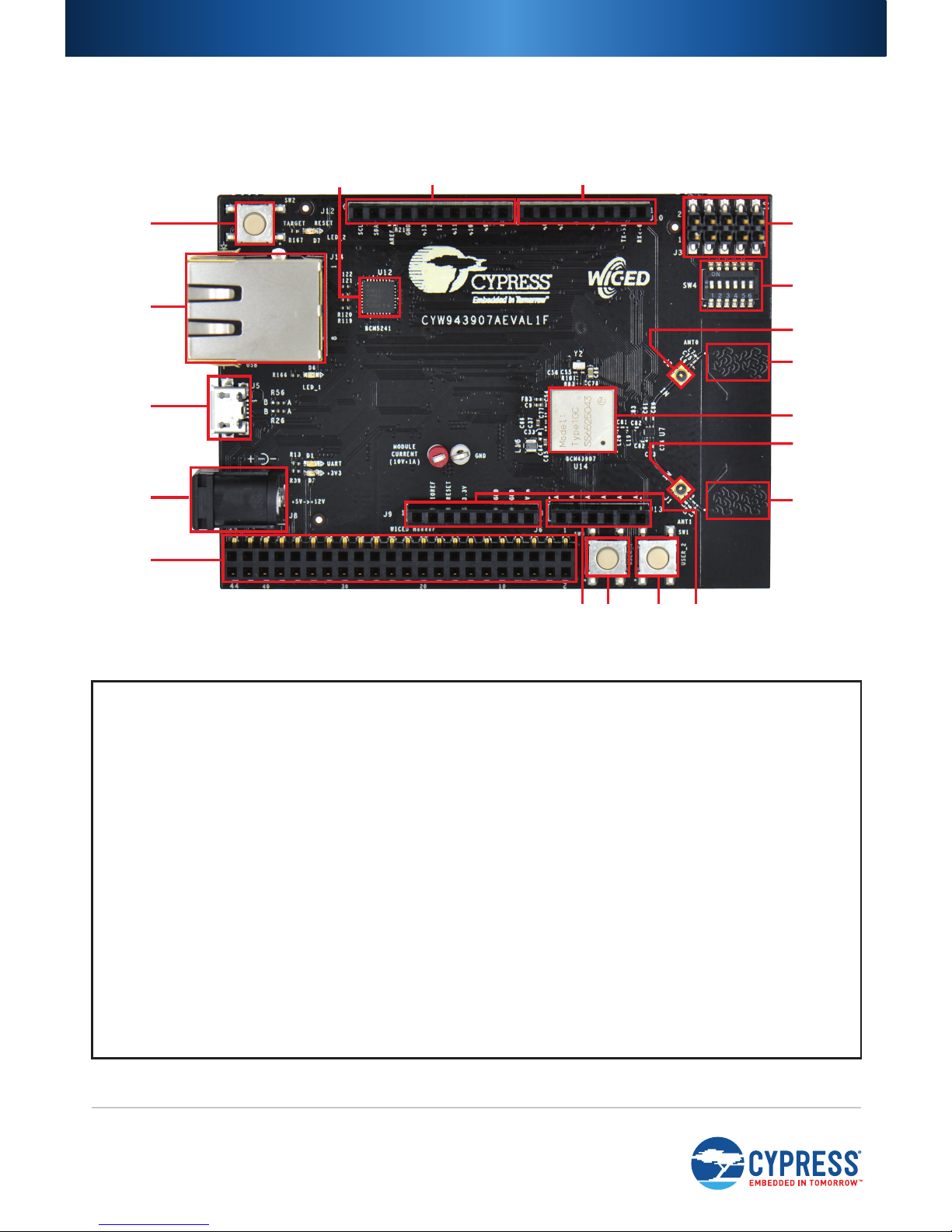

CYW943907AEVAL1F EVALUATION KIT

1. Reset Switch SW2

2. RJ45 Connector J14

3. Micro USB (Power, Programming and

Debugging) J5

4. 5-12V Power Input (Optional) J8

5. WICED Header J6

6. Arduino Header J13

7. User Switch 1 SW3

8. User Switch 2 SW1

9. Arduino Header J9

10. PCB Antenna - Main ANT1

11. Connector for External Antenna1 J1

12. CYW943907 Type 1GC Module (Murata)

13. PCB Antenna - Diversity ANT0

14. Connector for External Antenna 0 J2

15. On-board programmer and debugger

/External JTAG Switch SW4

16. External JTAG Header J3

17. Arduino Header J10

18. Arduino Header J12

19. External PHY Chip (BCM5241) U12

© 2017 Cypress Semiconductor Corporation. All rights reserved.

All trademarks or registered trademarks referenced herein are the property of their respective owners.

002-18700 Rev.*B

For the latest information about this kit, visit www.cypress.com/CYW943907AEVAL1F

CYW943907AEVAL1F EVALUATION KIT QUICK START GUIDE

1

2

3

4

5

6 7 8 9

10

11

12

13

14

15

16

171819

CYW943907AEVAL1F Evaluation Board Details
