Compaq Dx2200 - Microtower PC User manual

Quick Setup & Getting Started

HP Compaq Business PC

Development Company, L.P. The

information contained herein is subject to

change without notice.

Microsoft, Windows, and Windows Vista are

either trademarks or registered trademarks

of Microsoft Corporation in the United States

and/or other countries.

Adobe, Acrobat, and Acrobat Reader are

trademarks or registered trademarks of

Adobe Systems Incorporated.

The only warranties for HP products and

services are set forth in the express warranty

statements accompanying such products

and services. Nothing herein should be

construed as constituting an additional

warranty. HP shall not be liable for technical

or editorial errors or omissions contained

herein.

This document contains proprietary

information that is protected by copyright. No

part of this document may be photocopied,

reproduced, or translated to another

language without the prior written consent of

Hewlett-Packard Company.

Quick Setup & Getting Started

HP Compaq Business PC

First Edition (January 2007)

Document Part Number: 440790-001

About This Book

This guide provides basic information about setting up and maintaining your computer.

WARNING! Text set off in this manner indicates that failure to follow directions could result in

bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in

damage to equipment or loss of information.

NOTE: Text set off in this manner provides important supplemental information.

ENWW iii

iv About This Book ENWW

Table of contents

1 Quick Setup

Step 1: Unpack the Computer .............................................................................................................. 1

Step 2: Confirm the Voltage Setting ..................................................................................................... 2

Step 3: Connect External Devices ........................................................................................................ 3

Step 4: Identify Front Panel Components ............................................................................................ 4

Step 5: Connect the Power Cords ........................................................................................................ 5

Step 6: Turn On the Computer and Install the Microsoft Operating System ........................................ 6

Step 7: Turn Off the Computer ............................................................................................................. 7

2 Getting Started

Downloading Microsoft Windows Updates ........................................................................................... 8

Installing or Upgrading Device Drivers ................................................................................................. 8

Customizing the Monitor Display .......................................................................................................... 8

HP Backup and Recovery Manager ..................................................................................................... 9

Finding More Information ................................................................................................................... 10

Using the Documentation and Diagnostics CD .................................................................................. 10

Basic Troubleshooting ........................................................................................................................ 10

Helpful Hints ...................................................................................................................... 11

Before You Call for Technical Support .............................................................................. 12

ENWW v

vi ENWW

1QuickSetup

Step 1: Unpack the Computer

WARNING! To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes

proper workstation setup, posture, and health and work habits for computer users, and provides

important electrical and mechanical safety information. This guide is located on the Web at

http://www.hp.com/ergo and on the Documentation and Diagnostics CD.

ENWW Step 1: Unpack the Computer 1

Step 2: Confirm the Voltage Setting

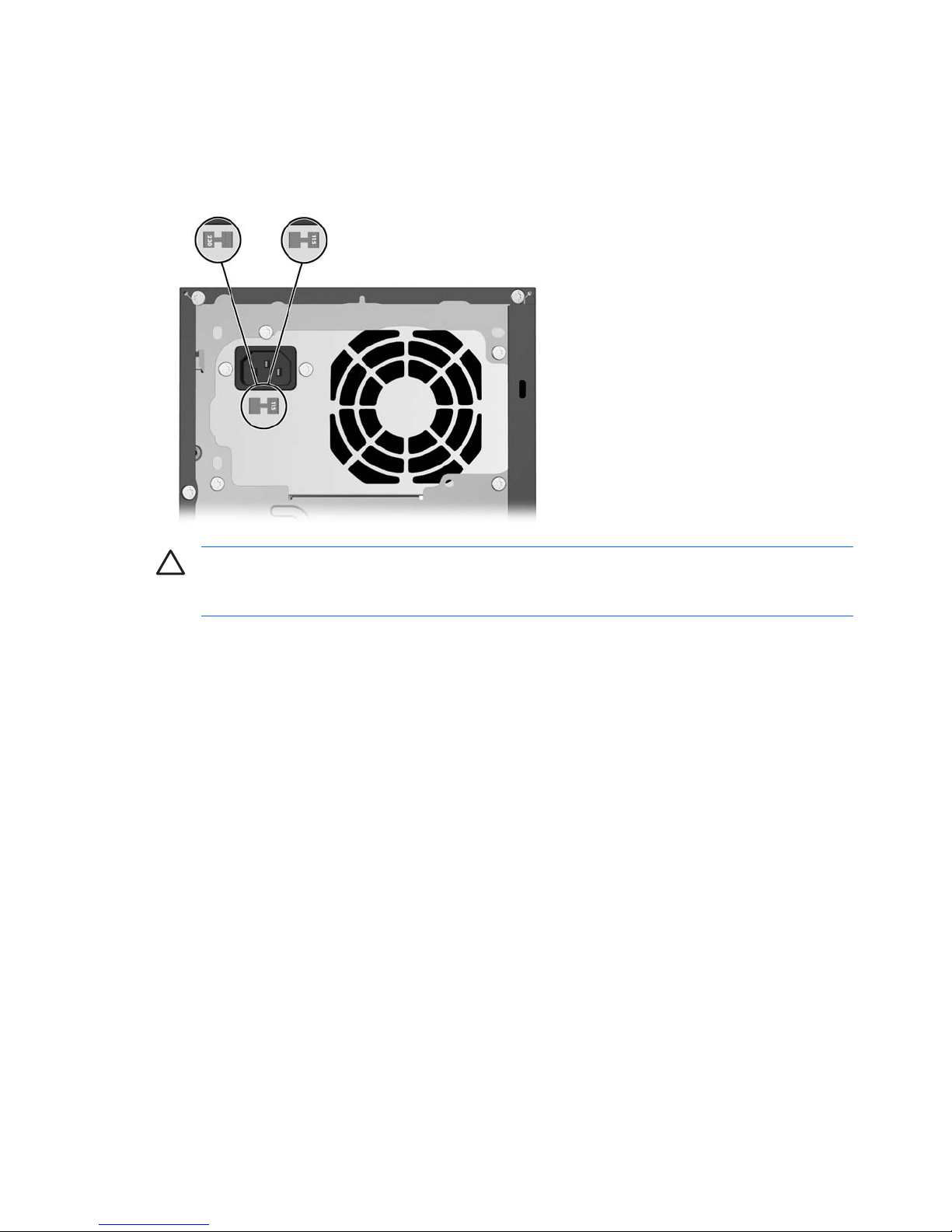

Ensure that the voltage select switch for the power supply is set to the correct voltage for your region

(115 volts or 230 volts).

CAUTION: You should not need to change the voltage setting; however, you should verify that

the voltage selection is compatible with your local power specifications. Failure to do so could

result in damage to the computer.

2 Chapter 1 Quick Setup ENWW

Step 3: Connect External Devices

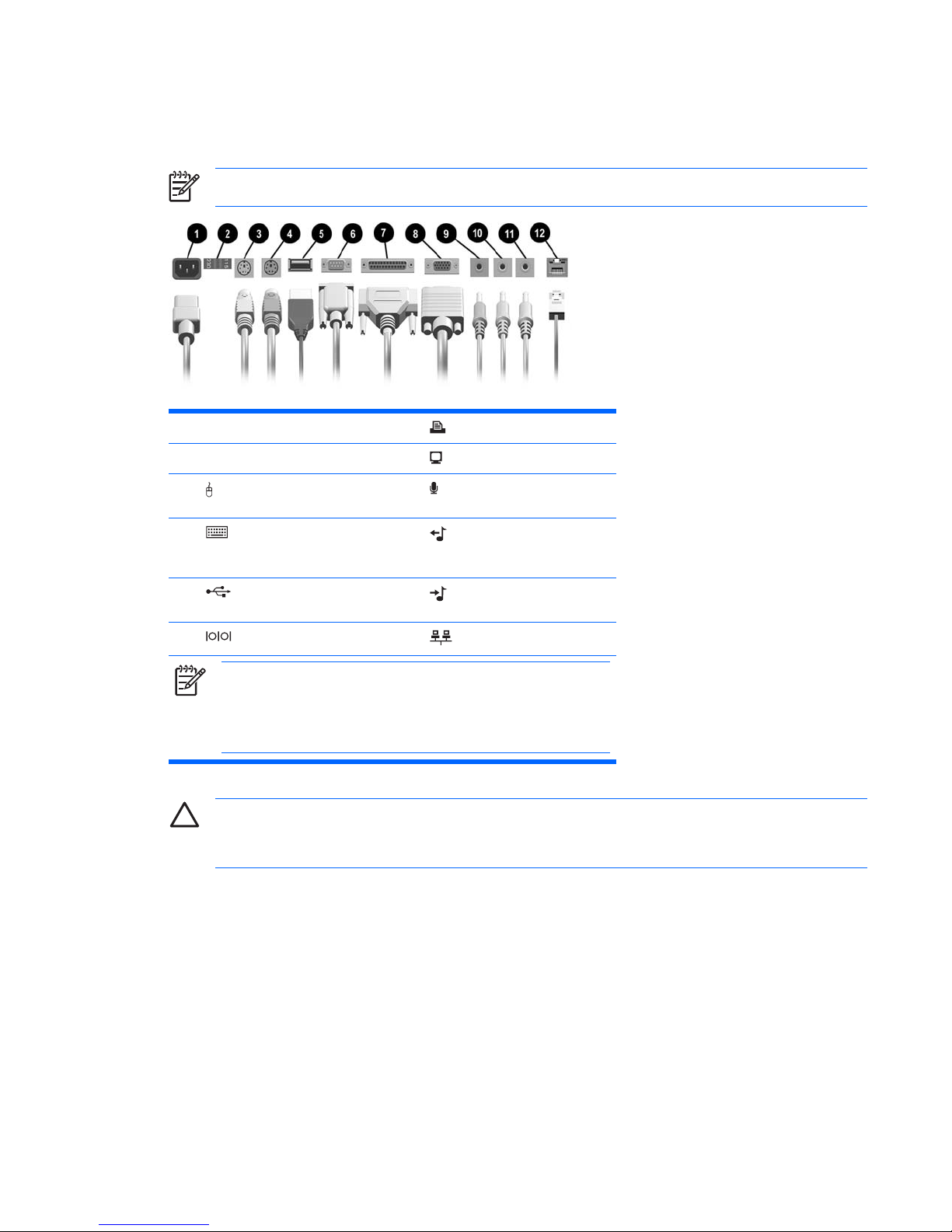

Connect the monitor, mouse, keyboard, and network cables.

NOTE: Arrangement and number of connectors may vary by model.

1Power Cord Connector 7Parallel Connector

2Voltage Select Switch 8Monitor Connector

3PS/2 Mouse Connector

(green)

9Microphone Connector

(pink)

4PS/2 Keyboard Connector

(purple)

10 Line-Out Connector for

powered audio devices

(green)

5Universal Serial Bus (USB) 11 Line-In Audio Connector

(blue)

6Serial Connector 12 RJ-45 Network Connector

NOTE: If a PCI graphics card is installed, the connectors on the card

and the system board may be used at the same time. Some settings

may need to be changed in Computer Setup to use both connectors. For

information about Boot Order, refer to the Computer Setup (F10) Utility

Guide on the Documentation and Diagnostics CD.

CAUTION: Do not add optional hardware or third-party devices to the computer until the

operating system is successfully installed. Doing so may cause errors and may prevent the

operating system from installing properly.

ENWW Step 3: Connect External Devices 3

Step 4: Identify Front Panel Components

NOTE: The illustration shown below may look different than your computer model.

1Optical Drive 7Headphone Connector

2Optical Drive Activity Light 8Microphone Connector

35.25" Expansion Bay 9USB (Universal Serial Bus)

Ports

43.5" Expansion Bay (optional

Media Card Reader shown)

10 Optical Drive Eject Button

5Dual-State Power Button 11 Power On Light

6 Hard Drive Activity Light

The 3.5" bay may be populated with a diskette drive or a media card reader, or it may be covered by a bezel blank.

4 Chapter 1 Quick Setup ENWW
