Compaq AlphaServer ES40 Quick start guide

AlphaServer ES40

667 and 833 MHz CPU Upgrade

Part Number: EK–KN610–UP. B01

February 2001

This document is for persons with appropriate technical training and

experience who are upgrading to an AlphaServer ES40 667 or 883 MHz system.

This information is for customers or field service personnel who are upgrading to

either an AlphaServer ES40 667 or 833MHz system.

If you have purchased an additional 667 or 833 MHz SMP CPU for a system, you do

not need to read further. Install the add-on as described in Chapter 5 of the

AlphaServer ES40 Owner's Guide.

NOTE: The upgrade requires a minimum Rev E0* system motherboard (54-25385-

01). If the board in your system is Rev D0* or lower, call your local Field Service

office or 1-800-OK-COMPAQ (1-800-652-6672) and inquire about FC0# 00-ES40 F002

for the ES40 system. Under this Field Change Order, Field Service will replace

your system motherboard with Rev E0* or higher at no cost to you. Follow the

procedure on the next page to determine if the motherboard must be replaced. The

system might also contain a motherboard (54-25385-02) of which the minimum

revision is A01. If this is the case, then there is no need to replace the motherboard.

Upgrade Kit

1. The KN610-Bx upgrade kits contain the following components:

Component Part Number Quantity

CPU card 54-30362-01 1

Alpha Systems Firmware CD QB-5VUAA-SA 1

Upgrade documentation EK-KN610-UP 1

Software license (optional – depends

on variation)

2. The KN610-Cx upgrade kits contain the following components:

Component Part Number Quantity

CPU card 54-30362-B3 1

Alpha Systems Firmware CD QB-5VUAA-SA 1

Upgrade documentation EK-KN610-UP 1

Software license (optional – depends

on variation)

Installation Tools

The upgrade requires the following tools:

• Phillips #2 screwdriver (a magnetic screwdriver is recommended)

• Allenwrench(3mm)

• Anti-static wrist strap

Safety Warnings

WARNING: To prevent injury, access is limited to persons who

have appropriate technical training and experience. Such

persons are expected to understand the hazards of working

within this equipment and take measures to minimize danger to

themselves or others. These measures include:

1. Remove any jewelry that may conduct electricity.

2. Power down the system and wait 2 minutes to allow

components to cool.

3. Wear an anti-static wrist strap when handling internal

components.

WARNING: To prevent injury, unplug the power

cord from each power supply before installing

components.

Determining Whether to Replace the System Motherboard

Check the revision of the motherboard before proceeding. If the revision of the 54-

25385-01 level is D0* or lower, the board must be replaced before you perform the

upgrade. If the motherboard is a 54-25385-02 revision A01, replacement of the

motherboard is not needed.

1. Shut down the operating system and turn off power to the system. Unplug the

power cord from each power supply.

2. Access the system chassis and remove the covers from the fan area and the

system card cage as explained in the Owner's Guide.

3. Remove CPU0 to reveal a label on the system motherboard containing the part

number (54-25385-01) and revision (see illustration). The minimum required

revision level is E01.

Required Action: For revisions lower than E01, Call your local Field

Service office or 1-800-OK-COMPAQ (1-800-652-6672) and reference

FC0# 00-ES40 F002 for the ES40 system.

4. If the board revision is E01 or higher, replace CPU0, replace the covers, and plug

the power cords into the power supplies.

5. Power up the system to the SRM console prompt and follow the upgrade

procedure in the next section.

PK0214

MMB1

MMB3

MMB0

MMB2

CPU3

CPU2

CPU1

CPU0

J17

J18

J34

J40

54-25385-01 E01

NI82900051

Upgrade Procedure

NOTE: You must replace all of the 500 MHz CPUs in your system with either all

667 or 833 MHz CPUs. The system will not run with CPUs of different speeds

mixed together.

Review the procedures in Chapter 5 of the AlphaServer ES40 Owner's Guide for

configuring and replacing CPUs.

1. Insert and boot the Firmware Update CD-ROM supplied with the upgrade. The

CD contains the Loadable Firmware Update Utility.

2. At the UPD> prompt, enter the exit command and answer yat the prompt. At

the second UPD> prompt, enter the update command.

UPD> exit

Do you want to do a manual update [y/(n)] y

UPD> update

3. Turn off power to the system. Unplug the power cord from each power supply.

4. Access the system chassis and remove the covers from the fan area and the

system card cage as explained in the Owner's Guide.

5. Remove all CPU cards.

6. Insert a 667 or 833 MHz CPU card (depending on CPU speed upgrade) into its

connectors and push down on both latches simultaneously to seat the card.

Install the additional 667 or 833 MHz cards. (Do not mix CPU speeds.)

7. Replace the system card cage cover, fan cover, and enclosure covers.

8. Reconnect the power cords.

9. Power up the system to the SRM console.

Verification

1. At the P00>>> console prompt, issue the clear_error all command to initialize

the central error repository.

2. Issue the show config command to display the status of the new CPUs.

Other manuals for AlphaServer ES40

Table of contents

Other Compaq Desktop manuals

Compaq

Compaq Evo w4000 SFF Manual

Compaq

Compaq Deskpro 2000 User manual

Compaq

Compaq dc7700 - Convertible Minitower PC User manual

Compaq

Compaq dc7800 - Convertible Minitower PC User instructions

Compaq

Compaq iPAQ Pocket PC H3800 Series User manual

Compaq

Compaq Presario SR2100 - Desktop PC How to use

Compaq

Compaq SR5605F - Presario - 1 GB RAM Specification sheet

Compaq

Compaq Presario CQ4000 - Desktop PC Specification sheet

Compaq

Compaq Professional XP1000 User instructions

Compaq

Compaq Evo W8000 Operating and maintenance manual

Compaq

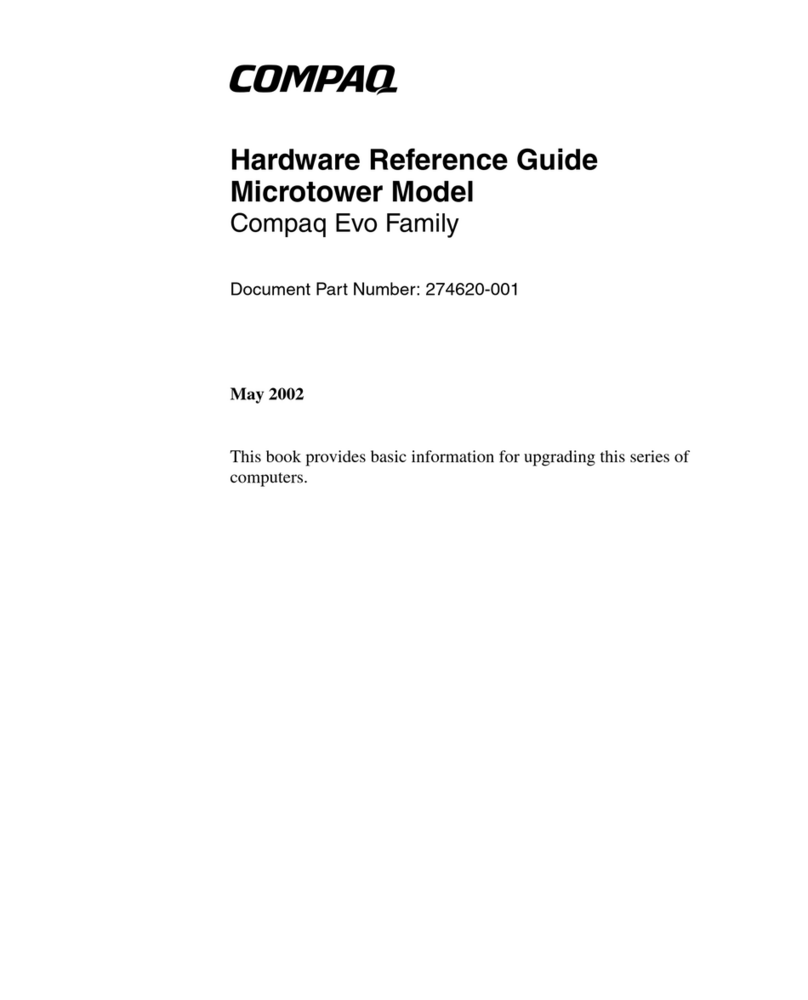

Compaq Compaq Evo D310 MT Operating and maintenance manual
