Cognex DataMan 100 User manual
COGNEX®
DataMan™ 100 Verier
Quick Reference
ii DataMan 100 Verier Quick Reference
DataMan 100 Verier Quick Reference iii
Viewing and Saving Data Formatting Output Data • Data Logging • Saving the
Setup • Code Quality Conguration Codes Page 22
4
Calibration and Verication Calibrate the DataMan 100 • Perform Code Quality
Verication • Code Quality Results Page 16
3
Preparing the Reader Install the DataMan 100 Software • Prepare to use
Verier Light • Focus the Lens • Connect the Red Lens
Cover
Page 10
2
Hardware Installation Kit Contents • Install the SHD Lens • Mount the Reader
• Wiring Page 2
1
DataMan™ Verifier Calibration Card
CALIBRATION
TARGET
Instructions:
1. Center calibration
target in the field
of view
2. Depress and hold
reader trigger until
calibration routine
is complete
Lot Number 20061102
COGNEX
COGNEX
CIO-1400
24 VDC
INPUT 7
INPUT 6
INPUT 5
INPUT 4
INPUT 3
INPUT 2
INPUT 1
IN COMMON
COMM OK
SENSOR
MODULE OK
OU T 7
OU T 6
OU T 5
OU T 4
OU T 3
OU T 2
HS OUT 1
HS OUT 0
OUT COMMON
−
+
TRIGGER −
TRIGGER +
RS232 OUT
2 DataMan 100 Verier Quick Reference
DataMan 100 Verier Quick Reference 3
DataMan 100 Verier Kit Contents
DataMan 100
Calibration card
ESD front cover
The DM100-100V-00
kit contains only these
components, while
the DM100-100V-01
kit contains all the
components on this
page.
Light assembly
16 mm lens and
aluminum spacer
USB cable
1400 I/O module and I/O module adapter
Hardcopy documentation and
DataMan software CD
105
40
65
105
40
65
105
40
65
4 DataMan 100 Verier Quick Reference
DataMan 100 Verier Quick Reference 5

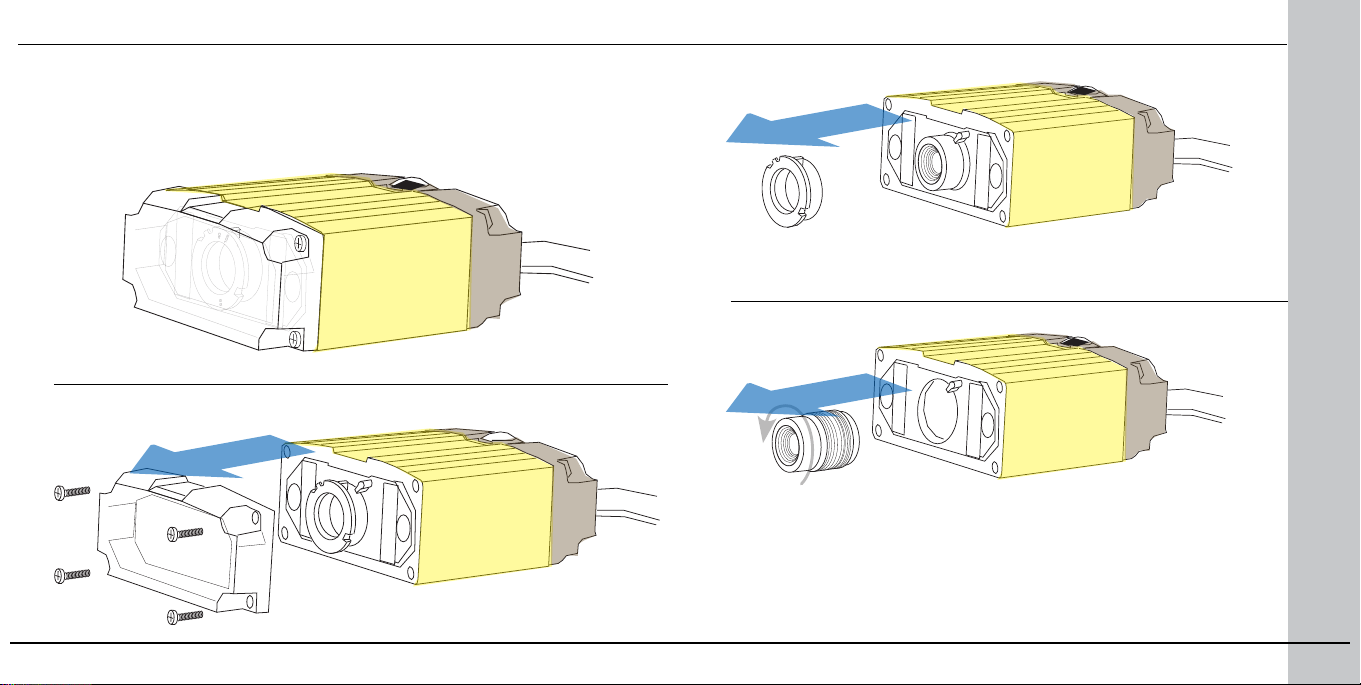

Install the SHD Lens
1
2
Installing the SHD kit causes the factory lens calibration to be lost. If you
wish to remove the SHD kit later and re-use the original DataMan 100
lens, contact Cognex for assistance.
3
4
Do not leave the DataMan sensor 100 lens mount open to the
environment or you risk contaminating the DataMan 100 image sensor
with dirt and dust.
6 DataMan 100 Verier Quick Reference
DataMan 100 Verier Quick Reference 7
5
Mount the Reader
1
Install the SHD Lens
6
COGNEX
CIO-1400
24 VDC
INPUT 7
INPUT 6
INPUT 5
INPUT 4
INPUT 3
INPUT 2
INPUT 1
IN COMMON
COMM OK
SENSOR
MODULE OK
OUT 7
OUT 6
OUT 5
OUT 4
OUT 3
OUT 2
HS OUT 1
HS OUT 0
OUT COMMON
−
+
TRIGGER −
TRIGGER +
RS232 OUT
24 VDC
8 DataMan 100 Verier Quick Reference
DataMan 100 Verier Quick Reference 9
The lighting attachment offers ve mounting positions.
Wiring
2
Mount the Reader
Cable cannot exceed
5 meters in length
10 DataMan 100 Verier Quick Reference
DataMan 100 Verier Quick Reference 11
Install DataMan 100 Software
Microsoft® Windows™ XP or Windows Vista•
Pentium CPU 500 MHz or faster•
.NET 1.1 SP1 (installed automatically) •
Insert the installation CD and follow the on-screen prompts.1.
Launch the Setup tool. 2.
Click 3. Scan Ports.
The Port eld must show (DM100) to establish a conection.
Click 4. Connect.
Prepare to use Verier Light
1
2
You must install the DataMan software regardless of which DataMan kit
you use. Your PC must meet the following minimum requirements.
12 DataMan 100 Verier Quick Reference
DataMan 100 Verier Quick Reference 13
1
2
3
Focus the Lens
Adjust the lens focus while observing the image display in the
Setup tool.
4
1
32
4
14 DataMan 100 Verier Quick Reference
DataMan 100 Verier Quick Reference 15
Connect the Red Lens Cover
12
3
Adjust lens so that a slot aligns with the
locking tab in the cover.
Tighten screws in the order shown.
Maximum torque for the cover screws is
9 N-cm (0.79 pound-inch)
4
16 DataMan 100 Verier Quick Reference
DataMan 100 Verier Quick Reference 17

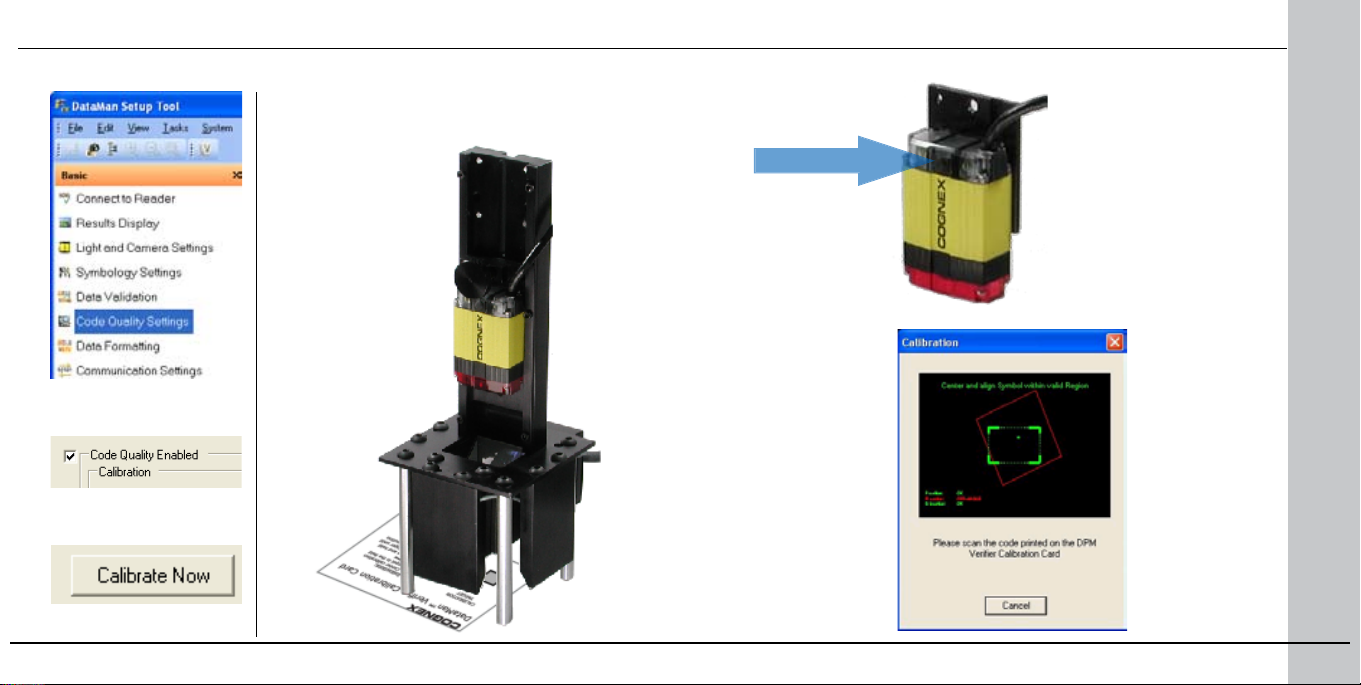

Calibrate the DataMan 100
1
2
3Click
Check
4Align the calibration symbol from the
calibration card under the DataMan reader
5Press and hold
the trigger button
6Use the calibration
graphics to align
the calibration
symbol with the
DM100.
You have to calibrate the DataMan 100 regardless of which kit you use.
