Canon Pixma iP110 series Instruction Manual

Installing Your Printer to the

Network for the First Time

PIXMA iP110

Windows OS

Wireless Setup Using the USB Cable

Installing Your Printer

to Your Network for the First

Time PIXMA iP110

Windows OS

Preparing to Connect My Printer to My Network 3

3Network Requirements Notes

on Wireless Connection 4

Installing the Drivers & Software 5

Preparing to Connect the Printer To

the Network

Network Requirements

Before connecting the machine to the network, make sure that configuration of the computer and access point or router is

complete, and that the computer is connected to the network.

Wireless Connection

Before connecting the machine to the network, the computer needs to be connected to the network. Make sure that

configuration of the computer and access point or router is complete.

Preparing to Connect the Printer To

the Network

Notes on Network Connection

•The configuration, router functions, setup procedures and security settings of

the network device vary depending on your system environment. For details,

refer to your device's instruction manual or contact its manufacturer.

•In an office setup, consult your network administrator

•If you connect to a network that is not protected with security measures, there

is a risk of disclosing data such as your personal information to a third party.

•Place the machine and computer on the same network segment.

Software Installation

To use the machine by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer's hard disk.

Installation time varies depending on the computer environment or the number of application software to be installed.

Installing the Drivers & Software

IMPORTANT

•Log on as the administrator (or a member of the Administrators group).

•Quit all running applications before installation.

•Do not switch users during the installation process.

•Internet connection may be required during the installation. Connection fees may apply. Consult the internet service provider.

•It may be necessary to restart your computer during the installation process. Follow the on-screen instructions and do not remove the

Setup CD-ROM during restarting. The installation resumes once your computer has restarted.

•If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access

the network. If such a warning message appears, set the security software to always allow access.

Installing the Drivers & Software

To begin setup of your PIXMA iP110 on your wireless network, insert the Setup CD-ROM* in your computer.

The setup program will start automatically. The setup instructions presented in this document describe the “ Wireless Setup Using the USB

Cable” , whereby a USB cable is temporarily connected between the printer and computer during setup. This setup method is used if your

computer’s operating system is Windows XP or the printer is not detected using other methods.

*If you don’t have or cannot use the Setup CD-ROM, follow the steps below to start the setup.

•Download the software (click the link to download)

•Double-click the downloaded .exe file.

If the User Account Control dialog box appears during the setup, click Yes or Continue.

Installing the Drivers & Software

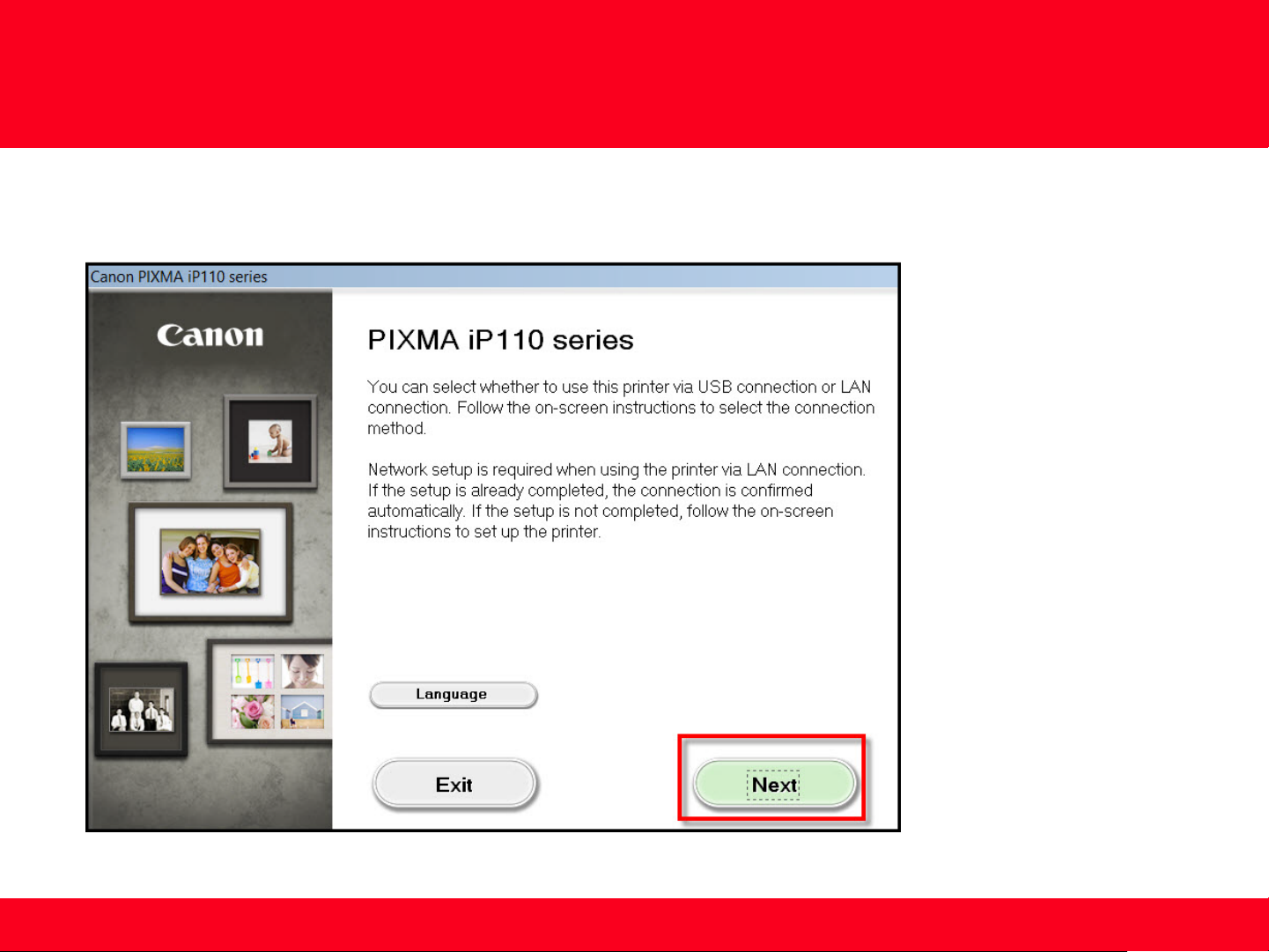

Click Next on the initial screen.

Connecting to the Network

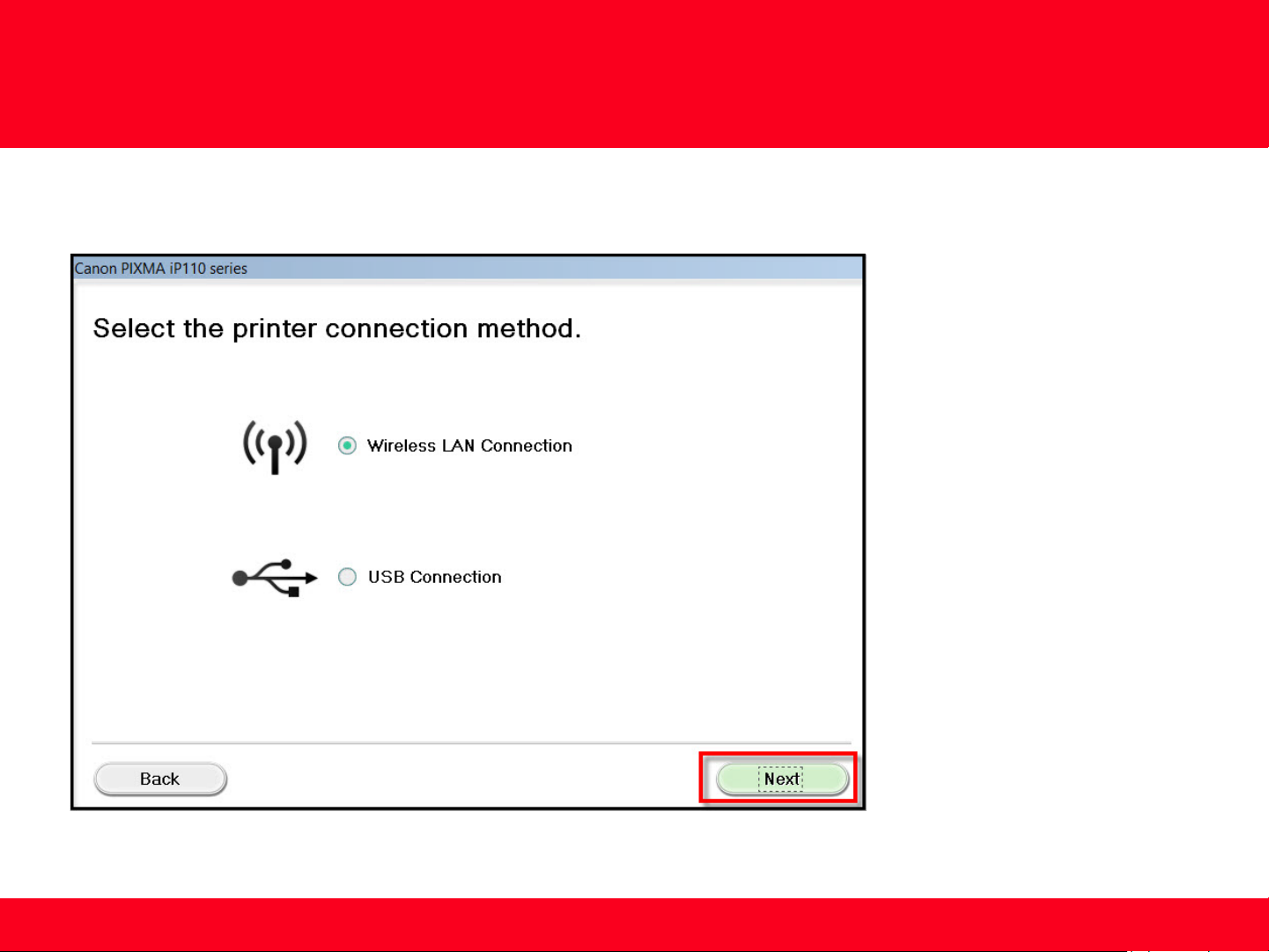

On the following screen, select Wireless LAN Connection, then click Next.

Connecting to the Network

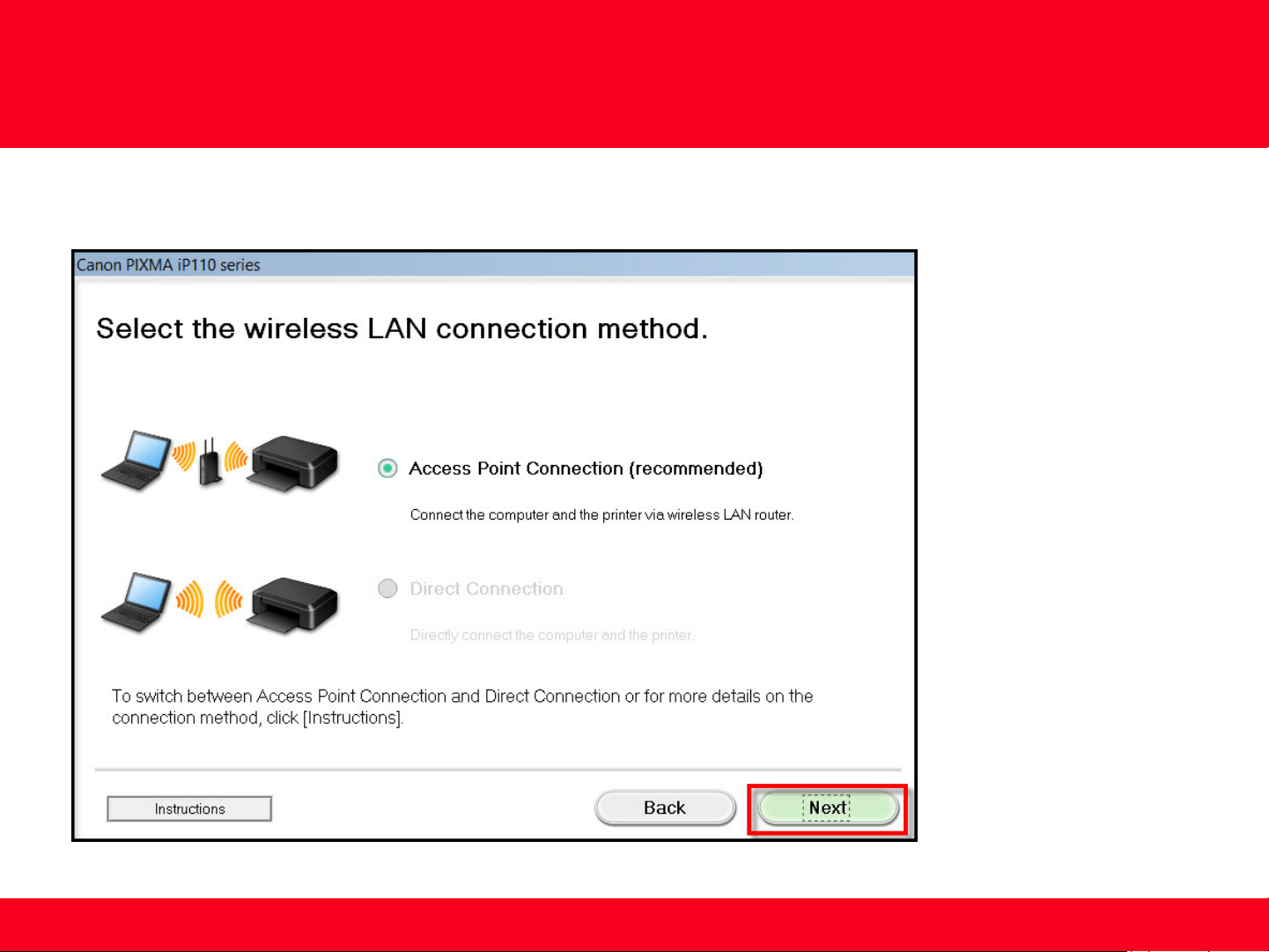

On the following screen, select Access Point Connection, then click Next.

Connecting to the Network

1010

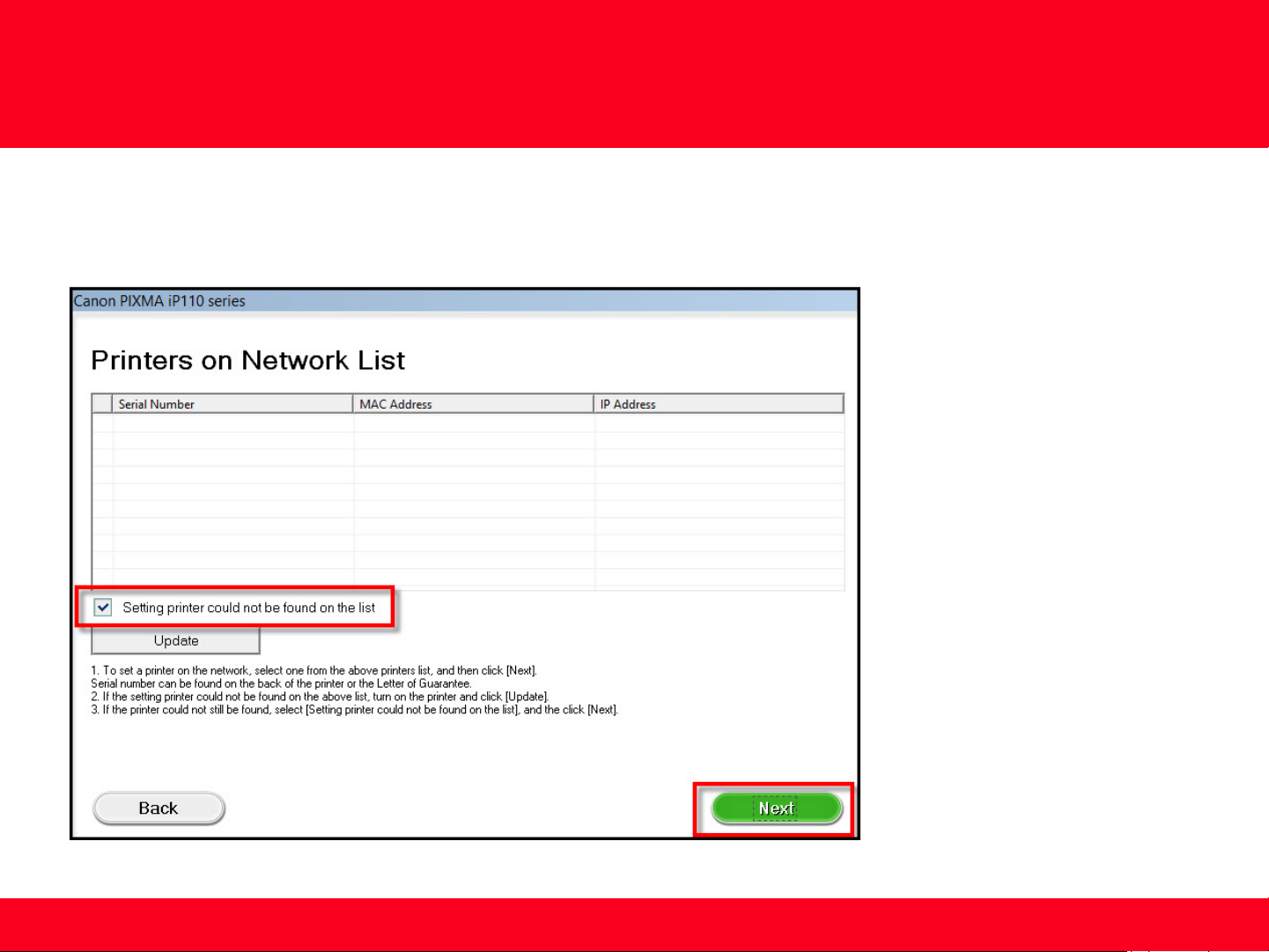

Continue following on-screen instructions. On the Printers on Network List screen, check the Setting printer could not be found on the

list checkbox and click Next.
