Canon IP4700 - PIXMA Color Inkjet Printer User manual

How to Use This Manual

Printing This Manual

MC-4052-V1.00

Basic Guide

Describes the summary of

this product.

Advanced Guide

Describes the detailed

function of this product.

Troubleshooting

Page 1 of 437 pagesCanon iP4700 series On-screen Manual

Downloaded from ManualsPrinter.com Manuals

How to Use This Manual

Printing This Manual

Printing on DVD/CDs

MP-3591-V1.00

Advanced Guide

Contents

Overview of the Printer

Main Components

Printing

Printing Photos (Easy-PhotoPrint EX)

Printing Documents (Windows)

Printing Documents (Macintosh)

Other Usages

Printing Photos from a PictBridge Compliant

Device

Useful Software Applications

Loading Paper

Routine Maintenance

Replacing an Ink Tank

When Printing Becomes Faint or Colors Are

Incorrect

Cleaning the Paper Feed Roller

Cleaning the Pad in the Cassette

Opening the Maintenance Screens

Appendix

Legal Limitations on Use of Your Product and

Use of Images

Tips on How to Use Your Printer

Page 2 of 437 pagesiP4700 series Basic Guide

Downloaded from ManualsPrinter.com Manuals

Advanced Guide Troubleshooting

Contents > Overview of the Printer

Overview of the Printer

This section shows the component names of the printer and describes their functions.

Main Components

Front View

Rear View

Inside View

Page top

Page 3 of 437 pagesOverview of t e Printer

Downloaded from ManualsPrinter.com Manuals

Advanced Guide Troubleshooting

Contents > Overview of the Printer > Main Components

Main Components

Front View

Rear View

Inside View

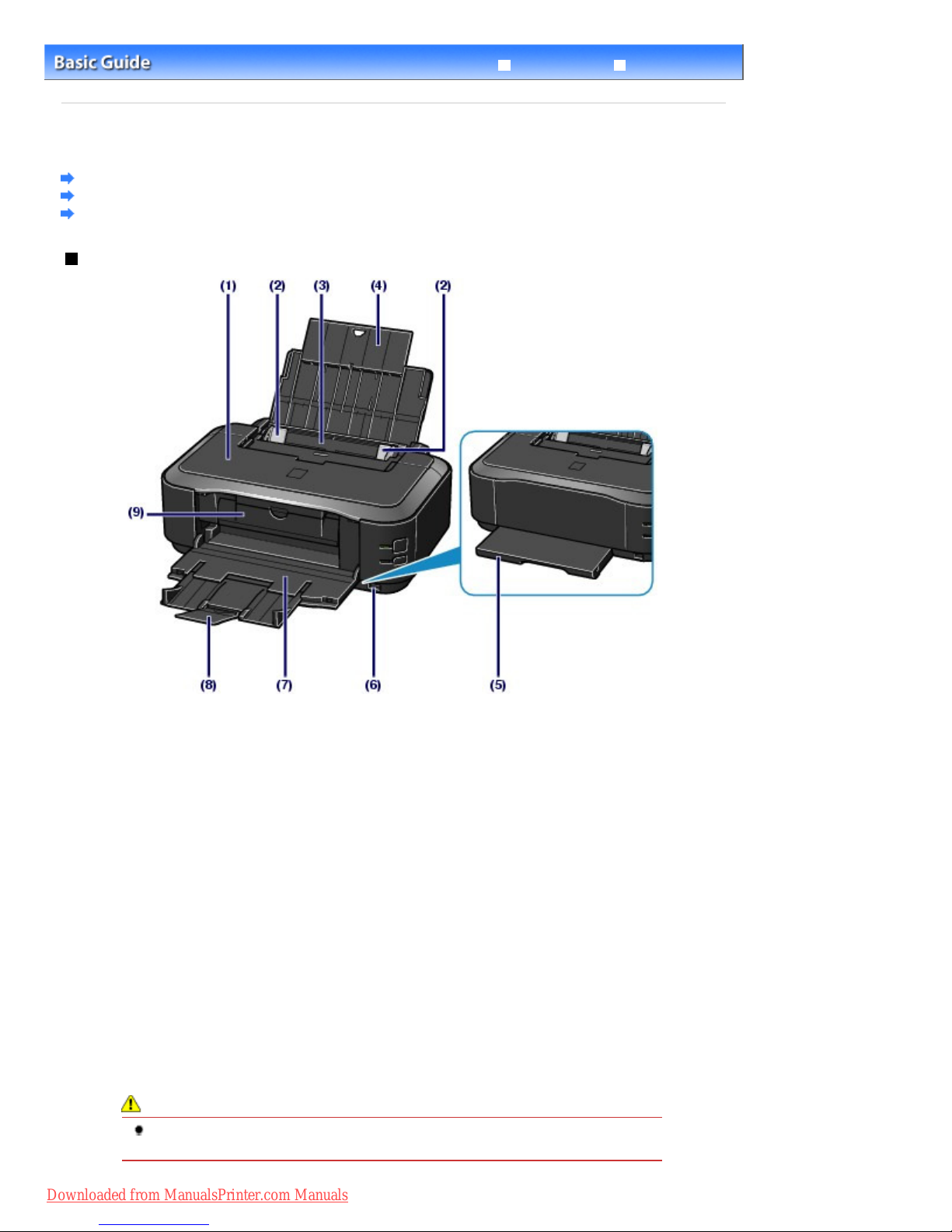

Front View

(1) Top Cover

Open to replace the ink tanks or remove jammed paper inside the printer.

(2) Paper Guides

Slide to align with both sides of the paper stack.

(3) Rear Tray

Load photo paper or envelopes which you can use on the printer. Two or more sheets of the same size

and type of paper can be loaded at the same time, and fed automatically one sheet at a time.

See Loading Paper .

(4) Paper Support

Open and pull out to load paper in the Rear Tray.

(5) Cassette

Load A4, B5, A5, or Letter-sized plain paper and insert it into the printer. Two or more sheets of the same

size of plain paper can be loaded at the same time, and fed automatically one sheet at a time.

See Loading Paper .

(6) Direct Print Port

Connect a PictBridge compliant device such as a digital camera to print directly.

See Printing Photos from a PictBridge Compliant Device .

Warning

Do not connect any equipment other than PictBridge compliant devices to the Direct Print

Port of the printer. This may cause fire, electric shock, or damage to the printer.

Page 4 of 437 pagesMain Components

Downloaded from ManualsPrinter.com Manuals

Important

Do not touch the metal casing.

(7) Paper Output Tray

Printed paper is ejected. Open it fully before printing.

(8) Output Tray Extension

Extend and open to support the printouts. Open it when printing.

(9) Inner Cover

Close it when printing on paper.

(10) Power button

Press to turn the power on or off.

Important

Disconnecting the power plug

When disconnecting the power plug after turning off the power, be sure to confirm that

the Power lamp is not lit. If the power plug is disconnected from the wall outlet while the

Power lamp is lit or flashing, the printer may become unable to print properly since the

Print Head is not protected.

Note

Auto power on/off feature

You can set the printer to turn on or off automatically.

- Auto Power On: Automatically turns on the printer when print data is sent from the

computer.

- Auto Power Off: Automatically turns off the printer when no print data is sent for a

certain interval.

Specify this setting on the Maintenance sheet of the printer driver setup window (Windows),

or in the Canon IJ Printer Utility (Macintosh).

For details on the settings, refer to the on-screen manual:

Advanced Guide

(11) Power lamp

Lights green after flashing when the power is turned on.

(12) RESUME/CANCEL button

Press to cancel a print job in progress. You can press this button to release from printer error status and

resume printing, after the printer problem is resolved.

(13) Alarm lamp

Flashes orange when an error occurs, such as paper-out or ink-out.

Page 5 of 437 pagesMain Components

Downloaded from ManualsPrinter.com Manuals

Note

Power and Alarm lamps

You can check the status of the printer by the Power and Alarm lamps.

- Power lamp is off: The power is off.

- Power lamp lights green: The printer is ready to print.

- Power lamp flashes green: The printer is getting ready to print, or printing is in progress.

- Alarm lamp flashes orange: An error has occurred and the printer is not ready to print.

For details, refer to "Troubleshooting" in the on-screen manual:

Advanced Guide

- Power lamp flashes green and Alarm lamp flashes orange alternately: An error that

requires contacting the service center may have occurred.

For details, refer to "Troubleshooting" in the on-screen manual:

Advanced Guide

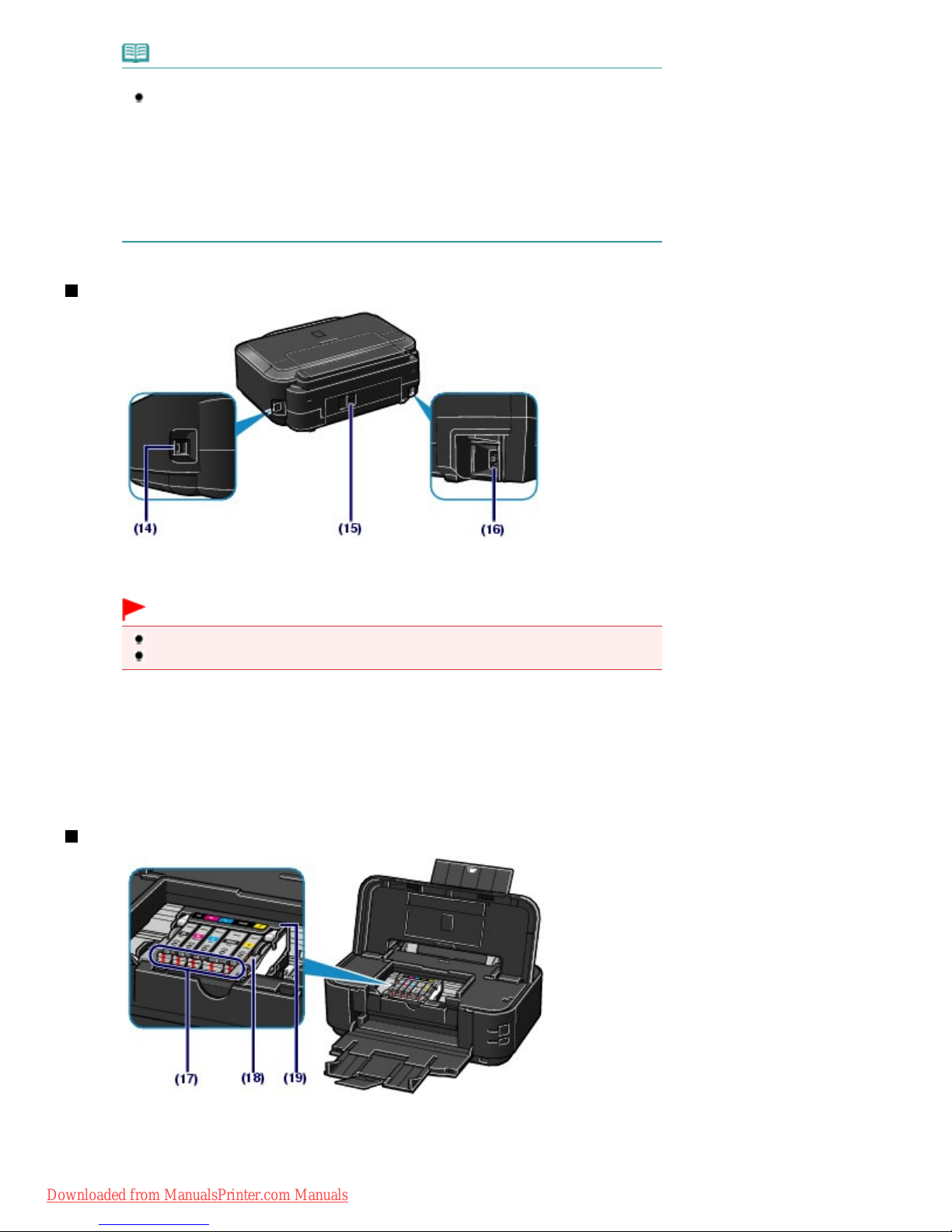

Rear View

(14) USB Port

Plug in the USB cable to connect the printer with a computer.

Important

Do not touch the metal casing.

Do not plug in or unplug the USB cable while printing.

(15) Rear Cover

Detach to remove jammed paper.

Refer to "Troubleshooting" in the on-screen manual:

Advanced Guide

(16) Power Cord Connector

Plug in the supplied power cord.

Inside View

(17) Ink lamps

Light or flash red to indicate the ink tank status.

See Checking the Ink Status.

Page 6 of 437 pagesMain Components

Downloaded from ManualsPrinter.com Manuals

(18) Print Head Lock Lever

Locks the Print Head into place.

Important

Do not raise this lever after installing the Print Head.

(19) Print Head Holder

Install the Print Head.

Note

For details on installing the Print Head and ink tanks, refer to the printed manual: Getting

Started.

Page top

Page 7 of 437 pagesMain Components

Downloaded from ManualsPrinter.com Manuals

Advanced Guide Troubleshooting

Contents > Printing

Printing

This section describes the procedure to print documents or photos.

You can easily print photos taken with your digital camera by using Easy-PhotoPrint EX supplied with the

printer.

Printing Photos (Easy-PhotoPrint EX)

Using Various Functions of Easy-PhotoPrint EX

Printing Documents (Windows)

Printing Documents (Macintosh)

For Mac OS X v.10.5.x

For Mac OS X v.10.4.x or Mac OS X v.10.3.9

Page top

Page 8 of 437 pagesPrinting

Downloaded from ManualsPrinter.com Manuals

Advanced Guide Troubleshooting

Contents > Printing > Printing Photos (Easy-PhotoPrint EX)

Printing Photos (Easy-PhotoPrint EX)

Print image data saved on your computer by using Easy-PhotoPrint EX supplied with the printer.

This section describes the procedure to print borderless photos on 4" x 6" / 10 x 15 cm photo paper.

For details on Easy-PhotoPrint EX, refer to the on-screen manual: Advanced Guide .

Note

The screens used in this section are for printing with Windows. The operations are also the same

for printing with Macintosh.

Install Easy-PhotoPrint EX from the Setup CD-ROM when it has not been installed or has been

uninstalled. To install Easy-PhotoPrint EX, select Easy-PhotoPrint EX in Custom Install.

1. Prepare for printing.

(1) Make sure that the printer is turned on.

See Front View .

(2) Load paper.

See Loading Paper .

Here we load 4" x 6" / 10 x 15 cm photo paper in the Rear Tray.

Note

Load A4 or Letter-sized plain paper in the Cassette and other sizes or types of paper

such as photo paper in the Rear Tray.

(3) Open the Paper Output Tray gently, and extend the Output Tray Extension to

open.

2. Start Easy-PhotoPrint EX, and select Photo Print.

(1) Start Easy-PhotoPrint EX.

Double-click (Easy-PhotoPrint EX) on the desktop.

Click Here: Easy-PhotoPrint EX

Page 9 of 437 pagesPrinting P otos (Easy-P otoPrint EX)

Downloaded from ManualsPrinter.com Manuals

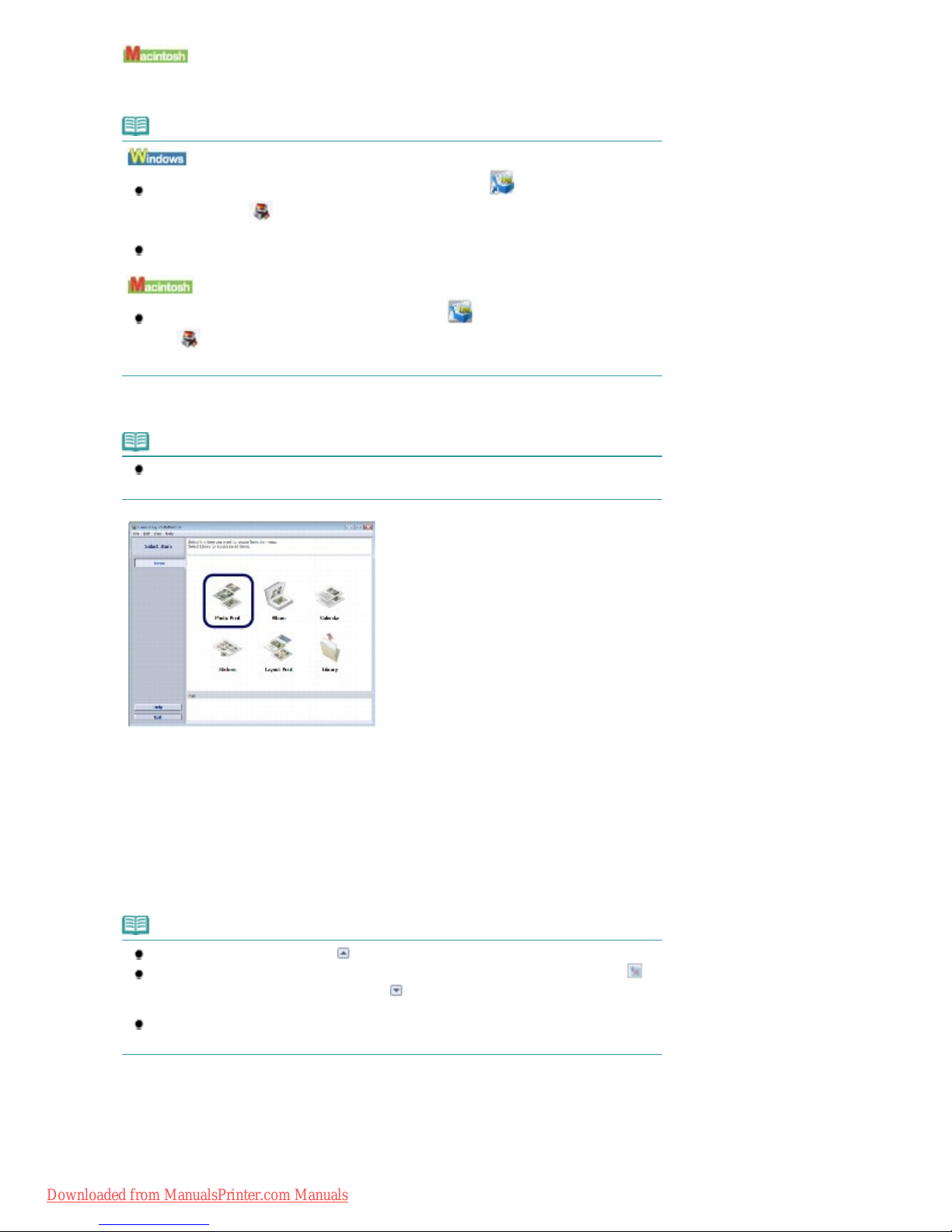

Select the Go menu, Applications, Canon Utilities, Easy-PhotoPrint EX, then double-click Easy-

PhotoPrint EX.

Note

To start Easy-PhotoPrint EX from Solution Menu, double-click (Solution Menu) on the

desktop and click (Print photos or albums, etc.).

See Solution Menu.

To start Easy-PhotoPrint EX from the Start menu, select All Programs (or Programs), Canon

Utilities, Easy-PhotoPrint EX, then Easy-PhotoPrint EX.

To start Easy-PhotoPrint EX from Solution Menu, click (Solution Menu) in the Dock and

click (Print photos or albums, etc.).

See Solution Menu.

(2) Click Photo Print.

Note

You can select Album, Calendar, Stickers, etc., besides Photo Print.

See Using Various Functions of Easy-PhotoPrint EX.

3. Select a photo to print.

(1) Select the folder in which images are saved.

(2) Click the image to print.

The number of copies appears as "1", and the image you selected appears in the selected image area (A).

You can select two or more images at the same time.

Note

To print two or more copies, click (Up arrow) to change the number of copies.

To cancel the selection, click the image to cancel in the selected image area and click

(Delete Imported Image). You can also use (Down arrow) to change the number of

copies to zero.

You can also correct or enhance the selected image.

See Using Various Functions of Easy-PhotoPrint EX.

(3) Click Select Paper.

Page 10 of 437 pagesPrinting P otos (Easy-P otoPrint EX)

Downloaded from ManualsPrinter.com Manuals
