C.A. Technologies Lynx 100CM User manual

CONVENTIONAL AIR CAP AND FLUID NOZZLE CHART

MODEL

NO. AIR CAPS Press /

Siphon

*SUGGESTED

GUN INLET

PRESS.

FAN

CONTROL SCFM AIR CAP

RING

AVAI LABL E FLUI D

NOZZLES

NEEDLES /

marking on needle

21-223 3 31-0618 1.8mm (.070") 40-1115 (115)

21-224 6 31-0622 2.2mm (.086") 40-1122 (122)

21-228 10 31-0628 2.8mm (.110") 40-1128 (128)

*Gun inlet pressures may vary as required by application

**All air caps require P/N 21-1583 base & air cap ring

L100CM 60-122

(Plug)

50Pressure 21-204

MULTICOLOR SPRAY GUN WITH PRESSURE CUP

PRODUCT INFORMATION

Lynx 1ynx 1

ynx 1ynx 1

ynx 100CM00CM

00CM00CM

00CM

DISTRIBUTED BY COATING EQUIPMENT TECHNOLOGY, INC

PHONE: 586-210-0555

WEB: www.cetinc.com

Operation and Maintenance Instructions for

100CM100CM

100CM

Spray Guns

General

The L100CM is a “bleeder type”(atomizing air flows continuously) spray gun with pressurized material supply cup and

an internal mix style spray nozzle. It has been optimized for the application of multi-color coatings but also is excellent

for single color latex or oil based interior paints.

Operation

1. Connect air supply hose at handle of gun.

2. Connect a pressurized fluid supply or paint siphon cup to the gun fluid inlet.

3. Fluid flow can be controlled using the fluid control knob, this restricts flow by limiting needle travel. It is best to control

fluid flow by proper selection of fluid orifice size and use the fluid control knob to “fine tune flow rate”.

4. Fan width can be adjusted using the fan control knob. Turning the knob clockwise narrows the fan.

Maintenance

IMPORTANT! Routine cleaning and maintenance is essential to insure proper gun operation.

Several states prohibit spraying solvent into the atmosphere and require the use of covered gun cleaner.

1. If a gun cleaner is being used, connect and clean the gun in the gun cleaner according to the manufactures

instructions.

2. If a gun cleaner is not being used:

Remove air cap and clean separately using clean solvent.

For pressure setups, connect a pressurized solvent supply to the fluid inlet, trigger the gun allowing solvent to flow

thru the gun until clean.

For siphon setups, first clean the siphon cup thoroughly then spray clean solvent thru the gun until clean.

NOTE: Gun head disassembly is not recommended for normal cleaning and maintenance.

Gun head disassembly and reassembly instructions:

Have repair kit # 10-106 available before gun disassembly.

Gun head disassembly

To remove the nozzle carrier (8) and air cap adapter (9):

1. Remove the air cap (1-4), fluid nozzle tip (5), fluid nozzle body (6), and needle (17).

2. Remove the needle seal cartridge (23).

3. Loosen the locknut (28) and remove fluid inlet (29) using a 5/8” open-end wrench.

4. The nozzle carrier (8) and air cap adapter (9) will now slide forward from the gun body (11).

Gun head reassembly

1. Install a new o-ring (10) on the air cap adapter (9).

2. Install gasket (7) into the air cap adapter (9).

3. Install the thread locknut (28) onto the fluid inlet (29) as far as possible.

4. Install a new fluid inlet seal (27) into the recess area on the nozzle carrier (8) inlet port.

5. Slide the nozzle carrier (8) into air cap adapter (9) and insert into the gun body (11) as far as possible. Be sure the

nozzle carrier (8) extends into the hole at the back of the gun head. Install the needle seal (23) but do not tighten.

6. Rotate the nozzle carrier (8) until the fluid inlet port in the nozzle carrier (8) is aligned with the threaded hole in the

body. While in this position, insert the fluid inlet (29) and tighten firmly.

7. Tighten the needle seal (23) to approx. 12 ft.-lb. torque.

8. Tighten the fluid inlet (29) to approx. 25 ft.-lb. torque.

9. Tighten the locknut (28) to approx. 33 ft.-lb. torque.

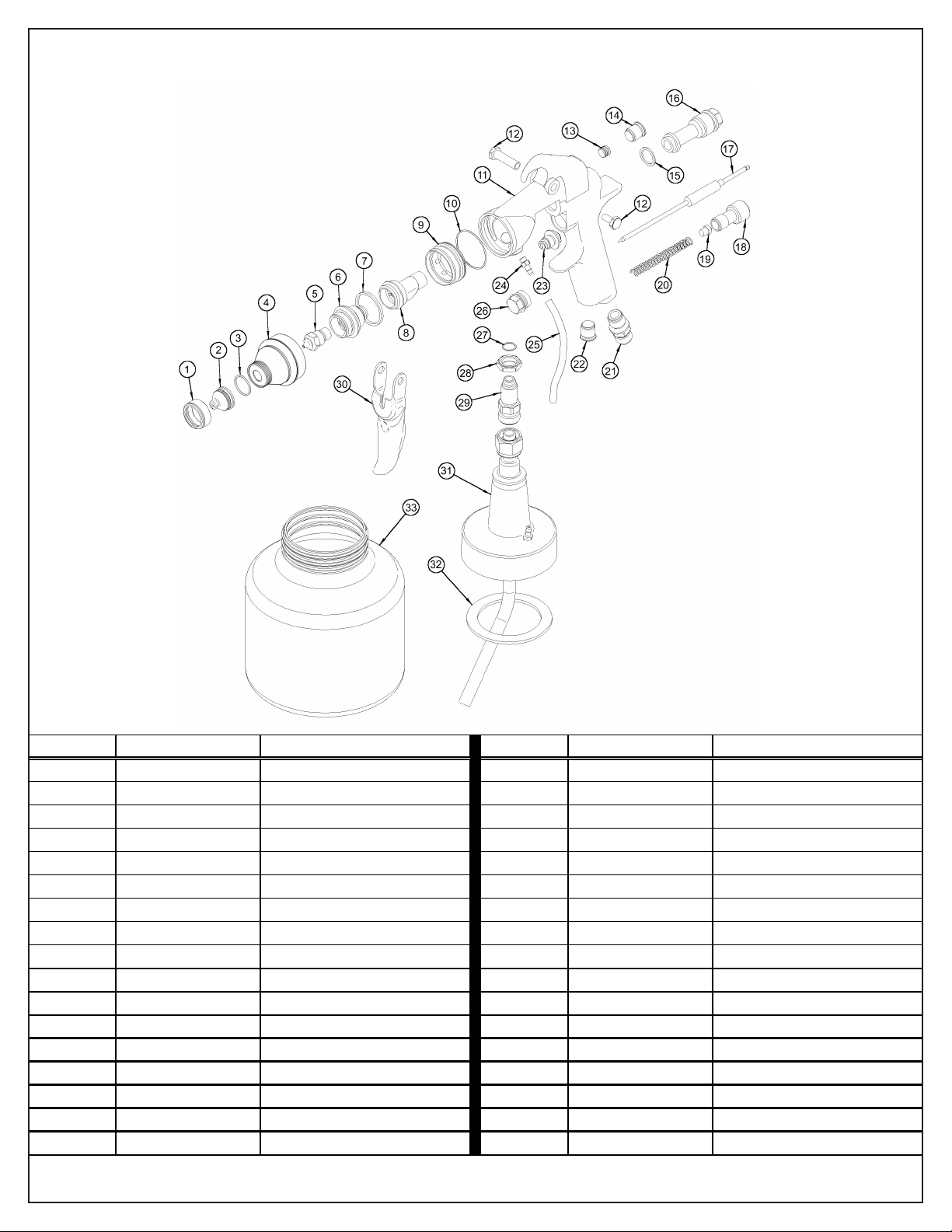

ITEM NO. PART NO. DESCRIPT ION ITEM NO. PART NO. DESCRIPT ION

1 See Air Cap Chart Air Cap Retaining Ring 18 60-202 Fluid Control Knob

2 See Air Cap Chart Air Cap 19 60-205 Spring Seat*

3 98-8014 O-Ring 20 60-204 Spring*

4 21-1583 Base Assembly 21 60-104 Air Inlet Fitting

5 See Air Cap Chart Fluid Nozzle 22 60-122 Plug

6 31-2201 Fluid Nozzle Body 23 60-1400 Needle Seal Cartridge*

7 61-1005 Seal Ring* 24 60-502 Barb Fitting

8 60-L11C Nozzle Body Carrier 25 53-20-4.3 1/8" Nylon Tube

9 60-12C Air Cap Adapter 26 60-309 Plug

10 60-131 O-Ring* 27 60-124 Seal*

11 60-1124 Lynx Gun Body Conventional 28 60-128 Lock Nut

12 61-1033 Trigger Pivot Set 29 60-126 Fluid Inlet

13 98-0109 Allen Plug 30 60-2101 Trigger

14 60-122 Plug 31 51-353 Cup Cover Assembly

15 60-119 Seal Ring* 32 51-358 Cup Gasket

16 60-201 Rear Bushing 33 51-350 Cup (750 mL)

17 See Air Cap Chart Fluid Needle Repair Kit 10-106 Lynx Repair Kit

*Indicates part included in repair kit # 10-106

Revised 3/18/14
