Start Here HL-3140CW / HL-3150CDN

HL-3150CDW / HL-3170CDW

Quick Setup Guide

ENG Version 0

Thank you for choosing Brother, your support is important to us and we value your business. Your Brother product

is engineered and manufactured to the highest standards to deliver reliable performance, day-in and day-out.

Please read the Product Safety Guide first, then read this Quick Setup Guide for the correct setup and installation

procedure. To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.

(HL-3140CW / HL-3170CDW) In USA:

To download other guides for this product, visit the Brother Solutions Center at http://solutions.brother.com/ and

click Manuals on your model's page.

Unpack the machine and check the components

NOTE

Not all models are available in all countries.

Drum Unit and Toner Cartridge Assemblies

(pre-installed)

(Black, Cyan, Magenta and Yellow)

Waste Toner Box

(pre-installed)

Belt Unit

(pre-installed)

Quick Setup Guide

CD-ROM AC Power Cord Product Safety Guide

WARNING

Plastic bags are used in the packing of your machine. Plastic bags are not toys. To avoid the danger

of suffocation, keep these bags away from babies and children, and dispose of them correctly.

WARNING WARNING indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injuries.

CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may

result in minor or moderate injuries.

NOTE

• Keep a minimum gap around the machine as shown in the illustration.

• The components included in the box may differ depending on your country.

• We recommend that you save the original packaging.

• If for any reason you must ship your machine, carefully repack the machine in the original packaging to avoid

any damage during transit. The machine should be adequately insured with the carrier. For details on how

to repack the machine, see User's Guide: Packing and shipping the machine.

• Illustrations in this Quick Setup Guide are based on the HL-3170CDW.

• The interface cable is not a standard accessory. Buy the appropriate interface cable for the connection you

want to use (USB or Network (HL-3150CDN / HL-3150CDW / HL-3170CDW)).

USB cable

We recommend using a USB 2.0 cable (Type A/B) that is no longer than 2 meters (6 feet).

Network cable (HL-3150CDN / HL-3150CDW / HL-3170CDW)

Use a straight-through Category 5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet

Network.

150 mm

(6.0 in.)

320 mm (12.6 in.)

150 mm

(6.0 in.) 150 mm

(6.0 in.)

Remove the packing

material from the

machine

CAUTION

DO NOT eat the silica gel pack, please throw it

away. If ingested, seek medical attention

immediately.

aRemove the packing tape from the outside of

the machine.

bFully open the top cover by lifting up on the

handle a.

cSlide all eight yellow drum locks in the direction

of the arrows as shown in the illustration below.

dTake out all four drum and toner cartridge

assemblies.

eRemove the orange packing piece from the belt

unit.

fRemove the orange packing piece from each

drum and toner cartridge assembly.

IMPORTANT

DO NOT connect the AC power cord yet.

IMPORTANT

To avoid print quality problems, DO NOT touch

the shaded part shown in the illustration.

gUsing both hands, hold each drum and toner

cartridge assembly level, and gently shake it

from side to side several times to distribute the

toner evenly inside the assembly.

hSlide all four drum and toner cartridge

assemblies into the machine. Make sure the

toner cartridge color matches the same color

label on the machine.

iClose the top cover of the machine.

Load paper in the paper

tray

aPull the paper tray completely out of the

machine.

bWhile pressing the green paper-guide release

lever a, slide the paper guides to fit the paper

size you are loading in the tray. Make sure the

guides are firmly in the slots.

cFan the stack of paper well to avoid paper jams

and misfeeds.

BK - Black

M - Magenta

C - Cyan

Y - Yellow

dLoad paper in the tray and make sure:

The paper is below the maximum paper

mark (bbb)a. Overfilling the paper tray will

cause paper jams.

The side to be printed on is face down.

The paper guides touch the sides of the

paper so it will feed properly.

ePut the paper tray firmly back in the machine.

Make sure it is completely inserted into the

machine.

fLift the support flap ato prevent paper from

sliding off the face-down output tray.

Turn on the machine

aConnect the AC power cord to the machine and

then connect it to an AC power outlet.

bPress and hold down on the control panel.

cDo one of the following:

For HL-3140CW / HL-3150CDW /

HL-3170CDW: Go to step 5.

For HL-3150CDN: Go to step 6.

For information about recommended paper:

see User's Guide: Recommended paper and

print media.

IMPORTANT

DO NOT connect the interface cable

yet.

Wireless setup for WLAN

models only

(if needed)

aFor mobile device users: press ato choose

Yes.

Go to step 9on page 17 to continue the

wireless setup.

After finishing the wireless setup, return to step

6to finish the machine setup.

bFor all other users: press bto choose No.

Then go to step 6.

Wireless setup for Windows®and Macintosh

users will be covered in later steps.

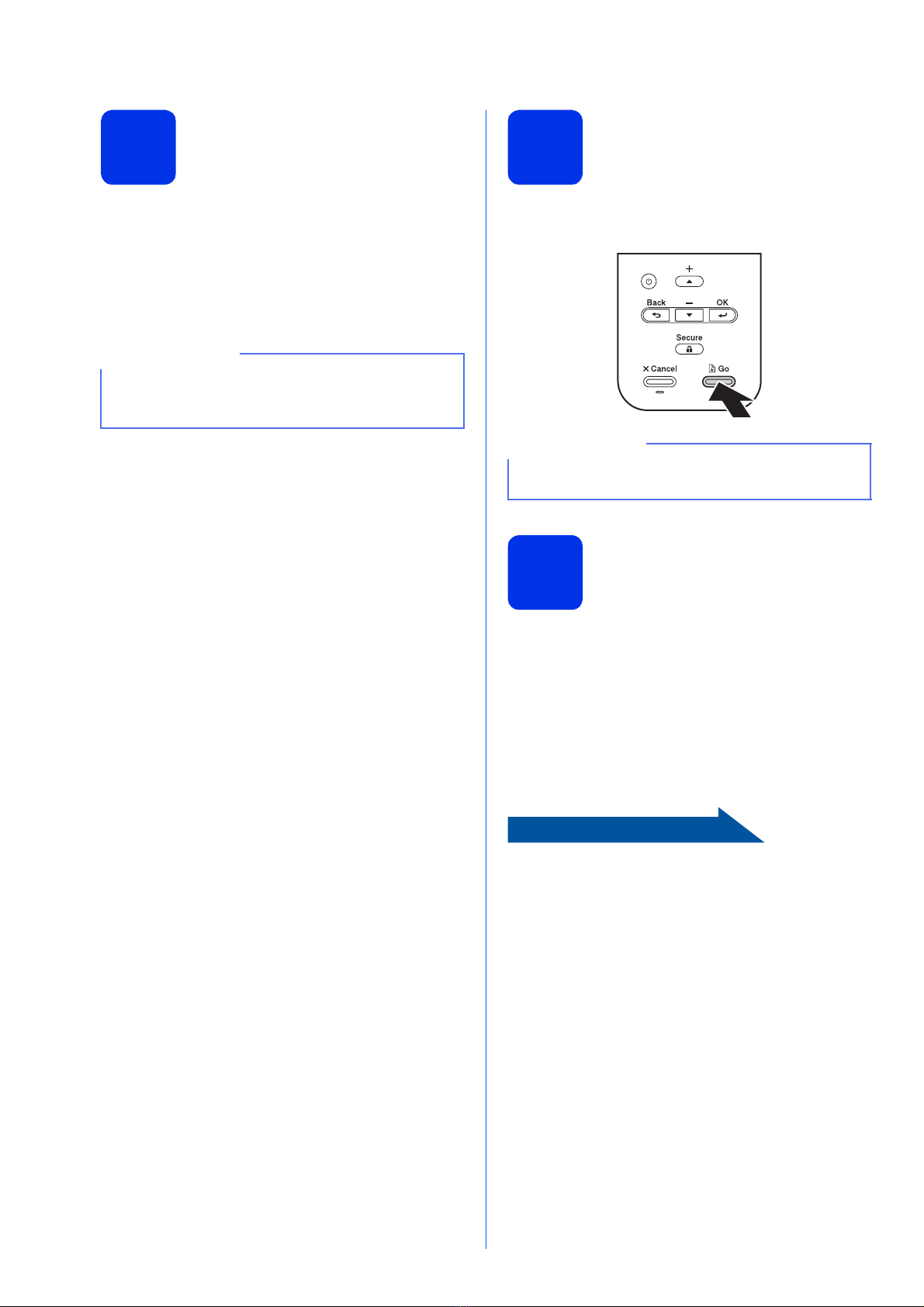

Print a test page

aPress Go. The machine will print a test page.

Check that the test page has printed correctly.

Set your language

aPress aor bto choose General Setup.

Press OK.

bPress OK to choose Local Language.

cPress aor bto choose your language.

Press OK.

dPress Cancel.

Now go to

Next page to install the printer driver.

NOTE

To change the language on your machine first,

you can choose No. You will be able to configure

the wireless settings later.

NOTE

This function will no longer be available after the

first print job you send from your computer.

Windows®

USB

Macintosh

Windows®Macintosh

Wired Network

Wireless Network

Windows®Macintosh

Choose your connection type

These installation instructions are for Windows®XP Home/XP Professional/XP Professional x64 Edition,

Windows Vista®, Windows®7, Windows®8, Windows Server®2003/2003 x64 Edition/2008/2008 R2/2012, and

Mac OS X v10.6.8, 10.7.x and 10.8.x.

NOTE

You can visit us at http://solutions.brother.com/ where you can get product support, the latest driver updates

and utilities, and answers to frequently asked questions (FAQs).

For USB Interface Cables

Windows

, go to page 8

Macintosh, go to page 10

For Wired Network

Windows

, go to page 11

Macintosh, go to page 15

For Wireless Network

Windows

and Macintosh,

go to page 17

NOTE

To connect your iOS or Android™ device or Windows®Phone to your Brother machine using Wi-Fi Direct™,

please download the Wi-Fi Direct™ Guide at http://solutions.brother.com/.

Windows®

USB

For Windows

USB Interface Cable Users

Before you install

aMake sure your computer is ON and you are

logged on with Administrator rights.

bPress and hold down to turn off the

machine, and make sure the USB interface

cable is NOT connected. If you have already

connected the cable, disconnect it.

Install the printer driver

aPut the CD-ROM into your CD-ROM drive. If

prompted, select your model and language.

bClick Install Printer Driver, and click Yes if

you accept the license agreement.

cChoose Local Connection (USB), and then

click Next.

dFollow the on-screen instructions until the Plug

in the USB cable screen appears.

eConnect the USB cable to the USB port

marked with the symbol on your machine,

and then connect the cable to your computer.

IMPORTANT

• If there are any programs running, close them.

• The screens may differ depending on your

operating system.

NOTE

• If the Brother screen does not appear

automatically, go to Computer (My

Computer), double-click the CD-ROM icon,

and then double-click start.exe.

• For Windows Vista®, Windows®7 and

Windows®8 users: when the User Account

Control screen appears, permit the window to

continue the installation.

NOTE

For HL-3170CDW: to install the PS driver

(BR-Script3 printer driver), choose Custom

Install, and then follow the on-screen

instructions.

Windows®

USB

Windows®

USB

Macintosh

fPress and hold down to turn on the

machine.

The installation will automatically continue. The

installation screens appear one after another. If

prompted, follow any on-screen instructions.

gWhen the On-Line Registration screen

appears, make your selection and follow the

on-screen instructions. Once you have

completed the registration process, click Next.

hWhen the Setup is Complete screen appears,

make your selection, and then click Finish.

IMPORTANT

DO NOT cancel any of the screens during the

installation. It may take a few minutes for all

screens to appear.

NOTE

Depending on your security settings when using

the machine or its software, a Windows®Security

or antivirus software window may appear. Please

allow or permit the window to continue.

Finish

The installation is now

complete.

NOTE

• If the Brother manuals included on the CD-ROM

are in PDF format, use Adobe®Reader®to

open them. If Adobe®Reader®is installed on

your computer but cannot open the files,

change the file association for ".pdf" to "Adobe®

Reader®" in your Control Panel. For more

information, see the FAQ section for this model

at http://solutions.brother.com/.

•XML Paper Specification Printer Driver

The XML Paper Specification Printer Driver is

the most suitable driver for Windows Vista®,

Windows®7 and Windows®8 when printing

from applications that use the XML Paper

Specification. Please download the latest driver

from the Brother Solutions Center at

http://solutions.brother.com/.

Macintosh

USB

For Macintosh USB Interface Cable Users

Before you install

aMake sure your machine is connected to an AC

power source and your Macintosh is ON. You

must be logged on with Administrator rights.

bConnect the USB cable to the USB port

marked with the symbol on your machine,

and then connect the cable to your Macintosh.

cMake sure your machine is turned on.

Install the printer driver

aPut the CD-ROM into your CD-ROM drive, and

then double-click the BROTHER icon on your

desktop.

bDouble-click the Start Here OSX icon. If

prompted, select your model.

c(HL-3140CW / HL-3150CDW / HL-3170CDW)

Choose Local Connection (USB), and then

click Next.

dThe installation screens appear one after

another. If prompted, follow any on-screen

instructions.

eChoose your machine from the list, and then

click Next.

fWhen the Add Printer screen appears, click

Add Printer.

gChoose your machine from the list, click Add,

and then click Next.

IMPORTANT

For users of Mac OS X v10.6.7 or lower: upgrade

to Mac OS X v10.6.8, 10.7.x, 10.8.x. (For the

latest drivers and information for the Mac OS X

you are using, visit http://solutions.brother.com/.)

NOTE

It may take a few minutes for the installation to

complete.

NOTE

• For HL-3170CDW: to add the PS driver

(BR-Script3 printer driver), select it from the

Print Using (Use) pop-up menu.

• When the Brother Support screen appears,

make your selection and follow the on-screen

instructions.

Finish

The installation is now

complete.

Other manuals for HL-3140CW

This manual suits for next models

Table of contents

Other Brother Printer manuals

Brother

Brother HL-3075CW User manual

Brother

Brother HL-L8260CDN Technical manual

Brother

Brother MFC490CW - Color Inkjet - All-in-One Operating and safety instructions

Brother

Brother ReChargX RX417XX User manual

Brother

Brother HL-L5200DW User manual

Brother

Brother GT-541 User manual

Brother

Brother HL-L5210DN Operating manual

Brother

Brother HL-720 User manual

Brother

Brother HL-L2440DW User manual

Brother

Brother MFC-T910DW User manual

Brother

Brother RJ-4250WB User manual

Brother

Brother HL-660 Series User manual

Brother

Brother DCP-L3517CDW User manual

Brother

Brother MFC 990cw - Color Inkjet - All-in-One User manual

Brother

Brother HL-7050 Series User manual

Brother

Brother HL-5470DW User manual

Brother

Brother HL-5585D User manual

Brother

Brother HL 1850 - B/W Laser Printer User manual

Brother

Brother HL-L6300DW User manual

Brother

Brother HL-4040CN Owner's manual

Brother

Brother MFC-J480DW Dimensions

Brother

Brother HL-2600CN Series Assembly instructions

Brother

Brother HL-2035 User manual

Brother

Brother HL-L3220CDW User manual

Popular Printer manuals by other brands

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series quick start guide

Evolis

Evolis Elypso user guide

Kyocera

Kyocera FS-9530DN specification

Canon

Canon LASER SHOT LBP-1210 Specifications

Samsung

Samsung BIXOLON SRP-350plusF user manual

Canon

Canon PIXMA PRO-1 Series Getting started

Canon

Canon PIXMA G3560 Online manual

Dell

Dell Color Laser Printer 2130cn user guide

Tektronix

Tektronix Phaser 840 user guide

Epson

Epson ET-7750 Programming guide

Canon

Canon CLBR 460ps Service manual

Eltron

Eltron P210 Guide manual

Ricoh

Ricoh MD-P1 Service manual

Epson

Epson SC-F7100 series user guide

Epson

Epson Stylus C40UX Service manual

Canon

Canon imagePASS-A2 Service guide

Canon

Canon S820D user guide
