Brickcom MD-100Ae User manual

Megapixel

Mini Dome Network Camera

MD-100A Series

PS-588I

8-port 10/100M PoE Fast

Ethernet Switch

PS-7242IL-AF

24-port 10/100M PoE Web

Smart Ethernet Switch

Dimension Diagram (MD-100A Series)

▪H.264, MPEG-4 and MJPEG Triple Codec Compression with Dual

Simultaneous Streaming

▪Inconspicuous, Sleek Design

▪Built-in Microphone(*)

▪Wide Angle Lens(*)

▪3G USB Dongle Support(*)

▪Built-in Micro SD/SDHC Memory Card Slot for Local Storage(*)

▪Built-in 802.3af Compliant Power over Ethernet (PoE)

▪Anti Vibration and Shock(EN50155)

▪Weather and Vandal-proof Casing (IP67, IK10)

▪EasyConfig for Easy Set Up and GUI Integration

▪Unique Profile Setting for Variable Environment

1. Microphone Hole(*)

2. Security Screws

3. Screw Hole

4. LED Indicators

5. Reset Button

6. Micro SD/SDHC Card Slot(*)

7. Lens Hood

8. Lens

9. USB Port for 3G Dongle(*)

Network Equipment

Model Number

MD-100Ae –IP-67 / Vandal-proof/ PoE/

EN50155

MD-100Ap –IP-67 / Vandal-proof/ PoE/

EN50155/ Local Storage/ Wide Angel Lens/

Built-in Microphone

Hardware System

CPU: 500 MHz

Flash: 16M

RAM: 128M DDR

Image Sensor

Sensor Type : 1/4” CMOS Megapixel Sensor

Sensor Resolution : 1280 x 800 pixel

Minimum Illumination : 5 Lux(F2.0,Color)

3 Lux(F2.0, B/W)

Lens

Lens Type : Board Lens

MD-100Ap/ MD-100Ae

Focal Length: f= 2.86 mm

F-number: F2.0

ViewAngle (Hor): 85°(Ver): 52°(Dia): 104°

Communication

Ethernet : one 10/100Mbps RJ-45

Supported Protocols : TCP/IP, UDP, ICMP,

DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,

Samba, PPPoE, UPnP, RTP, RTSP,

RTCP

Interface &

Buttons

MD-100Ae

Ethernet Cable Connector(PoE)

Reset Button

MD-100Ap

Ethernet Cable Connector(PoE)

Reset Button

Built-in Microphone

Micro SD/SDHC Card Slot

USB Port for 3G Dongle(Optional)

Power input

802.3af Compliant Power on Ethernet (PoE)

LEDs

Power

Status

Internet

Max. Power

Consumption

MD-100Ae

3.5 watt

MD-100Ap

3.8 watt

Environment

Water Proof: IP67

Operating Temperature :

-20°C ~ 50°C (-4°F ~122°F),

Operating Humidity :

10% ~ 80%

Dimension

Ø 110 mm x 45 mm

Weight

335g

Certification

FCC, CE, EN50155, IK10

Warranty

Limited 2-year warranty

Video Image

Compression

H.264 / MPEG4 / MJPEG

Video Setting

Auto Exposure Control:

Sport/ Normal/ Night Vision/ User Defined

Auto Gain Control: 1X~5X

Shutter Speed: 1/5~1/20000 sec

S/N Ratio

39dB

Image Resolution

16:10

- 1280 x 800 / 640 x 400 / 320 x 192

16:9

- 1280 x 720 / 640 x 352 / 320 x 176

4:3

- 640 x 480 / 320 x 240

Frame Rate at

Max. Resolution

MD-100Ae

H.264: 15 fps

MPEG4: 15 fps

MJPEG: 30 fps

MD-100Ap

H.264: 30 fps

MPEG4: 15 fps

MJPEG: 30 fps

Audio Streaming

MD-100Ap

One-way audio support

Audio

Compression

G.711, AMR (8 kHz, Mono, PCM)

Audio Input

MD-100Ap

Built-in Microphone

Camera

Video

Network

General

Brickcom Corporation Headquarters

Address: No.1 Jen Ai Rd, Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan,

R.O.C. 303 Tel: + 886-3-5982022 Fax: + 886-3-5982023

Mail: info@brickcom.com http://www.brickcom.com

(*) These are optional features. Please refer to the Buying Guide for the full

list of optional features available for this product.

Audio

This manual suits for next models

Other Brickcom Security Camera manuals

Brickcom

Brickcom FB-100A Series User manual

Brickcom

Brickcom OB-100A User manual

Brickcom

Brickcom Economy Outdoor Bullet Series Datasheet

Brickcom

Brickcom FB-100A Series User manual

Brickcom

Brickcom Bullet Series Instructions for use

Brickcom

Brickcom VD-E200Af series Datasheet

Brickcom

Brickcom FB-130Np Series User manual

Brickcom

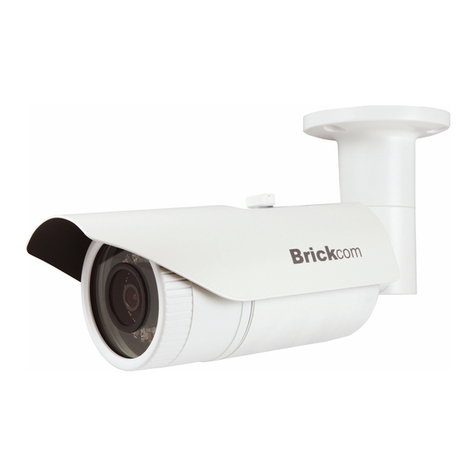

Brickcom OB-E400AF Datasheet
