Black Box IC111C User manual
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
JUNE 2000
IC111C
IC181C

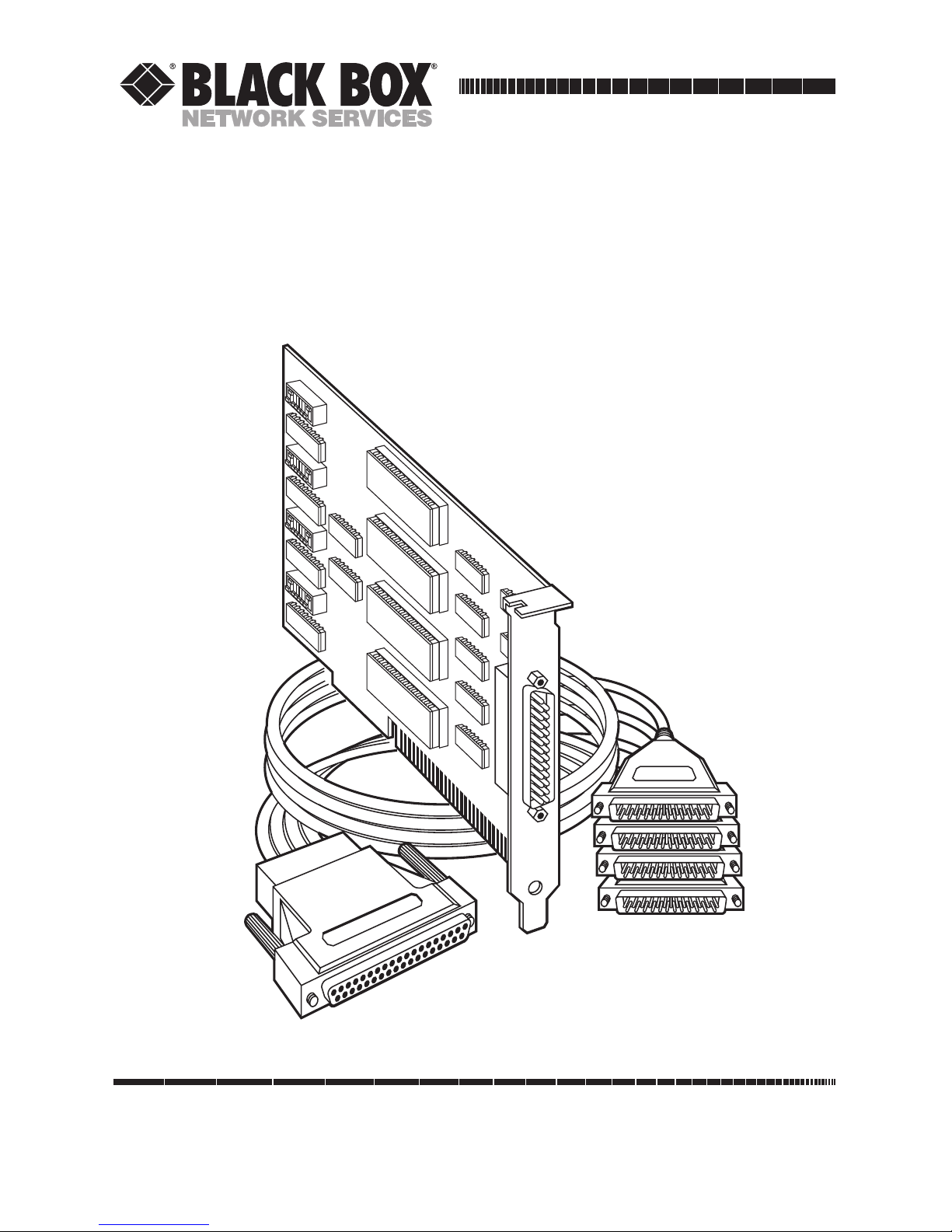

Four Port RS-232 Serial Interface
FOUR PORT RS-232 SERIAL INTERFACE
FEDERAL COMMUNICATIONS COMMISSION
AND
INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio frequency energy a
nd if not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication.
It has been tested and found to comply with the limits for a Class A
computing device in accordance with the specifications in Subpart J of
Part 15 of FCC rules, which are designed to provide reasonable protection
against such interference when the equipment is operated in a commercial
environment. Operation of this equipment in a residential area is likely to
cause interference, in which case the user at his own expense will be required
to take whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.
TRADEMARKS USED IN THIS MANUAL
IBM is a registered trademark, and XT is a trademark of IBM Corporation.
U.L. is a registered trademark of Underwriters Laboratories, Inc.
FOUR PORT RS-232 SERIAL INTERFACE
Contents
Chapter Page
1. Specifications...................................................................................................1
2. Introduction ....................................................................................................2
2.1 Overview..................................................................................................2
2.2 What’s Included......................................................................................2
2.3 Features...................................................................................................3
2.4 Technical Description............................................................................4
3. Address Selection............................................................................................5
4. Option Selection .............................................................................................6
4.1 Port Enable/Disable...............................................................................6
4.2 Interrupt-Mode Options ........................................................................8
5. Installation.....................................................................................................10
5.1 Software Installation .............................................................................10
5.1.1 Windows 3.1x...............................................................................10
5.1.2 Windows 95/98 ...........................................................................10
5.1.3 Windows NT ................................................................................10
5.2 Hardware Installation ...........................................................................10
Appendix A: Circuit-Board Design ...................................................................11
Appendix B: Troubleshooting ..........................................................................12
1
CHAPTER 1: Specifications
Protocol — Asynchronous
Number of Ports — 4
Speed — IC111C: Up to 115.2 Kbps; IC181C: 460.8 kbps and higher
Operation — RS-232
Connectors — DB37M on card; (1) 3-ft. (0.9-m) DB37F-to-4x DB25M octopus
cable, included
Maximum Distance — 50 ft. (15.2 m) @ 19.2 Kbps with 2500 pF max. cable
capacitance (lower capacitance will allow greater distances)
Communications Chip — IC111C: 16550 UART; IC181C: 16850 UART
MTBF — >150,000 hours
MTTR — <0.25 hours
Materials — Boards are built to U.L.®94V0 rating and are 100% electrically
tested. Boards are solder mask over bare copper or tin nickel
Manufacturing — IPC 610-A Class-III standards are adhered to with a 0.1
visual A.Q.L. and 100% functional testing
Operating Temperature — 32° to 122°F (0° to 50°C)
Storage Temperature — -4° to 158°F (-20° to 70°C)
Humidity — 10 to 90% relative humidity, noncondensing
Power — +5 VDC @ 200 mA ±12 V @ 50 mA
Size — 4.2"W x 8.6"D (10.7 x 21.9 cm)
Weight — 0.4 lb. (0.2 kg)
1. Specifications
2
FOUR PORT RS-232 SERIAL INTERFACE
2.1 Overview
The Four Port RS-232 Serial Interface provides your PC system with four RS-
232 asynchronous ports. Connect to any device that uses the RS-232 protocol,
such as modems, data-entry terminals, and plotters.
The Serial Interface also includes a serial utility diskette with Seacom, a DOS
interrupt and driver package. Seacom allows data to be buffered, eliminating
data loss in high-speed data transfers. It also allows more than
4 ports (256 max.) to be configured and utilized under DOS.
The README file on the serial utility diskette contains information about the
latest changes and revisions. To view this file, insert the diskette into drive A
or B and type A:TYPE READ.ME|MORE [ENTER] or B:TYPE
READ.ME|MORE [ENTER].
2.2 What’s Included
Your Serial Interface should come with the following items. If any of these
items are missing or damaged, contact your supplier.
(1) Four Port RS-232 Serial Interface with 1x DB37F,
(1) Octopus cable, (1) 3-ft. (0.9-m) to 4x DB25M,
(2) 3.5" serial utility diskettes,
This manual
2. Introduction
3
CHAPTER 2: Introduction
2.3 Features
Listed below are the special features your Serial Interface offers.
• Each port is independently addressable.
• Eleven interrupt options, including AT interrupts, for simple integration
into existing systems.
• IRQs can be shared or individually set for each port.
• Supports Interrupt Sharing—only one interrupt line required for multiple
ports.
• Supports any character set defined by binary notation.
• 16550 UARTs (IC111C) or 16850 UARTs (IC181C) help ensure against
data loss.
• Faster baud rates—up to 115.2 Kbps.
• Provides COM1: through COM4: Turnkey Solution.
• Individually selectable address and interrupts (IRQs 2[9]–7 and 10, 11, 12,
and 15).
• Four DB25 male connectors provided using the octopus cable.
4
FOUR PORT RS-232 SERIAL INTERFACE
2.4 Technical Description
The Four Port RS-232 Serial Interface provides four additional serial ports for
terminals, modems, printers, etc. The Serial Interface can be configured as
COM1: through COM4:, or as any other I/O address (up to 3FF Hex),
providing total compatibility with most communications software and
languages. The Four Port RS-232 Serial Interface (IC111C) uses the 16550
UART chip, which features programmable baud rate, data format, interrupt
control, and a 16-byte FIFO. The IC181C uses the 16850 UART.
Modem Control Signal Considerations
Some software packages require the use of the modem handshake signals
such as CTS or DCD. Consult your software manual to determine the
requirements of your modem control signals. If no requirements are
mentioned, or if you are not sure, a safe configuration is to tie DTR to DSR
and DCD (6-8-20), and tie RTS to CTS (4-5). This will typically satisfy the
modem control-signal requirements for most communications software.
Pin Number Signal Name Mode
2 Transmit Data (TD) Output RS-232
4 Request To Send (RTS) Output RS-232
20 Data Term Ready (DTR) Output RS-232
7 Ground (GND) ––––––––––––
3 Receive Data (RD) Input RS-232
8 Data Carrier Detect (DCD) Input RS-232
6 Data Set Ready (DSR) Input RS-232
5 Clear To Send (CTS) Input RS-232
22 Ring Indicator (RI) Input RS-232
Table 2-1. P1 through P4 pinouts as found on the
octopus cable (standard RS-232C DTE)
5
CHAPTER 3: Address Selection
NOTE
Be sure to set the address selections and jumper options before
installation.
Each serial port on the Four Port RS-232 Serial Interface occupies 8 con-
secutive I/O locations. DIP switch SW4 sets the base address for Port 1, SW3
for Port 2, SW2 for Port 3, and SW1 for Port 4. Be careful when selecting the
base address as some selections conflict with existing PC ports. The following
table shows several examples that usually do not cause a conflict.
Address Binary Switch Position Setting
Hex A9 A0 1 2 3 4 5 6 7
280-287 1010000XXX OFF ON OFF ON ON ON ON
2A0-2A7 1010100XXX OFF ON OFF ON OFF ON ON
2E8-2EF 1011101XXX OFF ON OFF OFF OFF ON OFF
2F8-2FF 1011111XXX OFF ON OFF OFF OFF OFF OFF
3E8-3EF 1111101XXX OFF OFF OFF OFF OFF ON OFF
300-307 1100000XXX OFF OFF ON ON ON ON ON
328-32F 1100101XXX OFF OFF ON ON OFF ON OFF
3F8-3FF 1111111XXX OFF OFF OFF OFF OFF OFF OFF
Typically COM1:=3F8h; COM2:=2F8h; COM3:=3E8h; COM4:=2E8h
The following illustration shows the correlation between the DIP-switch
setting and the address bits used to determine the base address. In the figure
below, the address 300 hex through 307 hex is selected (300 hex =11 0000
0XXX in binary representation, where X is a non-selectable address bit). Note
that setting the switch ON (or closed) corresponds to a “0” in the address,
while leaving it OFF (or open) corresponds to a “1.”
A9 A3
ON
OFF
EN
0
1
1 2 3 4 5 6 7 8
3. Address Selection
6
FOUR PORT RS-232 SERIAL INTERFACE
NOTE
Be sure to set the address selections and jumper options before
installation.
The board contains several jumper straps for each port which must be set for
proper operation.
4.1 Port Enable/Disable
Each port on the Four Port RS-232 can be enabled or disabled with switch
position 8 on the DIP switch. The port is enabled with the switch ON (or
closed) and disabled when OFF (or open). If any port is disabled, be sure to
also disable the interrupt request for that port by removing the IRQ jumper.
Headers E1–E4 select the IRQ for each serial port. If COM1: is selected, this
jumper must be on the IRQ4 setting. If COM2: is selected, this jumper must
be on IRQ3.
NOTE
Most communications software applications default COM3: to IRQ4 and
COM4: to IRQ3. This requires the sharing of interrupts between COM1:
and COM3:, and between COM2: and COM4:. While this is the default, it
is not always the best setting. Check your software configuration
instructions to determine the most appropriate IRQ setting.
4. Option Selection
7
CHAPTER 4: Option Selection
Any two or more ports can share a common IRQ by placing the jumpers on
the same IRQ setting, and setting the appropriate selections at E1. Consult
your particular software for IRQ selection. If no interrupt is desired, remove
the jumper.
NOTE
IRQ 2 on AT class machines is not available. IRQ 9 is substituted in place
of IRQ 2. To select IRQ 9, place jumper in the IRQ 2 position.

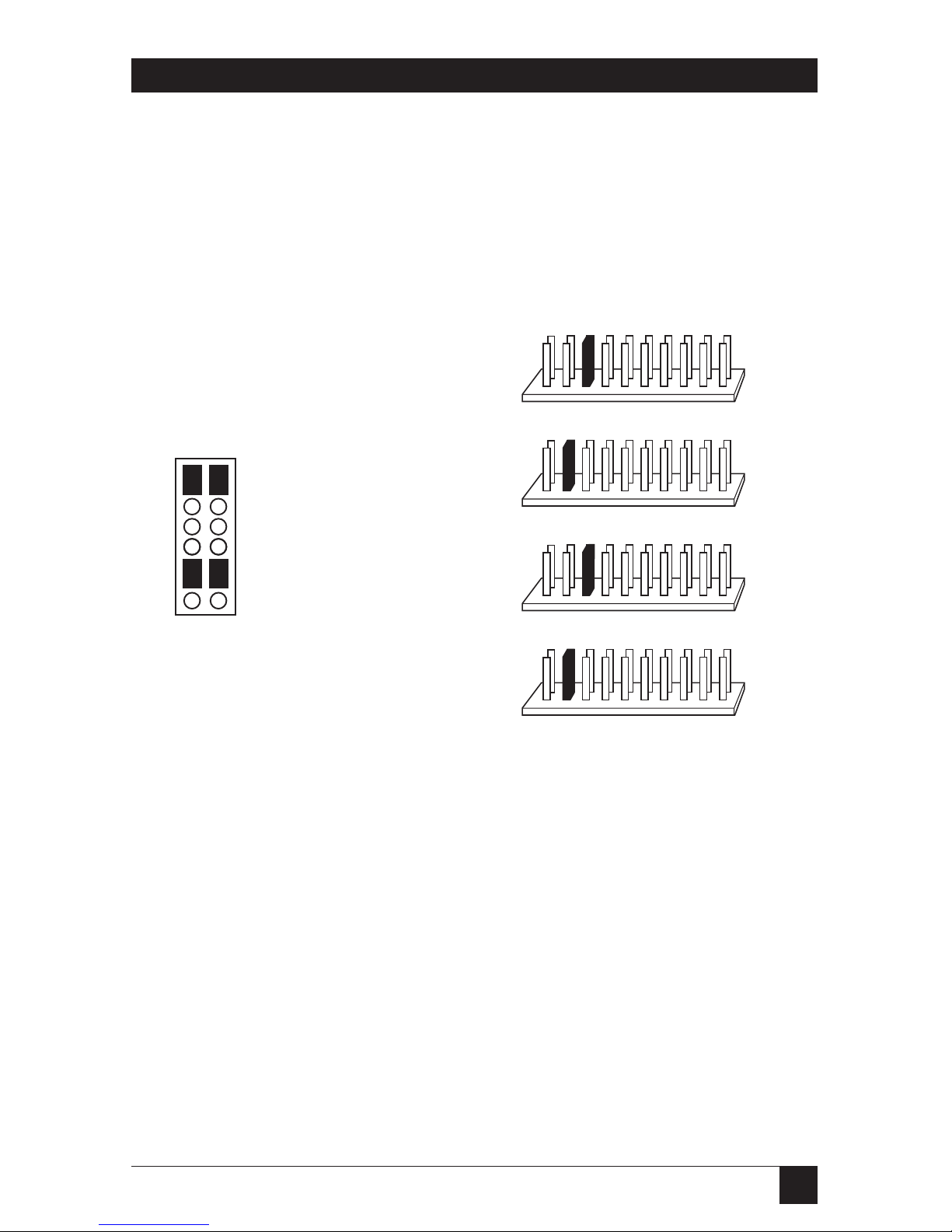

Figure 4-1. IRQ Selection.
Figure 4-1 shows the correlation between jumper block E5 and the interrupt
jumpers (E1–E4). This example shows the Four Port RS-232 Serial Interface
shipping configuration with COM1: and COM3: sharing interrupt 4 and
COM2: and COM4: sharing interrupt 3. See Section 4.2 for more information
on the different configuration options available with Jumper E5.
E5
2
3
4
5
6
7
10
11
12
15
1 2
3 4
M
S
N
M
S
N
PORT 1 (COM1)
PORT 2 (COM2)
PORT 3 (COM3)
PORT 4 (COM4)
E4
E3
E2
E1
2
3
4
5
6
7
10
11
12
15
2
3
4
5
6
7
10
11
12
15
2
3
4
5
6
7
10
11
12
15
This manual suits for next models
1
Table of contents
Other Black Box Network Hardware manuals
Black Box
Black Box MT1500A User manual
Black Box
Black Box 16-Port Rackmount 10/100 User manual
Black Box
Black Box USB Director RS-232 User manual
Black Box
Black Box Lineshare Pro AC FX150A User manual
Black Box
Black Box MT1050A User manual
Black Box
Black Box AC504A User manual
Black Box
Black Box LB510A User manual
Black Box
Black Box MT330A User manual
Black Box
Black Box 39625 User manual
Black Box
Black Box G.SHDSL NTU LB510A User manual
Black Box
Black Box EME149A-20 User manual
Black Box
Black Box USB Director RS-232 User manual
Black Box
Black Box 5000 series User manual
Black Box
Black Box TL572A User manual
Black Box
Black Box RM425A-R3 User manual
Black Box
Black Box TL482A-R3 User manual
Black Box
Black Box IC240A User manual
Black Box
Black Box DT450A User manual
Black Box
Black Box VIDEO CCTV-A/V HUB User manual
Black Box
Black Box MT619A-ST-R2 User manual
Popular Network Hardware manuals by other brands
Matrix Switch Corporation
Matrix Switch Corporation MSC-HD161DEL product manual
B&B Electronics
B&B Electronics ZXT9-IO-222R2 product manual
Yudor
Yudor YDS-16 user manual
D-Link
D-Link ShareCenter DNS-320L datasheet
Samsung
Samsung ES1642dc Hardware user manual
Honeywell Home
Honeywell Home LTEM-PV Installation and setup guide
