Biostar TH55XE - BIOS User manual

TH55XE BIOS Manual

BIOS Setup.................................................................................................1

1Main Menu...............................................................................................3

2Advanced Menu.......................................................................................8

3PCIPnP Menu........................................................................................22

4Boot Menu..............................................................................................25

5Chipset Menu.........................................................................................28

6O.N.EMenu...........................................................................................33

7Exit Menu...............................................................................................45

TH55XE BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to CMOS RAM. The power of CMOS

RAM is supplied by abattery so that it retains theSetup information when the power

is turned off.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and output

devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the

first stage ofthe booting process, loading and executing the operating system. Some

additional features, such as virus and password protection or chipset fine-tuning

options are also included in BIOS.

The rest of this manual will to guide you through the options and settings in BIOS

Setup.

Plugand Play Support

ThisAMI BIOS supports thePlug and Play Version 1.0A specification.

EPA Green PC Support

ThisAMI BIOS supports Version 1.03 of the EPA Green PC specification.

APM Support

This AMI BIOS supports Version 1.1&1.2 of the Advanced Power Management

(APM) speci fication. Power management features are implemented via the System

Management Interrupt (SMI). Sleep and Suspend power management modes are

supported. Power to the hard disk drives and video monitors can also be managed by

this AMI BIOS.

ACPI Support

AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management and

device configuration capabilities as defined in theACPI specification, developed by

Microsoft, Intel andToshiba.

TH55XE BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component

Interconnect) local bus specification.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

Supported CPUs

ThisAMI BIOS supports the Intel CPU.

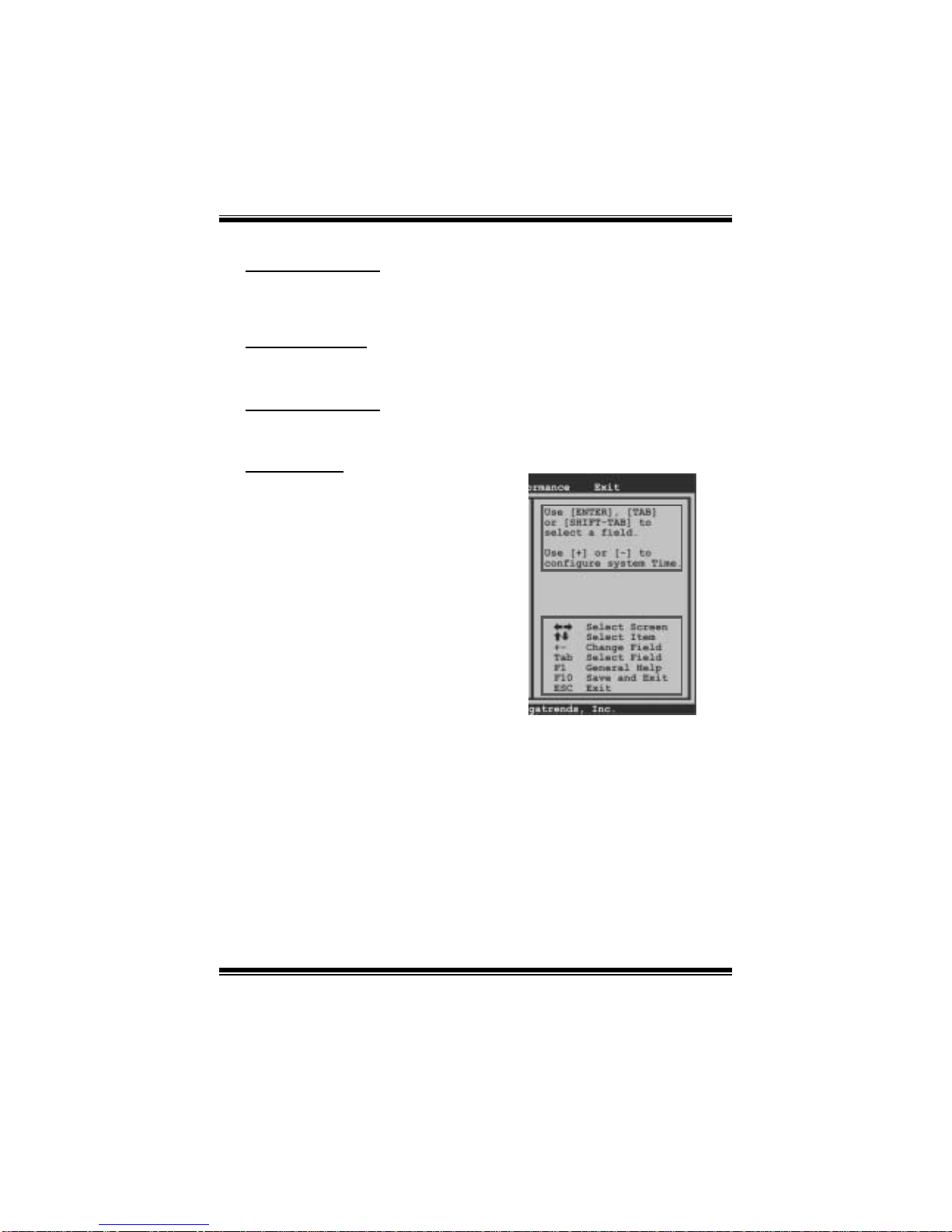

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter theBIOS setup utility.

In the BIOS setup utility, you will see

General Help description at the top right

corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use these keys to select item and change

the settings.

Notice

zThe default BIOS settings applyfor most conditions to ensure optimum performance

of the motherboard. If the system becomes unstable after changing any settings,

please load the default settings to ensure system’s compatibility and stability. Use

Load Setup Default under the Exit Menu.

zFor better system performance, the BIOS firmware is being continuously updated.

The BIOS information described in this manual isfor your referenceonly. The actual

BIOS information and settings on board may be slightly different from this manual.

zThe content ofthis manual is subject to be changed without notice. We will not be

responsible for any mistakes found in this user’s manual and any system damage that

may be caused by wrong-settings.

General Help

Navigation Keys

TH55XE BIOS Manual

1 Main Menu

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen

providing an overviewofthe basic system information.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

System Overview

AMI BIOS

Version :01.01.01

Build Date:01/01/09

System Memory

Size :

System Time [ :00:00]00

System Date [Thu 01/01/2009]

> IDE/SATA Configuration

Exit

AMI BIOS

Shows systeminformation including BIOS version, built date, etc.

System Memory

Shows systemmemory size, VGA shard memory will be excluded.

System Time

Set the systeminternal clock.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

TH55XE BIOS Manual

IDE/SATA Configuration

The BIOS will automatically detect the presence of IDE/SATA devices. There is a

sub-menu for each IDE/SATA device. Select a device and press <Enter> to enter

the sub-menu ofdetailed options.

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

IDE/SATA Configuration

SATA#1 Configuration [Compatible]

> SATA 1 Device

> SATA 3 Device

> SATA 2 Device

> SATA 4 Device

> SATA 5 Device

> Primary IDE Slave

Hard Disk Write Protect [Disabled]

IDE Detect Time Out (Sec) [35]

ATA(PI)80Pin Cable Detection [Host & Devic e]

SATA#2 Configuration [Enhanced]

> Primary IDE Master

Configure SATA as [IDE]

> AHCI Configuration

Options

IDE

AHCI

Disabled

Configure SATA as

Thisitem allows you to choosetheSATA operation mode.

Options: IDE (Default) / AHCI / Disabled

SATA#1 Configuration

Thisitem allows you to control theonboard SATAcontroller.

Options: Compatible(Default)/ Enhanced

SATA#2 Configuration

Thisitem allows you to control theonboard SATAcontroller.

Options: Enhanced (Default) / Disabled

TH55XE BIOS Manual

AHCI Configuration

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

AHCI Settings

> AHCI Port0

> AHCI Port1

> AHCI Port2

> AHCI Port3

> AHCI Port4

AHCI BIOS Support [Enabled]

Enables for supporting

AHCI BIOS Support

ThisBIOS feature controls the AHCI function ofthe SATAcontroller.

Options: Enabled (Default) / Disabled

AHCI Port0/Port1/Port2/Port3/Port4

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

AHCI Port0

S.M.A.R.T. [Enabled]

Device :

AHCI Port0 [Auto]

Select the type

of device connected

to the system.

TH55XE BIOS Manual

Device

This areashows the detected connected device.

SATA Port0/1/2/3/4

This item allows you to select the connected device type.

Options: Auto (Default) / Not Installed

S.M.A.R.T.

This item allows you to control thedevice S.M.A.R.T function.

Options: Enabled (Default) / Disabled

SATA1/3/2/4/5 Device; PrimaryIDEMaster/Slave

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Select the type

of device connected

to the system.

Primary IDE Master

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Auto]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

The BIOS detects the information and values of respective devices, and these

information and values are shown below to the name of thesub-menu.

Type

Select the typeofthe IDE/SATA drive.

Options: Auto (Default) / CDROM / ARMD / Not Installed

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block (Multi-Sector Transfer)

Enable or disable multi-sector transfer.

Options: Auto (Default) / Disabled

TH55XE BIOS Manual

PIOMode

Select the PIO mode.

Options: Auto (Default) / 0 / 1/ 2 / 3 /4

DMA Mode

Select the DMA mode.

Options: Auto (Default) / SWDMA0 ~2 / MWDMA0 ~2 / UDMA0 ~ 5

S.M.A.R.T

Set the Smart Monitoring, Analysis, and ReportingTechnology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Hard Disk Write Protect

Disable or enable device write protection. This will be effective only if the device

is accessed through BIOS.

Options: Disabled (Default) / Enabled

IDE Detect Time Out (Sec)

Select the time out value for detecting IDE/SATA devices.

Options: 35 (Default) / 30 / 25/ 20 / 15 / 10 / 5 / 0

ATA(PI) 80Pin Cable Detection

Select the mechanism for detecting 80Pin ATA(PI) Cable..

Options: Host & Device (Default) / Host / Device

TH55XE BIOS Manual

2Advanced Menu

The Advanced Menu allows you to configure thesettings of CPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system tomalfunction.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to m alfunction.

> SuperIO Configuration

> Hardware Health Configuration

> Smart Fan Configuration

> USB Configuratio n

> CPU Configuratio n

ACPI Configuration

> Onboard PCI/PCI-E Devices Co nfiguration

> Intel VT-d Configuration

> MPS Configuratio n

> PCI Express Conf iguration

> Smbios Configuration

Exit

CPU Configuration

Thisitem shows theCPU information that theBIOS automatically detects.

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

This should be enabled

in order to enable or

disable the “Enhanced

Halt State”.

Configure advanced CPU settings

Module Version:01.04

Manufacturer:Intel CPU

Frequency :

BCLK Speed :

Cache L1 :

Cache L2 :

Ratio Status:

Ratio Actual Value:

Cache L3 :

CIE Support [Enabled]

Hardware Prefetcher [Enabled]

Adjacent Cache Line Prefetch [Enabled]

Max CPUID Value Limit [Disabled]

Execute-Disable Bit Capability[Enabled]

Intel(R) Virtualization Tech [Enabled]

CPU TM function [Enabled]

TH55XE BIOS Manual

C1E Support

C1E is “Enhanced Halt State” function, this function helps to save power and

decrease heat by lowering CPU frequency while the processor is not working.

Options: Enabled (Default) / Disabled

Hardware Prefetcher

The processor has a hardware prefetcher that automatically analyzes its requirements

and prefetches dat a and instructions from the memory into the Level 2 cache that are

likely to be required in the near future. This reduces the latency associated with

memory reads.

Options: Enabled (Default) / Disabled

Adjacent Cache Line Prefetch

The processor has a hardware adjacent cache line prefetch mechanism that

automatically fetches an extra 64-byte cache line whenever the processor requests for

a 64-byte cache line. This reduces cache latency by making the next cache line

immediately available ifthe processor requires it as well.

Options: Enabled (Default) / Disabled

Max CPUID Value Limit

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it must

first query the processor to find out the highest input value CPUID recognizes. This

determines thekind ofbasic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

Intel(R) Virtualization Tech

Virtualization Technology can virtually separate your system resource into several

parts, thus enhance the performance when running virtual machines or multi

interface systems.

Options: Enabled (Default) / Disabled

CPU TM Function

The CPU TM Function is to throttle the clock speed ofhigher speed Prescott's to

help keep them cool.

Options: Disabled (Default) / Enabled

Other manuals for TH55XE - BIOS

Table of contents

Other Biostar Motherboard manuals

Biostar

Biostar A740G M2L PLUS - BIOS 2 User manual

Biostar

Biostar U8568 Pro User manual

Biostar

Biostar M6TWO User manual

Biostar

Biostar TA785G3 HD - BIOS User guide

Biostar

Biostar Hi-Fi A85S2 User manual

Biostar

Biostar Z490GTA EVO User manual

Biostar

Biostar K8NBP User manual

Biostar

Biostar TF8200 A2 PLUS - BIOS User guide

Biostar

Biostar I915G-M7 User guide

Biostar

Biostar TA880G HD - BIOS User guide

Biostar

Biostar M7 VIK User manual

Biostar

Biostar M7VIT Bravo User guide

Biostar

Biostar TZ77B User guide

Biostar

Biostar NF520-A2 TE - BIOS SETUP User guide

Biostar

Biostar BIH11-AHA User manual

Biostar

Biostar A10N-8800E User manual

Biostar

Biostar P4 SXQ User manual

Biostar

Biostar MCP6P3 User manual

Biostar

Biostar M6VBA User manual

Biostar

Biostar M5ALC User manual

Biostar

Biostar IDEQ 200V User guide

Biostar

Biostar Hi-Fi H170Z3 User manual

Biostar

Biostar M7TDR User manual

Biostar

Biostar M7 VKD User manual

Popular Motherboard manuals by other brands

DFI

DFI SD170 user manual

ASROCK

ASROCK ROMED8-2T user manual

Asus

Asus P2L97A user manual

Winmate

Winmate IC70 user manual

Asus

Asus MES-B user manual

Grantech

Grantech SYS8F377VGGA-3OMN user manual

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR user guide

Gigabyte

Gigabyte GA-9IVDT user manual

Texas Instruments

Texas Instruments ADS8372EVM user guide

Commell

Commell MS-C73 user manual

IBT Technologies

IBT Technologies MB860 user manual

Nvidia

Nvidia TEGRA DG-04927-001_V01 user guide

Intel

Intel D33217CK specification

Asus

Asus F1A55-M LX PLUS R2.0 user manual

EPC

EPC EPC9147C quick start guide

Asus

Asus EX-B760M-V5 D4 quick start guide

EPOX

EPOX MU-8KHA0010 user manual

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 user guide
