Biostar M7 VIK User manual

FCC Statement and Copyright

This equipment has been tested and found to comply with the limits of a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. There is no guarantee that interference will not occur in a

particular installation.

The vendor makes no representations or warranties with respect to the

contents here of and specially disclaims any implied warranties of

merchantability or fitness for any purpose. Further the vendor reserves the

right to revise this publication and to make changes to the contents here of

without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole is not allowed without

first obtaining the vendor’s approval in writing.

The content of this user’s is subject to be changed without notice and we

will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

ENGLISH..................................................................................................... 1

M7VIK Features..................................................................................................................1

Package contents..............................................................................................................2

Layout of M7VIK ................................................................................................................2

CPU Installation.................................................................................................................3

DDR DIMM Modules: DIMM1-2-3 ......................................................................................4

Jumpers, Headers, Connectors & Slots..........................................................................6

ESPAÑOL ..................................................................................................11

Características del M7VIK............................................................................................... 11

Contenido del Paquete.................................................................................................... 12

Disposición del M7VIK....................................................................................................12

Instalación de la CPU......................................................................................................13

Módulos DDR DIMM: DIMM1-2-3 ....................................................................................14

Puentes, Cabezales, Conectores y Ranuras.................................................................16

WARPSPEEDER ...................................................................................... 21

Introduction......................................................................................................................21

System Requirement....................................................................................................... 22

Installation........................................................................................................................22

Usage................................................................................................................................24

TROUBLE SHOOTING............................................................................. 32

SOLUCIÓN DE PROBLEMAS ................................................................. 33

English

M7VIK Features

 Use VIA KT400 / VT8235 Chipset, Winbond W83697HF.

 Contains on board I/O facilities, which include two serial ports, a parallel

port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB ports, a

game port.

 Supports Single Socket-A for an AMD Athlon/ Duron Family processor,

running at 200/266/333 MHz Front Side Bus frequency.

 The AMD Athlon/ Duron system bus supports the 200/266/333 MHz

high-speed, split-transaction AMD Athlon/ Duron system bus interface.

 Supports Ultra DMA 33/66/100/133 Bus Master Modes, PIO Mode 4,

Master Mode, and high performance hard disk drives.

 Supports USB2.0 High Speed Device.

 The KT400 system controller is designed to support 200/266/333/400 MHz

DDR SDRAM DIMMs.

 Supports one CNR Slot (Type B only), one AGP 8X Slot, and five 32-bit

PCI Bus slots.

 Complies with PC ATX form factor specifications.

 Supports popular operating systems such as Windows NT, Windows 98SE,

Windows 2000, Windows ME, Windows XP and LINUX.

 DIMM Power Selection by BIOS setup to adjust DDR DIMM voltage. (If you

meet the DDR DIMM compatible program, try to adjust the DDR Voltage to

fix the compatible program.) (Optional)

 CPU over temperature protection.

 Intel® AC’97 2.2 compatible. High S/N ratio meets PC 99 requirements.

 Line-in phonejack and Mic-in jack share with rear Audio out for 6 channels

Audio.

 6-Channel Hardware Audio. (Change Line-In to Back-Audio Out and Mic-In

to Bass/ Center Out by Audio Utility.) (Optional)

 IEEE1394 ports (Optional).

 Serial-ATA Connector (Optional).

Package contents

 HDD Cable X 1, FDD Cable X 1, Fully Setup Driver CD X 1

 Flash Memory Writer for BIOS update X 1

 USB Cable X 2 (Optional)

 Rear I/O Panel for ATX Case X 1 (Optional)

 IEEE1394 Cable X1 (Optional)

 Serial ATA Cable X1 (Optional)

Layout of M7VIK

PCI1

CNR1

FDD1

JPANEL1

BAT1

JATXPWR1

AGP SLOT

CNR SLOT

DIMM1

DIMM2

DIMM3

CPU

Socket A

CPU1

JSFAN1

2324

JCMOS1

VT8235

PCI2

PCISLOT

PCI3

PCI4

PCI5

PCISLOT

JPRNT1

JKBV1 JUSBV1

JUSBV2

CMI8738

JUSB3

JGAME1

JCOM2

JCOM1

Sp-Out

Line-InMic-In

Game Port

KT400

JCDIN1

JWOL1

10 1

RAID1

IDE1 IDE2

10 1

JUSB2

JUSBV3

JSATA2JSATA1

Serials

ATA

Controller

1394

CHIP

BIOS

JAUDIO1

Winbond I/O

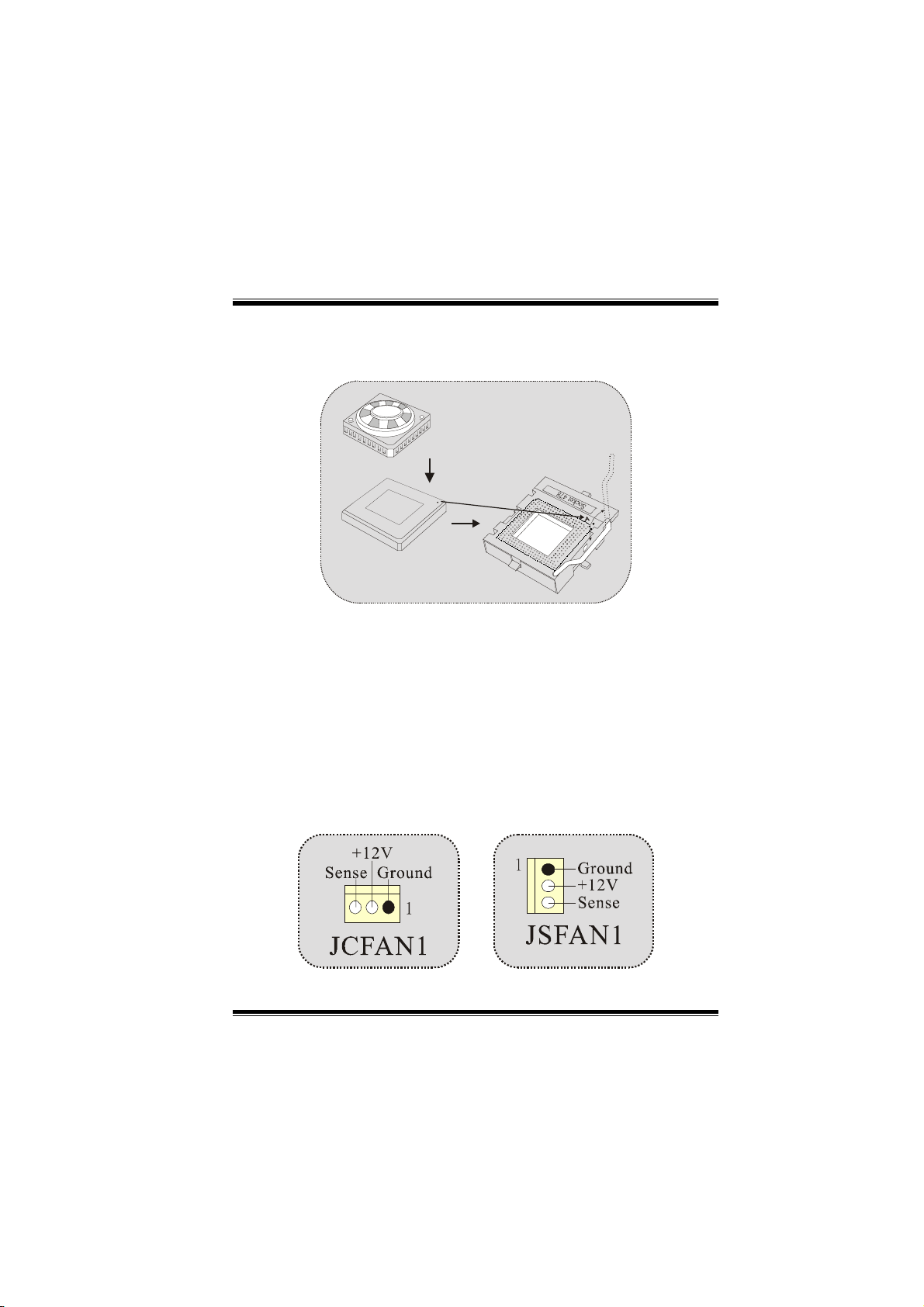

CPU Installation

1. Pull the lever sideways away from the socket then raise the lever up

to 90-degree angle.

2. Locate Pin A in the socket and lock for the white dot or cut edge in

the CPU. Match Pin A with the white dot/cut edge then insert the

CPU.

3. Press the lever down. Then Put the fan on the CPU and buckle it

and put the fan’s power port into the JCFAN1, then to complete the

installation.

CPU/ System Fan Headers: JCFAN1/ JSFAN1

CPU

DDR DIMM Modules: DIMM1-2-3

DRAM Access Time: 2.5V Unbuffered/ Registered DDR 1600/ 2100/

2700/ 3200 Type required.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184

pin)

Only support 4 bank for DDR PC3200 (2pcs Double-Side or 3

pcs Single-Side).

DIMM Socket

Location DDR Module Total Memory

Size (MB)

DIMM 1 64MB/128MB/256MB/512MB/1GB

DIMM 2 64MB/128MB/256MB/512MB/1GB

DIMM3 64MB/128MB/256MB/512MB/1GB

Max is

3GB

* The list shown above for DRAM configuration is only for reference.

 If use FSB333MHz CPU, the Memory support only

DDR333 (PC2700).

List of the status of DDR 400 already passed

Clock Vender Serial No. (Chip) Module

Size MEMTEST

1 DDR400 KINGMAX KDL684T4AA-50 256M Pass

2 DDR400 SAMSUNG K4H560838D-TCC4 256M Pass

3 DDR400 TwinMOS TMD7608F8E50B 256M Pass

4 DDR400 Winbond W942508BH-5 256M Pass

5 DDR400 Winbond W942508BH-5 512M Pass

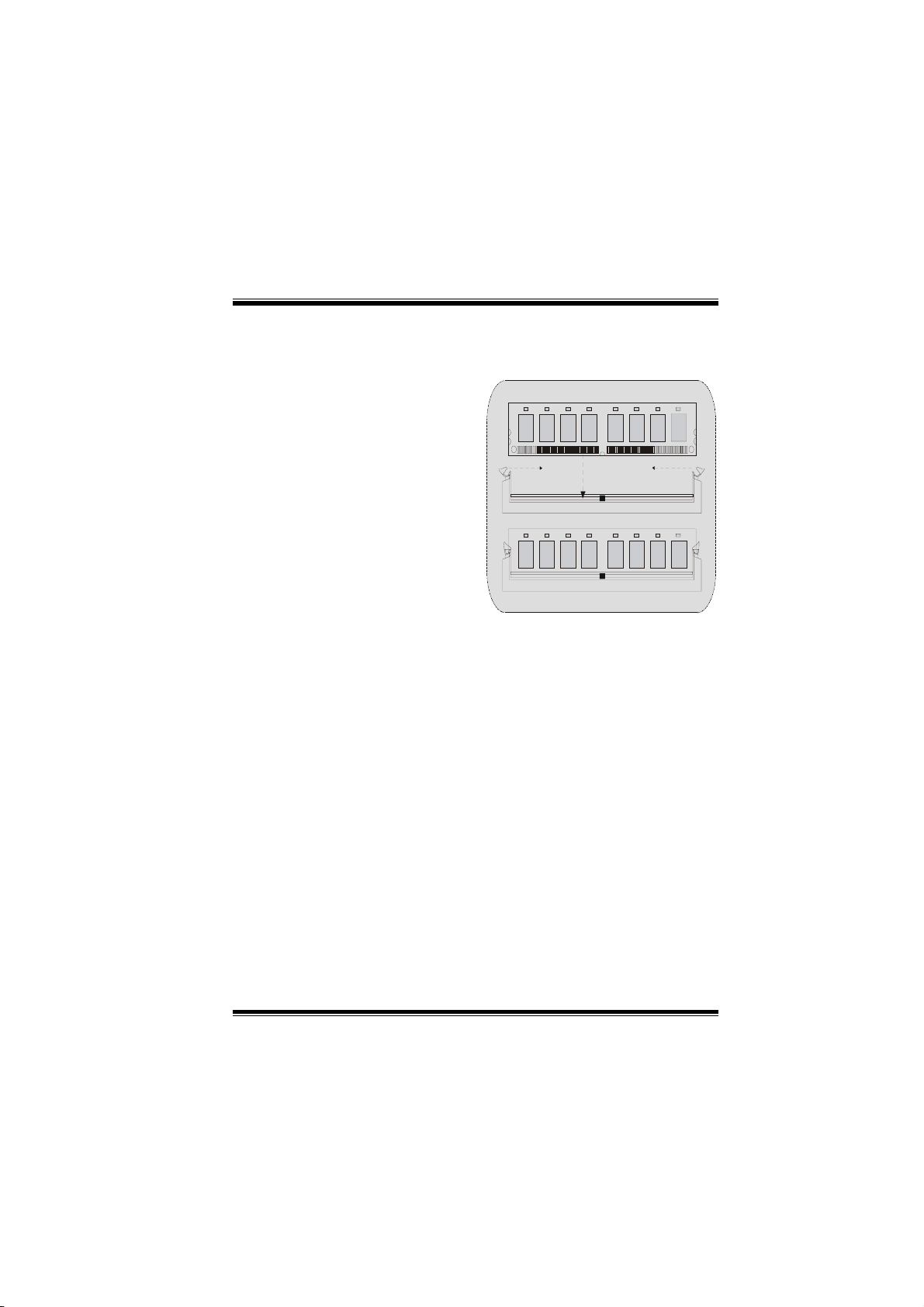

How to install a DIMM Module

1. The DIMM socket has a

“ Plastic Safety Tab”, and the

DIMM memory module has an

“Asymmetrical notch”, so the

DIMM memory module can only

fit into the slot in one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle, then

push down vertically so that it will

fit into the place.

3. The Mounting Holes and plastic

tabs should fit over the edge and

hold the DIMM memory modules

in place.

Jumpers, Headers, Connectors & Slots

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that

provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/ 66/ 100/ 133

functionality. It has two HDD connectors IDE1 (primary), IDE2

(secondary) and IDE3.

The IDE connectors can connect a master and a slave drive, so you can

connect up to four hard disk drives. The first hard drive should always be

connected to IDE1.

Serial ATA Connector: (JSATA1/ JSATA2) (Optional)

The motherboard has a PCI to SATA Controller with 2 channels STAT

interface, it satisfies the SATA 1.0 spec and can transfer data with

1.5GHz speed.

Raid Connector: RAID1

This connector supports RAID 1 cofiguration through the onboard Serial

ATA controller chip. You can use the IDE feature to set up a disk array

cofiguration and to support additional IDE devices. However, it can

only support master mode IDE HDD.

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This

connector supports the provided floppy drive ribbon cables.

Accelerated Graphics Port Slot: AGP1 (only support AGP

power 1.5V)

Your monitor will attach directly to that video card. This motherboard

supports video cards for PCI slots, but it is also equipped with an

Accelerated Graphics Port (AGP). An AGP card will take advantage of

AGP technology for improved video efficiency and performance,

especially with 3D graphics.

Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it

defines a hardware scalable riser card interface, which supports audio,

network and modem only.

Peripheral Component Interconnect Slots: PCI1-5

This motherboard is equipped with 5 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for

expansion cards, which has, supplanted the older ISA bus standard in

most ports. This PCI slot is designated as 32 bits.

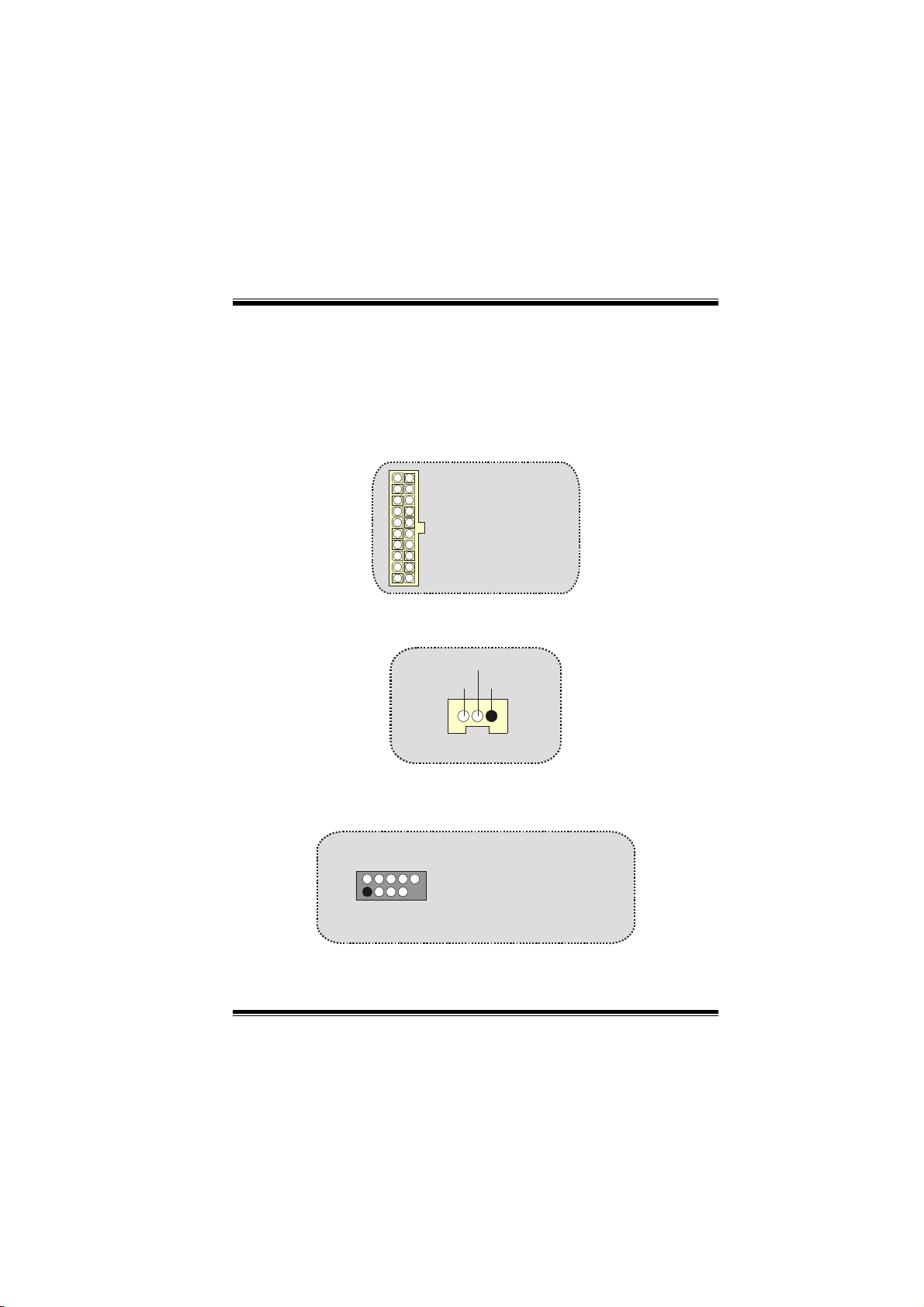

Power Connectors: JATXPWR1

Wake On LAN Header: WOL1

Front USB Header: JUSB2/3

JATXPWR1

(ATX Main Power Conn.)

JATXPWR1

(ATX Power Conn.)

WOL1

5V_SBWake up

Ground

JUSB2/3

Pin1,2 ==> +5V

Pin3,4 ==> Data(-)

Pin5,6 ==> Data(+)

Pin7,8 ==> Ground

Pin9 ==> KEY

Pin10 ==> NA

5V/ 5VSB Selection for USB/KB: JUSBV1/2/3/ JKBV1

Front 1394 Header: J1394A1/J1394B1/J1394C1

Front Panel Connector: JPANEL1

SPK

PWR_LED

HLED

SLP

RST

224

123

IRON/OFF

SPK ==> Speaker Conn.

HLED ==> Hard Driver LED

RST ==> Reset Button

IR ==> Infrared Conn.

SLP ==> Sleep Button

PWR_LED ==> Power LED

ON/ OFF ==> Power-on Button

(+) (-)

(+) (-)(+)

JKBV1

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JUSBV1/2/3

JUSB3/4

Pin1,2 ==> +5V

Pin3,4 ==> Dato(-)

Pin5,6 ==> Dato(+)

Pin7,8 ==> Tierra

Pin9 ==> KEY

Pin10 ==> NA

J1394A1/B1/C1

1Pin1,2 ==> A+/A-

Pin3,4 ==> Ground

Pin5,6 ==> B+/ B-

Pin7,8 ==> +12V

Pin9 ==> KEY

Pin10 ==> NA

Other manuals for M7 VIK

Table of contents

Other Biostar Motherboard manuals

Biostar

Biostar TA790GXB A2 PLUS - BIOS User guide

Biostar

Biostar K8NBP User manual

Biostar

Biostar B550MX/E PRO User manual

Biostar

Biostar Hi-Fi A85S User guide

Biostar

Biostar 945GC-230 - BIOS User manual

Biostar

Biostar I915P-A7 User manual

Biostar

Biostar Hi-Fi H170Z3 User manual

Biostar

Biostar P4 TDG Operating and installation instructions

Biostar

Biostar Hi-Fi H61S3 User manual

Biostar

Biostar TA785GE - SETUP User guide

Biostar

Biostar GAMING Z170W User manual

Biostar

Biostar M7 VKQ User manual

Biostar

Biostar M7TDA User manual

Biostar

Biostar P4 SXQ User manual

Biostar

Biostar A770L3 - BIOS User guide

Biostar

Biostar HI-FI-Z87X-3D User guide

Biostar

Biostar GF8200 M2G PLUS - BIOS User manual

Biostar

Biostar 945P-A7A User guide

Biostar

Biostar TA880GB - BIOS User manual

Biostar

Biostar G41U3G User manual

Biostar

Biostar GAMING Z170W User manual

Biostar

Biostar H310MDG2 User manual

Biostar

Biostar TA790GXE 128M User guide

Biostar

Biostar P4TSG PRO Operating and installation instructions

Popular Motherboard manuals by other brands

DFI

DFI SD170 user manual

ASROCK

ASROCK ROMED8-2T user manual

Asus

Asus P2L97A user manual

Winmate

Winmate IC70 user manual

Asus

Asus MES-B user manual

Grantech

Grantech SYS8F377VGGA-3OMN user manual

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR user guide

Gigabyte

Gigabyte GA-9IVDT user manual

Texas Instruments

Texas Instruments ADS8372EVM user guide

Commell

Commell MS-C73 user manual

IBT Technologies

IBT Technologies MB860 user manual

Nvidia

Nvidia TEGRA DG-04927-001_V01 user guide

Intel

Intel D33217CK specification

Asus

Asus F1A55-M LX PLUS R2.0 user manual

EPC

EPC EPC9147C quick start guide

Asus

Asus EX-B760M-V5 D4 quick start guide

EPOX

EPOX MU-8KHA0010 user manual

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 user guide
