Avision AV100III User manual

AV100III

Color

Image Scanner

User's Manual

Version 1.1

(Doc. No. 250-0047-0)

 AVISION INC. 1996AVISION INC. 1996

Trademarks

Microsoft is a U.S. registered trademark of Microsoft

Corporation.

Windows and MS-DOS are trademarks of Microsoft Corporation.

IBM, PC, AT, XT are registered trademarks of International

Business Machines Corp.

Other brands and product names herein are trademarks or

registered trademarks of their respective holders.

reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language or computer language, in any

form or by any means, electronic, mechanical, magnetic, optical,

chemical, manual, or otherwise, without the prior written

permission of Avision Inc.

Material scanned by this product may be protected by

governmental laws and other regulations, such as copyright laws,

the customer is solely responsible for complying with all such

laws and regulations.

iii

Warranty

The information contained in this document is subject to

change without notice.

Avision makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties

of fitness for a particular purpose.

Avision shall not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance, or use of this material.

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply with

the limits for a class B digital device, pursuant to Part 15 of

the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause

harmful interference to radio communication. However,

there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more

of the following measures:

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for

help.

CAUTION: Any changes or modifications not expressly

approved by the manufacture of this device could

void the user's authority to operate the equipment.

Table of Contents

1. INTRODUCTION 1-1

2. SCANNER INSTALLATION 2-1

2.1 INSTALLATION OF THE SCANNER 2-1

2.2 CONNECTING THE CABLE 2-5

3. SCANNER DRIVER INSTALLATION 3-1

3.1 AUTO-INSTALLATION PROGRAM 3-1

3.2 AN EXAMPLE OF CONFIG.SYS 3-3

3.3 UNINSTALL THE SCANNER DRIVER 3-4

4. SCANNER OPERATION & DOCUMENT PRINTING 4-1

4.1 IMAGE TYPE 4-3

4.2 RESOLUTION CONTROL 4-4

4.3 IMAGE CONTROL 4-5

4.4 SCANNING 4-8

4.5 PRINTING 4-9

4.6 SCANNER CONTROL CENTER 4-10

5. MAINTENANCE 5-1

5.1 CLEANING THE ADF 5-1

5.2 CLEANING THE WINDOW GLASS 5-3

6. TROUBLESHOOTING 6-1

6.1 QUESTIONS AND ANSWERS 6-2

6.2 TECHNICAL SERVICE 6-6

7. SPECIFICATIONS 7-1

7.1 MODEL: AV100III 7-2

1-1

1. Introduction

Congratulations on your purchase of Avision AV100III color

image scanner. Avision Inc. is one of the leading companies in

the world to develop high performance sheet-fed scanners.

Before you install and operate the new scanner, please take a few

minutes to read through this manual. It provides you with the

proper instructions on how to unpack, install, operate and

maintain the scanner.

Figure 1-1 shows how the scanner is packed. Please check all

the items against your checklist. If you did not receive all the

items, please contact your authorized local dealer immediately.

1-2

Figure 1-1 Scanner packing

PAPER STAND

2. Scanner Installation

Precautions

* Keep the scanner out of direct sunlight. Direct exposure to

the sun or excessive heat may cause damage to the unit.

* Do not install the scanner in a humid or dusty place.

* Be sure to use the proper AC power source.

*Place the scanner securely on a level surface. Tilted or

uneven surfaces may cause mechanical or paper-feeding

problems.

*Retain the scanner box and packing materials for shipping

purposes.

2.1 Installation of the Scanner

Please unpack the scanner carefully, and check the contents

against the checklist. If any items are missing or damaged,

please contact your dealer immediately.

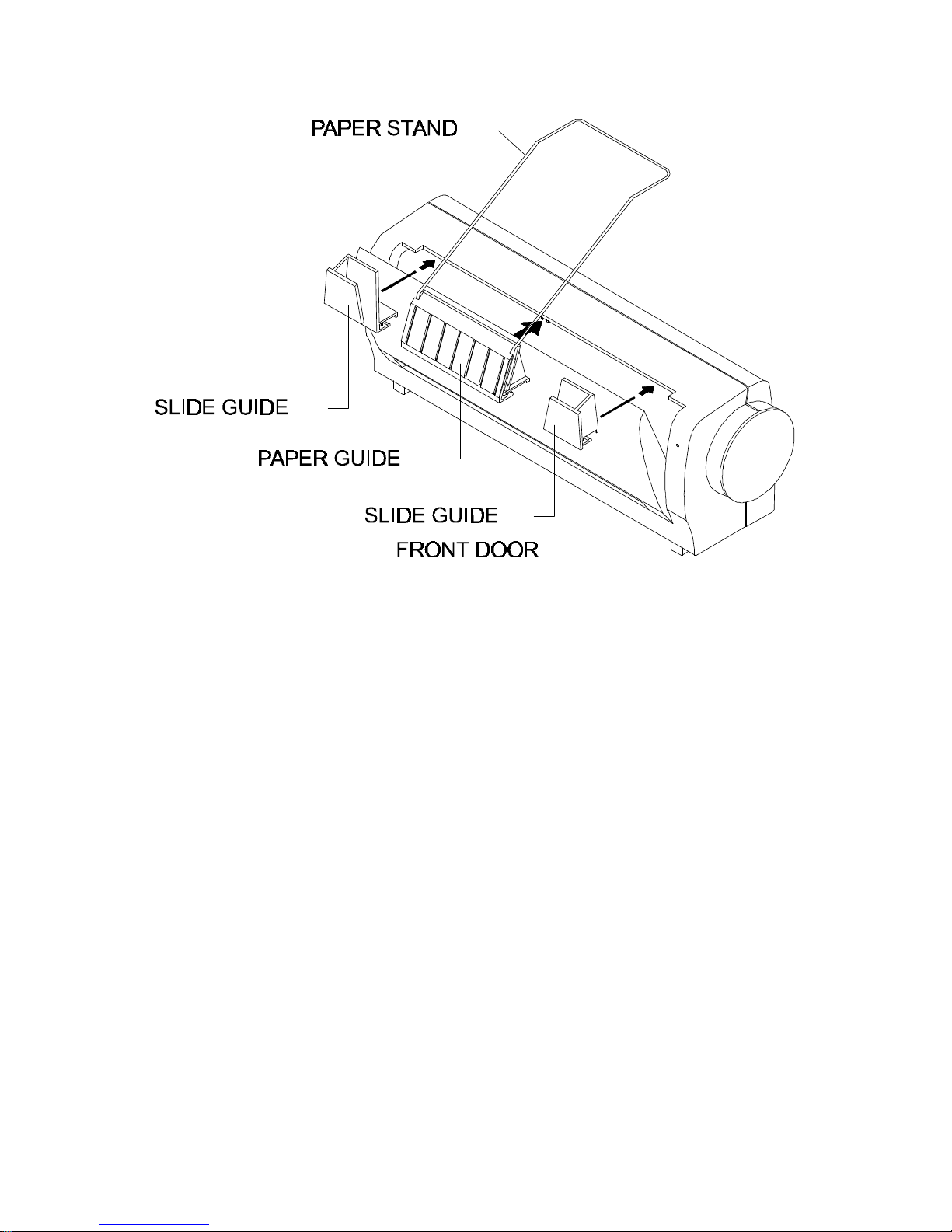

Installation of the slide guides, the paper guide and the

paper stand. (See Fig. 2-1)

Open the scanner front door by slightly pulling it away

from the unit.

Insert the paper guide into the center notch located on

top of the unit.

Insert the two slide guides to the left and right of the

paper guide. When properly installed, the guides should

move freely from side to side.

Insert the two ends of the paper stand into the small

holes on both sides of the paper guide.

Close the scanner front door.

2-2

Figure 2-1 Install the slide guides, the paper guide and the paper stand.

2-3

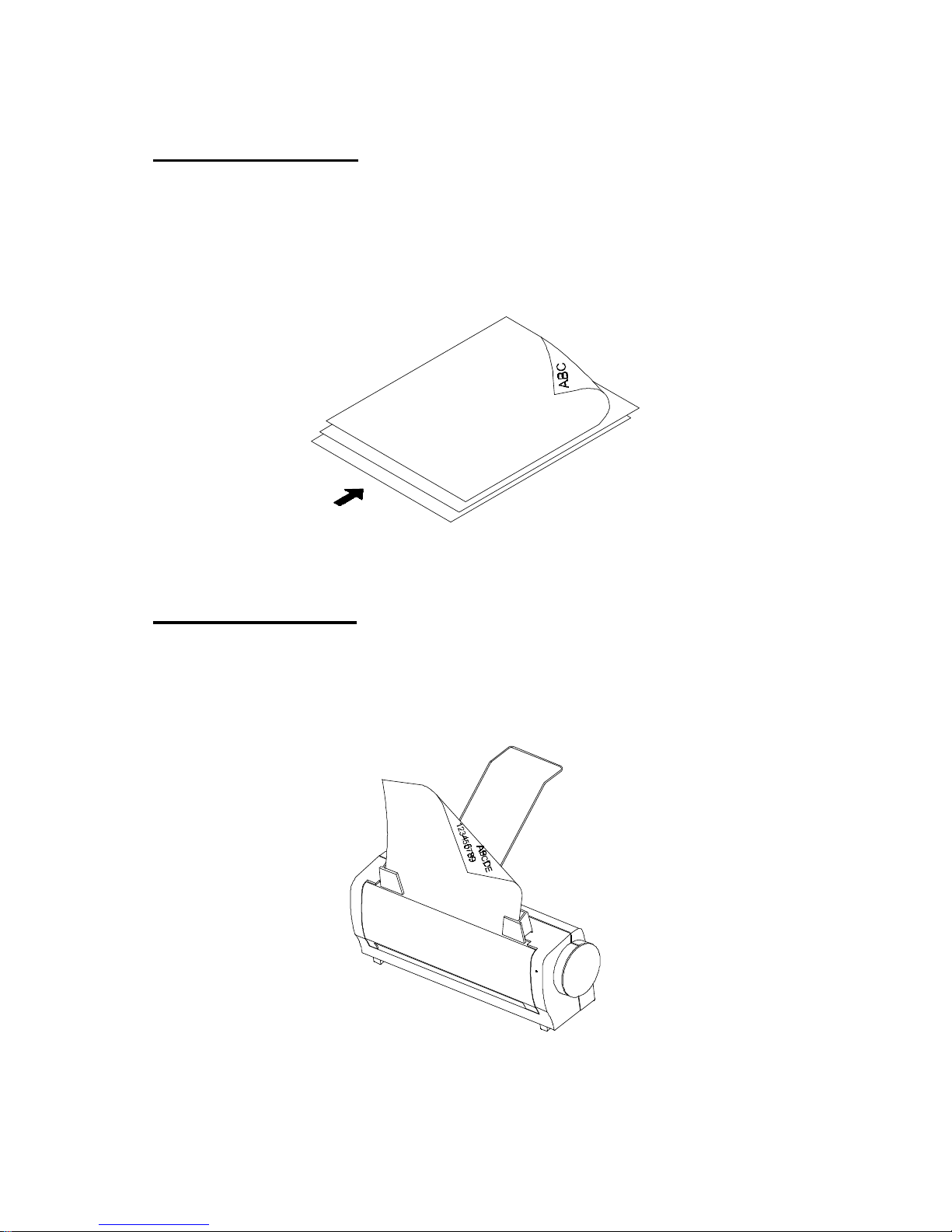

Document loading

Standard paper size should feed easily through the scanner. To

avoid occasional paper jam or double feed when automatically

feeding multiple documents, loosen the paper before loading.

(Figure 2-2)

Figure 2-2 Loosen the paper before loading.

Document feeding

Insert the document to be scanned face down in the scanner.

Align the two sides of the document with the slide guides.

(Figure 2-3)

Figure 2-3 Place documents in the ADF.
