Atdec AD-WM-7060 User manual

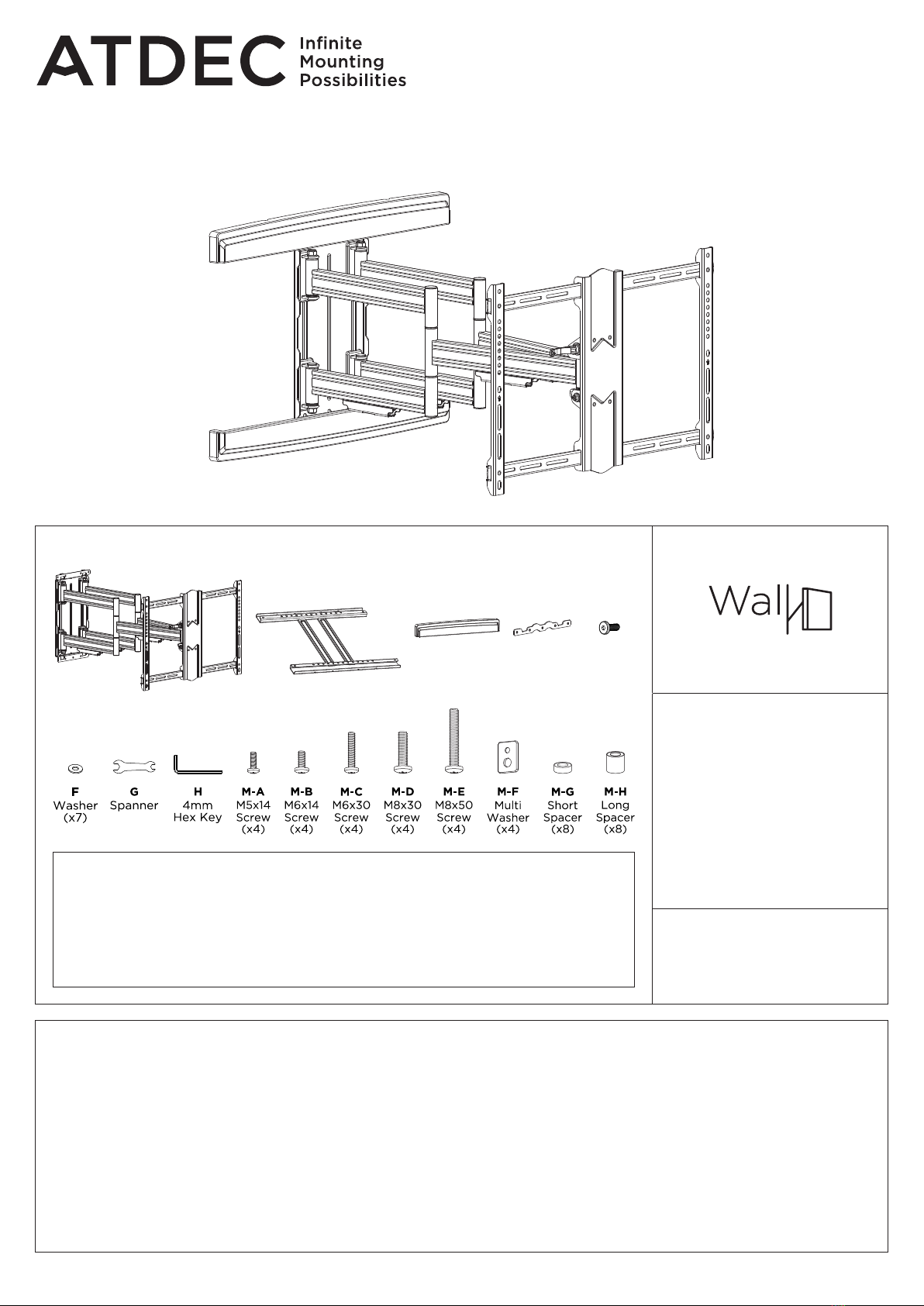

AD-WM-7060 Page 1 of 4

Installation Guide

AD-WM-7060

Full Motion Wall Mount 7060

COMPONENT CHECKLIST

Wall Plate

Plastic Cover

(x2)

M6x15

Security

Screw

(x7)

Security

Plate

(x2)

Display Arm Assembly

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to mount this product correctly may cause serious injury/death during or following installation.

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! This product supports a maximum load of 70kg (154lbs).

! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.

! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total

weight of all equipment being mounted.

! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid

electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it’s safe to do so.

! Suits displays with mounting hole patterns from 200mm to 600mm wide by 100mm to 400mm high.

REQUIRED TOOLS

• Phillips head screwdriver

• Socket wrench set

• 5mm hex key

• Power drill

• Suitable drill bit

• Driver bit for selected

wall fasteners

• Stud nder

• Spirit level

NOTE:

! Wall Plate Mounting Fasteners are NOT supplied with Wall Mounts. Professional

installer to ensure correct Mounting Fastener type, location & quantity to suit

structure where Wall Mount is installed.

! ALWAYS use a washer between the chosen fastener and the wall plate.

! Mounting fasteners to be used as per manufacturers instructions, including

minimum engagement to achieve necessary performance. 0 - 70kg

(0 - 154lb)

WEIGHT CAPACITY

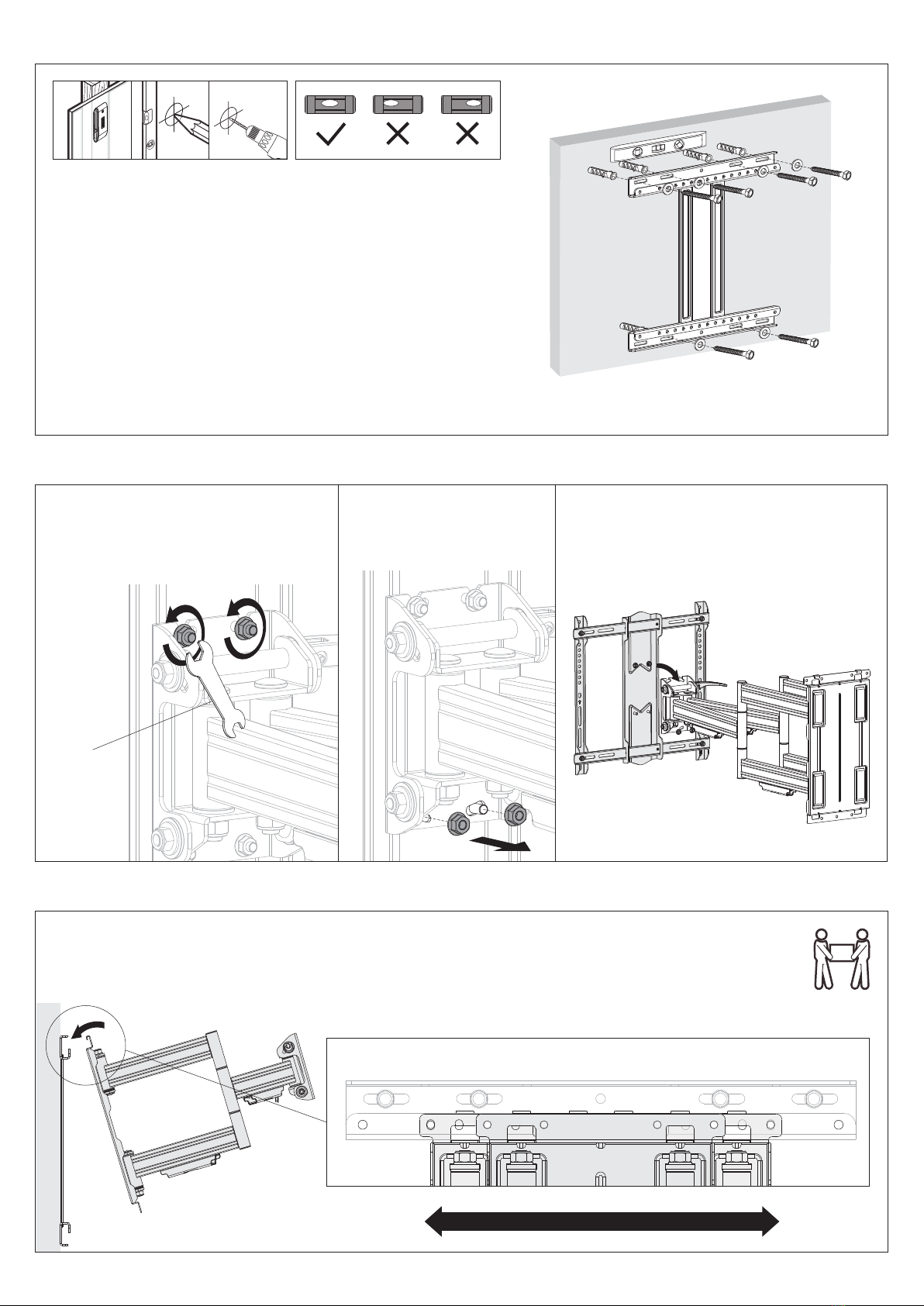

AD-WM-7060 Page 2 of 4

1. Mount the Wall Plate

2. Detatch the Display Bracket from the Arm Assembly

3. Hook the Arm Assembly onto the Wall Plate

2 3

*Fasteners shown for example only

2.1. Using Spanner G, loosen the upper

bolts on the rear of the display bracket.

DO NOT FULLY REMOVE.

Ensure nuts remain fully engaged

on thread.

2.2. Remove the lower nuts

from the rear of the

display bracket.

2.3. Unhook the display bracket

from the main arm assembly.

3.1. Angle the arm and hook the assembly over the top of the Wall Plate.

3.2. (OPTIONAL) At this stage, you may choose to ne tune the nal alignment of the display by

horizontally sliding the arm assembly left or right within the allowable range - where the holes

on the display bracket align with those on the wall plate.

NOTE:

• Choice and supply of appropriate wall plate fasteners is the

responsibility of the installer.

• Consult a preferred fastener supplier or a structural engineer to

select fasteners which are most appropriate for the weight of

the display and wall construction method.

• Wall plate must be level. Verify using a quality spirit level tool.

• On a Stud Wall or Drywall use a good quality Stud Finder to

position mounting fasteners in the centre of studs.

• On a Masonry Wall avoid positioning Wall Plate mounting

fasteners in a mortar join.

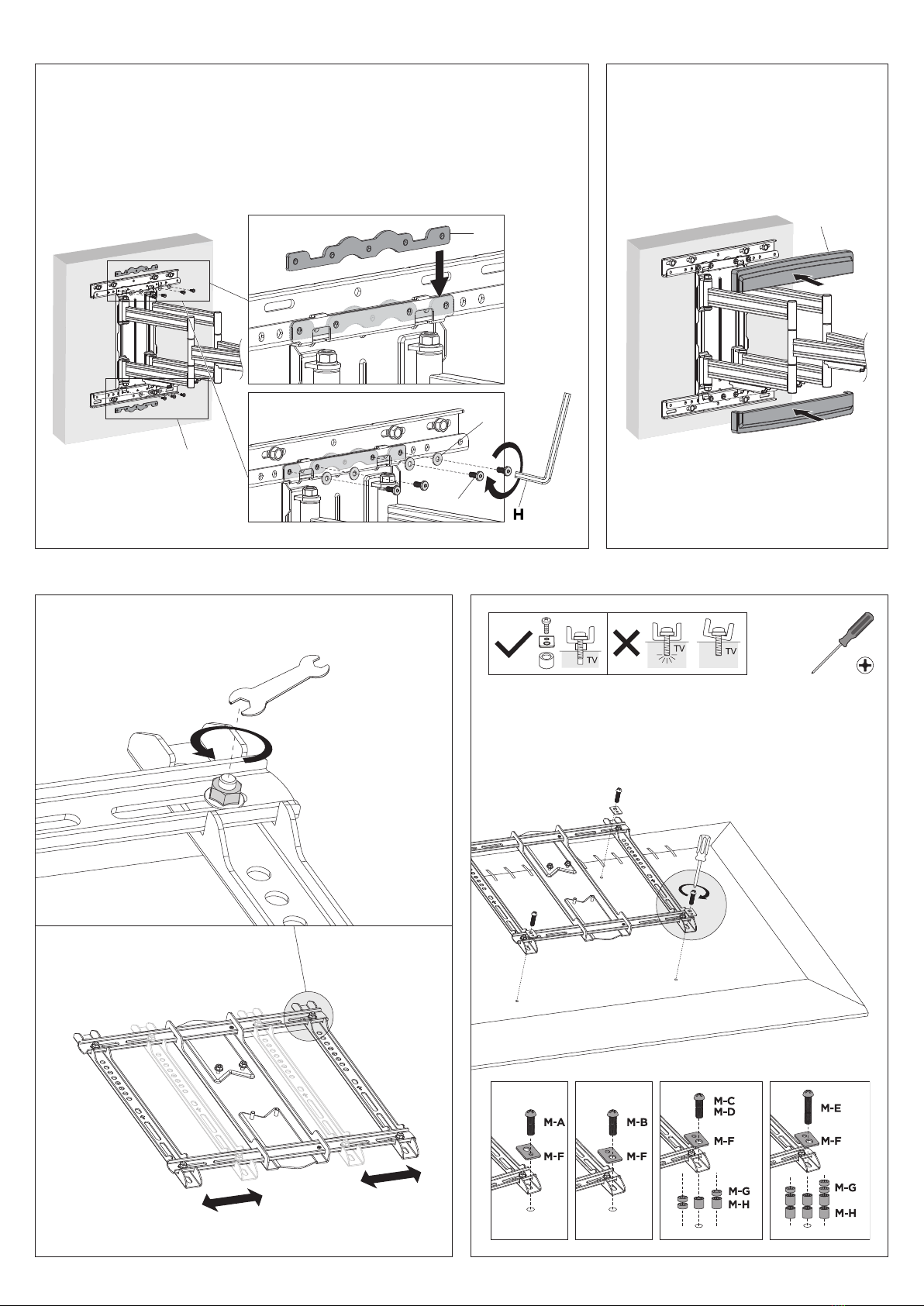

AD-WM-7060 Page 3 of 4

5. Attach the Mount Covers

7. Attach the Display Bracket to the Display

6. Adjust the width of the Display Bracket

4. Secure the Arm Assembly to the Wall Plate

4.1

4.3

4.2

4.1. Position Security Plate Dinside the upper Wall Plate rail, behind the Arm

Assembly. Ensure the holes on the Arm Assembly, Wall Plate and Security Plate

are aligned.

4.2. Screw the four Security Screws E through the Arm Assembly Aand Wall Plate B

into the Security Plate, using Washers F between the screws and the assembly.

4.3. Repeat with the second Security Plate Dand the lower holes on the lower half

of the Arm Assembly.

6.1. Loosen the four nuts at each corner of the display

bracket using Spanner Gor a quality socket wrench tool.

6.2. Adjust the spacing of the vertical

brackets to suit your display

and tighten the four nuts before

proceeding.

5.1. Conceal wall plate fasteners using

Plastic Covers C. Gently apply even

pressure until they snap in place.

NOTE:

• Always use a multi-washer.

• Use the shortest combination of spacers (if necessary)

ensuring the display is not loose and screws are not forced

too deep into the display.

NOTE:

• Ensure vertical brackets are equispaced from the centre.

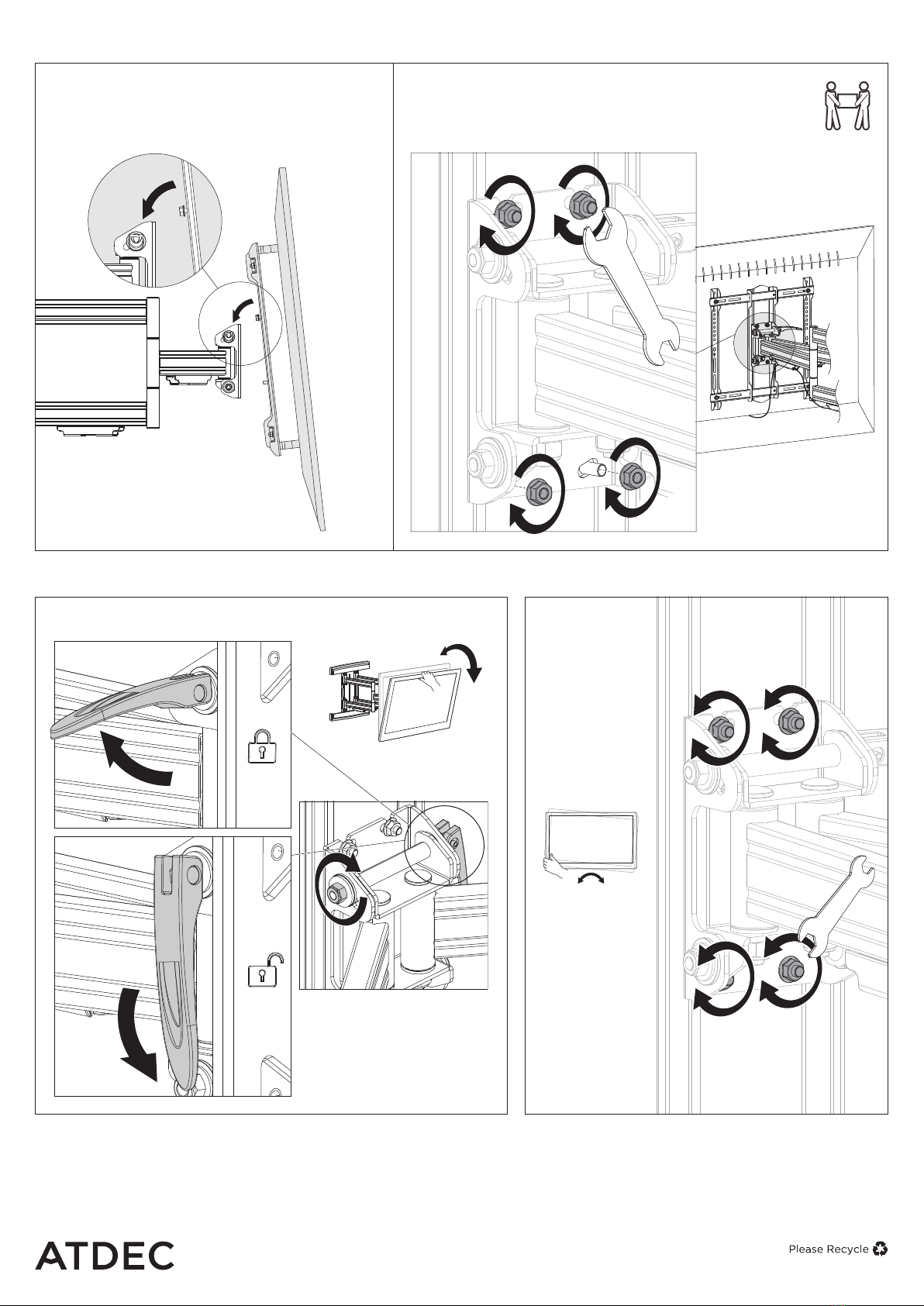

AD-WM-7060 Page 4 of 4

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

8. Hook the Display onto the Arm Assembly

8.1. Angle the display and hook the upper nuts on the

rear of the Display Bracket to their corresponding

slots on the Arm Assembly. See Step 2.1.

This should be completed by two people.

8.2. Securely tighten the upper nuts on the

Display Bracket and replace the lower

nuts removed in Step 2.2 using Spanner G.

ADJUSTMENTS

+/- 3°

+2° / -15°

Display Tilt Display Level /

Rotation

NOTE:

For heavier displays, you

may need to tighten the

nut opposite the Lever

using a Socket Wrench

tool (not supplied).

WARNING:

Only loosen,

do not remove

the four nuts.
