Atdec AWMS-2-BT75 User manual

AWMS-2-BT75-H Page 1 of 4

Installation Guide

AWMS-2-BT75-H

COMPONENT CHECKLIST

Bridge

(x1)

Leg

(x2)

Post

(x1)

Bracket

(x2)

4mm/5mm

Hex Key

(x1 each)

VESA Plate

(x2)

M8x60mm

Screw

(x2)

M4x10mm Screw

(x8)

Post Cap

(x1)

M4x20mm Screw

(x8)

10mm Spacer

(8x)

M8x16mm

Screw

(x2)

Lower Clamp

(x1)

Upper Clamp

(x1)

IMPORTANT INFORMATION

! Product should only be assembled and used as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Eachbracketsupportsamaximumweightasperabovecapacityspecication.

! Avoid applying downward load to corners of display.

! Product must only be installed on a solid work surface capable of supporting the weight of all equipment being mounted.

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that can

exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you

would like further information.

! WARNING! Death or serious injury may occur if a child climbs on or tips product.

Post Mounted Heavy Duty

Dual Vertical Monitor Mount

Heavy Duty F Clamp

REQUIRED TOOLS

• Phillips Head Screwdriver

CAPACITY (per monitor)

Flat Monitor

4.5 - 25kg (10 - 55lb)

Curved Monitor

4.5 - 18kg (10 - 40lb)

Display Size

24” - 55”

300mm (12”) max overall

display depth

Scan to access

more information

AWMS-2-BT75-H Page 2 of 4

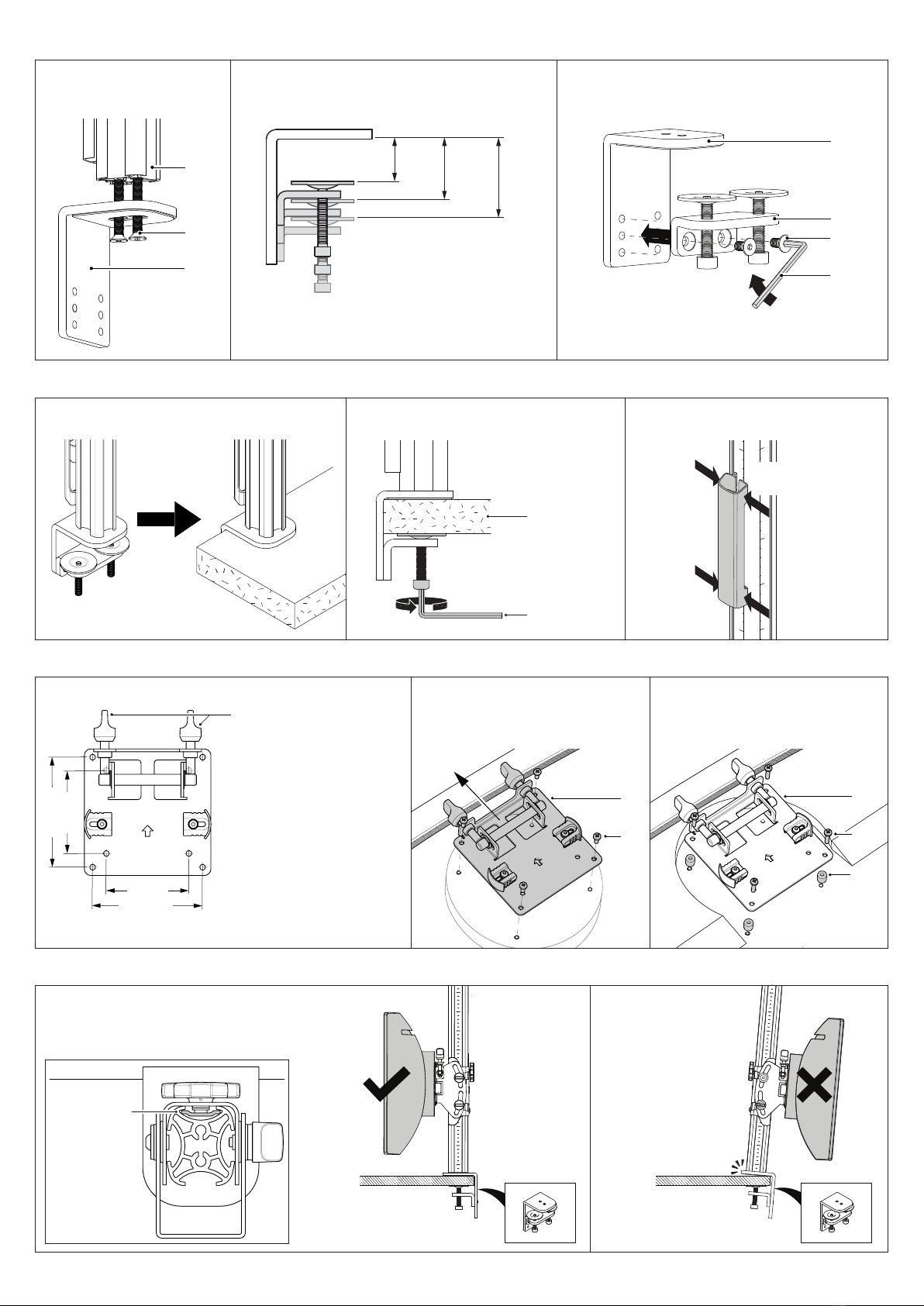

2. Fit clamp to work surface

2.1 Place in desired location

on worksurface.

1. Assemble post to clamp

1.1 Attach post to upper

clamp using the M8x60mm

screws and 5mm hex key.

1.2 Measure the worksurface

thickness and choose the

suitable lower clamp position.

1.3 Attach lower clamp to upper

clamp in the suitable position using the

M8x16mm screws and 5mm hex key.

2.2 Screw in both pressure plates

and tighten evenly and rmly.

2.3 Remove clips & covers from post by

sliding up & out or by squeezing sides.

SQUEEZE

to release

75mm

100mm

75mm

100mm

For 75mm VESA

unscrew 5mm to

access top holes

Option A

Attach VESA plate with

M4x10mm screws.

Option B

For recessed VESA

use 10mm spacers and

M4x20mm screws.

3.1 VESA compatibility.

NOTE:

Some displays require the

use of a VESA adapter

before attaching the

VESA plate. This VESA

adapter may ship in the

box with the display.

Consult your display’s

installation guide for

further information.

3. Attach VESA plates to displays

TOP

Top Middle Bottom

Top

Middle

Bottom

0 - 38mm (0 - 1 ½”)

11 - 53mm (” - 2 ”)

25 - 68mm (1” - 2 ”)

Note: If there is only a small gap behind the

worksurface perform Step 2.1 before this step

Mounting

surface

5mm

Hex key

4. Slide brackets onto post and set height

4.1 Tilt bracket must only be attached with display

facing the front of the mounting surface.

WORK

SURFACE

WORK

SURFACE

WORK

SURFACE

WORK

SURFACE

BACK of desk

FRONT

INNER GUIDE

in rear post

channel

VIEW FROM ABOVE

AWMS-2-BT75-H Page 3 of 4

WARNING:

Ensure clips

closed before

tilting

5. Attach bottom display

6. Set tilt

5.1 Set VESA plate clips

to open position.

Bottom display must be

attachedtobracketrst.

WARNING:

Use two people to install

display

5.4 Set VESA plate

clips to closed position.

6.1 Adjust display tilt

angle by gripping edges

of screen and rolling up or

down to desired position.

TILT KNOBS

6.2 Set display

angle by tightening

tilt knobs.

5.3 Centre VESA plate close to

post and slowly lower until bar on

VESA plate sits in saddle in bracket.

5.2 Lift display until

VESA plate is above

the bracket.

4.2 Line up the inner guide

on rear of bracket with rear

channel on post.

Slide inner guide into channel,

then lower bracket.

Arrow side

towards user TIGHTEN

WARNING:

Never loosen knob while

display is on bracket

Arrow side

towards user

MEASURE

≥Display

height

between

brackets

MEASURE to

ensure clearance

to desk

4.3 Firmly tighten hand knob at

chosen height.

Ensureheightissufcientfor

display to clear desk once in place.

Repeatwithsecondbracketandt

post cap.

MEASURE

≥Display

height

between

brackets

MEASURE to

ensure clearance

to desk

OPEN

CLOSED

NOTE:

Display hangs from the

bracket like a painting.

After clips are closed,

if corners of the screen

are pushed downwards,

rocking movement is

expected.

WARNING:

Do not loosen

hand knob with

display attached

Clockwise = More friction

Anti-clockwise = Less friction

OPTIONAL ADJUSTMENT - TILT FRICTION

4mm hex key can be used to reduce tilt

friction (for light screen) or increase tilt

friction (for heavy screen).

AWMS-2-BT75-H Page 4 of 4

Please Recycle

8. Fine adjustment

7. Attach top display

iii

LHS &

RHS

TOP &

BOTTOM

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

7.1 Check that distance between brackets

is equal to or greater than the height of

the display. (See image in Step 4.3)

WARNING:

Damage to monitors may occur if

thereisinsufcientspacingbetween

brackets. Top monitor must hang

in bracket - not be held up by the

monitor below it. After both displays

areattached,useneadjustmentto

close gap between them (see Step 8).

7.2 Repeat Step 5 & Step 6 to attach

top display and set tilt angle.

Lower

Adjust angle

Set angle

iii

Unstacked Stacked

Cables can

exit from

the side of

the cable

cover

PUSH

9. Cable management

9.1 Load cables into

cable clip.

9.2 Insert one side of the

cable clip into a channel

on the post, then push in

the other side.

Load cables into

cable cover

9.3 Load

cables into

cable cover.

9.4 Clip the cable cover

back onto rear post

channels.

8.1 To correct horizontal angle

of display +/- 3 °:

Turnasinglenetune

adjustment knob to adjust

angle of screen.

Clockwise = Higher

Anti-clockwise = Lower

8.2 To close small gap between

displays +/-6mm (1/4”):

Turnbothnetuneadjustment

knobs - alternating sides a few

rotations at a time.

Clockwise = Higher

Anti-clockwise = Lower

iii

LHS &

RHS

TOP &

BOTTOM

FINE HEIGHT ADJUST

FINE ADJUSTMENT

KNOBS

NOTE:

Ensure clips are in

CLOSED position

This manual suits for next models
