Atdec Focus VF-AT-NP User manual

VF-AT-NP

Component Checklist

Focus | Notebook Mount

Primary Arm

Cable Cover Cable Stops

(x2)

Cable Clips

Pole Top Cap

Secondary Arm

Cable Cover

M8 x 30mm

Screw

M8 x 60mm

Button Head Screw

Hook & Loop

Fasteners (x4 sets)

Bolt Through

Base

Steel Washer

Pole Assembly

Notebook Tray and

Arm Assembly

! IMPORTANT - Install Focus Notebook Mount as per installation instruction.

! This product supports a maximum load of 8kg (17.6lbs).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check what you have received against the component checklist and hardware above.

Step 2. Mount Pole Assembly

Option 1: Bolt Through Option 2: Mount using Desk Clamp

Pole Assembly Pressure Plate

2.1 Remove both the Pressure

plate and M10 Desk Clamp

Screw.

2.2 Fasten the Desk Clamp to the Bolt

Through Base & Pole Assembly using the

M8 x 30mm Screw and Tighten Firmly.

M10 Desk Clamp

Screw

M8 x 30mm Screw

Bolt Through Base

Pole Assembly

Slot

Slot Tab

Bolt Through Base

9mm (0.35”) Hole

Steel Washer

M8 x 60mm Button

Head Screw

5mm Allen Key

It is recommended that the Pole Assembly be

mounted towards the rear edge of the work surface.

Note: Ensure that the Slot Tab in the Bolt

Through Base fits snugly into the Slot on the

Pole Assembly.

The logo on the Bolt Through Base

must face the front of this assembly.

5mm Allen Key 5mm Allen Key

1.1 Drill a 9mm (0.35”) hole in the work surface in

the desired position and assemble as shown below.

M4x10/12/16mm (x4)

Phillips Head Mounting Screws

5mm Allen Key

HARDWARE

Tools Required:

• Power Drill

• 9mm (0.35”) Drill Bit

Display Mounting Screws

Desk Clamp

Assembly

Installation Instructions

Step 2. Mount Pole Assembly (cont.)

Step 3. Mount Notebook Tray Arm

2.4 Remove the M8 x 16mm Socket Head Countersunk

Screws to release the Desk Clamp Bracket.

2.3 The Desk Clamp bracket can be repositioned to suit different mounting

surface thicknesses. The maximum mounting surface thicknesses supported

are listed below from the Top to Middle and Bottom Screw Holes.

TTMMBB

M8 x 16mm Socket Head

Countersunk Screw

5mm Allen Key

Desk Clamp Bracket Pressure Plate

Table Top

M8 x 16mm Socket

Head Countersunk

Screw

M10 Desk Clamp Screw

5mm Allen Key

Notebook Tray &

Arm Assembly

Pole Top Cap

2.5 Place in desired

location.

If you need to reposition the desk clamp bracket or you have no

access to the rear of your table continue to Step 2.4.

If you DO NOT need to reposition the desk clamp bracket and

you have access to the rear of your table skip to Step 2.7.

2.6 Reattach Desk

Clamp Bracket.

2.7 After positioning

your Pole Assembly,

screw Pressure Plate in

and Tighten Firmly.

3.1 Unlock Handgrip

and raise so that the

Handgrip Tab protrudes.

3.2 Slip the Notebook Tray &

Arm Assembly over the Handgrip

Tab and then onto the Pole.

3.3 Slide the Notebook Tray & Arm

Assembly and Handgrip down the

pole before locking the Handgrip at

the desired height.

Desk Clamp Bracket

Top 0 - 32mm (default)

Middle 7 - 47mm

Bottom 22 - 62mm

Top 29 - 69mm

Middle 43 - 84mm

Bottom 59 - 99mm

3.4 Insert Pole Top Cap into Pole. This

is also where the Allen Key is stored.

LIFT

6.2 Cable Clips and Cable Stops can be installed to further manage cables.

Please See Over.

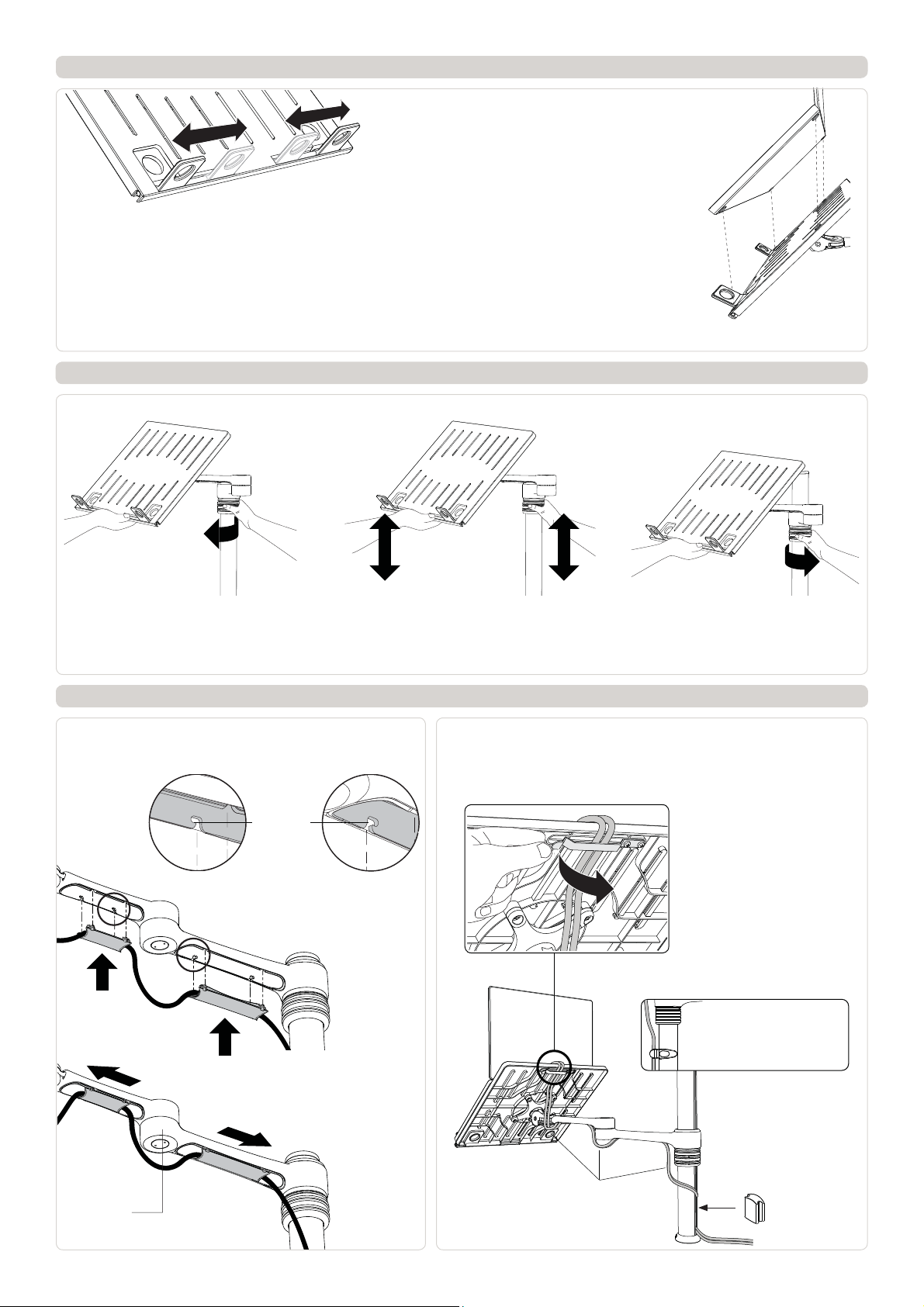

Step 4. Install Notebook

Step 5. Adjust Height

5.1 Unlock Handgrip ensuring both Tray

and Arm Assembly are supported.

5.2 Lift/Lower Tray to the desired height.

Move both Tray and Arm assembly together.

Step 6. Cable Management

6.1 After plugging in your cables, install the Cable Covers.

A. Insert Cable Covers up

into Lock Slots.

B. Push Cable Covers away

from Elbow Joint to secure

in place.

Elbow Joint

‘click’

Lock Slot

Cable Stop

Note: After connecting the

Notebook Cables, route

them through the Cable

Management Clip on the

back of the Notebook Tray.

5.3 Lock Handgrip firmly.

Note: Ensure enough

cable slack is given to

allow for movement.

4.1 Adjust the Support Tabs to suit the

width of the Notebook Computer ensuring

that cable ports are not obstructed.

4.2 To increase stability, use the self adhesive

Hook-and-Loop Fasteners supplied.

• Peel off the backing paper to the fasteners.

• Attach fasteners to both the Notebook Tray

and Computer.

• Ensure that each set of fasteners are correctly

aligned i.e. Hook to Loop.

Note: If this product is in a

Multi-user environment, use

the supplied cable clip to

secure the cables to the pole.

10º - 20º

5º 15º

Loosen

TILT (tray angle up/down)

Tighten

Loosen

Tighten

PAN (tray angle left/right)

Allen Key

Storage

Installation Complete

Step 6.2. Insert Cable Stops

Step 7. Adjusting the Display Bracket

Ergonomic Guidelines

A. Insert Cable Stop on

one edge of the Pole

Slot.

B. Press down firmly onto

the other edge of the

Cable Stop and hold.

This allows the rear profile

to flex in place.

Many experts believe that the extended use of any computer screen has the potential to cause serious injury to your eyes,

neck and back. This can be largely avoided by correctly positioning your display.

Viewing angle: Ergonomists recommend that the optimal position

of your display should be slightly below eye level. When looking at

the display’s centre the user should have a downward visual angle

of approximately 10°-20°.

Height: As a guide, the height (h) of your display should

approximately be as follows:

- Tall Male (Max): 560mm (22”)

- Short Male (Min): 368mm (14.5”)

- Tall Female (Max): 520mm (20.5”)

- Short Female (Min) 356mm (14”)

Distance: For visual comfort, a viewing distance (d) between

500mm (20”) to 750mm (29.5”) is recommended.

Tilt Angle: Angular adjustments to reduce reflection on your

monitor should range between 5° forward tilt to 15° backward tilt.

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 13.02.14 ©

±5° Horizontal

Adjustment ±25° TiltAdjust the tilt angle of the Notebook Tray as

desired, locking it in position using the 5mm

Allen Key.

The height can be adjusted by unlocking

the Handgrips (see Step 7). For the optimal

position of your display, refer to the

Ergonomic Guidelines below.
