Atdec VFS-DV User manual

VFS-DV Page 1 of 4

Installation Guide

VFS-DV

COMPONENT CHECKLIST

VESA

Plate

(x2)

VFS Display

Head

(x2)

Upright

Pole

(x1)

Base

(x1)

(Optional)

Security

Screw

(x2)

Cable Ball

(x4)

3/5mm

Allen Key

(x1 each)

M8x50mm

Screw (x1)

Mounting

Screw

M4x16mm

(x8)

Mounting

Screw

M4x12mm

(x8)

Mounting

Screw

M4x10mm

(x8)

Cable Clip

(x3)

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! Each VFS Display Head supports a maximum weight as per above weight range specification.

! Each 750mm (29.5”) Upright Pole supports a maximum of two VFS Display Heads.

! This product supports VESA mounting hole configurations: 75x75mm and 100x100mm.

! The manufacturer accepts no responsibility for incorrect installation.

! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and offset

VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the

stated range. Please contact Atdec if you would like further information.

Freestanding Dual Vertical

REQUIRED TOOLS

• Phillips Head Screwdriver

WEIGHT RANGE

Per Monitor

Flat Monitor

0 - 12kg (0 - 26.5lb)

Curved Monitor

0 - 9kg (0 - 20lb)

NOTE

120mm (4.75”) max

overall monitor depth

VFS-DV Page 2 of 4

2. Attach VFS Display Heads to the Pole (Ensure the cable slot faces towards the rear)

2.1 Slide the VFS Display Head

onto the Pole.

2.2 If the VFS Display Head requires further

tightening use the supplied 5mm Allen key.

2.3 Close the lever to lock the VFS Display

Head in place.

Slot

Groove

Insert

TIGHTEN

LOOSEN CLOSE

3. Attach the VESA Plate to your monitor (Repeat steps 3 to 6 for each monitor)

NOTE: Be sure to select a screw

length that suits the monitor.

3.1 Check VESA mounting compatibility. 3.2 Screw VESA Plate to back of

monitor using provided screws.

100mm

75mm

100mm 75mm

Top of

monitor

Too short Too long

1. Attach Upright Pole to Base

1.1 Attach the Upright Pole to the

Base as shown below. Ensure the

Cable Slot faces towards the rear. OPTIONAL

BOLT THROUGH &

GROMMET MOUNT

Mount can also be bolted

to work surface or via

grommet hole with the

Atdec Grommet Clamp

(AC-GC), sold separately.

Cable Slot

USER

BACK

TIGHTEN

FIRMLY

Upright Pole

M8x50mm Screw

5mm Allen Key

VFS-DV Page 3 of 4

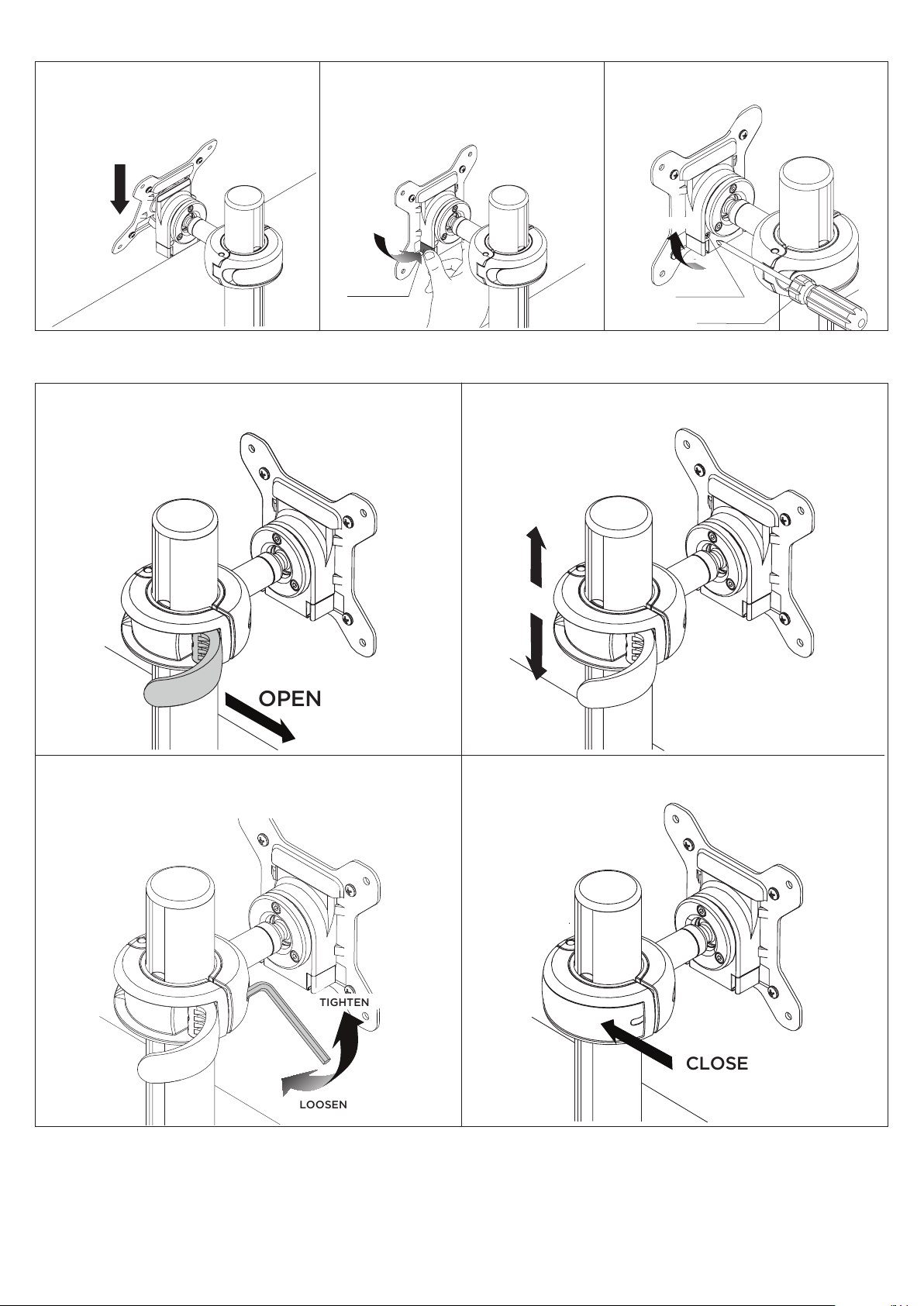

5. Adjust the Height of the VFS Display Head

5.1 While supporting the weight of the monitor, open

the lever to loosen the VFS Display Head.

5.2 Slide the VFS Display Head to desired position.

5.3 If necessary, adjust the tension between the Display

Head and the Pole using the 5mm Allen Key supplied.

5.4 Close the lever to lock the VFS Display Head in place.

OPEN

LOOSEN

TIGHTEN

HOOK

Back of Display

PUSH

Release

Button

Phillips-head

Screwdriver

Security

Screw

TIGHTEN

4. Attach your Display to the VFS Display Head

4.1 Hook the top of the VESA plate

onto the Display Head Mount.

4.2 Press and hold the Release

Buttons. Gently push bottom of

VESA Plate into Display Head Mount.

Release Buttons to lock in place.

4.3 (Optional) Insert the Security

Screw, and tighten using a Phillips-head

Screwdriver.

VFS-DV Page 4 of 4

Cable

Balls

(x2)

Cable

Clips

(x2)

7. Cable Management

Connect cables to your Displays,

routing them down to the rear of

the poles.

Push the cables into the slots, using

either the Cable Balls or Cable Clips

to secure them to the pole as shown.

Note: Ensure enough slack is left in

cables to allow for movement. When

the slot in each pole cannot be used,

use the supplied Cable Clips to

secure the cables.

6. Adjust the ball joint tension

6.1 If the monitors are not holding

position or are stiff to move, adjust

the tension plate by tightening or

loosening the three screws.

Note: Adjust 3

screws evenly in

small increments

Note: Support the monitor

while making adjustments.

3mm

Allen Key
