Assa Abloy TD0192 User manual

This Document is the subject of copyright and must not be copied or otherwise reproduced

either in whole or in part without the express written permission of TRAKA ASSA ABLOY.

TRAKAMEC SUPREME

INSTALLATION GUIDE

TD0192

17/02/20

V1.0

V1.0 04/02/20 TD0192 Page 3 of 13

This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

CONTENTS

Version History................................................................................................................................................2

Contents ........................................................................................................................................................3

1. Introduction.............................................................................................................................................4

2. Prerequisites ............................................................................................................................................5

2.1 What You Should Have......................................................................................................................5

2.2 Tools and Materials Required .............................................................................................................6

2.3Dimensions .....................................................................................................................................6

3. Installation ..............................................................................................................................................8

4. Technical Support ................................................................................................................................... 13

V1.0 04/02/20 TD0192 Page 4 of 13

This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

1. INTRODUCTION

TrakaMEC is a new addition to Traka Automotive. TrakaMEC is designed to meet the needs of many dealerships and

service centres which are not yet demanding fully networked and integrated Key Management Systems. It is a highly

cost-effective and robust mechanical Peg-in-Peg-out Key Management System.

TrakaMEC Cabinet Cabinets are built with the highest quality ASSA ABLOY components including force resistant, anti-

drill, anti-pick and anti-saw BS 5 lever mortice deadlocks for extra peace of mind and security. Each TrakaMEC Cabinet

Cabinet is equipped with electronic Union ASSA ABLOY Code Handle with master key over-ride functionality. These Code

Handles can be programed with 9 different user codes and 1 admin code, increasing security around your dealership.

TrakaMEC Cabinet Cabinets are manufactured in the UK using 2mm thick steel throughout and are finished in a fine

texture black powder coat.

V1.0 04/02/20 TD0192 Page 5 of 13

This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

2. PREREQUISITES

2.1 WHAT YOU SHOULD HAVE

1) TrakaMEC Supreme Cabinet 2) Plinth (Optional)

2) Master Override Keys X2 3) Deadlock Night Locks X3

3) Handle Code X2

V1.0 04/02/20 TD0192 Page 6 of 13

This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

2.2 TOOLS AND MATERIALS REQUIRED

Traka does not provide tools and certain materials for the installation of the TrakaMEC Cabinet Cabinets, so you will

need to source the following:

•Drill

•Wall Fixings (appropriate for the type of wall you are fixing to)

•Plinth to Cabinet fixing (only applicable if the Plinth is purchased)

•Plinth floor fixings

•Screwdriver

•Hammer

•Spirit Level

•Measuring Tape

•M8 x 16 Countersunk Screws X4 (to attach Plinth & Cabinet)

NOTE:Due to the weight of this product we recommend you use appropriate support. Please be advised that

the TrakaMEC Supreme Cabinet installation is a TWO person job and due to the weight and size of the Cabinet

you should always follow correct Manual Handling techniques.

TrakaMEC offers two different sized Plinths designed to go with each TrakaMEC Cabinet. For further information please

visit our webshop www.trakamec.com

This guide shows installation using appropriate floor to Cabinet support which is TrakaMEC Plinth. If you wish to mount

your Cabinet directly to the wall please follow steps 4 to 11 (Traka strongly recommends that you use the Plinth for the

installation).

NOTE: TrakaMEC systems can be very heavy and therefore need a strong wall to fix to. The wall fixings are

not included so when selecting the appropriate fixings it is essential they are strong enough to retain the

system to the wall.

NOTE: The wall (and any wall covering) to which the TrakaMEC System is fixed must be made of low

flammability material (at least 94 UL-5V flammability class equivalent).

2.3 DIMENSIONS

V1.0 04/02/20 TD0192 Page 7 of 13

This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

V1.0 04/02/20 TD0192 Page 8 of 13

This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

3. INSTALLATION

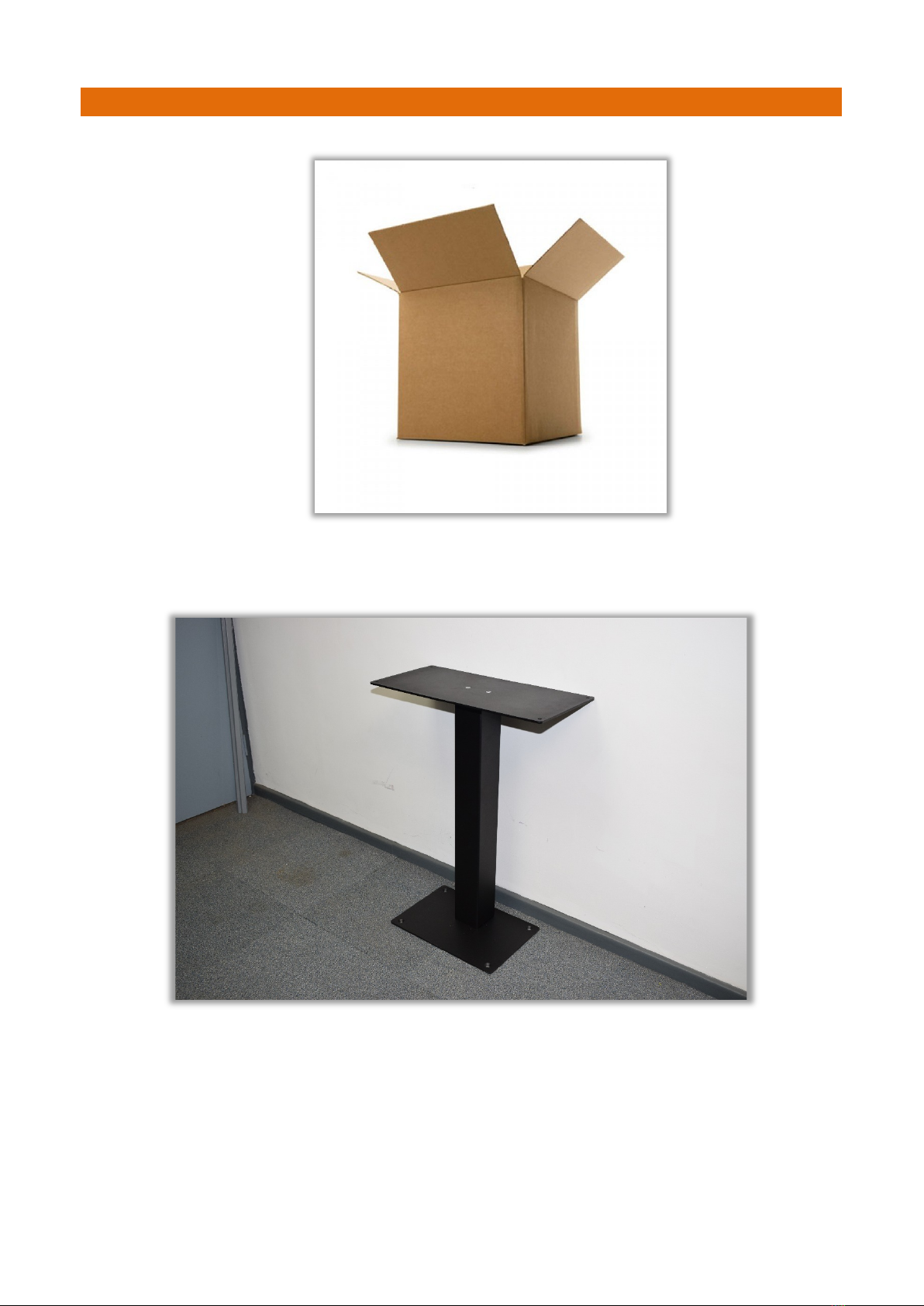

1. Unpack the TrakaMEC Cabinet and the Plinth (if applicable) from the box.

2. Ensure you keep hold of your Handle Code card. There is a second located inside the Cabinet.

3. Locate the desired position on the wall/floor you wish the TrakaMEC Cabinet to be installed.

4. Position the Plinth in desired location. Ensure the top of the Plinth is level with the wall and the bottom of the

Plinth faces as shown in the image below.

V1.0 04/02/20 TD0192 Page 9 of 13

This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

5. Using a marker pen, mark out 4 floor fixing holes for the Plinth base.

6. Drill the 4 marked holes. Ensure you are using correct PPE including googles and ear protection.

7. Using 4 fixing points, secure the Plinth to the floor using appropriate fixings.

V1.0 04/02/20 TD0192 Page 10 of 13

This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

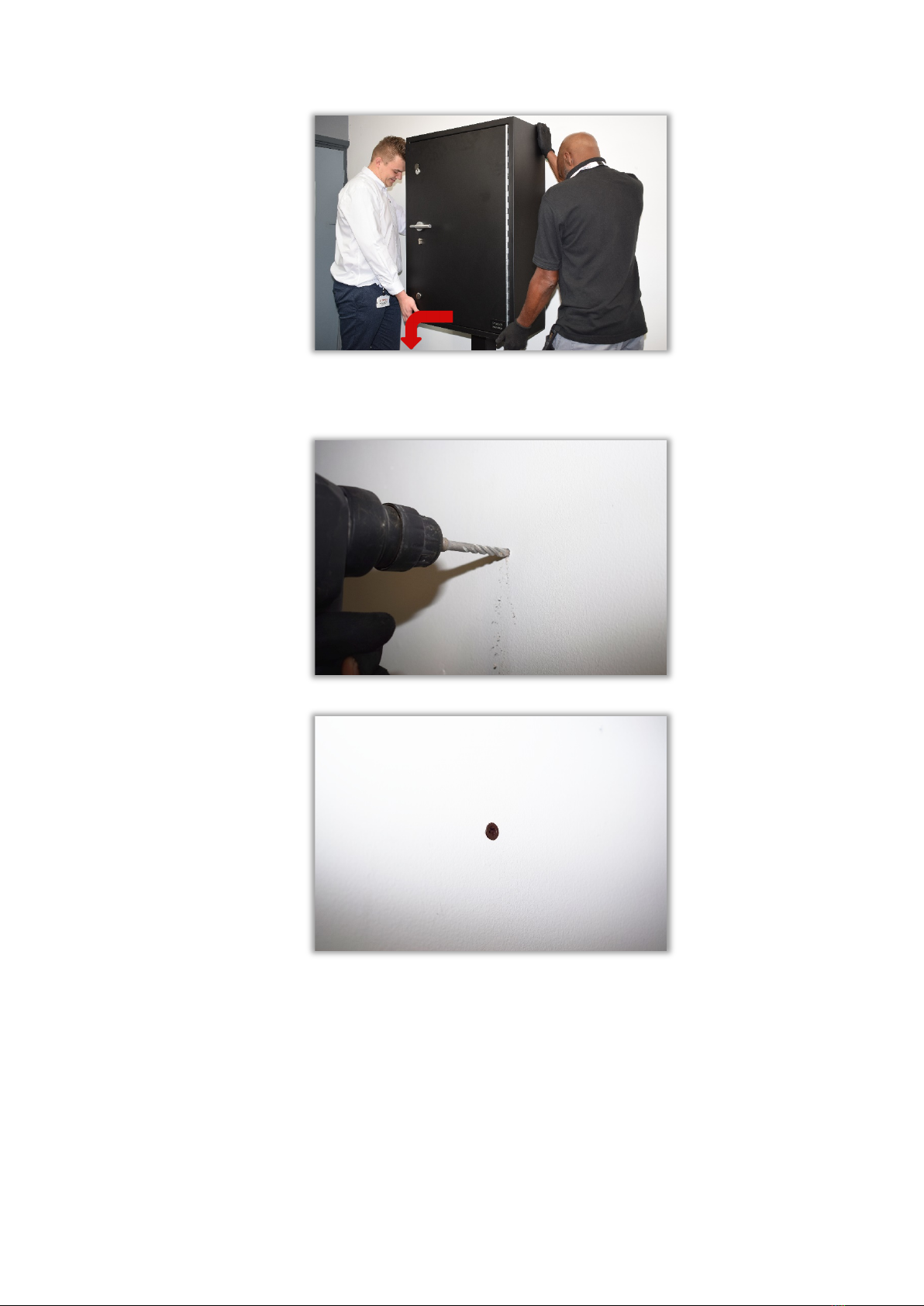

8. With help of another person, lift the Cabinet on to the Plinth, following correct Manual Handling techniques.

Ensure that the Plinth fixing holes are aligned and temporally secure the Plinth to the Cabinet with two M8 x

16 countersunk screws (not supplied) before moving to next step.

9. Open the Cabinet door and mark out the 4 fixing holes located inside the Cabinet on the wall referring to the

template found in Section 2.3 Dimensions if required.

V1.0 04/02/20 TD0192 Page 11 of 13

This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

10. Remove the securing screws between the Plinth and the Cabinet and safely take the Cabinet off the Plinth.

NOTE: Make sure that you use a spirit level to check that you holes are straight and level.

11. Drill the marked fixing points. Ensure you are using correct PPE including googles and ear protection.

12. Next, insert the correct fixings appropriate to the wall type that you are mounting the Cabinet onto.
