APS iBoard IB-R062 User manual
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220801
1
iBoard® by APS PART#: IB-R062
Passenger Front
Mounting Bracket
(PFM)
Driver Front Mount-
ing Bracket (DFM)
Driver Rear Mounting
Bracket (DRM) Passenger Rear Mounting
Bracket (PRM)
PART LIST
*ROCKER PANEL MOUNT
*NO DRILLING REQUIRED
Front
READ INSTRUCTIONS CAREFULLY BEFORE
START ING INSTALLATION. REMOVE CONTENTS
FROM BOX AND VERIFY ALL PARTS ARE PRE-
SENT. ASSISTANCE IS RECOMMENDED.
Fastener Size Tightening Torque (ft-lbs) Required
6mm 6-7 √
8mm 16-18 √
10mm 31-32 X
12mm 56-58 X
14mm 92-94 X
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220801
2
Hardware Package A (For Bracket Installation)
Item QTY Description Item QTY Description
1# 24 M8X1.25-35 Hex Bolts 3# 24 M8 Lock Washers
2# 24 M8 Flat Washers 4# 24 M8X1.25 Hex Nut
3 #2 #1 #
2#
1# 3#
Hardware Package B (For Step Bar Installation)
Item QTY Description Item QTY Description
1# 8M6X1-20mm Square Head Bolts 3# 8 M6 Nylon Lock Nuts
2# 8M6 Large Flat Washers
4 #
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220801
3
STEP 1
Start installation from the driver side front of the vehicle. From
underneath vehicle, place driver side front bracket in position as
shown in (Fig 1).
(Fig 1) Driver Side Front Mounting Location
STEP 2
Attach Driver Front Mounting Bracket (DFM) to location with (6)
M8x1.25-35mm Hex Bolts, (6) M8 Flat Washers, (6) M8 Lock
Washers, (6) M8 Hex Nuts, (Fig 2). Do not fully tighten at this
time.
Repeat for Driver Rear Mounting Bracket (DRM) installation.
(6) M8x1.25-35mm Hex Bolts
(6) M8 Flat Washers
(6) M8 Lock Washers
(6) M8 Hex Nuts
(Fig 2) Driver Front Mounting Bracket Installation
Front
STEP 3
Once all (2) Mounting Brackets are installed. Select a Running
Board. Slip (2) M6X1-20mm Square Head Bolts into each bot-
tom channel (Fig 3). Carefully position the Running Board onto
the (2) Mounting Brackets. Attach the Running Board to each
Mounting Bracket with (2) M6X1-20mm Square Head Bolts, (2)
M6 Large Flat Washers and (2) M6 Nylon Lock Nuts (Fig 4). Do
not fully tighten at this time.
IMPORTANT: Do not slide the Running Board on the Brackets
or the bottom surface of the board will be damaged.
(Fig 3) Slip M6X1-20mm Square Head Bolts Into The Bottom
Channels
M6X1-20mm Square Head Bolts
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220801
4
STEP 5
Repeat Steps 1-4 for the other side Running Board installation.
The installation is completed.
Attention
Do periodic inspections to the installation to make sure
that all hardware is secure and tight.
In order to protect your bars/boards, please use mild
soap/non-abrasive products for cleaning only.
STEP 4
Level and adjust the Running Board and fully tighten all hard-
ware.
Important: Please follow the recommended Tightening Tor-
ques shown in the table on page 1. Don’t over tighten, or
the nuts/bolts will be damaged.

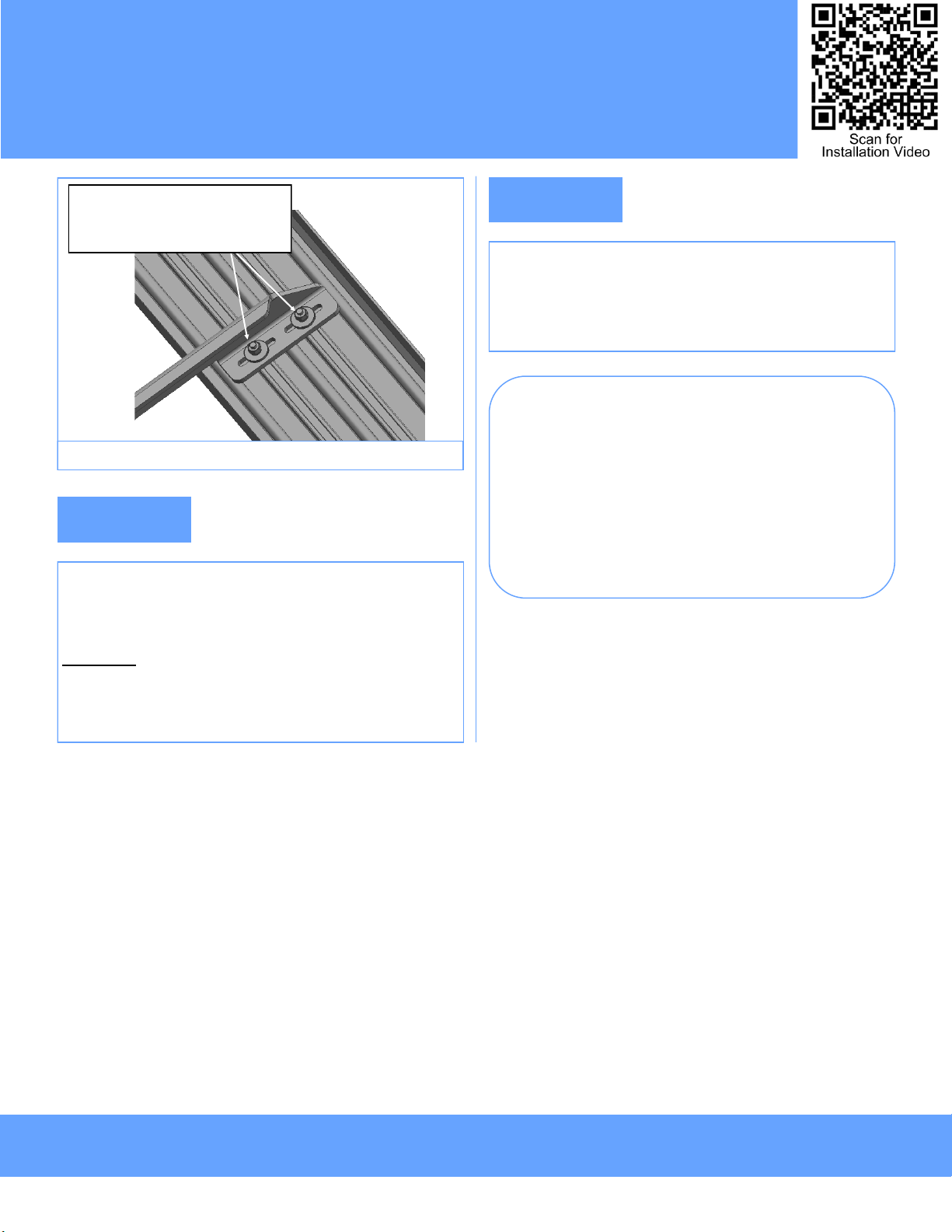

(Fig 4) Running Board Installed Onto Mounting Bracket
(2) M6X1-20mm Square Head Bolts
(2) M6 Large Flat Washers
(2) M6 Nylon Lock Nuts
