APS iBoard IB-R054 User manual
Rev. 20211001
1
iBoard
®
iBoard® by APS PART#: IB-R054
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*NO DRILLING REQUIRED
Item QTY Description Item QTY Description
1# 8Mounting Brackets 5# 16 ST6.3-22mm Hex Flange Self Tapping Screws
2# 8M8X1.25-20mm Hex Bolts 6# 16 M6X1-20mm Square Head Bolts
3# 16 M8 Flat Washers 7# 16 M6 Large Flat Washers
4# 8M8 Nylon Lock Nuts 8# 16 M6 Nylon Lock Nuts
4 # 8 #7 #
5 # 6 #
Fastener Size Tightening Torque (ft-lbs) Required
6mm 6-7 √
8mm 16-18 √
10mm 31-32 X
12mm 56-58 X
14mm 92-94 X
3 #
2 #
Rev. 20211001
2
iBoard
®

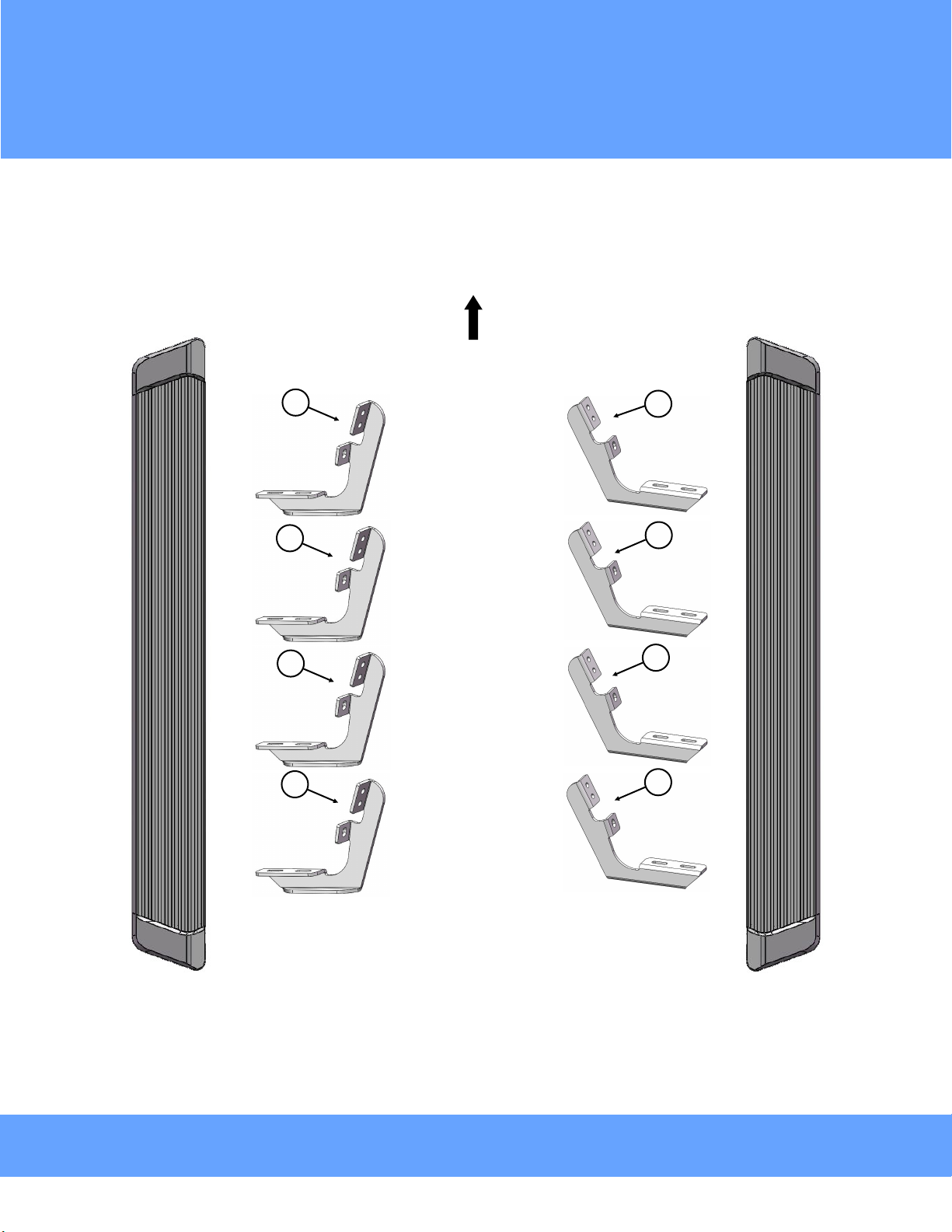

PassengerDriver Front
1# 1#
1#
1#
1#
1#
1#
1#
Rev. 20211001
3
iBoard
®
STEP 1
Starting on the Driver side of the vehicle. Drilling (4) 8mm holes
in pinch weld as shown (Fig 1).
STEP 2
Select (1) Mounting Bracket, attach the Mounting Bracket to the
drilled holes on driver side front mounting location with (2)
ST6.3-22mm Hex Flange Self Tapping Screws , (1) M8X1.25-
20mm Hex Bolts, (2) M8 Flat Washers and (1) M8 Nylon Lock
Nuts (Fig 2). Do not fully tighten at this time.
STEP 3
Repeat Steps 1-2 for the 2nd & 3rd & 4th Mounting Brackets
installation. Do not fully tighten hardware at this time.
Note: (8) Mounting Brackets are Universal.
(1) M8X1.25-20mm Hex Bolt
(2) M8 Flat Washers
(1) M8 Nylon Lock Nut
Front

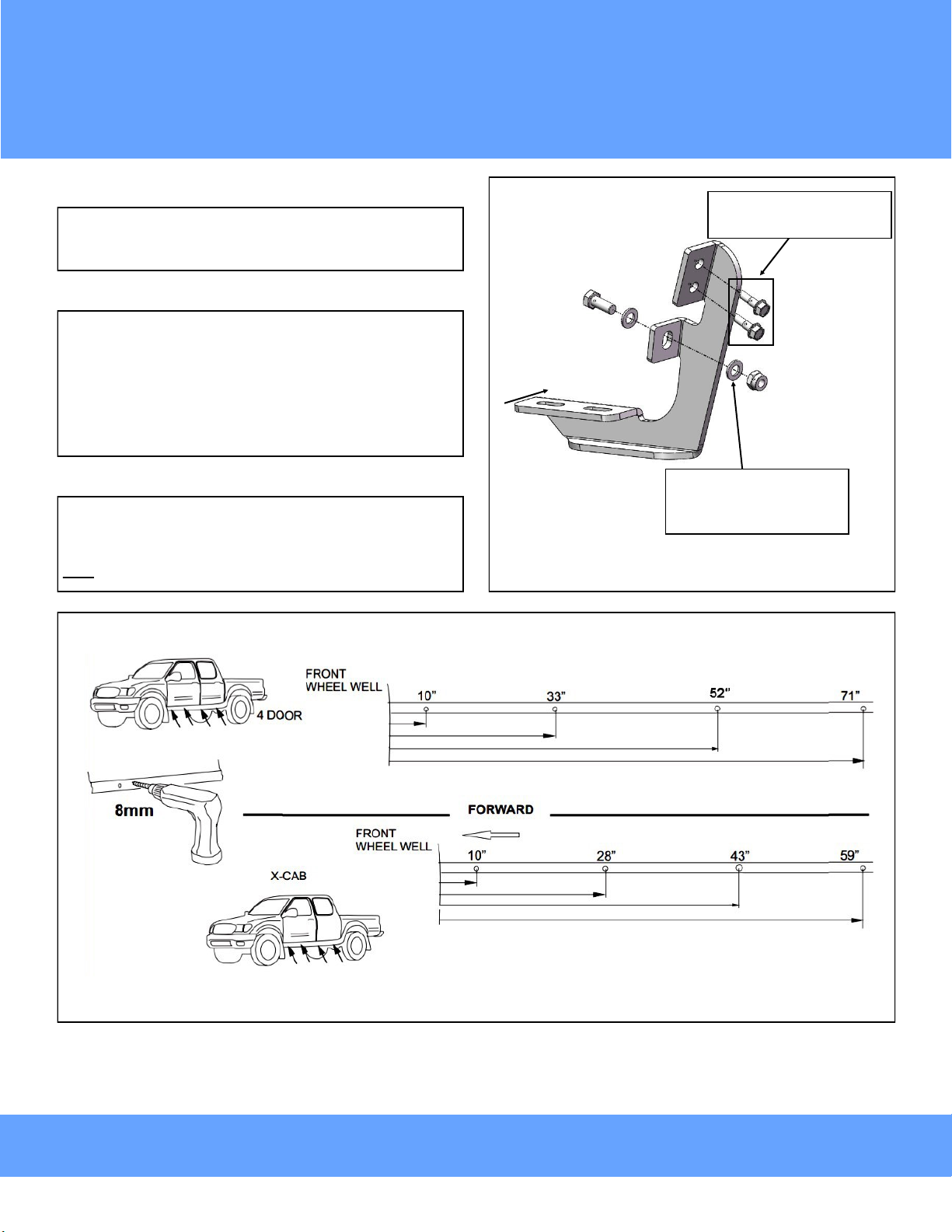

(Fig 2) Driver Front Mounting Bracket Installation
(Fig 1) Driver Side Mounting Locations Pictured
(2) ST6.3-22mm Hex Flange
Self Tapping Screws
Rev. 20211001
4
iBoard
®
STEP 4
Select a Running Board. Slip (4) M6x1-20mm Square Head
Bolts into each bottom channel (Fig 3). Carefully position the
Running Board onto the (4) Mounting Brackets.
IMPORTANT: Do not slide the Running Board on the Brackets
or the bottom surface of the board will be damaged. Attach the
Running Board to each Mounting Bracket with (2) M6x1-20mm
Square Head Bolts, (2) M6 Large Flat Washers and (2) M6
Nylon Lock Nuts (Fig 4). Do not fully tighten at this time.
(Fig 3) Slip M6X1-20mm Square Head Bolts Into
The Bottom Channels
M6X1-20mm Square Head Bolts
STEP 5
Level and adjust the Running Board and fully tighten all hard-
ware.
Important: Please follow the recommended Tightening Tor-
ques shown in the table on page 1. Don’t over tighten, or
the nuts/bolts will be damaged.
STEP 6
Repeat Steps 1-5 for the other side Running Board installation.
The installation is completed.
Attention
Do periodic inspections to the installation to make sure
that all hardware is secure and tight.
In order to protect your bars/boards, please use only
mild soap/non-abrasive products for cleaning.
(Fig 4) Running Board Installed Onto Mounting Bracket
(2) M6X1-20mm Square Head Bolts
(2) M6 Large Flat Washers
(2) M6 Nylon Lock Nuts
