APS iBoard IB-R911 User manual
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220601
1

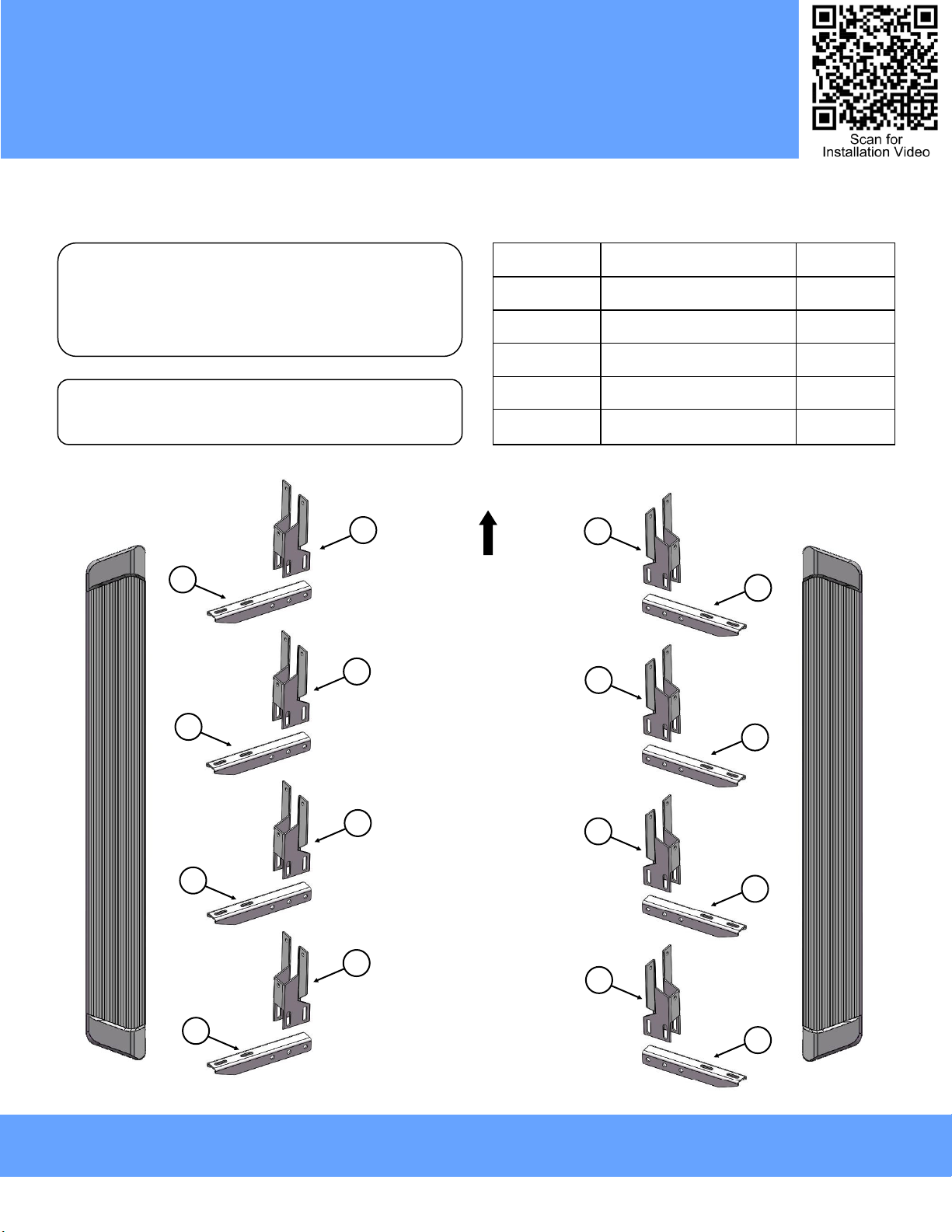

iBoard® by APS PART#: IB-R911
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*DRILLING IS REQUIRED
Fastener Size Tightening Torque (ft-lbs) Required
6mm 6-7 √
8mm 16-18 √
10mm 31-32 X
12mm 56-58 X
14mm 92-94 X
Driver Passenger
Front
1#
2#
1#
1#
1#
2#
1#
2#
1#
1#
1#
2#
2#
2#
2#
2#
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220601
2

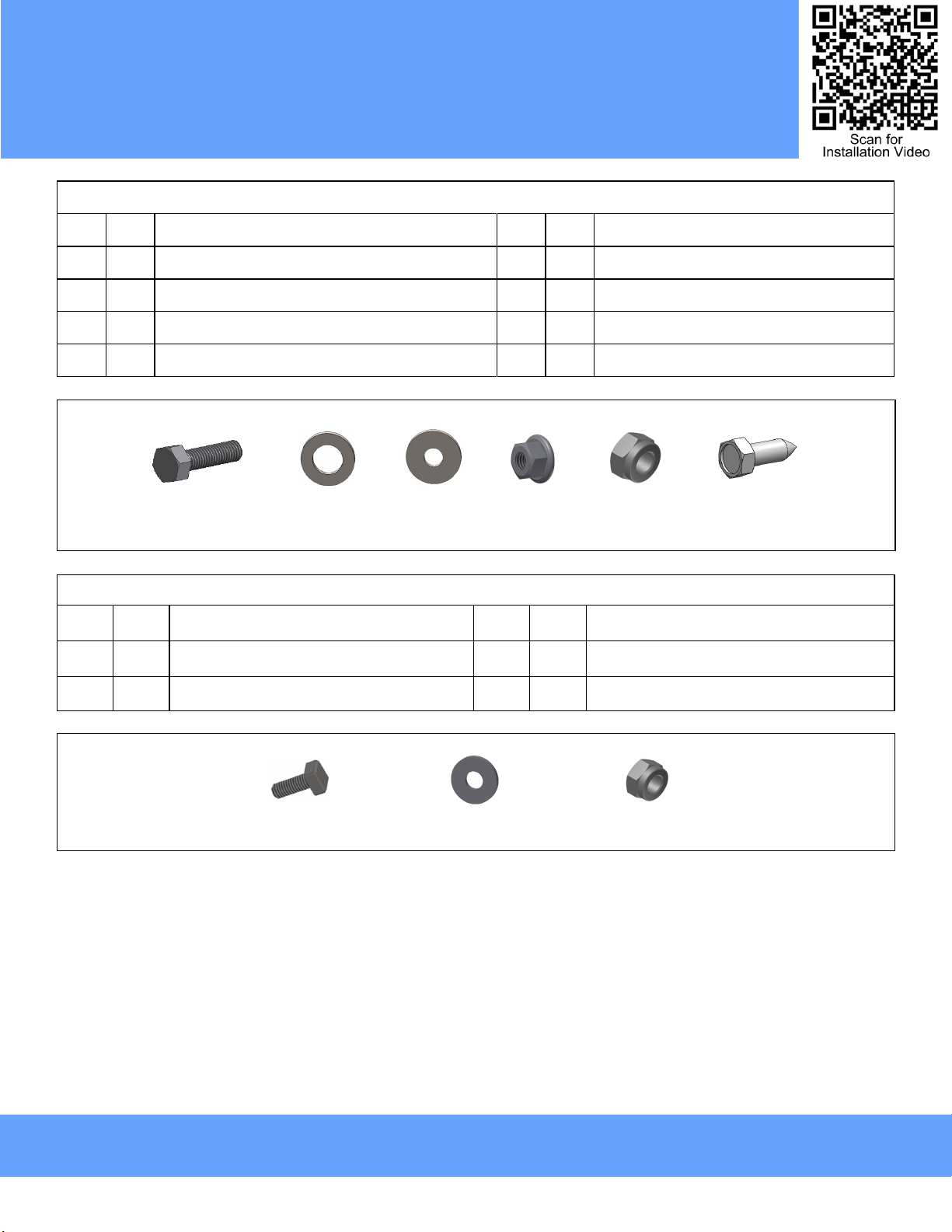

Hardware Package A (For Bracket Installation)
Item QTY Description Item QTY Description
1# 8Mounting Brackets 5# 32 M8 Large Flat Washers
2# 8Bar Brackets 6# 32 M8X1.25 Hex Flange Nuts
3# 40 M8X1.25-20mm Hex Bolts 7# 8M8X1.25 Nylon Lock Nuts
4# 16 M8 Flat Washers 8# 16 ST6.3-22 Hex Self Tapping Screws
3# 4#
2#
1# 3#
Hardware Package B (For Step Bar Installation)
Item QTY Description Item QTY Description
1# 16 M6X1-20mm Square Head Bolts 3# 16 M6 Nylon Lock Nuts
2# 16 M6 Large Flat Washers
5# 6# 7# 8#
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220601
3

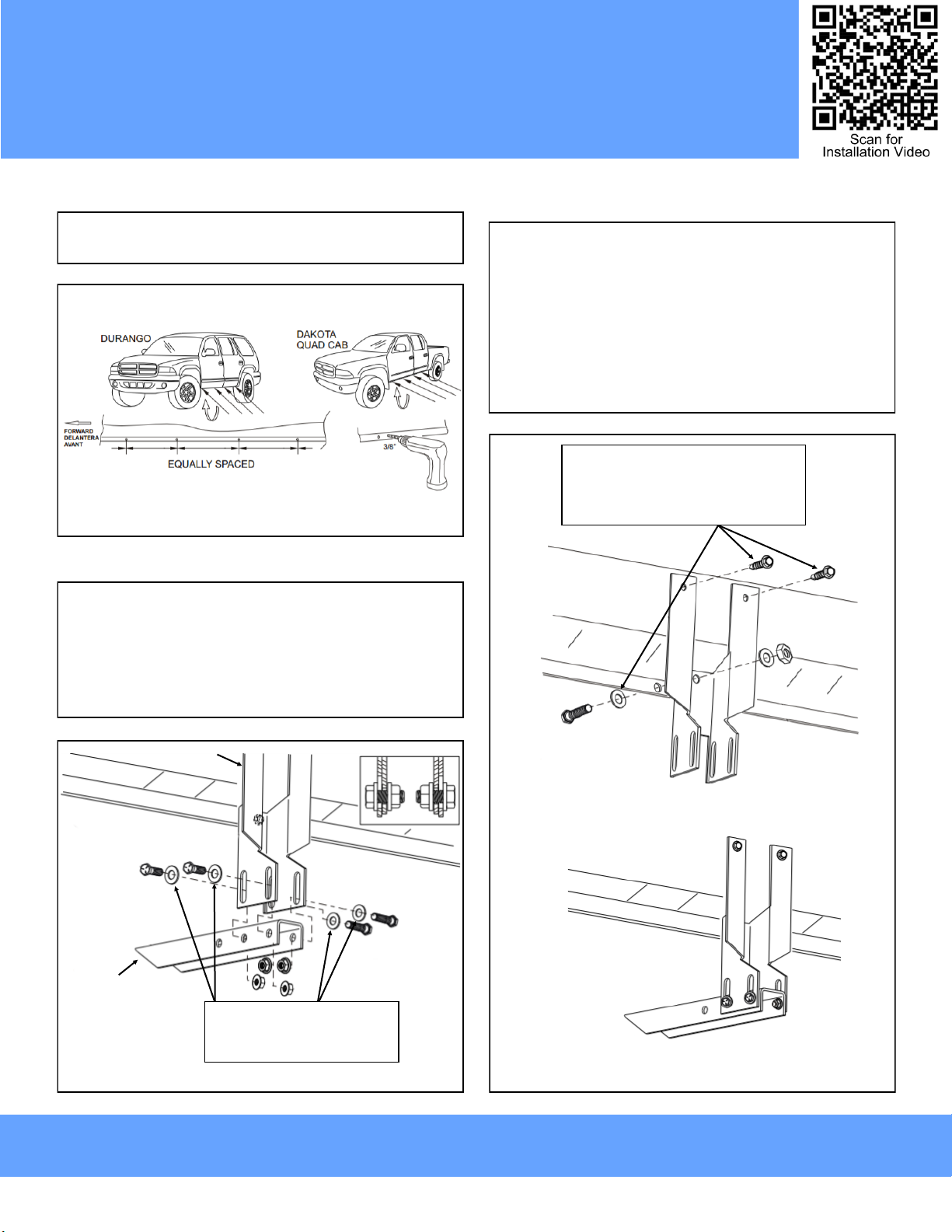

STEP 1
Start the installation under the driver side of the vehicle. Drill (4)
M8 holes in pinch weld as shown, (Fig 1).
(Fig 1) Driver Side Mounting Locations
STEP 2
Assemble Mounting Bracket and Bar Bracket with (4) M8X1.25-
20mm Hex Bolts, (4) M8 Large Flat Washers and (4) M8X1.25
Hex Flange Nuts, (Figs 2 &4). Do not fully tighten hardware at
this time.
Note: All Mounting Brackets are universal. All Bar Brack-
ets are universal.
Mounting Bracket
Bar Bracket
(4) M8X1.25-20mm Hex Bolts
(4) M8 Large Flat Washers
(4) M8X1.25 Hex Flange Nuts
(Fig 2) Driver Side Brackets Assembly
STEP 3
Attach the assembled Brackets to the 5/8” drilled holes on
pinch with (1) M8X1.25-20mm Hex Bolt, (2) M8 Flat Washers
and (1) M8X1.25 Nylon Lock Nut, (Figs 3 & 4).
Market and drill (2) 5mm holes on body panel for each Mount-
ing Bracket. And then, secure the Mounting Brackets to the
body panel with (2) ST6.3-22 Hex Self Tapping Screws for
each bracket.
(Fig 4) Driver Side Mounting Bracket Installation
(Fig 3) Driver Side Mounting Bracket Installation
(2) ST6.3-22 Hex Self Tapping Screws
(1) M8X1.25-20mm Hex Bolt
(2) M8 Flat Washers
(1) M8X1.25 Nylon Lock Nut
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220601
4

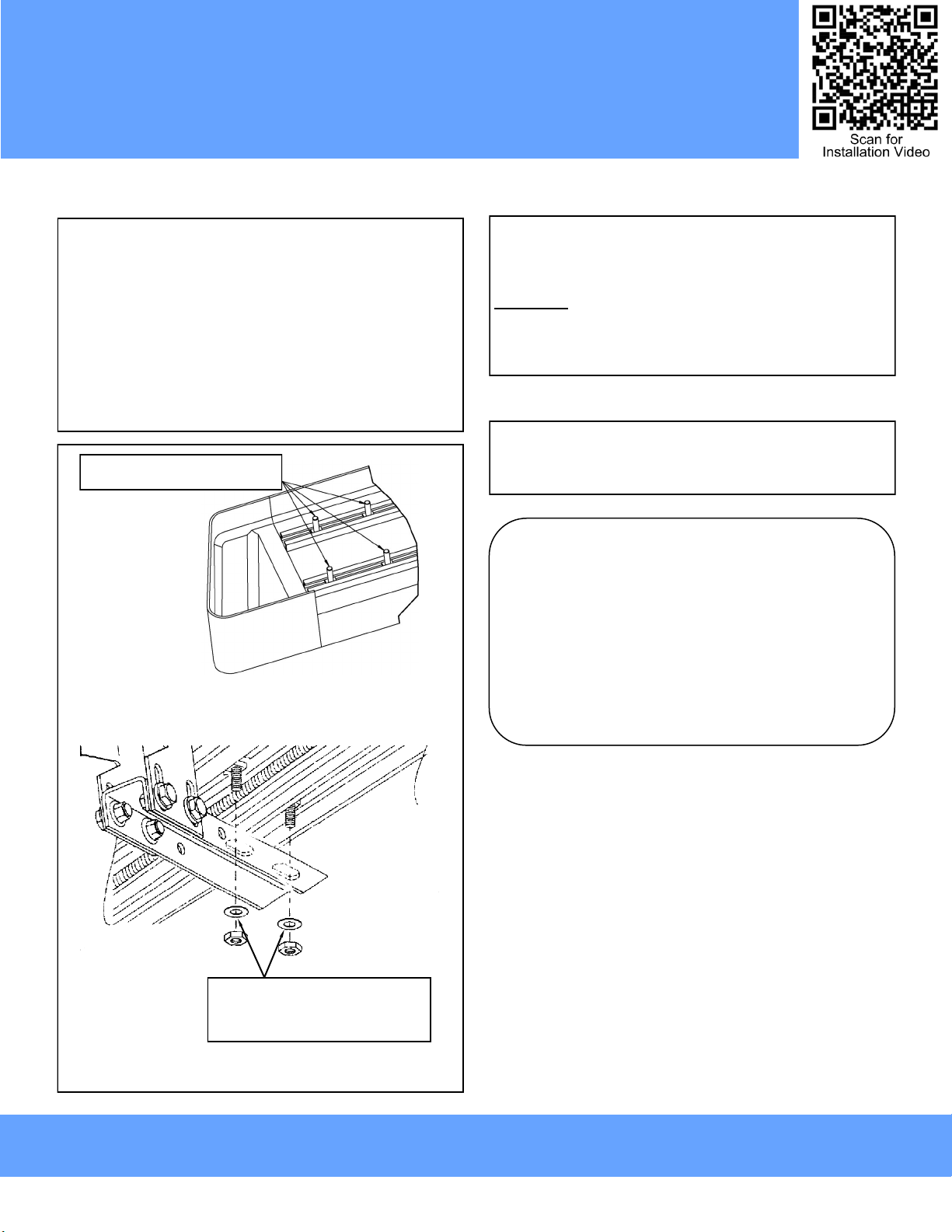

STEP 5
Level and adjust the Running Board and fully tighten all hard-
ware.
Important: Please follow the recommended Tightening Tor-
ques shown in the table on page 1. Don’t over tighten, or
the nuts/bolts will be damaged.
STEP 6
Repeat Steps 1-5 for the other side Running Board installation.
The installation is completed .
Attention
Do periodic inspections to the installation to make sure
that all hardware is secure and tight.
In order to protect your bars/boards, please use mild
soap/non-abrasive products for cleaning only.
STEP 4
Once all (4) mounting brackets are installed. Select a Running
Board. Slide (4) M6X1-20mm Square Head Bolts into each
bottom channel (Fig 5). Carefully position the Running Board
onto the (4) Mounting Brackets. Attach the Running Board to
Mounting Bracket with (2) M6X1-20mm Square Head Bolts, (2)
M6 Large Flat Washers and (2) M6X1 Nylon Lock Nuts (Fig 6).
Do not fully tighten at this time.
IMPORTANT: Do not slide the Running Board on the Brackets
or the bottom surface of the board will be damaged.
M6X1-20mm Square Head Bolts
(Fig 5) Slide M6X1-20mm Square Head Bolts Into The
Bottom Channels
(Fig 6) Running Board Installed Onto Mounting Bracket
(2) M6X1-20mm Square Head Bolts
(2) M6 Large Flat Washers
(2) M6X1 Nylon Lock Nuts
