APS iBoard IB-R961 User manual
iBoard®
Customer Support: info@iboardauto.com
Rev. 20220901
1

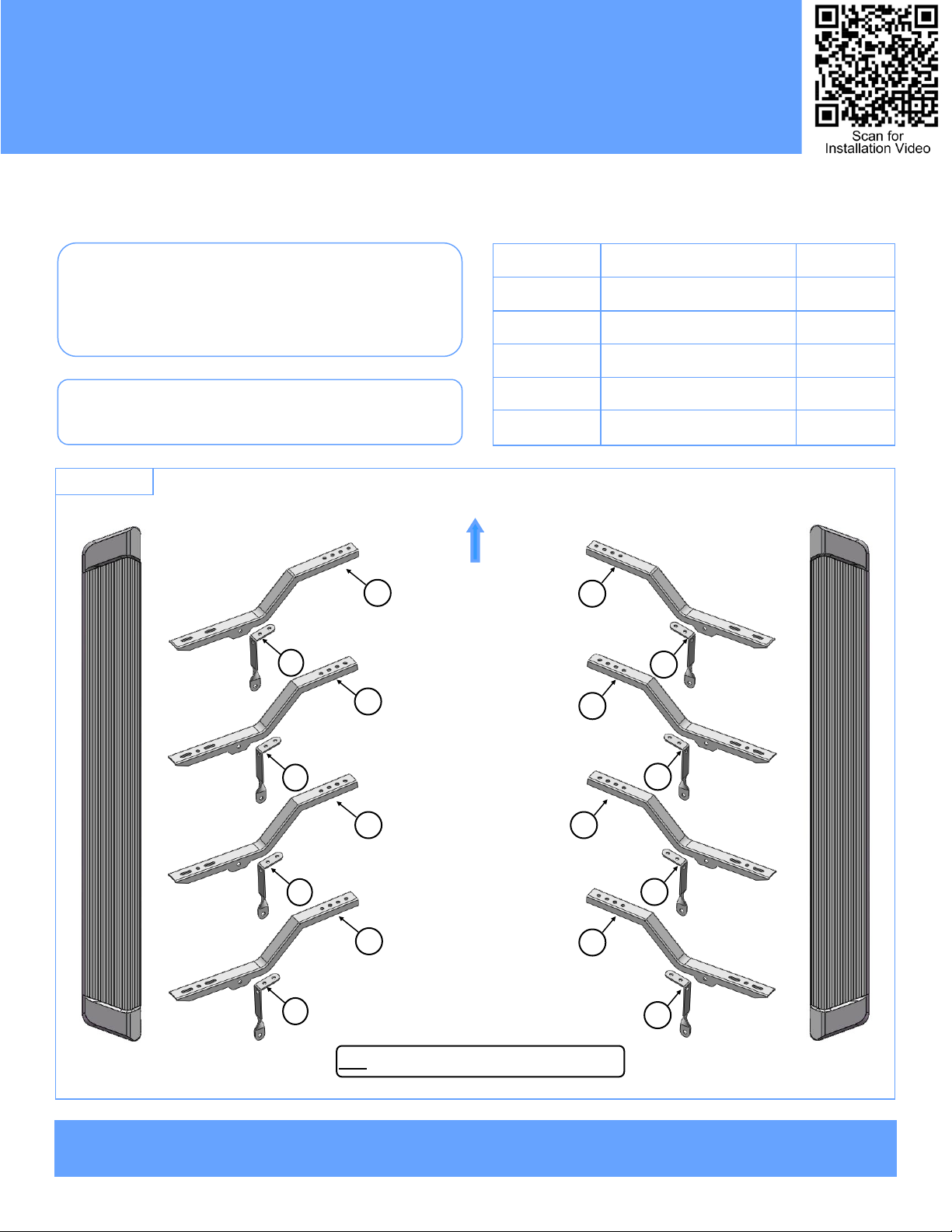

PART LIST
iBoard® by APS PART#: IB-R961
Note: All (8) Support Brackets are Universal
1#
3#
2#
2#
2#
1#
3#
3#
2#
2#
2#
3#
3#
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
* DRILLING IS REQUIRED
Fastener Size Tightening Torque (ft-lbs) Required
6mm 6-7 √
8mm 16-18 √
10mm 31-32 X
12mm 56-58 X
14mm 92-94 X
3#
3#
3#
Front
iBoard®
Customer Support: info@iboardauto.com
Rev. 20220901
2
5#
4# 6# 7#
2#
1# 3#

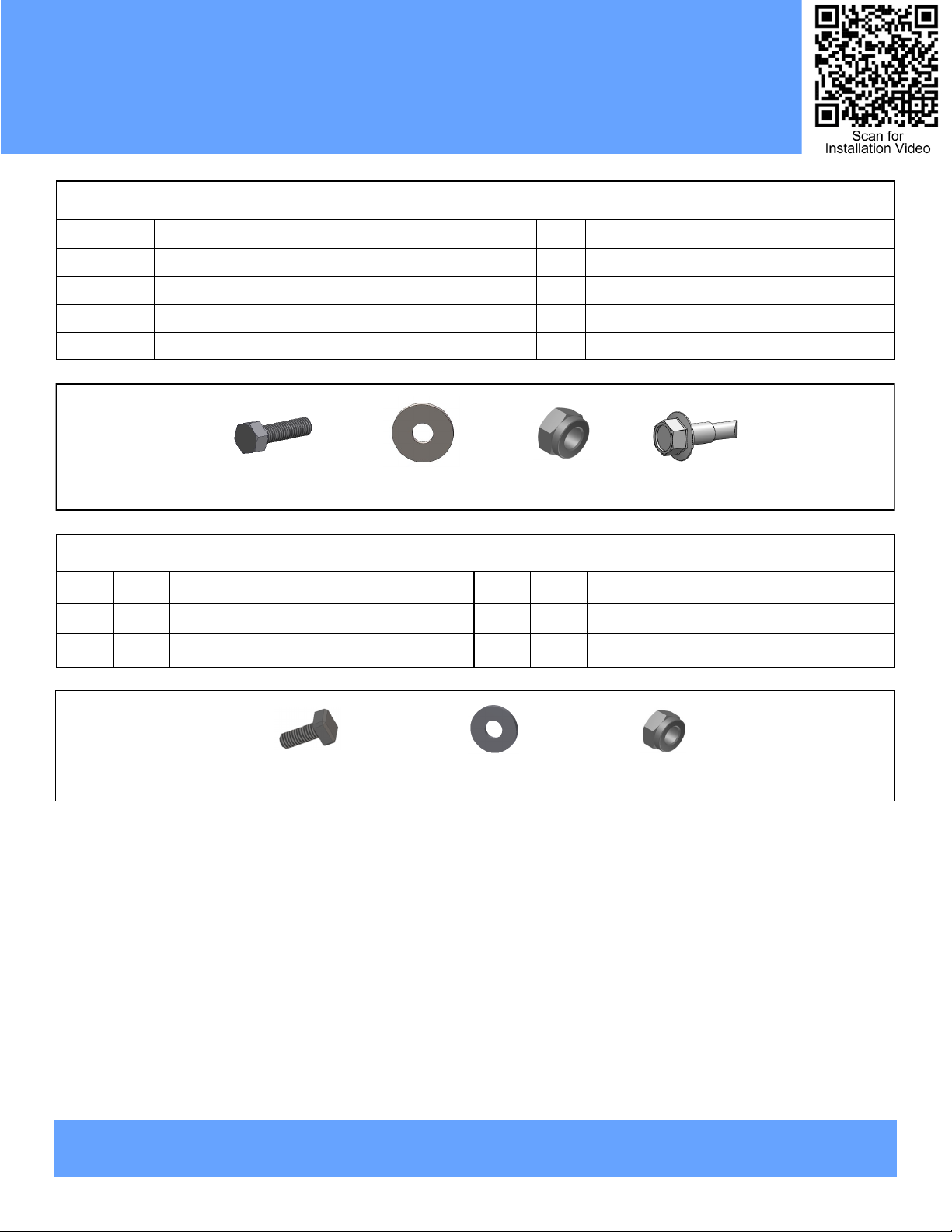

Hardware Package B (For Step Bar Installation)
Item QTY Description Item QTY Description
1# 16 M6X1-20mm Square Head Bolts 3# 16 M6 Nylon Lock Nuts
2# 16 M6 Large Flat Washers
Hardware Package A (For Bracket Installation)
Item QTY Description Item QTY Description
1# 2Driver/Passenger Front Mounting Brackets 5# 32 M8 Flat Washers
2# 6Driver/Passenger Center/Rear Mounting Brackets 6# 16 M8 Nylon Lock Nuts
3# 8Support Brackets 7# 24 ST6.3-22mm Hex Self Tapping Screws
4# 16 M8X1.25-20mm Hex Bolts
iBoard®
Customer Support: info@iboardauto.com
Rev. 20220901
3

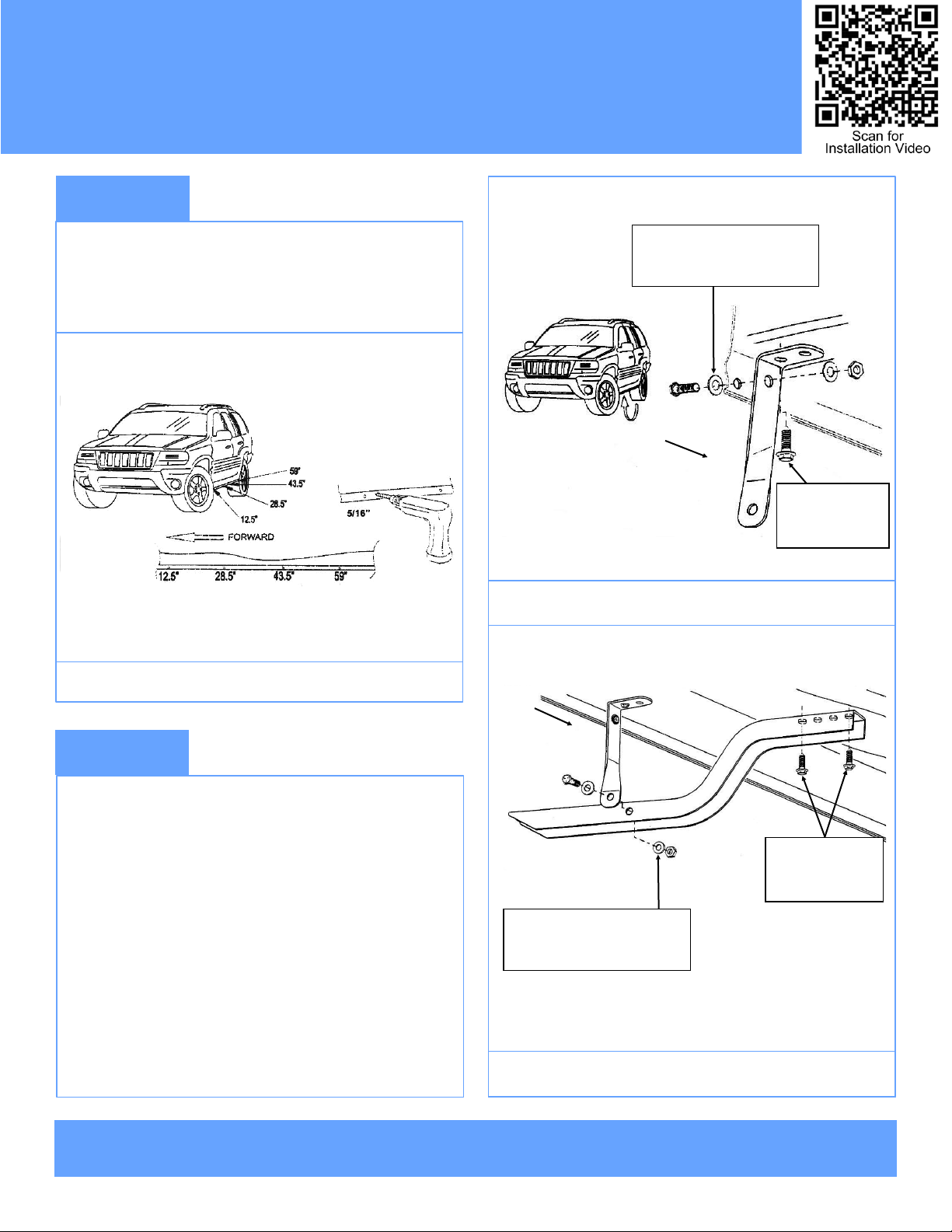

Starting installation under the driver side of the vehicle. Drilling
(4) M8 holes in pinch weld as shown, (Fig 1).
(Fig 1) Driver Side Mounting Locations
(Fig 3) Driver Side Front Mounting Bracket Installation
Select (1) Support Bracket and (1) Driver Front Mounting
Bracket (DFM). Assembly with (1) M8X1.25-20mm Hex Bolt, (2)
M8 Flat Washers and (1) M8 Nylon Lock Nut, (Fig 3). Do not
fully tighten hardware at this time.
Attach the assembled Driver Front Mounting Bracket to vehicle
as shown, (Figs 2-3). Do not fully tighten hardware at this time.
Front
(Fig 2) Driver Side Front Mounting Bracket Installation
(1) M8X1.25-20mm Hex Bolts
(2) M8 Flat Washers
(1) M8 Nylon Lock Nut
Front
(1) ST6.3-22mm
Hex Self Tap-
ping Screw
(2) ST6.3-22mm
Hex Self Tapping
Screws
(1) M8X1.25-20mm Hex Bolts
(2) M8 Flat Washers
(1) M8 Nylon Lock Nut
STEP 1
STEP 2
iBoard®
Customer Support: info@iboardauto.com
Rev. 20220901
4
Move to the driver side other (3) mounting locations. Repeat
Steps 1-2 to attach the bracket to the vehicle. Do not fully tight-
en hardware at this time.

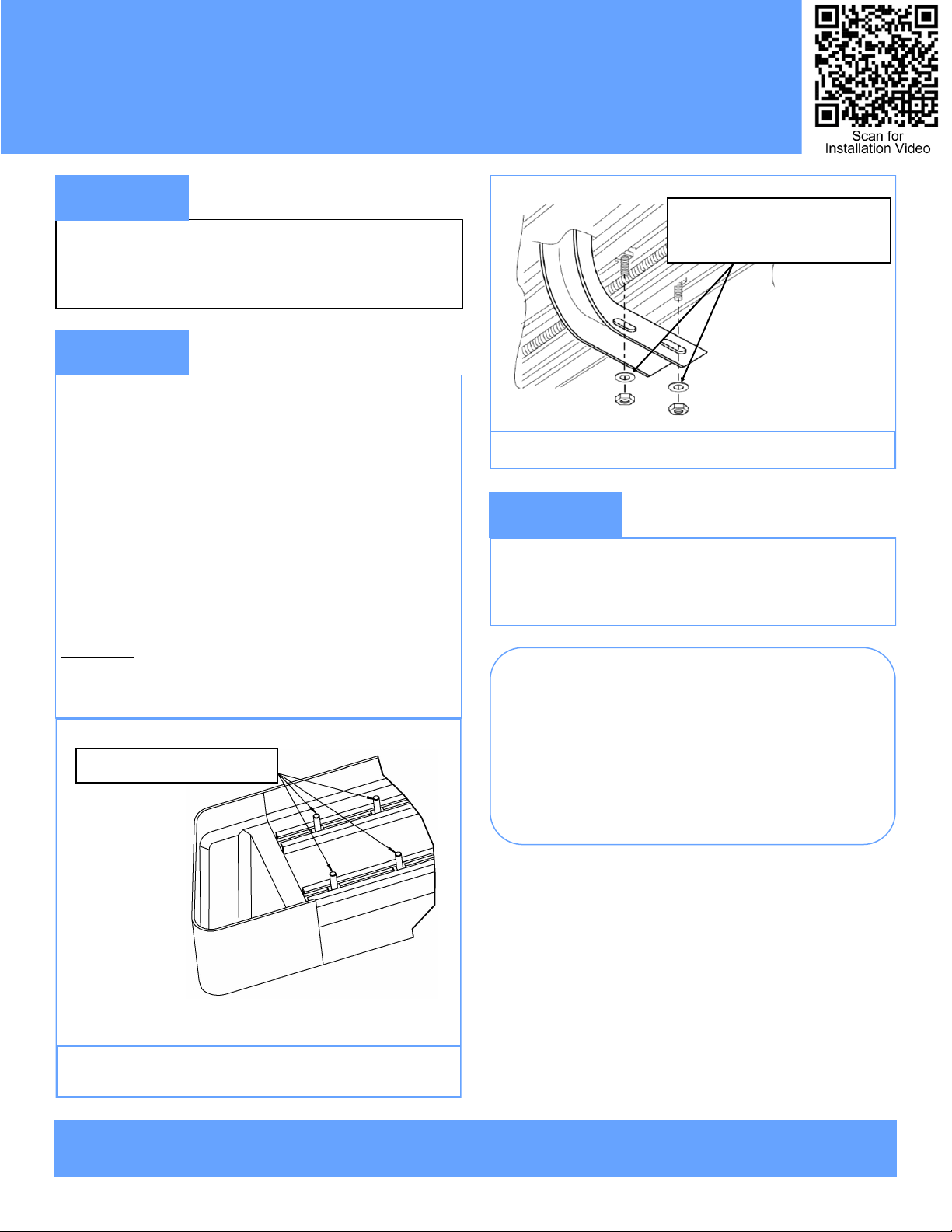

Once all (4) mounting brackets are installed. Select a Running
Board. Slip (4) M6X1-20mm Square Head Bolts into each bot-
tom channel (Fig 4). Carefully position the Running Board onto
the (4) Mounting Brackets. Attach the Running Board to
Mounting Bracket with (2) M6X1-20mm Square Head Bolts, (2)
M6 Large Flat Washers and (2) M6X1 Nylon Lock Nuts (Fig 5).
Do not fully tighten at this time.
IMPORTANT: Do not slide the Running Board on the Brackets
or the bottom surface of the board will be damaged.
Level and adjust the Running Board and fully tighten all hard-
ware.
Important: Please follow the recommended Tightening Tor-
ques shown in the table on page 1. Don’t over tighten, or
the nuts/bolts will be damaged.
(Fig 4) Slip M6X1-20mm Square Head Bolts Into The Bottom
Channels
M6X1-20mm Square Head Bolts
(Fig 5) Running Board Installed Onto Mounting Bracket
Attention
Do periodic inspections to the installation to make sure
that all hardware is secure and tight.
In order to protect your bars/boards, please use mild
soap/non-abrasive products for cleaning only.
Repeat Steps 1-4 for the other side Running Board installation.
The installation is completed.
(2) M6X1-20mm Square Head Bolts
(2) M6 Large Flat Washers
(2) M6X1 Nylon Lock Nuts
STEP 3
STEP 4
STEP 5
