Anzzi Melody SP-AZ018 User manual

INSTALL GUIDE

Model#

SP-AZ018

MELODY

PERFECTION IS OUR TRADITION™

v2.0516

Parts List Pg. 1

Before You Start Pg. 2

Spec Drawing Pg. 3

Installation Pg. 4

Care & Maintenance Pg. 10

Warranty Pg. 11

Registration Final Page

TABLE OF CONTENTS

YOUR REVIEWS MATTER!

For more information please call 1-844-44-ANZZI

or email us at [email protected]

The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI

product for years to come! In the meantime let us know about your experience? We would love

to hear your thoughts from the packaging to the quality and function of the product.

Leave a review on www.ANZZI.com/reviews and let everyone know how satisfied you are with

ANZZI!

Also, we humbly request submitting as many pictures as possible along with your review.

Millions of shoppers will want to know about your experience with our products. Don’t just tell

but show, too!

PARTS LIST

PERFECTION IS OUR TRADITION™

pg. 1

1. Shower Head

2. Body Jets

3. Diverter

4. Mixer

5. Hand Shower

456

Component no.

Component

Material

head shower

s/s

arm bar

brass

flange

brass

front body

glass

back side body

Aluminum

washer 1

rubber

nut 1

brass

one way joint

ABS

body jets

brass

knob

zinc

knob plate cover

brass

cartridge

ABS

handle

zinc

handle plate cover

brass

cap

ABS

thermostatic cartridge

ABS

clip

s/s

two way joint

ABS

thermostatic faucet

brass

hand shower

ABS

hand shower holder

ABS

pvc hose

PVC

braided hose

s/s

flexible hose

s/s

ASME A112.18.1/CSA B125.1

PERFECTION IS OUR TRADITION™

pg. 2

For any questions or concerns contact

our dedicated technical support team

at 1-844-44-ANZZI.

BEFORE YOU START

Screwdriver Channel Locks

Adjustable Wrench Allen key

Goggles

Teflon tape

Recommended Items

ATTENTION: Please read all instructions thoroughly

including all warnings, attentions and notes before

beginning installation.

PERFECTION IS OUR TRADITION™

pg. 3

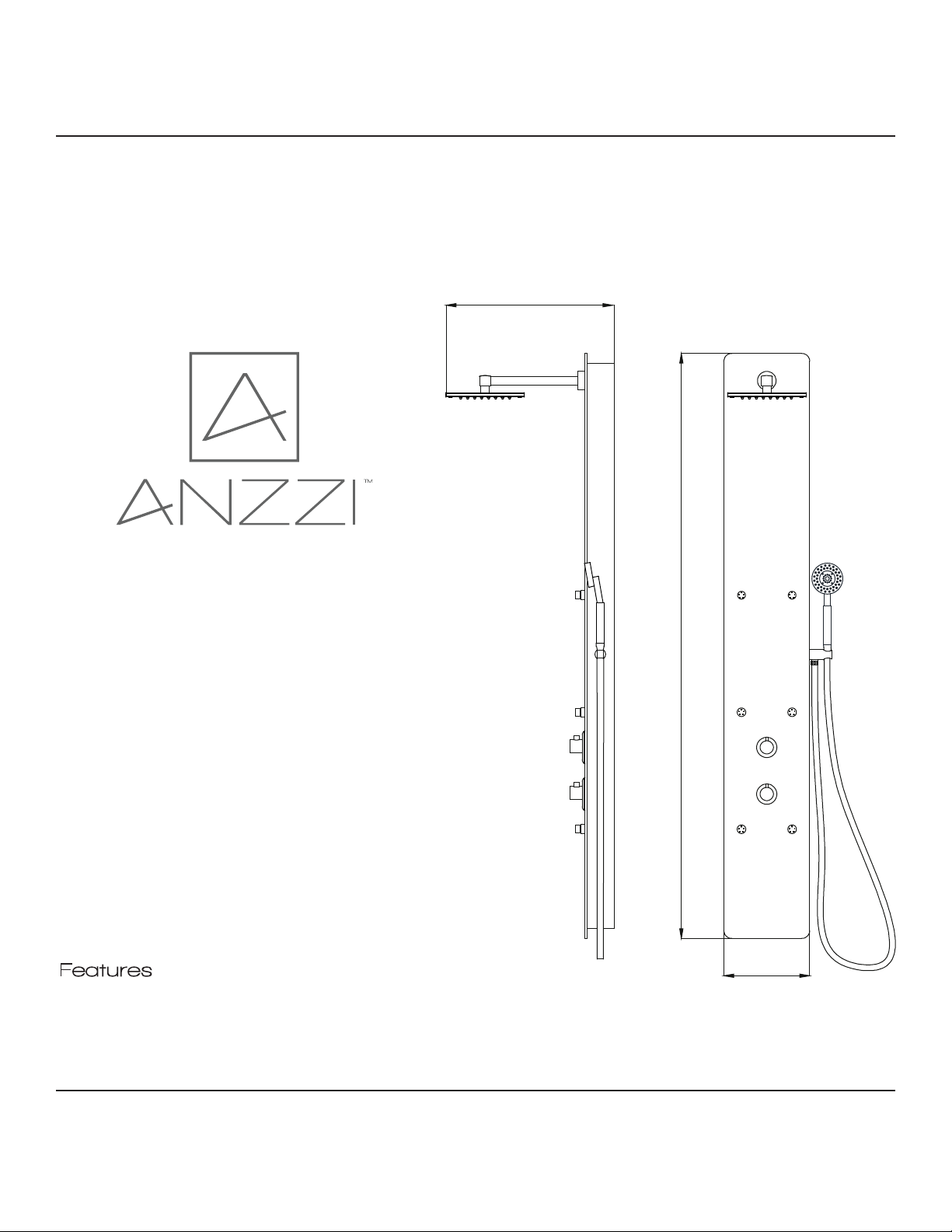

SPEC

DRAWING

MELODY

SP-AZ018

Perfection is our Tradition™

Material: Tempered Glass

Finish: Black Tempered Glass

Handles: 2

Jets: 6

Shower: 6.89” x 6.89“

Sprayer: 60” reach

Weight: 24.47 lbs

Height: 59.05”

Supply: 1/2” connections

Flow: 2.5 gpm

Features

Heavy Rain™ Swiveling Showerhead

Acu-Stream™ high pressure body jets

Euro-Grip™ hand held sprayer

Rhino Alloy™ certified materials

20.41”

8.66”

59.05”

Figure A

INSTALLATION (SETUP)

PERFECTION IS OUR TRADITION™

pg. 4

Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or

pipelines aligned with the desired drilling position.

Drill the two holes for the top bracket 1” apart at the desired height.

Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket.

IMPORTANT

Step A

Step A.2

Ø 6mm Drill

1 INCH

Figure B

INSTALLATION (SETUP)

PERFECTION IS OUR TRADITION™

pg. 5

Insert the wall anchors into the pre-drilled holes as shown in Figure B.

Place the shower panel brackets aligned with the drilled holes and using a Philips screw-

driver ighten the screws to secure the brackets.

Step B

Step C

Figure C

Figure 1

PERFECTION IS OUR TRADITION™

pg. 6

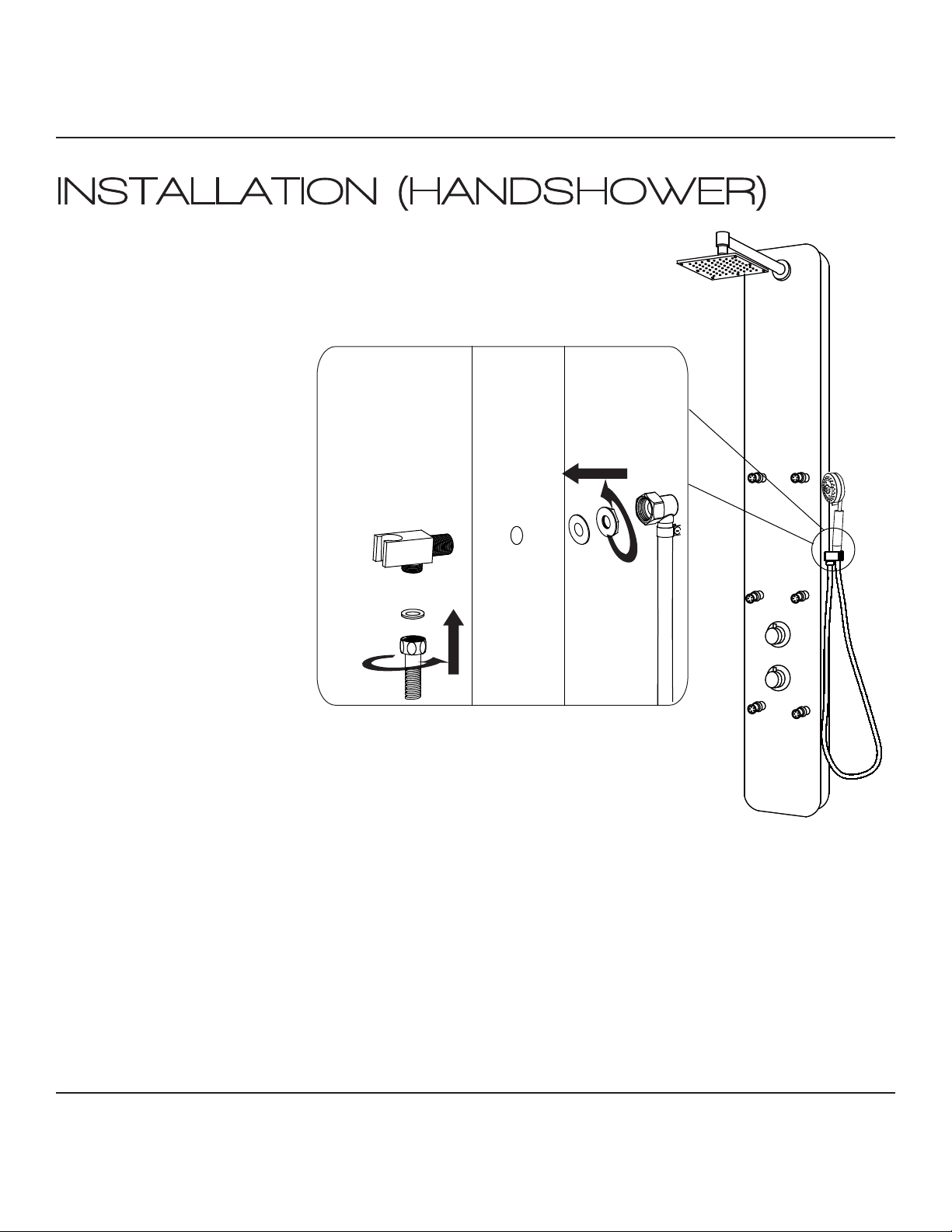

Insert the shower wand holder through the pre-drilled hole on the shower panel.

Install the water supply hose for the shower wand onto the holder, as shown.

Make sure all O-rings are inserted to prevent leakage.

Once the shower panel is fully installed and hung on the bracket, you can install the shower

wand hose to the holder connection.

Step 1A

Step 1B

Step 1C

Step 1D

Figure 2

INSTALLATION (HANDSHOWER)

PERFECTION IS OUR TRADITION™

pg. 7

Finally, install the shower wand to the hose, as shown.Step 2A

Standard

Hand

Shower

3 Setting

Hand

Shower

Figure 3

PERFECTION IS OUR TRADITION™

pg. 8

Install the shower arm to the shower panel, using the rubber washer and nut on the opposite

side to tighten.

Makes sure the shower arm is sitting correctly before installed the shower head.

Screw the shower head onto the shower arm.

Step 3A

Step 3B

Step 3C
