Anzzi RONIN SP-AZ025 User manual
INSTALL GUIDE
Model#
SP-AZ025
RONIN
PERFECTION IS OUR TRADITION™
v2.0516
Parts List Pg. 1
Before You Start Pg. 2
Spec Drawing Pg. 3
Installation Pg. 4
Care & Maintenance Pg. 10
Warranty Pg. 11
Registration Final Page
TABLE OF CONTENTS
YOUR REVIEWS MATTER!
For more information please call 1-844-44-ANZZI
The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI
product for years to come! In the meantime let us know about your experience? We would love
to hear your thoughts from the packaging to the quality and function of the product.
Leave a review on www.ANZZI.com/reviews and let everyone know how satisfied you are with
ANZZI!
Also, we humbly request submitting as many pictures as possible along with your review.
Millions of shoppers will want to know about your experience with our products. Don’t just tell
but show, too!
PARTS LIST
PERFECTION IS OUR TRADITION™
pg. 1
ASME A112.18.1/CSA B125.1
1. Shower Head
2. Body Jets
3. Diverter
4. Mixer
5. Hand Shower
15
1
16
18
19
20
21
17
29
28
27
2
9
11
14
10
13
22 23
12
3
46
5
7
8
24
25
26
Component no.
Component
Material
1
head shower
s/s
2
arm bar
bras s
3
flange
bras s
4
body
Aluminium
5
was h 1
rubber
6
nut 1
bras s
7
one way joint
ABS
8
clip
s/s
9
shelf
Acrylic
10
glass clam p
bras s
11
screw
s/s
12
screw 2
s/s
13
nut 2
s/s
14
body jets
bras s
15
knob
zinc
16
knob plate cover
bras s
17
cartridge
bras s
18
handle
zinc
19
handle plate cover
bras s
20
cap
ABS
21
thermos tatic cartridge
ABS
22
body jets cover
ABS
23
nut 3
bras s
24
thermos tatic faucet
bras s
25
hand shower
ABS
26
hand shower holder
ABS
27
pvc hose
PVC
28
braided hose
s/s
29
flexible hose
s/s
1
2
3
2
4
5
PERFECTION IS OUR TRADITION™
pg. 2
For any questions or concerns contact
our dedicated technical support team
at 1-844-44-ANZZI.

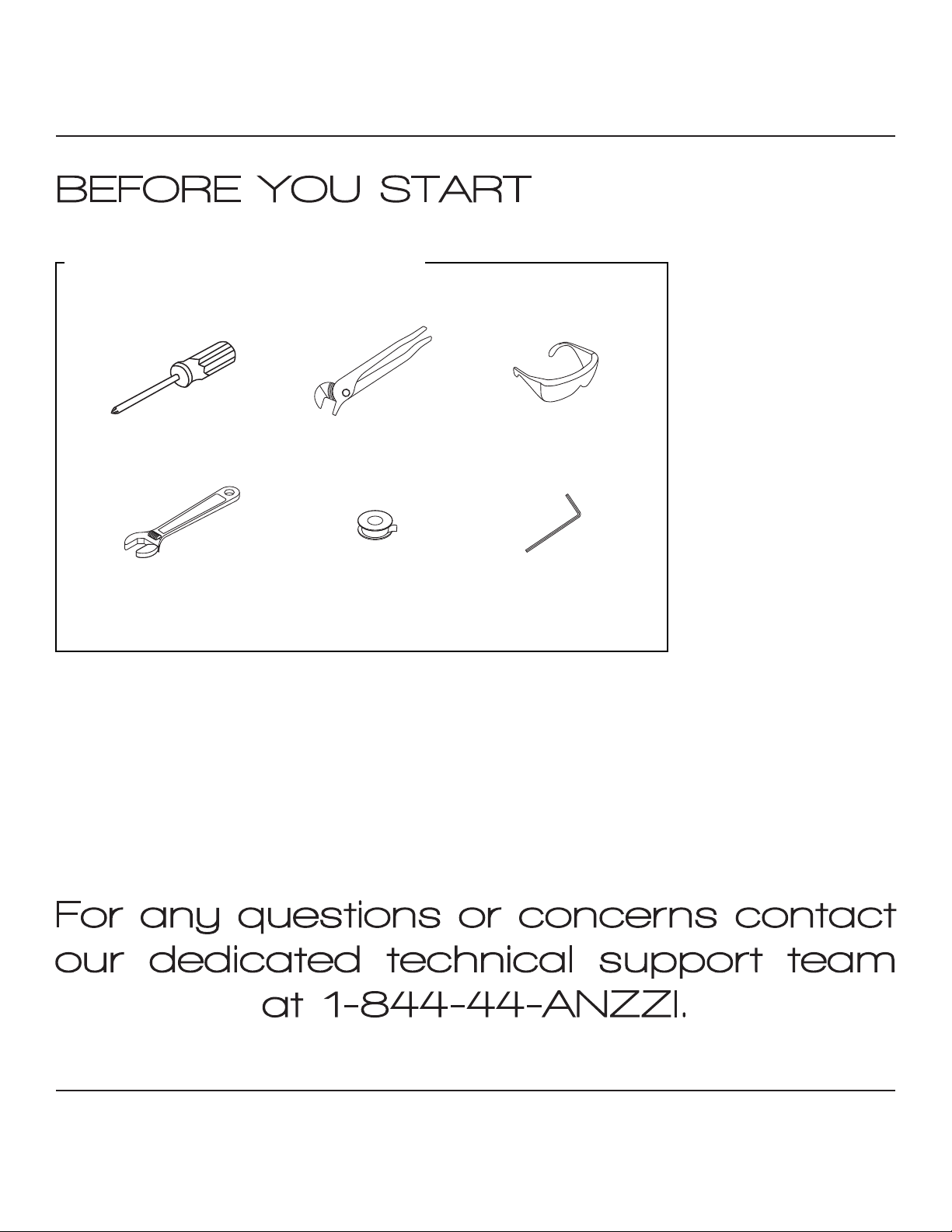

BEFORE YOU START
Screwdriver Channel Locks
Adjustable Wrench Allen key
Goggles
Teflon tape
Recommended Items
ATTENTION: Please read all instructions thoroughly
including all warnings, attentions and notes before
beginning installation.
PERFECTION IS OUR TRADITION™
pg. 3
SPEC
DRAWING
RONIN
SP-AZ025
Material: Aluminum
Finish: Black
Handles: 2
Jets: 2 Acu-Stream Jets
Shower: Swivel
Sprayer: 60” reach
Weight: 13.4 lbs
Height: 51.2”
Supply: 1/2” connections
Flow: 2.5 gpm
Features
Heavy Rain™ Fixed Showerhead
Acu-Stream™ high pressure body jets
Euro-Grip™ hand held sprayer
Rhino Alloy™ certified materials
2.8"
51.2
"
8.7"
24.1"
Figure A
INSTALLATION (SETUP)
PERFECTION IS OUR TRADITION™
pg. 4
Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or
pipelines aligned with the desired drilling position.
Drill the two holes for the top bracket 1” apart at the desired height.
Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket.
IMPORTANT
Step A
Step A.2
Ø 6mm Drill
1 INCH
Figure B
INSTALLATION (SETUP)
PERFECTION IS OUR TRADITION™
pg. 5
Insert the wall anchors into the pre-drilled holes as shown in Figure B.
Place the shower panel brackets aligned with the drilled holes and using a Philips screw-
driver ighten the screws to secure the brackets.
Step B
Step C
Figure C
Figure 1
INSTALLATION (HANDSHOWER)
PERFECTION IS OUR TRADITION™
pg. 6
Insert the shower wand holder through the pre-drilled hole on the shower panel.
Install the water supply hose for the shower wand onto the holder, as shown.
Make sure all O-rings are inserted to prevent leakage.
Once the shower panel is fully installed and hung on the bracket, you can install the shower
wand hose to the holder connection.
Step 1A
Step 1B
Step 1C
Step 1D
21
1
2
Figure 2
INSTALLATION (HANDSHOWER)
PERFECTION IS OUR TRADITION™
pg. 7
Finally, install the shower wand to the hose, as shown.Step 2A
1 Setting
Hand
Shower
3 Setting
Hand
Shower
or
INSTALLATION (SHOWER HEAD)
PERFECTION IS OUR TRADITION™
pg. 8
