Anzzi SP-AZ077 User manual
INSTALL GUIDE
Model#
SP-AZ077
SP-AZ8106
PERFECTION IS OUR TRADITION™
v2.0516
Parts List Pg. 1
Before You Start Pg. 2
Spec Drawing Pg. 3
Installation Pg. 4
Care & Maintenance Pg. 12
Warranty Pg. 13
Registration Final Page
TABLE OF CONTENTS
YOUR REVIEWS MATTER!
For more information please call 1-844-44-ANZZI
The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI
product for years to come! In the meantime let us know about your experience? We would love
to hear your thoughts from the packaging to the quality and function of the product.
Leave a review on www.ANZZI.com/reviews and let everyone know how satisfied you are with
ANZZI!
Also, we humbly request submitting as many pictures as possible along with your review.
Millions of shoppers will want to know about your experience with our products. Don’t just tell
but show, too!
PARTS LIST
PERFECTION IS OUR TRADITION™
pg. 1
1
2
3
4
1. Shower Head
2. Diverter
3. Body Jets
4. Hand Shower
10
1
9
3
4
5
678
2
11
12
13
19
16
17
18
14
15
22
21
20
23
24
25
Component no.
Component
Material
1
head shower
s/s
2
flange
brass
3
body
s/s
4
washer
EPDM
5
nut
brass
6
connector
brass
7
clip
s/s
8
pvc hose
pvc
9
body jets
brass
10
knob plate cover
s/s
11
knob
zinc
12
one way joint
ABS
13
two ways joint
ABS
14
function cartridge
ABS
15
faucet
brass
16
hand shower
ABS
17
hand shower holder
ABS
18
flexible hose
s/s
19
braided hose
s/s
20
screw
s/s
21
bracket
s/s
22
plug
ABS
23
cap
ABS
24
long- short connector
ABS
25
base
ABS
PERFECTION IS OUR TRADITION™
pg. 2
For any questions or concerns contact
our dedicated technical support team
at 1-844-44-ANZZI.
BEFORE YOU START
Screwdriver Channel Locks
Adjustable Wrench Allen key
Goggles
Teflon tape
Recommended Items
ATTENTION: Please read all instructions thoroughly
including all warnings, attentions and notes before
beginning installation.
PERFECTION IS OUR TRADITION™
pg. 3
SPEC
DRAWING
SP-AZ077
Perfection is our Tradition™
Material: Stainless Steel
Finish: Brushed
Handles: 1
Jets: 3
Shower: 6.89”x6.89”
Sprayer: 60” reach
Weight: 10.80 lbs
Height: 39.37”
Supply: 1/2” connections
Flow: 2.5 gpm
Features
Heavy Rain™ Showerhead
Acu-Stream™ high pressure body jets
Euro-Grip™ hand held sprayer
Rhino Alloy™ certified materials
17.72"
4.72"
39.37"
Figure A
INSTALLATION (SETUP)
PERFECTION IS OUR TRADITION™
pg. 4
Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or
pipelines aligned with the desired drilling position.
Drill the two holes for the top bracket 1” apart at the desired height.
Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket.
IMPORTANT
Step A
Step A.2
Ø 6mm Drill
1 INCH
Figure B
INSTALLATION (SETUP)
PERFECTION IS OUR TRADITION™
pg. 5
Insert the wall anchors into the pre-drilled holes as shown in Figure B.
Place the shower panel brackets aligned with the drilled holes and using a Philips screw-
driver tighten the screws to secure the brackets.
Step B
Step C
Figure C
Figure 1
INSTALLATION (HANDSHOWER)
PERFECTION IS OUR TRADITION™
pg. 6
Insert the shower wand holder through the pre-drilled hole on the shower panel.
Install the water supply hose for the shower wand onto the holder, as shown.
Make sure all O-rings are inserted to prevent leakage.
Once the shower panel is fully installed and hung on the bracket, you can install the shower
wand hose to the holder connection.
Step 1A
Step 1B
Step 1C
Step 1D
Figure 2
INSTALLATION (HANDSHOWER)
PERFECTION IS OUR TRADITION™
pg. 7
Finally, install the shower wand to the hose, as shown.Step 2A
1 Setting
Hand
Shower
3 Setting
Hand
Shower
or
Figure 3

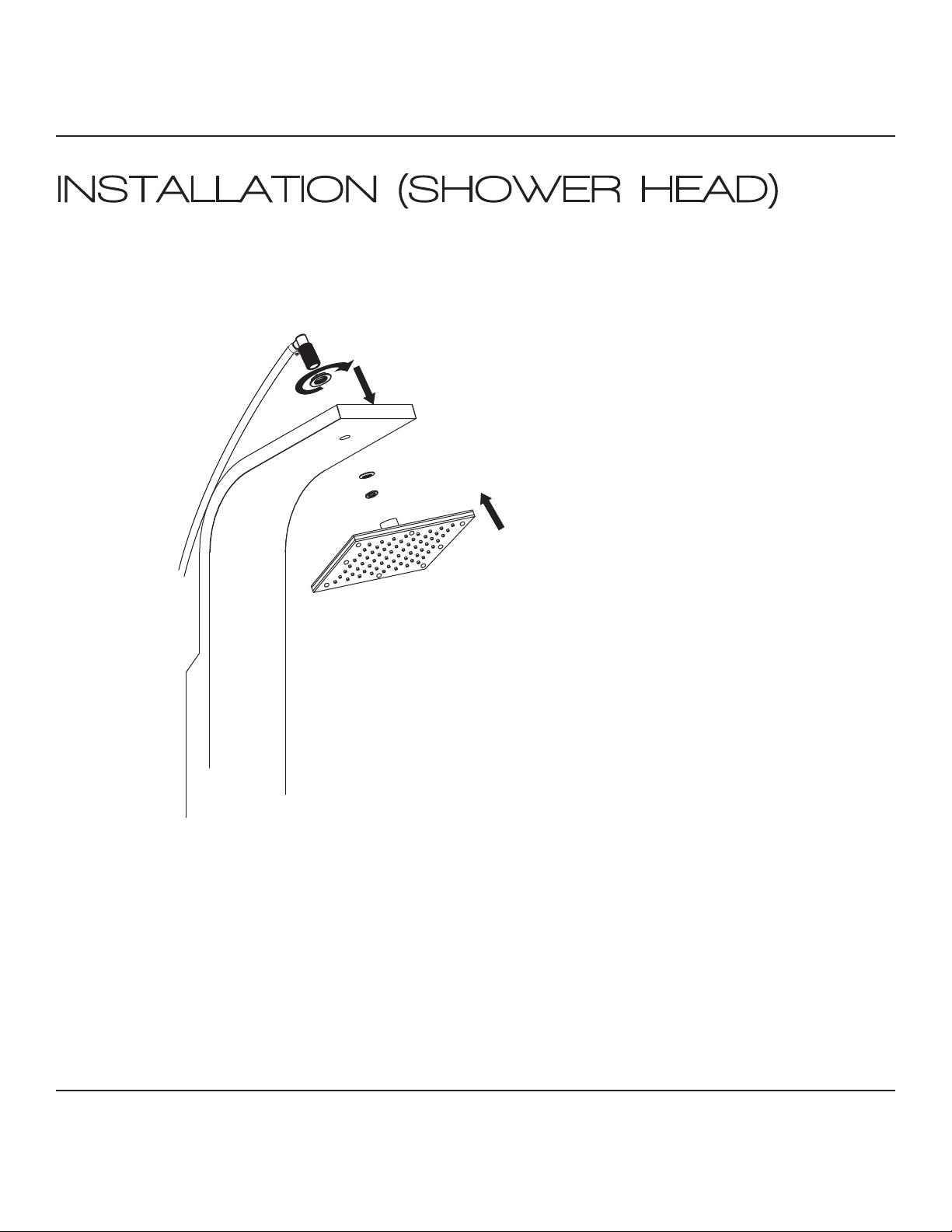

INSTALLATION (SHOWER HEAD)
PERFECTION IS OUR TRADITION™
pg. 8
Install the shower head to the upper threader connectin on the shower panel as shown.Step 3A
