Anzzi MESA SP-AZ043 User manual
INSTALL GUIDE
Model#
SP-AZ043
MESA
PERFECTION IS OUR TRADITION™
v2.0516
Parts List Pg. 1
Before You Start Pg. 2
Spec Drawing Pg. 3
Installation Pg. 4
Care & Maintenance Pg. 10
Warranty Pg. 11
Registration Final Page
TABLE OF CONTENTS
YOUR REVIEWS MATTER!
For more information please call 1-844-44-ANZZI
The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI
product for years to come! In the meantime let us know about your experience? We would love
to hear your thoughts from the packaging to the quality and function of the product.
Leave a review on www.ANZZI.com/reviews and let everyone know how satisfied you are with
ANZZI!
Also, we humbly request submitting as many pictures as possible along with your review.
Millions of shoppers will want to know about your experience with our products. Don’t just tell
but show, too!
PARTS LIST
PERFECTION IS OUR TRADITION™
pg. 1
2. Shower Head
1. Waterfall
3. Diverter
4. Body Jets
5. Mixer
6. Hand Shower
7. Spout
1
2
4
4
4
4
7
3
3
3
3
5
6
10
11
1
2
3
4
5
67
8
9
16
21
22
18
20
19
17
15 14
13
12
Component no. Component Material
1 water fall
2
brass
3 body s/s
4
5A
ABS
BS
ABS
ABS
ABS
6
head shower
head shower
7
body jets
8
9
10
11
12
handle plate cover brass
13
ABS
14
faucet body 1
ABS
ABS
15
spout brass
16
17
faucet body 2
faucet body 3
brass
brass
1
19
20
21
8
h
one way joint
and shower holder
pvc hos e PVC
braided hose 1
braided hose 2
s/s
s/s
flexible hose s/s
22
flow restricter
knob zinc
function cartridge 1
function cartridge 2
brass
brass
handle zinc
thermostatic cartidge
PERFECTION IS OUR TRADITION™
pg. 2
For any questions or concerns contact
our dedicated technical support team
at 1-844-44-ANZZI.
BEFORE YOU START
Screwdriver Channel Locks
Adjustable Wrench Allen key
Goggles
Teflon tape
Recommended Items
ATTENTION: Please read all instructions thoroughly
including all warnings, attentions and notes before
beginning installation.
MESA
PERFECTION IS OUR TRADITION™
pg. 3
SPEC
DRAWING
SP-AZ043
Perfection is our Tradition™
Material: Stainless Steel
Finish: Brushed
Handles: 5
Jets: 4
Shower: 2.99” x 6.535”
Sprayer: 60” reach
Weight: 20.68 lbs
Height: 64.96”
Supply: 1/2” connections
Flow: 1.8 gpm *when reducer is removed
Features
Heavy Rain™ Showerhead
Acu-Stream™ high pressure body jets
Euro-Grip™ hand held sprayer
Rhino Alloy™ certified materials
17.72
64.96
8.66
Figure A
INSTALLATION (SETUP)
PERFECTION IS OUR TRADITION™
pg. 4
Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or
pipelines aligned with the desired drilling position.
Drill the two holes for the top bracket 1” apart at the desired height.
Drill the two holes for the bottom bracket 1” apart below the top bracket.
IMPORTANT
Step A
Step A.2
Ø 6mm Drill
1 INCH
Figure B
INSTALLATION (SETUP)
PERFECTION IS OUR TRADITION™
pg. 5
Insert the wall anchors into the pre-drilled holes as shown in Figure B.
Place the shower panel brackets aligned with the drilled holes and using a Philips screw-
driver tighten the screws to secure the brackets.
Step B
Step C
Figure C
Figure 1
INSTALLATION (HANDSHOWER)
PERFECTION IS OUR TRADITION™
pg. 6
Insert the hand shower holder through the pre-drilled hole on the shower panel.
Install the water supply hose for the hand shower onto the holder, as shown.
Make sure all O-rings are inserted to prevent leakage.
Once the shower panel is fully installed and hung on the bracket, you can install the hand
shower hose to the holder connection.
Step 1A
Step 1B
Step 1C
Step 1D
Figure 2
INSTALLATION (HANDSHOWER)
PERFECTION IS OUR TRADITION™
pg. 7
Finally, install the hand shower to the hose, as shown.Step 2A
1 Setting
Hand
Shower
3 Setting
Hand
Shower
or
Figure 4

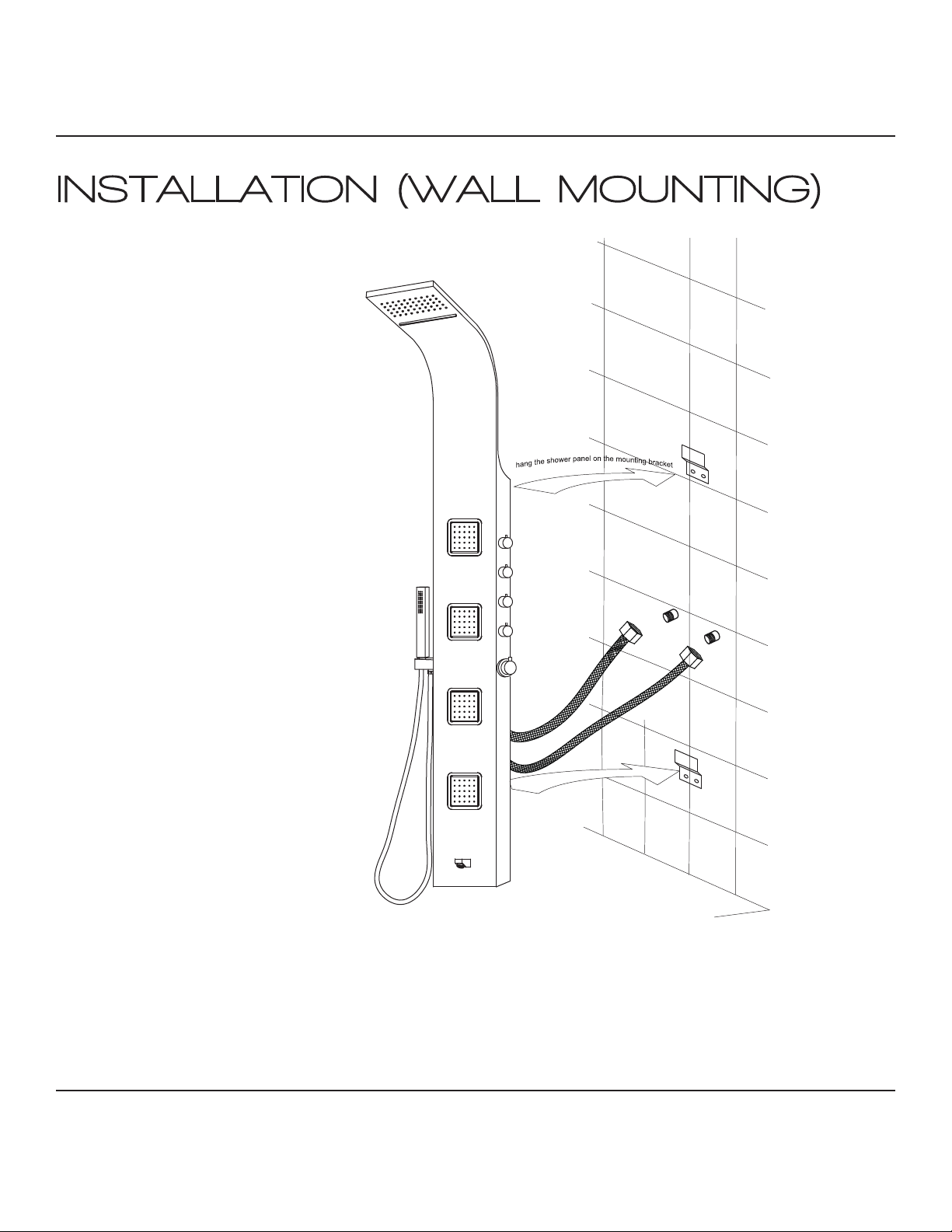

INSTALLATION (WALL MOUNTING)
PERFECTION IS OUR TRADITION™
pg. 8
Screw the cold and hot water hoese from the shower panel to the supply lines in the wall.
Carefully hang the shower panel on the secured mounting brackets as shown in Figure 4.
Step 4A
Step 4B
Hot
Cold
