Anzzi Key L-AZ097 User manual

ITEM: L-AZ097**

INSTALL & OPERATION MANUAL

V1.0

ANZZI SINGLE-HANDLE LAVATORY FAUCET

DON’T WAIT!

recognized as an purchase and is for warranty

coverage.

in the registry card (Pg. 2) or register

at www.swcorp.com/register

LEAD FREE

NSF/ANSI/CAN 61

Have questions? Call us at 305-614-4070 or visit us at www.ANZZI.com

Dimensions

11.65″

[296mm]

1.38″

[MAX35mm]

4.72″

[120mm]

5.61″

[142.5mm]

8.8″

[224mm]

1.42″

[35mm]

You may need:

PG.1

Parts list

PART NAMENO.

Handle

Index

Screw

Shank

Trim cap

Base

Retainer

Body

Cartridge

Washer

Metal gasket

Lock nut

Screw

Filter

Flexible hose

O-ring

Connector

Flow regulator

22 O-ring

Flow restrict re

Copper tube

PG.2

Installation Instructions

1. 2.

PG.3

Loosen the locknut (18) and remove the washer (16) ,

metal gasket(17).

Slide the O-ring (15) over inlet tubes and shank. Position

the faucet and gasket on the sink. Option: If sink is

uneven, use silicone under the gasket.

3. 4.Place washer (16),metal gasket (17) over the shank

under the sink. Install the locknut (18) and hand tighten

it, then secure the faucet by tightening the screws of

the locknut (18).

NOTE: Supply valves are not included and must be

purchased separately.

Connect the flexible hoses to the water supply valve

(not included) and copper tubes, and tighten it with

adjustable wrench. DON'T OVER TIGHTEN！

Caution: make sure to connect the hot and cold flexible

hose to supply valves correctly.

Checking and testing

Push Pop-Up Installation

Specificaition

Turn on the faucet and check that the water is flowing freely and steadily.

Washer

Plastic washer

Lock nut

ody

Gasket

PG.4

If the water flow is weak, turn off the faucet, disconnect the hoses from the faucet and check the filter. Use pliers or

a sharp pin to remove the filters for cleaning. Then place the filters back and reconnect the hoses to the faucet.

Check all connection points (see the arrows in fig. 2) for any leakage. Tighten if necessary. BUT DON’T OVERTIGHTEN!

Install the pop-up body and gasket into the

drain hole.

Install washer, plastic washer and lock nut from

below. Secure the pop-up by tightening the

lock nut.

Care and Maintenance

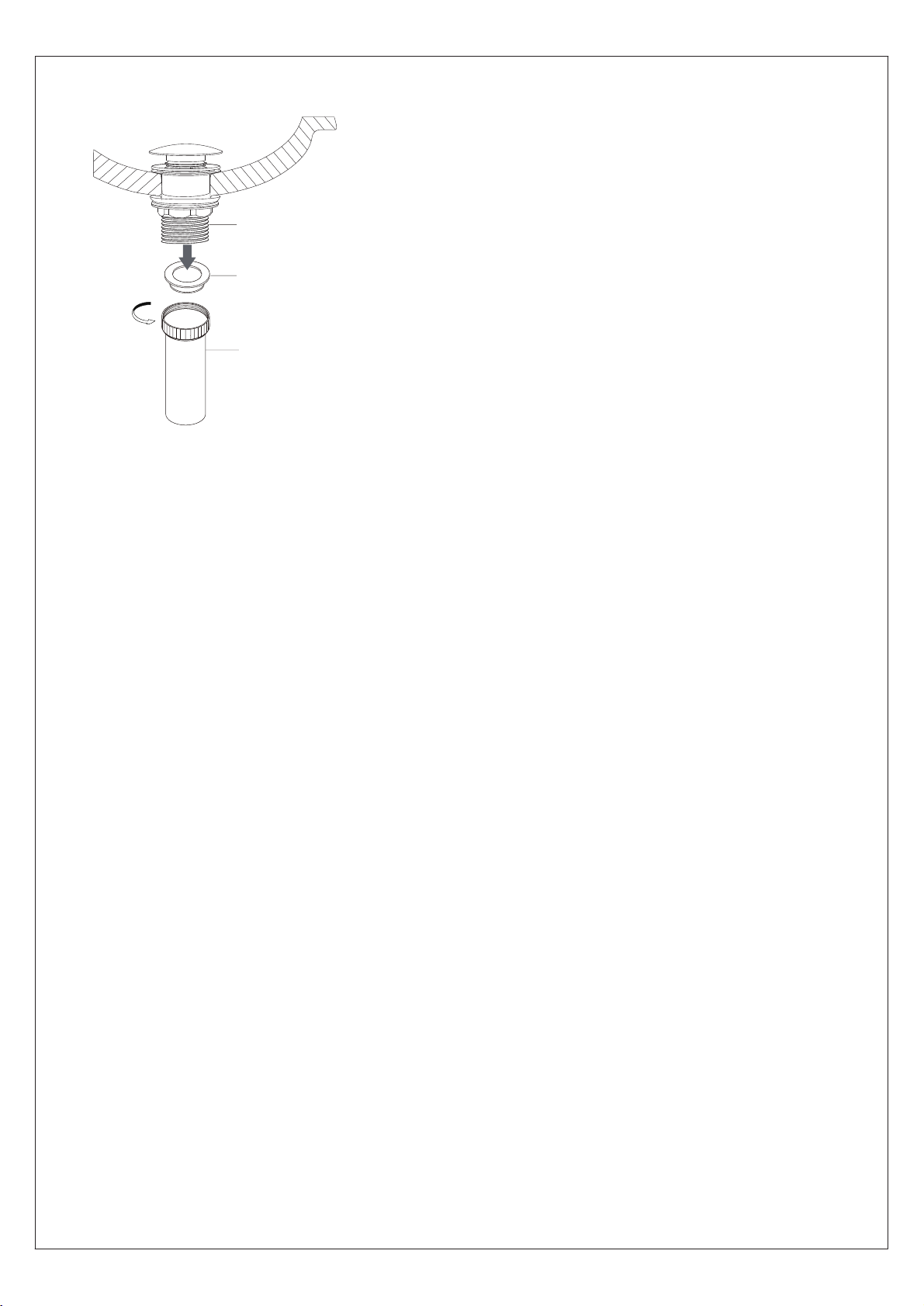

3. Install the pipe with the gasket inside.

Body

Gasket

Outlet pipe

PG.5

Daily care and cleaning are required to keep the product shining and functional.

ONLY USE Regular soap and warm water to wash the faucet. Then dry off with a

soft cloth.

NEVER USE Any strong cleaners. Avoid using any harsh chemicals. And never

scrub using abrasive sponges or materials.
