Anzzi SH-AZ101BG User manual

Item: SH-AZ101

ANZZI RAINFALL SHOWER BAR

INSTALLATION & OPERATION MANUAL

808000-792

20220222

05/10/2022

[14]

[13]

[12]

[04]

[05]

[01]

[02]

[03]

[06]

[07]

[08]

[09]

[10]

[11]

Part Description Qty.

[ 01 ] Faucet

[ 02 ] Thermostatic Cartridge

[ 03 ] Temp. Control Handle

[ 04 ] Diverter

[ 05 ] Diverter Handle

[ 06 ] Nut

[ 07 ] Cover

[ 08 ] Nipple

[ 09 ] Riser

[ 10 ] Bracket

[ 11 ] Mounting Kit

[ 12 ] Shower Hose

[ 13 ] Hand Shower

[ 14 ] Shower head

Before installation:

1. Please check the product for damage and missing parts immediately upon delivery.

Damage reported later will not be covered by our warranty.

Please handle the product with care.

2. Ensure that all supply lines are free of debris.

3. Ensure water pressure is between 20-125 PSI.

4. Make sure that the wall is strong enough to support the showerpipe.

The wall must be reinforced at the mounting points. The area where the top

mounting piece is to be installed must b at and free of protruding grout joints, etc.

4. If you are having di cuties on installation, please contact a professional plumber .

PG. 2

COMPONENTS

INSTALLATION

STEP 1:

Ensure that the center distance of

outlets are between 5.7" - 6.1".

The Hot inlet is on theLeft,

and t h e Cold inlet is on the Right.

The he ight of the inlets from the oor

is about 35.5" - 39.4". Ensure each

inlet with the same height.

STEP 2:

a. Wrap the smaller point of

]80[selppiN with water sealing tape.

b. Install the Nipples [08]and secure

by wrench.

STEP 3:

Turn on the valves an ush the hot

and cold supplies thoroughly for 30s

to 1 minute. Then turn o he valve

and seal the wall around the nipples

with waterproof sealant.

STEP 4:

Install the Covers [07]and place the

leveler on the Covers [07]and make

sure the leveler is in level condition.

Then place the leveler on the shanks.

Make sure the leveler is in level

condition and the distance between

the shanks is 5.9".

PG. 3

5.7"-6.1"

Hot Cold

1/2"

35.5"-39.4"

Floor

[08]

5.9"

[07]

shank

[150mm]

INSTALLATION

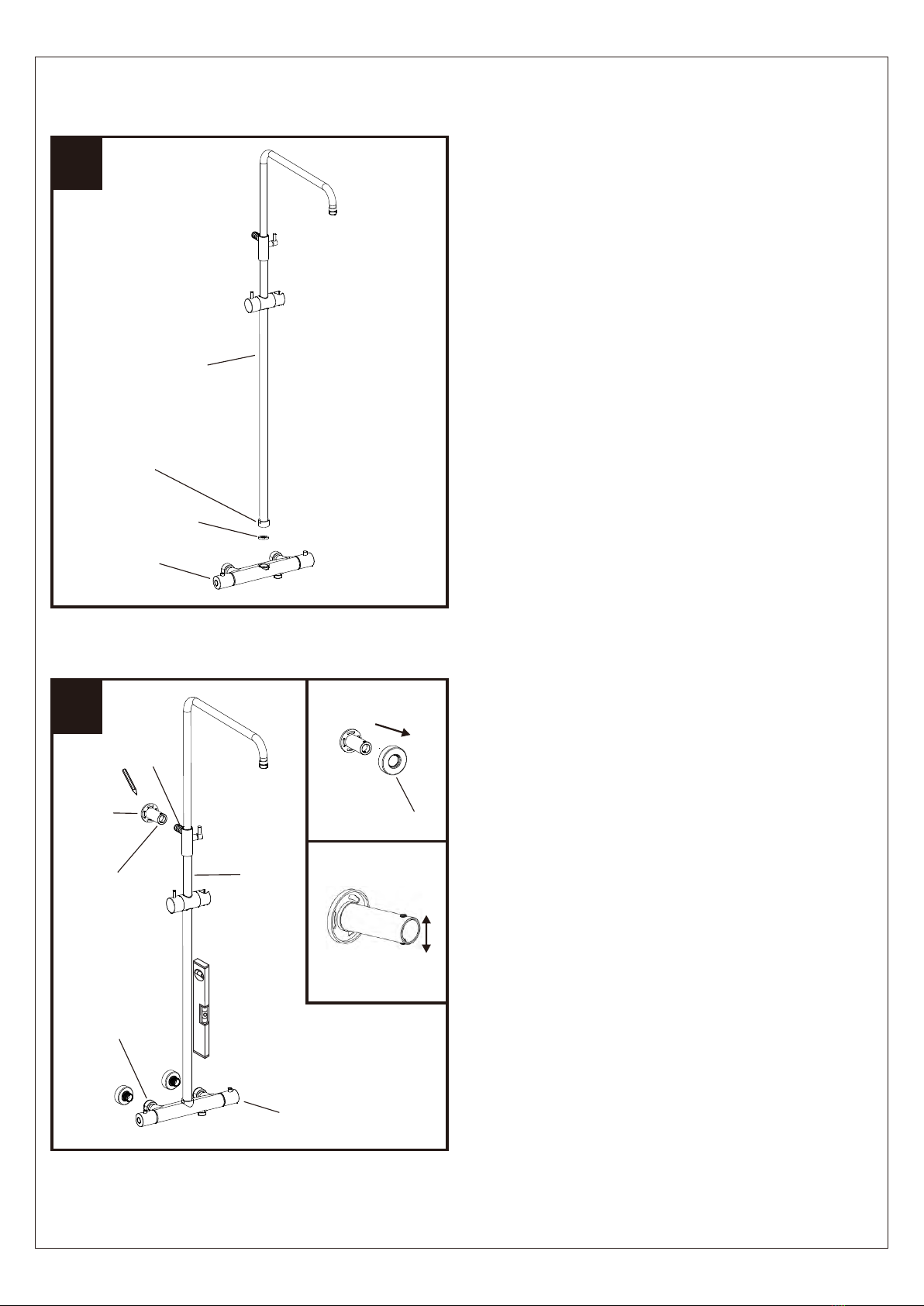

STEP 5:

Install the Riser [09] with washer to the

Faucet [01]. Hand tighten the nut.

STEP 6:

a. Remove the cap from the

Mounting Kit [11].

b. Install the Mounting Kit [11] to the rod

of the Riser [09] then install the

Faucet [01] and hand tighten the nuts.

c. Adjust the Mounting Kit [11] until the

screw holes of connector are aligned

vertically.

d. Make sure the Riser [09] is vertical.

e. Mark the positions of the screw holes.

f. Remove the Faucet [01] and Riser [09].

PG. 4

[09]

nut

washer

[01]

[09]

[11]

nut

a. cap

rod

connector

INSTALLATION

PG. 5

STEP 7:

a. Drill the holes for the Mounting Kit [11]

using a 1/4" (6 mm) bit.

b. Install the anchors.

c. Secure the Mounting Kit [11] with

screws.

d. Make sure the screw holes are aligned

vertically.

e. Slide the cap to the Mounting Kit [11].

STEP 8:

a. Install the Faucet [01] filters and

Riser [09].Push the rod into the hole of

the Mounting Kit [11]. Hand tighten the

nuts and secure with wrench.

Do not over tighten.

Note:

Put a thin cloth between the nut

and the wrench to avoid scratching.

b. Make sure the Riser [09] is vertical.

c. Secure the rod of Riser [09] by tighten

the screws.

[11]

cap

screw

anchor

[01]

[09]

nut

[11]

rod

PG. 6

INSTALLATION

STEP 9:

a. Install the Shower Head [14]with

washerand secure.

b. Loose the locking handle by turning

it anti-clockwise. Then adjust the

height of Shower Head [14]to about

12.6"[320mm] above the head to get

the best shower experience.

c. Hold the shower arm still and turn

the locking handle clockwise to

secure the shower arm.

STEP 10:

a. Install and secure the Hand Shower

[13] and Shower Hose [12] to the

faucet as th gure shows and secure.

Note:

Make sure the washer and the

flow restrictor are in position.

b. Turn on hot and cold water supplies

and check all connections at arrows

for leaks. Retighten if necessary,

but do not overtighten.

c. Turn the Diverter Handle [05] to

Hand Shower [13] and Shower Head

[14] fuction to check for leakage and

ow e ect. If the shower arm moves

upward when the shower heaows,

turn o he Faucet [01]and tighten

the locking handle to secure.

shower

locking

handle

[01]

[09]

[01]

locking

handle

shower arm

restrictor

washer

arm

[14]

washer

[13]

[12]

[05]

OPERATION

Diverter Handle [05] in

close position.

Turn the Diverter Handle

[05]anti-clockwise for

Hand Shower [13] ow.

Turn the Diverter Handle

[05] clockwise for

Shower Head [14] ow.

Flow tempreture is set in

100 F with the button of

Temp.Control Handle [03]

pointing 100°F.

Turn the Temp. control

Handle [03] clockwise will

lower the temperature.

You can raise the

temperature by pressing

the button and turning the

Temp.Control handle [03]

anti-clockwise.

You can move the

Bracket [10] by loosing

the handle of it.

The holder of Bracket [10]can

be turned by anyi-clockwise or

clockwise to adjust the position

of Hand shower [13].

PG. 7

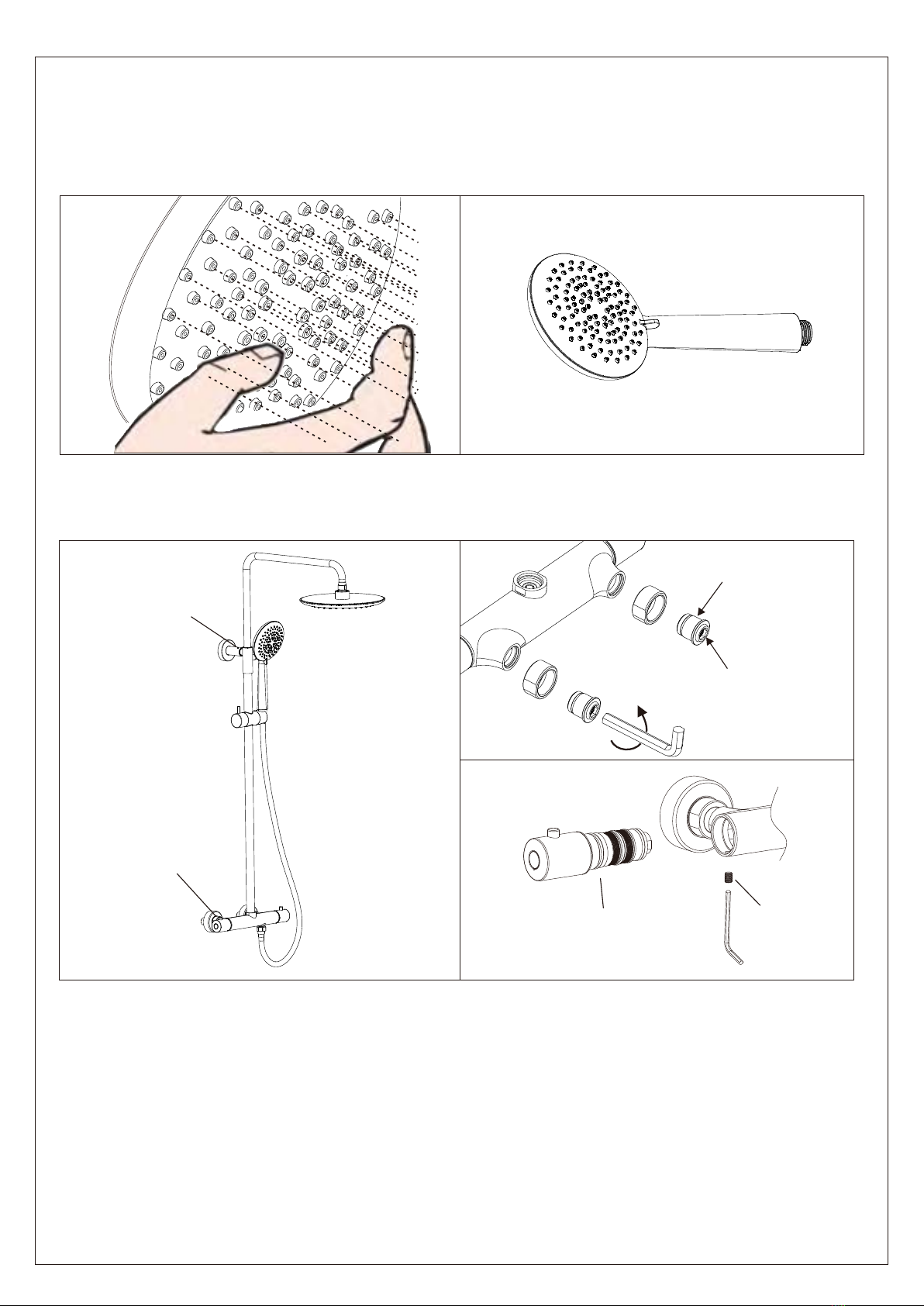

CLEANING & MAINTENANCE

To preserve the ﬁnish on the metallic parts of yourANZZI faucet, apply non-abrasive

wax, such as car wax.Any cleaners should be rinsed oﬀ immediately.

When there is scale build up on the nozzle of showers, you can turn on the showers

and simply rub over the spray nozzles to remove lime scale.

a. If the water ﬂow lower than normal, please remove the faucet by loosing the

screws of the Mounting Kit [11] and the Nuts [06].

b. Clean the ﬁlters in the connectors and inspect the check valves. Replace the

check valves if necessary.

c. Remove the Thermostatic Cartridge [02] by loosing the screw under the faucet.

Rinse the cartridge with clean ﬂowing water.

d. Install the cartridge and connectors again.Then install the faucet again and secure it.

Caution:

Check all connections for leaks. Retighten if necessary, but do not overtighten.

connector

ﬁlter & check valve

PG. 8

screw

[06]

screw

[02]
