Ameriwood HOME 5994096COM User manual
B345994096COM0Date of Purchase ___ / ___ / ___
Lot Number:
ameriwoodhome.com
Vaughn 5 Drawer Dresser
5994096COM
- Unit can over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
WARNING
Do Not Return This Product!
Contact our customer service team for help
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
Follow Ameriwood Home
Tube
You
Assembly Meter
Easy Tough
UPC for Wal-Mart
models.
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Contact Us!
Helpful Hints
Do NOT return this product!
Contact our friendly customer service team rst for help
2
ameriwoodhome.com
- Open your item in the area you plan to keep it to avoid excessive heavy liing.
- Idenfy, sort and count the parts before aempng assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a R (right) and L (le) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
Visit ameriwoodhome.com
Assembly Tips
Tube
You
PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 1 HOUR
Before You Start
Cam Lock Fastening System
5994096COM
Vaughn 5 Drawer Dresser
3
ameriwoodhome.com
P
P
P
P
P
This Cam Lock Fastening System will be used throughout the assembly process.
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Cauon: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is ght.
Failure to do so may result in stripping the screw.
Quick
Tip
Assembly
1
3
2
4

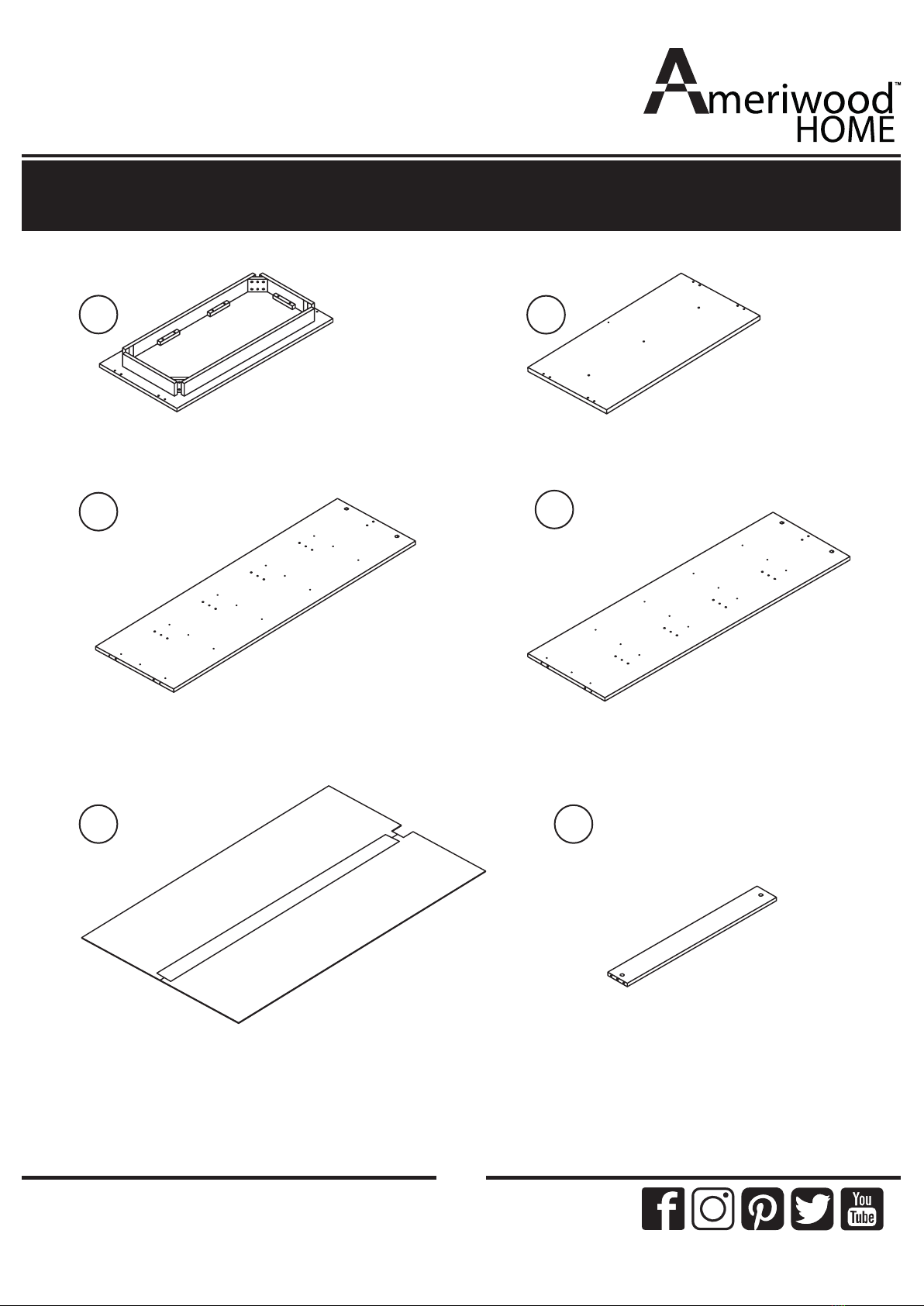

Board Idencaon
Not actual size
5994096COM
Vaughn 5 Drawer Dresser
4
ameriwoodhome.com
x1
T5994096010
BOTTOM PANEL
x1
T5994096020
TOP PANEL
x1
T5994096030
SIDE LEFT PANEL
x1
T5994096040
SIDE RIGHT PANEL
x1
T5994096050
BACK PANEL
x5
T5994096060
STRETCHER PANEL
A
E F
B
CD
Board Idencaon
Not actual size
5994096COM
Vaughn 5 Drawer Dresser
5
ameriwoodhome.com
x4
T5994096150
LOWER DRAWER FRONT
x5
T5994096130
DRAWER BOTTOM
x1
T5994096140
UPPER DRAWER LOUVER
FRONT
MM
O
x1
T5994096070
UPPER STRETCHER
PANEL
x4
T5994096080
WOOD LEG
x5
T5994096090
DRAWER BOX BACK
x5
T5994096100
DRAWER BOX RIGHT
x5
T5994096110
DRAWER BOX LEFT
x5
T5994096120
DRAWER SUPPORT
I
L
J
K
GH
Part List
Actual Size
5994096COM
Vaughn 5 Drawer Dresser
6
ameriwoodhome.com
x15
TTA0001
Cam Bolt
x15
TTA0003
Cam Lock
15-11.5
x70
TTA0005
CBS 3.5 x 12 (RB)
x8
TTA0046
SCREW JCBC
M6 X 50 (BLK)
x10
TTA0014
PHM 4 X 20 (RB)
x74
TTA0016
DOWEL 6 X 30
x24
TTA0018
NAILS 6/8“
POWER PIN
Not Actual Size
x5 Sets
TTA0048
DRAWER SLIDE Q-FIT
350 MML (BLK)
x5 Sets
TTA0030
DRW BRACKET AMERI-
WOOD A54223-116MM
x24
TTA0011
CBS (BLK) M4 X 38
x20
TTA0013
SCREW PHCB
4 X 12 MM (RB)
x8
TTA0047
SPRING WASHER M6 (BLK)
x10
TTA0050
METAL KNOB VAUGHN
8G (BLK)
x8
TTA0053 (BLK)
FLAT WASHER -
6 X 20 X 1
x1 Set
TTA0026
AMERIWOOD ANTI-TIPPING
BLACK 19 X 30 X 2 mm
1 2 3 4
5 6 7 8
9 10 11
12 13 14 15 16
5994096COM
Vaughn 5 Drawer Dresser
7
ameriwoodhome.com
*raw edges are shaded
3
x2
TTA0003
Cam Lock
15-11.5
x4
TTA0016
DOWEL 6 X 30
x20
TTA0005
CBS 3.5 x 12
(RB)
x5
TTA0001
Cam Bolt
x5
TTA0048
Drawer Slide Q-Fit
350 BLK
x5

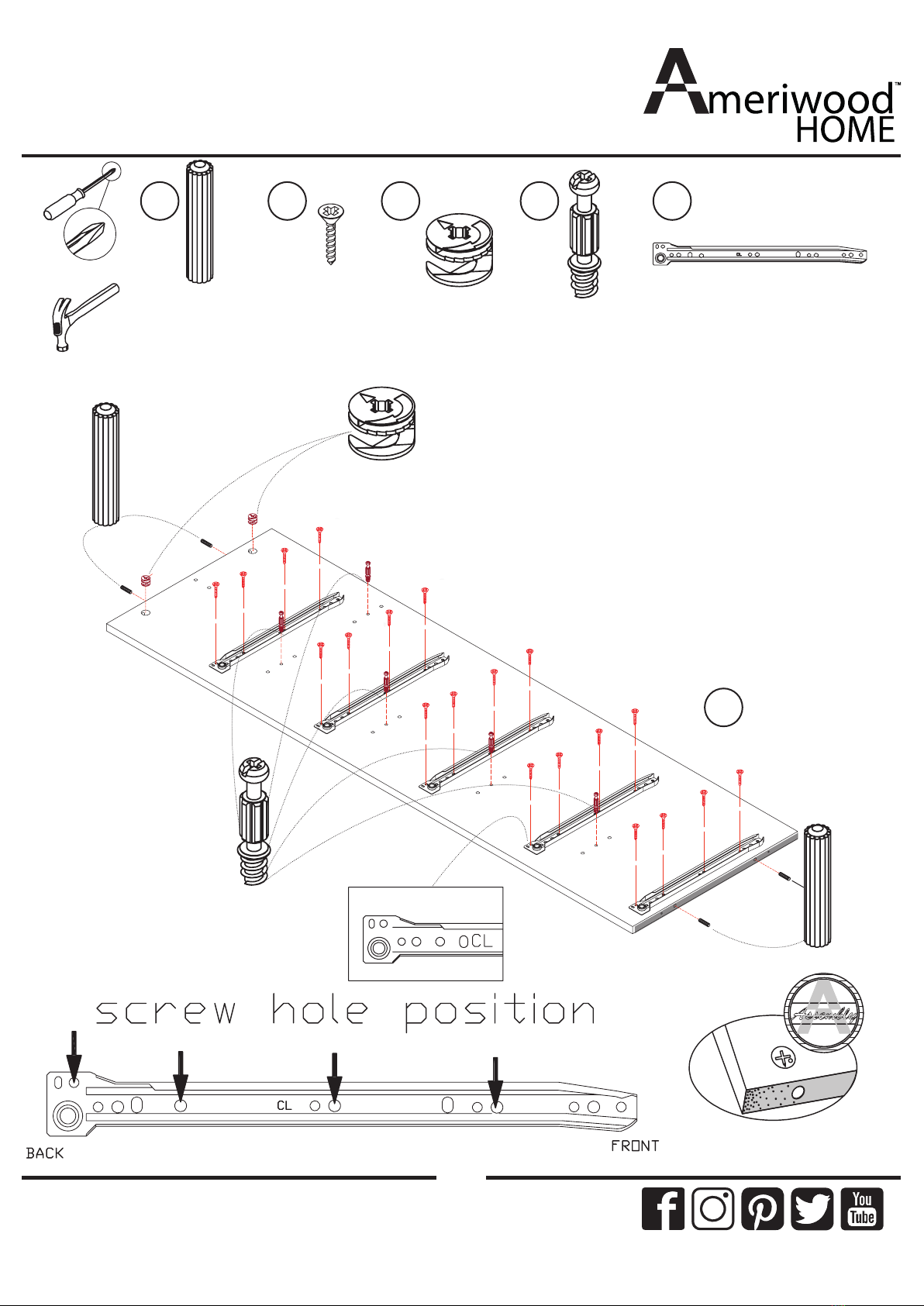

Step 1
Proper orientation of CAM LOCK
Tip
Assembly
Quick
Insert two cam lock, ve screw cam bolt,
and four dowel into the panel as shown.
Aach drawer slide to the side panel as
shown.
C
10 3 2 1 14
5994096COM
Vaughn 5 Drawer Dresser
8
ameriwoodhome.com
*raw edges are shaded
Step 2
4
x2
TTA0003
Cam Lock
15-11.5
x4
TTA0016
DOWEL 6 X 30
x20
TTA0005
CBS 3.5 x 12
(RB)
x5
TTA0001
Cam Bolt
Proper orientation of CAM LOCK
Tip
Assembly
Quick
x5
Insert two cam lock, ve screw cam bolt,
and four dowel into the panel as shown.
Aach drawer slide to the side panel as
shown.
x5
TTA0048
Drawer Slide Q-Fit
350 BLK
D
10 3 2114
5994096COM
Vaughn 5 Drawer Dresser
9
ameriwoodhome.com
*raw edges are shaded
Step 3
x1
TTA0003
Cam Lock
15-11.5
x6
TTA0016
DOWEL 6 X 30
Proper orientation of CAM LOCK
Tip
Assembly
Quick
Insert one cam lock, and six dowel into the
panel as shown.
G
2 10
5994096COM
Vaughn 5 Drawer Dresser
10
ameriwoodhome.com
*raw edges are shaded
Step 4
x10
TTA0003
Cam Lock
15-11.5
x20
TTA0016
DOWEL 6 X 30
x5 Set
Proper orientation of CAM LOCK
Tip
Assembly
Quick
Insert two cam lock, and four dowel into
the panel as shown.
F
102
