Ameriwood HOME Vaughn 5555155COM User manual
B345995
1
96COM0Date of Purchase ___ / ___ / ___
Lot Number:
ameriwoodhome.com
Vaughn 6 Drawer Dresser
5995196COM
- Unit can over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
WARNING
Do Not Return This Product!
Contact our customer service team for help
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
Follow Ameriwood Home
Tube
You
Assembly Meter
Easy Tough
UPC for Wal-Mart
models.
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Contact Us!
Helpful Hints
Do NOT return this product!
Contact our friendly customer service team rst for help
2
ameriwoodhome.com
- Open your item in the area you plan to keep it to avoid excessive heavy liing.
- Idenfy, sort and count the parts before aempng assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a R (right) and L (le) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
Visit ameriwoodhome.com
Assembly Tips
Tube
You
PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 1 HOUR
Before You Start
Cam Lock Fastening System
5995096COM
Vaughn 6 Drawer Dresser
3
ameriwoodhome.com
P
P
P
P
P
This Cam Lock Fastening System will be used throughout the assembly process.
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Cauon: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is ght.
Failure to do so may result in stripping the screw.
Quick
Tip
Assembly
1
3
2
4
Board Idencaon
Not actual size
5995096COM
Vaughn 6 Drawer Dresser
4
ameriwoodhome.com
x1
T5995196010
TOP PANEL
x1
T5995196020
BOTTOM PANEL
x1
T5995196030
SIDE LEFT PANEL
x1
T5995196040
SIDE RIGHT PANEL
x1
T5995196050
PARTITION PANEL
x1
T5995196060
BACK PANEL
A
E
F
B
C D
G
x4
T5995196070
STRETCHER PANEL
Board Idencaon
Not actual size
5995096COM
Vaughn 6 Drawer Dresser
5
ameriwoodhome.com
x1
T5995196170
CENTER LEG
x4
T5995196180
WOOD LEG
x2
T5995196150
LOWER DRAWER FRONT
LEFT
x2
T5995196160
LOWER DRAWER FRONT
RIGHT
x1
T5995196130
UPPER DRAWER FRONT LEFT
x1
T5995196140
UPPER DRAWER FRONT
RIGHT
M
N P
RQ
O
x6
T5995196080
DRAWER BOX BACK
x6
T5995196090
DRAWER BOX RIGHT
x6
T5995196100
DRAWER BOX LEFT
x6
T5995196110
DRAWER SUPPORT
x6
T5995196120
DRAWER BOTTOM
I
L
J
K
H
Part List
Actual Size
5995096COM
Vaughn 6 Drawer Dresser
6
ameriwoodhome.com
Not Actual Size
x1 SETS
TTA0026
AMERIWOOD ANTI TIPPING
KIT BLACK 19 X 30 X 2 mm
x26
TTA0001
Cam Bolt
x14
TTA0003
Cam Lock
15-11.5
x84
TTA0005
CBS 3.5 x 12 (RB)
x8
TTA0046
SCREW JCBC
M6 X 50 (BLK)
x12
TTA0014
PHM 4 X 20 (RB)
x60
TTA0016
DOWEL 6 X 30
x28
TTA0018
NAILS 6/8”
POWER PIN
Not Actual Size
x6 SETS
TTA0048
DRAWER SLIDE Q-FIT
350 MML (BLK)
x6 SETS
TTA0030
DRW BRACKET AMERI-
WOOD A54223-116MM
x30
TTA0011
CBS (BLK) M4 X 38
x24
TTA0013
SCREW PHCB
4 X 12 MM (RB)
x8
TTA0047
SPRING WASHER M6
(BLK)
x8
TTA0053
FLAT WASHER (BLK)
6 X 20 X 1
x12
TTA0050
METAL KNOB
VAUGHN 8G (BLK)
1 2 3 4
5 6 7 8
9 10
17
11
13 14 15 16
12
x12
TTA0004
Cam Lock
12-9.5
5995096COM
Vaughn 6 Drawer Dresser
7
ameriwoodhome.com
*raw edges are shaded
C
x2
TTA0003
Cam Lock
x4
TTA0016
DOWEL 6 X 30
x12
TTA0005
CBS 3.5 x 12
x2
TTA0001
Cam Bolt
x3
TTA0048
Drawer Slide
350 BLK
x3 SETS

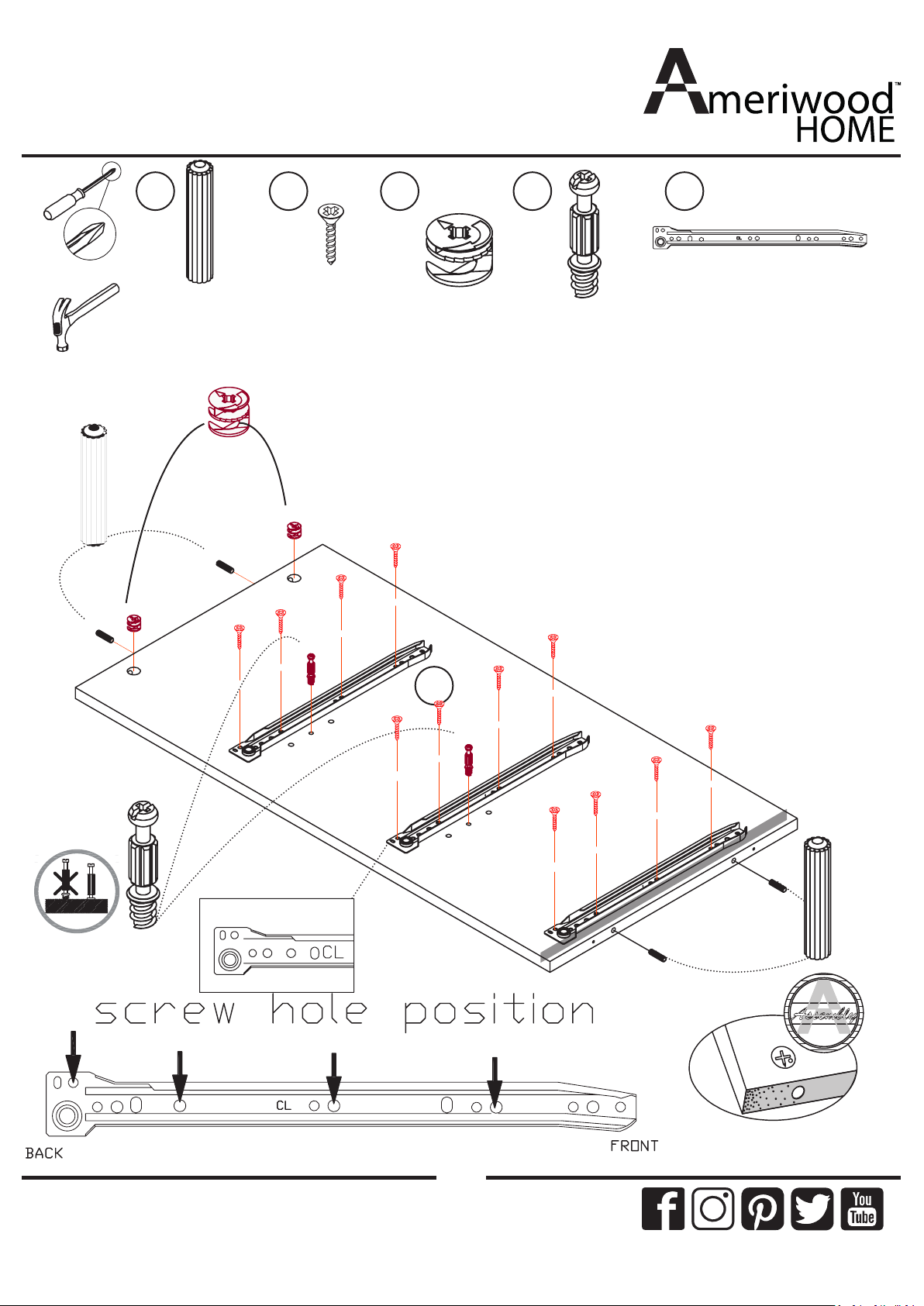

Step 1
Proper orientation of CAM LOCK
Tip
Assembly
Quick
Insert two cam lock, two screw cam bolt,
and four dowel into the panel as shown.
Aach drawer slide with twelve screw to
the side panel as shown.
10 3 2 1 15
5995096COM
Vaughn 6 Drawer Dresser
8
ameriwoodhome.com
*raw edges are shaded
Step 2
D
x2
TTA0003
Cam Lock
x4
TTA0016
DOWEL 6 X 30
x12
TTA0005
CBS 3.5 x 12
x2
TTA0001
Cam Bolt
x3
TTA0048
Drawer Slide
350 BLK
Proper orientation of CAM LOCK
Tip
Assembly
Quick
x3 SETS
Insert two cam lock, two screw cam bolt,
and four dowel into the panel as shown.
Aach drawer slide with twelve screw to
the side panel as shown.
10 3 2 1 15
5995096COM
Vaughn 6 Drawer Dresser
9
ameriwoodhome.com
*raw edges are shaded

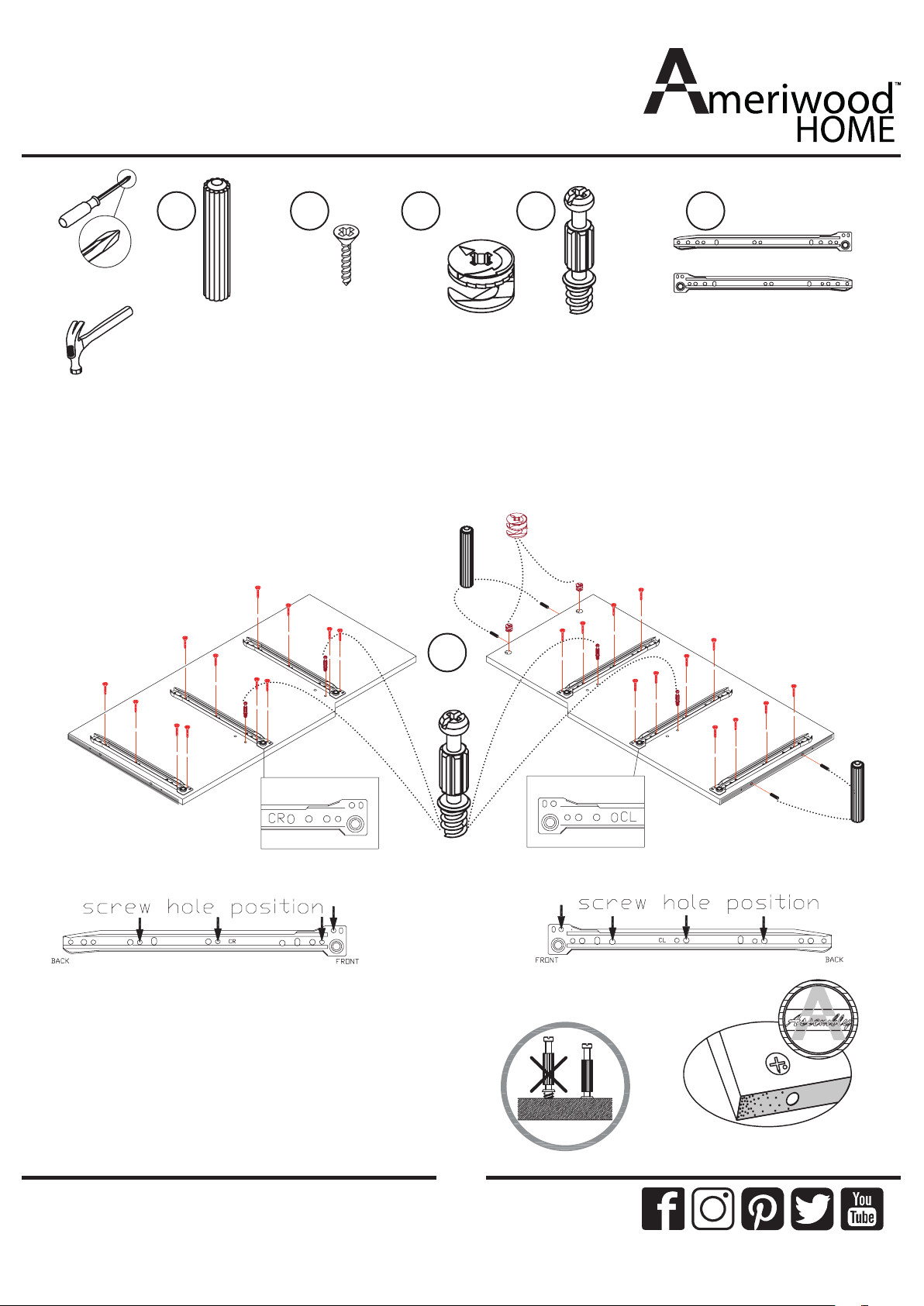

Step 3
Proper orientation of CAM LOCK
Tip
Assembly
Quick
x2
TTA0003
Cam Lock
x4
TTA0016
DOWEL 6 X 30
x24
TTA0005
CBS 3.5 x 12
x4
TTA0001
Cam Bolt
x6 pcs
TTA0048
Drawer Slide
350 BLK
E
x3
+
x3
x3 SETS
x3 SETS
ii) Insert two cam lock, two screw cam
bolt, and four dowel into the panel as
shown. Aach drawer slide Le with
twelve screw to the right surface of
paron panel as shown.
i) Insert two screw cam bolt,
Aach drawer slide Right with
twelve screw to the le surface
of paron panel as shown.
CR
CL
10 3 2 1 15
5995096COM
Vaughn 6 Drawer Dresser
10
ameriwoodhome.com
*raw edges are shaded
Step 4
x8
TTA0003
Cam Lock
x12
TTA0016
DOWEL 6 X 30
Proper orientation of CAM LOCK
Tip
Assembly
Quick
Insert two cam lock, and three dowel into
the panel as shown.
G
X4 set
102
