Ameriwood HOME 3533339COM User manual

3533339COM

TV Stand

B343533339COM1

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

- Unit can tip over causing severe injury or death.

- Anchor to stud in wall Iif instructed to).

- Do Not allow children to climb on unit.

- Put heavy items in lower shelves or drawrs.

WARNING

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

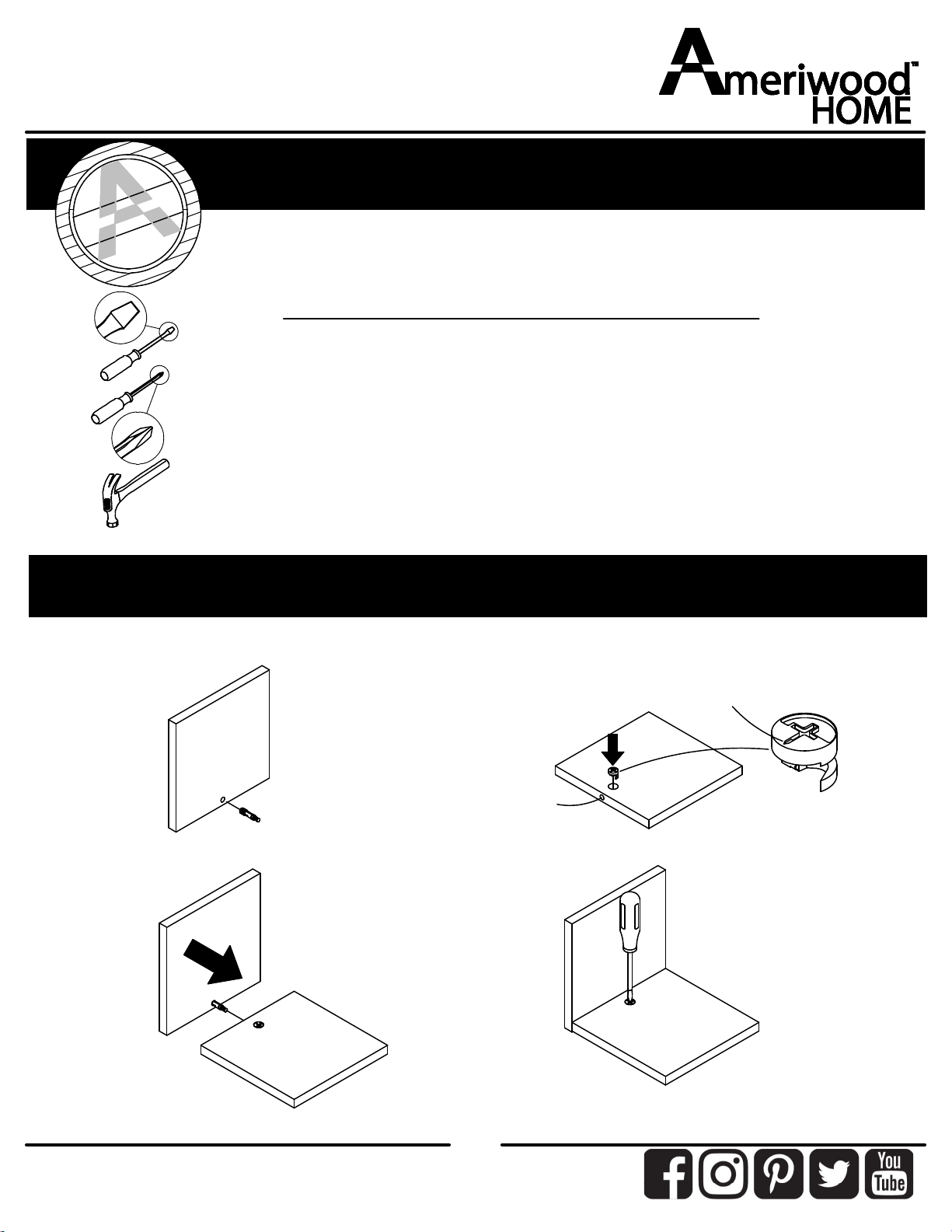

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Press parts together so CAM BOLT inserts

into edge hole.

Press CAM BOLT into hole. Press CAM LOCK into hole.

End hole

Using a screwdriver, turn the CAM LOCK clockwise to

lock the CAM LOCK and CAM BOLT into their holes

and fastening parts together.

Arrow to point towards end

hole in edge of part.

ameriwoodhome.com

Before You Start

Quick

Assembly

Tip

Please Note:

You may need to lightly tap the wood dowels into the holes during

your assembly process.

ameriwoodhome.com

Board Identification

Not actual size

Left Panel

33533339010 Right Panel

33533339020 Partition

33533339030 Top

33533339040

(x2)

Bottom

33533339050

(x2)

Shelf

33533339060

(x2)

Back

33533339070

(x2)

Shelf Rail

33533339080

(x4)

Lower Rail

33533339090

(x2)

Side Rail

33533339100

Left Front Leg

33533339110

ABC

EFG

ameriwoodhome.com

Board Identification

Not actual size

Left Rear Leg

33533339120 Right Front Leg

33533339130 Right Rear Leg

33533339140

Center Front Leg

33533339150

(x2)

Drawer Front

33533339160

(x4)

Drawer Side

39991167346200C

(x2)

Drawer Back

39991167065190B

(x2)

Drawer Bottom

39991339066210D

LMNO

DWR

SIDE

DWR

BACK

DWR

BTM

DWR

SIDE

DWR

SIDE

DWR

BACK

DWR

BTM

Hammer Block

(Piece of wood to use

to attach legs)

Center Rear Leg

33533339170

ameriwoodhome.com

Part List

Actual Size

Not Actual Size

(x22)

#A22700

cam lock

(x22)

#A22710

cam bolt

(x26)

#A21670

wood dowel

(x18)

#A22790

locking bolt

(x18)

#A22770

quick lock

123

(x20)

#8 x 7/16"

round head

#A12120

(x16)

#6 x 7/16"

flat head

#A11080

(x8)

#A21970

drive fastener

(x4)

7/8" truss

#A17400

(x4)

confirmat screw

#A23030

left cabinet member

right cabinet member

left drawer member

right drawer member

(x2)

drawer slide package

#A56770

14a

14b

14c

14d

(x2)

drawer brace

#A54900

(x4)

drawer bracket

#A54520

(x2)

handle

#A50385

TV Warning Label

#B64358

(x18)

#A22795

locking sleeve

10 11

12 13

ameriwoodhome.com

STEP1

(x18)

ameriwoodhome.com

STEP2

(x6)

Press locking sleeves (11) into edge holes as shown.

ameriwoodhome.com

STEP3

End View

Position and insert locking bolts (10) of left front leg (K) into edge holes of left panel (A) as shown.

Be sure both parts are positioned as shown. Place the hammer block on top of leg in each of the 3

locking bolt locations and give a firm strike to lock together. The locking bolt (10) will snap into the

locking sleeve (11).

IMPORTANT NOTICE: Once locked together, parts cannot be separated.

Note: A rubber mallet can be used in place of a hammer and hammer block.

Top edges of both

parts will be flush.

Hole(s) in

this surface.

Be sure your parts

are positioned as

illustrated.

Hammer Block

Finished Edge
