Ameriwood HOME QUEEN User manual

5756337COM

QUEEN/FULL HEADBOARD

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B345756337COM1

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

Top

35756337010

Left Vertical Molding

35756337020

Right Vertical Molding

35756337030

Upper Rail

35756337040

Stringer

35756337070

Leg x2

35756337081

Frame Assembly x2

35756337090

A B C D

ameriwoodhome.com

Board Identification

ameriwoodhome.com

Part List

Actual Size

Tube

You

Hardware for attaching to a bed frame

Not actual size

(x27)

#A12930

#8 x 1-1/8" screw

(x5)

#A22980

quick connect

(x4)

#A19875

1/4-20 x 1-3/4" bolt

(x4)

#A20480

1/4-20 nut

(x8)

#A25400

1/4" washer

(x2)

#A54285

connecting plate

ameriwoodhome.com

STEP1

Tube

You

(x3)

#A12930

* raw edges are shaded

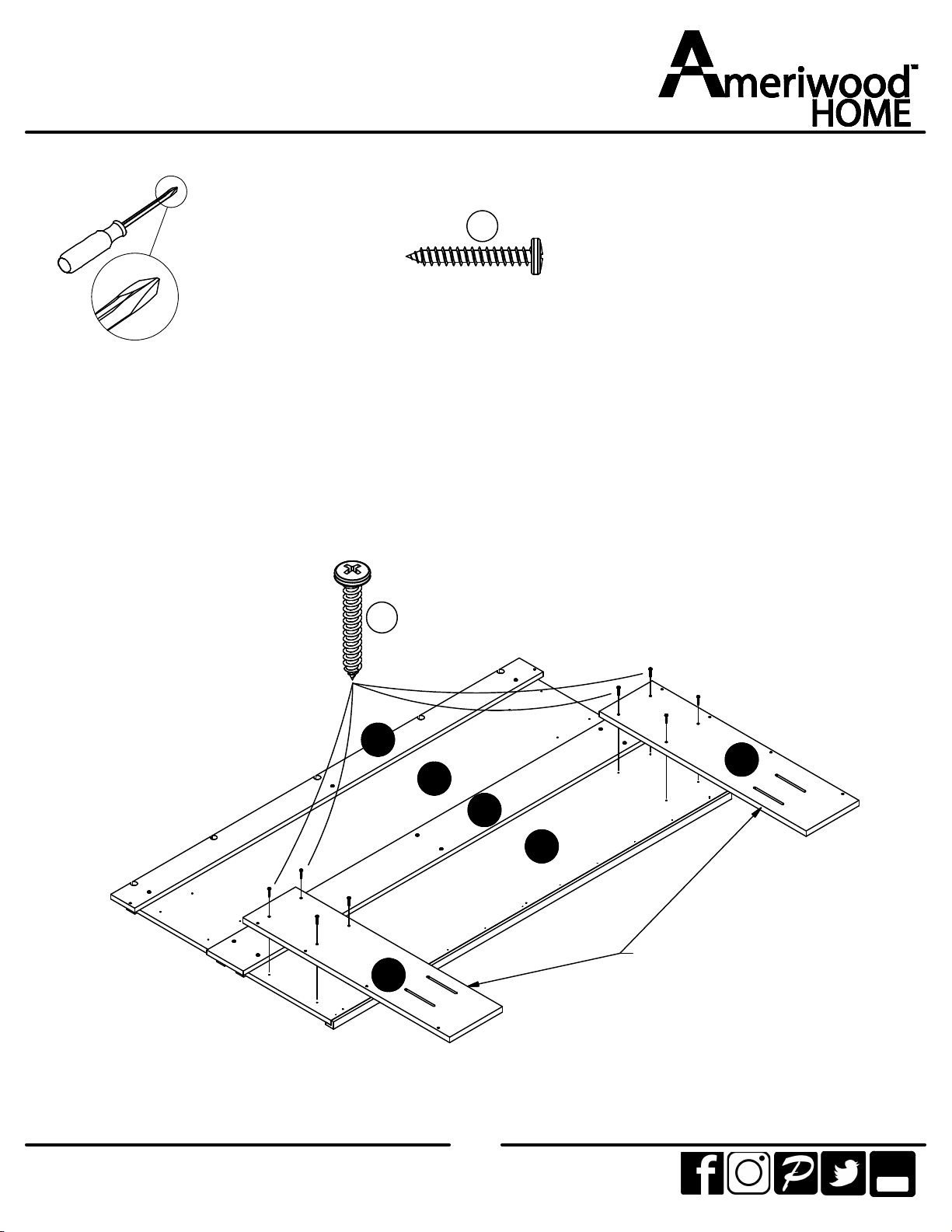

Fasten one of the Frame Assemblies (I) to the Upper Rail (D) using three screws.

ameriwoodhome.com

STEP2

Tube

You

* raw surfaces are shaded

(x6)

#A12930

Fasten the Stringer (G) to both Frame Assemblies (I).

ameriwoodhome.com

STEP3

Tube

You

(x8)

#A12930

Note the orientation of the Legs (H). They must be attached as shown in order to

fit the bed frame.

finished edge

ameriwoodhome.com

STEP4

Tube

You

(x10)

#A12930

Note: You may need to loosen the screws in the

previous steps if adjusting the parts is needed.

Align the parts and then tighten all the screws.

This manual suits for next models
