Ameriwood HOME 8968303COM User manual

8968303COM

Fireplace/TVStand

‐Unitcantipovercausingsevereinjuryordeath.

‐Anchorunittostudinwall(ifinstructedto).

‐DoNotallowchildrentoclimbonunit.

‐Putheavyitemsonlowershelvesordrawers.

B348968303COM

THISINSTRUCTIONBOOKLETCONTAINS

IMPORTANT

SAFETYINFORMATION.PLEASEREADANDKEEPFORFUTUREREFERENCE.

WARNING

FollowAmeriwoodHome

Tube

You

DateofPurchase___/___/___

LotNumber:

DoNotReturnThisProduct!

Contactourcustomerserviceteamforhelpfirst.

Call:1‐800‐489‐3351(tollfree)

Monday‐Friday9am‐5pmCST

Visit:www.ameriwoodhome.com AssemblyDifficultyMeter

Easy Tough

ContactUs!

HelpfulHints

2

ameriwoodhome.com

DoNOTreturnthisproduct!

Contactourfriendlycustomerserviceteamfirstforhelp.

Callus!

1‐800‐489‐3351

Monday‐Friday

9am‐5pmCST

Visitameriwoodhome.comtoviewthe

limitedwarrantyvalidintheU.S.andCanada.

AssemblyTips

‐Openyouritemintheareayouplantokeepittoavoidexcessiveheavylifting.



‐Identify,sortandcountthepartsbeforeattemptingassembly.



‐Compressiondowelsarelightlytappedinwithahammer.



‐Slidesarelabeledwitha

(right)and

L

(left)forproperplacement.



‐MakesuretoalwaysfacethepointonthetopoftheCamLocktowardsthe

outeredge.



‐Useallthenailsprovidedforthebackpanelandspreadthemoutequally.



‐Backpanelmustbeusedtomakesureyourunitissturdy.



‐DoNOTuseharshchemicalsorabrasivecleanersonthisitem.



‐Neverpush,pull,ordragyourfurniture.

Tube

You

Tube

You

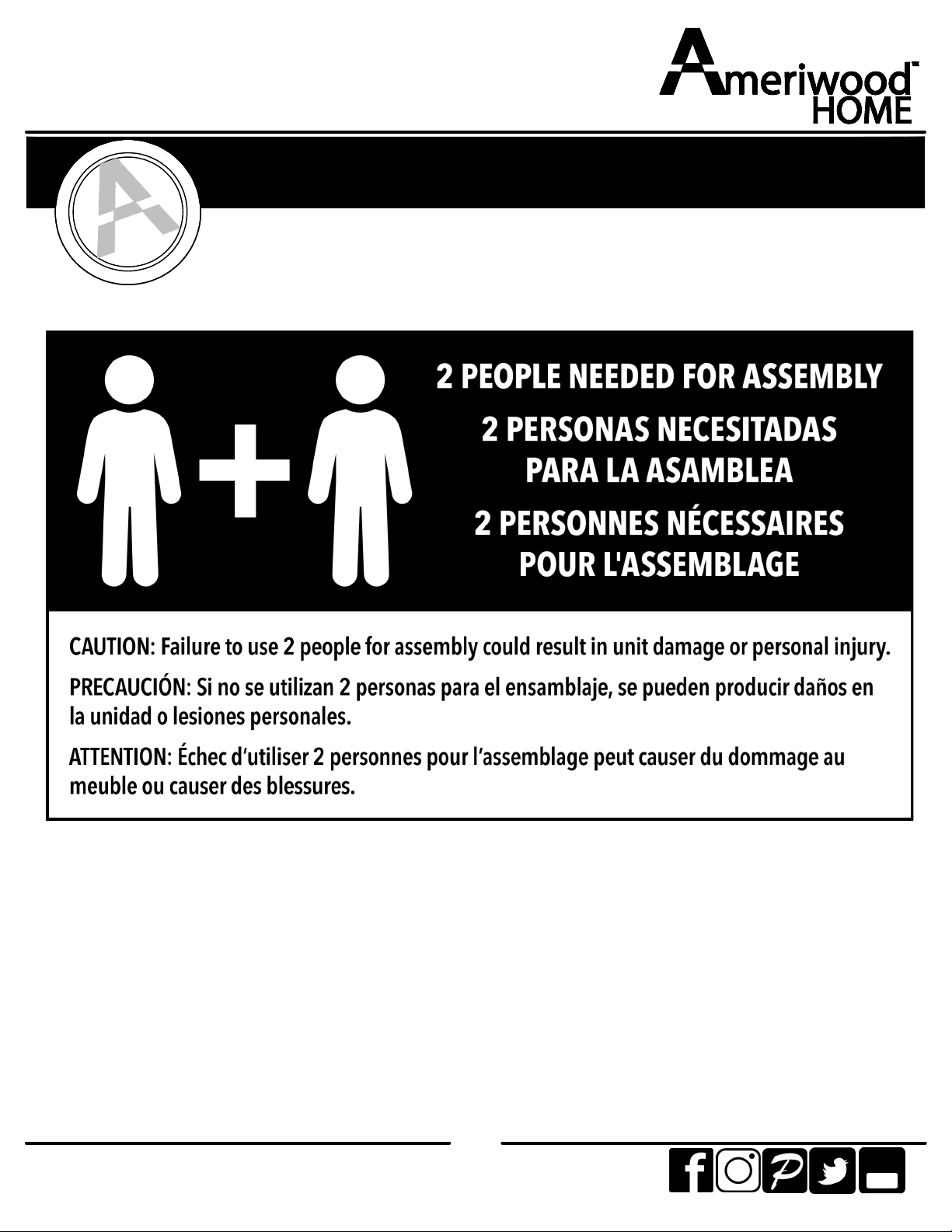

PEOPLENEEDEDFORASSEMBLY:2

ESTIMATEDASSEMBLYTIME:2HOUR

3

ameriwoodhome.com

BeforeYouStart



Quick

Tip

Assembly



CamLockFasteningSystem

ThisCamLockFasteningSystemwillbeusedthroughouttheassemblyprocess.

Tube

You

Readthrougheachstepcarefullyandfollowtheproperorder



Separateandcountallyourpartsandhardware



Giveyourselfenoughroomfortheassemblyprocess



Havethefollowingtools:FlatHeadScrewdriver,#2PhillipsHead

ScrewdriverandHammer

Caution:Ifusingapowerdrillorpowerscrewdriverforscrewing,

pleasebeawaretoslowdownandstopwhenscrewistight.

Failuretodosomayresultinstrippingthescrew.



4

ameriwoodhome.com

BeforeYouStart

Quick

Tip

Assembly

Tube

You

5

ameriwoodhome.com

BoardIdentification

Notactualsize

Tube

You

LeftPanel

38968303010

RightPanel

38968303020

LeftPartition

38968303030

RightPartition

38968303040

Top

38968303050

Bottom

38968303060

AdjustableShelf(x2)

38968303070

LeftSideRail

38968056120

HorizontalRail

38968303080

LeftVerticalRail

38968303090

Door(x2)

38968303140

RightVerticalRail

38968303100

Kick

38968056110

RightSideRail

38968056130

BackPanel(x2)

K896830300

These pieces are paperboard construction.

They are not made from wood, but are

required for the assembly of your unit.

6

ameriwoodhome.com

BoardIdentification

Notactualsize

Tube

You

Thesepiecesarepaperboardconstruction.

Theyarenotmadefromwood,butare

requiredfortheassemblyofyourunit.

7

ameriwoodhome.com

PartList

ActualSize

Tube

You

NotActualSize

(x1)

#A53655

bracket

1345

(x14)

#A22620

cam lock

(x14)

#A22610

cam bolt

(x18)

#A21660

wood dowel

(x2)

#A53510

angle bracket

(x15)

#A12120

7/16" screw

(x8)

#A23030

confirmat screw

(x24)

#A21110

nail

(x7)

#A13210

1-1/2" screw

(x8)

#A80250

shelf support

(x4)

#A17400

bolt

(x2)

#A50415

handle

(x4)

#A65615

hinge

(x1)

#A95030

fireplace

8

ameriwoodhome.com

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2)

#A22620

(x2)

#A21660

Loosen this screw and

separate hinge plate

from hinge.

(x2)

#A65615

9

ameriwoodhome.com

STEP2

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Loosen this screw and

separate hinge plate

from hinge.

(x2)

#A65615

(x2)

#A21660

(x2)

#A22620

10

ameriwoodhome.com

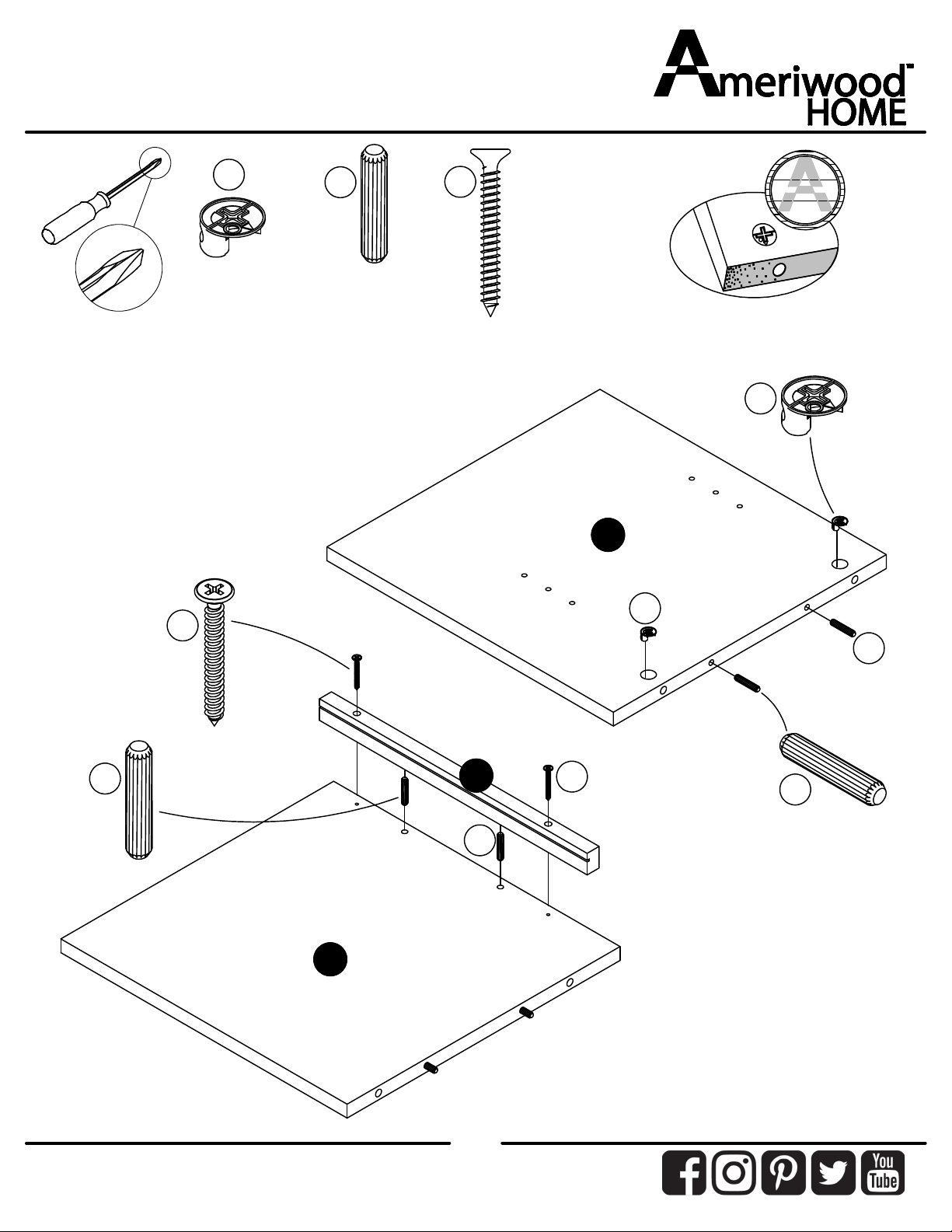

STEP3

(x2)

#A22620

(x4)

#A21660

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2)

#A13210

side A

side B
