Amcor NanoMax Series Manual

Before you enjoy your

NanoMax™ Portable Air Conditioner with

Innovative AutoDrain NanoMist Technology™

it’s important to read these easy set-up instructions.

For more information, please see the enclosed Owner’s

Manual, call 1-866-361-2233, or visit

www.amcorgroupusa.com

1. Locate Parts

IMPORTANT:

Leave the

Air Conditioner

in an upright position

for at least two hours

before turning on!

A. Remote Control

B. Exhaust Hose C. Slide Bar Connector

D. Adjustable Slide Bar E. Insulation Strip F. Drain Hose

G. Spiral

water pipe

with connector

2. Assemble AutoDrain NanoMist™ Technology

2

43

Attach Window

Slide Bar

Connector to

Exhaust Hose by

twisting as shown.

Put spiral water

pipe into hot air

flexible hose.

Connect the

female half of the

quick connector

at the end of the

spiral water pipe

to the male part

in the hot air

outlet pipe.

Turn the

connector

90 degrees

clockwise until it

is locked in

place.

1

Continued on Reverse Side

913151000A

65

87

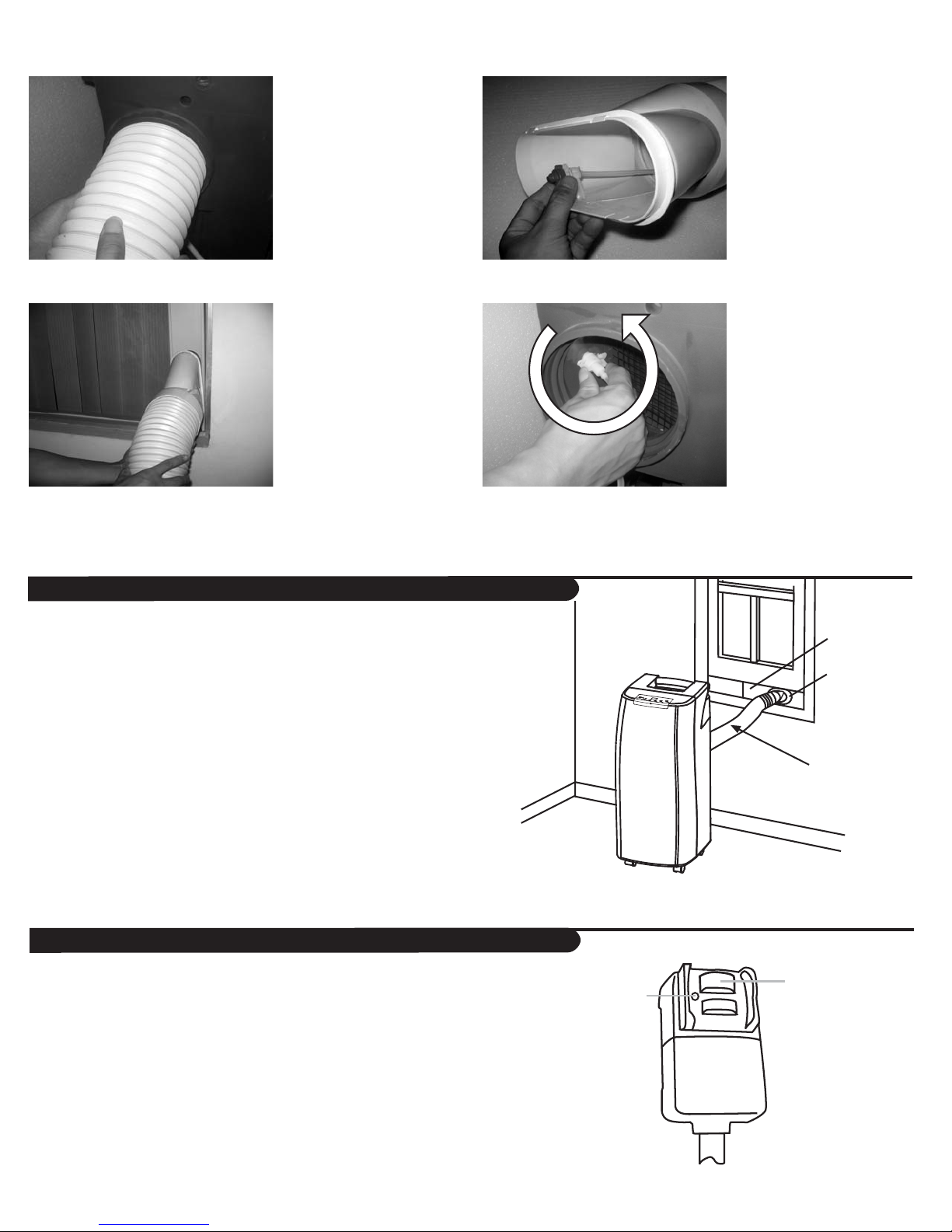

Assemble the

hot air hose on

the unit.

Clip on the

water atomizer

at the end of

the spiral pipe

to the holder.

Unfold flexible

hose with

attached hose

adapter

connector,

and snap into

Window

Slide Bar.

Only

Required For

Dissassembly.

In order to

unlock the quick

connector, push

the tab and turn

the connector

90 degrees

counter-clockwise.

1. Place Adjustable Slide Bar (D) in the window and expand

so it fits tightly.

2. Mark Slide Bar to record width of the window.

3. Apply Insulation Strip (E) on top and bottom of Slide Bar.

4. Reposition Slide Bar Connector in the window.

Expand the Slide Bar to fit tight. Tighten the screws.

5. Lower the window.

6. Make sure Hose has no kinks.

Adjustable

Slide Bar

Hose

Slide Bar

Connector

3. Installation of the Window Kit

4. Turning the Unit On

1. Plug the unit into a working electrical outlet.

2. Press the unit’s ON/OFF Button on the control panel.

It may take a few minutes before cold air is dispersed.

3. If unit doesn’t turn on, press top Reset Button on plug, shown

at right, and plug back in outlet. Green light should be on.

4. Adjust FAN Speed by pressing the FAN Button until

the preferred fan speed is reached.

5. Press the Timer Button to Set.

Reset Button

Green Light

TEST

RESET

913151000A

Continued from Reverse Side
