Replacement Parts

If replacement parts are required, contact the source

from which you purchased your washer, or contact:

Alliance Laundry Systems

Shepard Street

P.O. Bo x 99 0

Ripon, WI 54971-0990

Phone: (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

Notes

38900

Installation

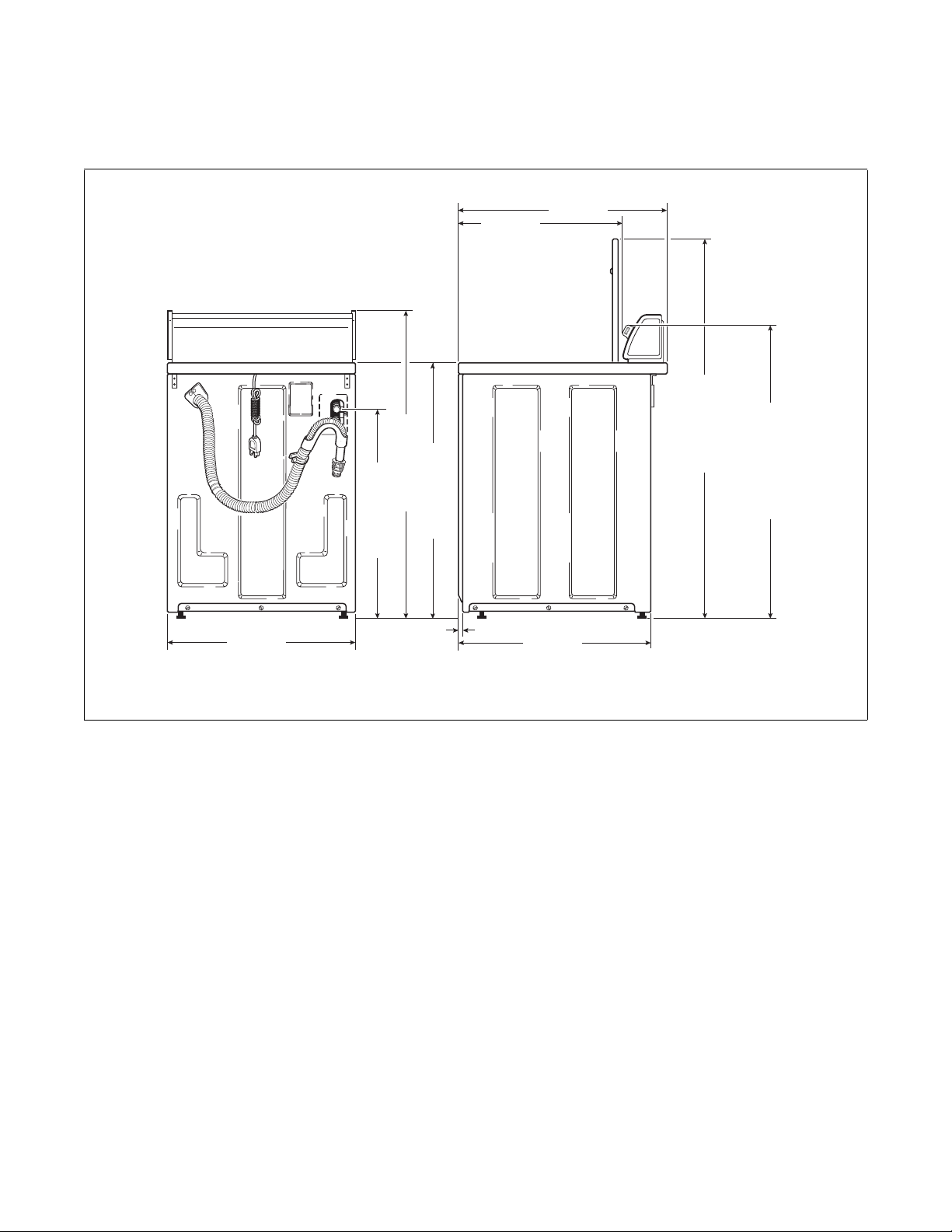

Roughing in Dimensions

TLW2075N

*With leveling legs turned into base.

71.1 cm

(28 in.)

65 cm

(25.6 in.)

66 cm

(26 in.)

1 cm

(0.4 in.)

*73.7 cm (29 in.)

*109.2 cm (43 in.)

*91.4 cm (36 in.)

*134.6 cm (53 in.)

*102.2 cm (40.25 in.)

56.2 cm

(22.13 in.)

Installation

38900

Before You Start

Tools

For most installations, the basic tools you will need

are:

Figure 1

Electrical

Refer to serial plate for specific electrical

requirements. For more detailed information, refer to

section on Electrical Requirements.

Water

Washer needs two standard 19.1 mm (3/4 inch) water

supply faucets with a pressure between 138 and

827 kPa (20 to 120 pounds per square inch). For more

detailed information, refer to section on Water Supply

Requirements.

D074I

1Wrench

2Screwdriver

3Pliers

4Level

D074I

Installation

38900

Installing the Washer

NOTE: If the washer is delivered on a cold day

(below freezing), or is stored in an unheated room

or area during the cold months, do not attempt to

operate it until the washer has had a chance to

warm up.

Step 1: Remove the Shipping Brace and

Shipping Plug

NOTE: Install dryer before washer. This allows

room for attaching exhaust duct.

Remove the shipping brace from under the lid. The

plastic shipping plug will be released from the base of

the washer when removing the cardboard base from

the washer.

Figure 2

NOTE: Do not tilt washer to front or sides when

moving.

The shipping brace and plug should be saved and must

be reinstalled whenever washer is moved or

transported to a new location. This will prevent

damage to washer components.

NOTE: Refer to your Operating Instructions for

reinstalling shipping brace and shipping plug.

Step 2: Wipe Out Inside of Washtub

Prior to first wash, use an all purpose cleaner, or a

detergent and water solution, and a damp cloth to

remove shipping dust from inside of washtub.

Figure 3

TLW521N

1Shipping Brace

2Shipping Plug

W371I

Installation

38900

Step 3: Connect Fill Hoses

NOTE: Refer to section on Water Supply

Requirements before connecting fill hoses.

The appliance is to be connected to the water mains

using new hose-sets and old hose-sets should not be

reused.

Turn on the water supply faucets and flush the lines for

approximately two minutes to remove any foreign

materials that could clog the screens in the water

mixing valve.

NOTE: When installing in newly constructed or

renovated building, it is very important to flush the

lines since build-up may have occurred during

construction.

Remove the two plain rubber washers and two filter

screens from accessories bag, and install them

according to Figure 4.

NOTE: Check filter screens for debris or damage

annually. Clean or replace them if necessary.

IMPORTANT: Thread hose couplings onto valve

connections finger-tight, then approximately 1/4

turn with pliers. DO NOT cross thread or

overtighten couplings.

Turn water on and check for leaks. If leaks are found,

retighten the hose couplings. Continue tightening and

rechecking until no leaks are found.

Figure 4

IMPORTANT: Hoses and other natural rubber

parts deteriorate after extended use. Hoses may

develop cracks, blisters or material wear from the

temperature and constant high pressure they are

subjected to.

All hoses should be checked on a yearly basis for

any visible signs of deterioration. Any hose showing

the signs of deterioration listed above should be

replaced immediately. All hoses should be replaced

every 5 years.

TLW1988N

1Filter Screen (Screen must be facing

outward)

2Fill Hose

3Rubber Washer (Plain)

4Cold Water Connection

5Hot Water Connection

6Install this end of hose to valve connections

at rear of washer.

7Install this end of hose to water supply

faucet. (Black colored coupling for metric)

8Faucet

HOT

COLD

134
