Alliance Laundry Systems 800797 User manual

Part No. 800797

August 2000

NOTA: El manual en español aparece después del manual en inglés.

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

Installation Instructions

For Tumble Action Washers

D311IE3A

800797

Replacement Parts

If replacement parts are required, contact the source

from where you purchased your washer, or contact:

Alliance Laundry Systems

Shepard Street

P.O. Box 990

Ripon, WI 54971-0990

Phone: (920) 748-3950

for the name and address of the nearest authorized

Alliance parts distributor.

Table of

Contents

Replacement Parts .............................................................................. 1

Roughing In Dimensions ................................................................... 2

Before You Start ................................................................................. 3

Tools ............................................................................................... 3

Electrical ........................................................................................ 3

Water .............................................................................................. 3

Accessories Bag ............................................................................. 3

Installing the Washer ......................................................................... 4

Step 1: Position Washer Near Installation Area ............................. 4

Step 2: Connect Water Inlet Hoses ................................................ 5

Step 3: Connect Drain Hose to Drain Receptacle .......................... 6

Step 4: Position and Level the Washer .......................................... 8

Step 5: Remove the Shock Sleeves and Shipping Brace ................ 9

Step 6: Wipe Out Inside of Wash Drum ...................................... 10

Step 7: Plug in the Washer ........................................................... 10

Step 8: Check Installation ............................................................ 10

Step 9: Verify Washer Operation ................................................. 10

Moving Washer to a New Location ................................................. 11

Electrical Requirements ................................................................... 12

Water Supply Requirements ........................................................... 13

Water Temperature ....................................................................... 13

Water Pressure ............................................................................. 13

Risers ............................................................................................ 13

Installer Checklist ............................................................. Back Cover

means without the expressed written consent of the publisher.

800797

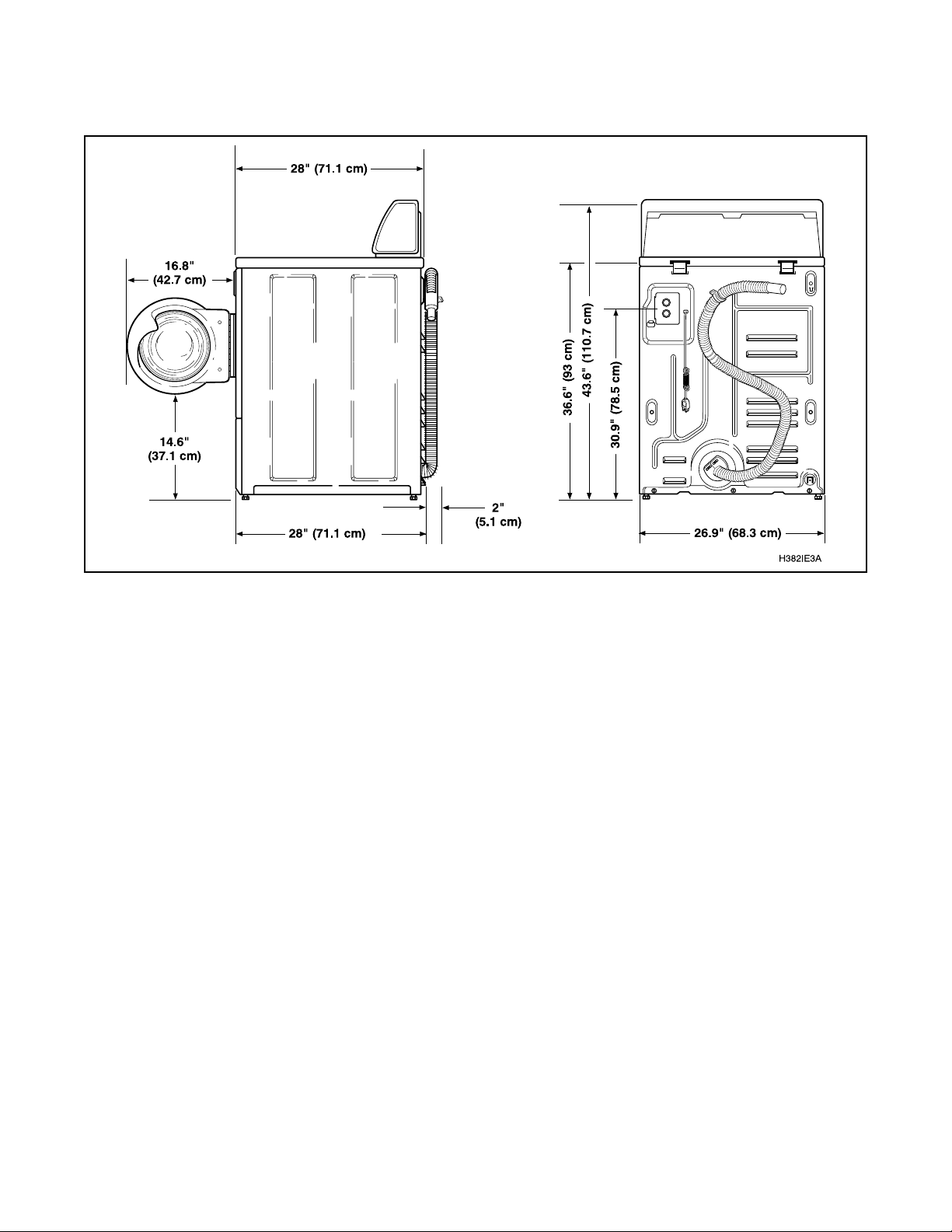

Roughing In Dimensions

800797

Before You Start

Tools

For most installations, the basic tools you will need

are:

Electrical

Refer to Serial Plate for specific electrical

requirements. For more detailed information refer to

section on Electrical Requirements.

Water

Washer needs two standard 3/4 inch (19.1 mm) water

supply faucets with a pressure between 20 - 120

pounds per square inch (138 to 827 kPa). For more

detailed information refer to section on Water Supply

Requirements.

Accessories Bag

An accessory bag has been shipped inside your

washer. It includes:

Two inlet hoses with washers. Refer to Step 2 of

Installing the Washer.

Four rubber feet. Refer to Step 4 of Installing the

Washer.

Beaded tie-down strap. Refer to Step 3 of

Installing the Washer.

Installation instructions.

Use and Care Guide.

Operating insert.

Warranty bond.

Helpful Hints insert.

Bag for storing shipping materials.

D074IE1B

LEVEL

SCREWDRIVER

PLIERS

WRENCH

SOCKET

WRENCH

800797

Installing the Washer

Step 1:

Position Washer Near Installation Area

IMPORTANT: Install dryer before washer. This

allows room for attaching exhaust duct.

Move washer so that it is within four feet of the

desired area of installation.

D311IE1A

800797

Step 2:

Connect Water Inlet Hoses

NOTE: Refer to section on Water Supply

Requirements before connecting water inlet hoses.

Remove the four plain rubber washers from

accessories bag, and install them according to the

illustration.

Turn on the water supply faucets and flush the lines for

approximately two minutes to remove any foreign

materials that could clog the filter screens in the inlet

hoses, or the screens in the water mixing valve.

NOTE: When installing in newly constructed or

renovated building, it is very important to flush the

lines since build-up may have occurred during

construction.

IMPORTANT: Thread hose couplings onto valve

connections finger-tight, then approximately 1/4

turn with pliers. DO NOT cross thread or

overtighten couplings.

Turn water on and check for leaks. If leaks are found,

retighten the hose couplings. Continue tightening and

rechecking until no leaks are found.

RUBBER WASHER

(Plain)

H091IE1B

INLET

HOSE

RUBBER WASHER

(Plain)

WATER

MIXING

VALVE

800797

Step 3:

Connect Drain Hose to Drain Receptacle

Remove the drain hose from its shipping position on

the rear of the washer by unhooking the hose from the

retainer clamp.

Find the instructions, on the following pages, that are

appropriate for your type of drain receptacle

(standpipe, sink, wall, or laundry tub). Follow these

instructions to properly install the drain hose.

IMPORTANT: Drain receptacle must be capable of

handling a minimum of 1-1/4 inch (32 mm) outside

diameter drain hose.

Standpipe Installation:

Place the drain hose into the standpipe.

Remove the beaded tie-down strap from accessories

bag and place around standpipe and drain hose and

tighten strap to hold hose to standpipe. This will

prevent the drain hose from dislodging from drain

receptacle during use.

IMPORTANT: To prevent siphoning, do not place

any ribbed portion of the drain hose into the

standpipe.

800797

Sink Installation:

For this type of installation, use the beaded tie-down

strap (supplied in accessories bag), or use a large wire

tie (available from your local hardware store) and

secure the drain hose to the cabinet top hinge (see

illustration). This will prevent the drain hose from

dislodging during use.

In The Wall Installation:

For installations of this type, the drain hose MUST be

secured to one of the inlet hoses using the beaded tie-

down strap from accessories bag.

NOTE: End of drain hose must not be below 24".

Laundry Tub Installation:

For this type of installation, the drain hose MUST be

secured to the stationary tub to prevent hose from

dislodging during use. Use the beaded tie-down strap

(supplied in accessories bag) to secure hose.

H023IE2B

TIE-DOWN STRAP

(Tape if necessary)

DRAIN

HOSE

INLET

HOSES

800797

Step 4:

Position and Level the Washer

Place washer in position on a clean, firm and

reasonably level floor. Installing the washer on any

type of carpeting is not recommended.

Loosen 7/8" locknut and adjust the front and rear

leveling legs until the washer is level from side to side

and front to back (using a level). Washer should not

rock.

NOTE: Level must rest on raised portion of top

panel. See illustration.

Tighten the locknuts securely against the washer

base using the 7/8" wrench. If the locknuts are not

tight, washer will move out of position during

operation.

NOTE: DO NOT slide washer across floor if the

leveling legs have been extended, as legs and base

could become damaged.

NOTE: Use of the dispenser drawer or washer door

as a handle in the transportation of the washer may

cause damage to the dispenser or door.

Remove rubber feet from accessories bag and place on

all four leveling legs.

Washers elevated above floor level must

be anchored to that elevated surface, base

or platform. The material used to elevate

the washer should also be anchored to the

floor to ensure that the washer will not

walk or that the washer can not be

physically pulled, tipped or slid from its

installed position. Failure to do so may

result in conditions which can produce

serious injury, death and/or property

damage.

W306

WARNING
