Alliance Laundry Systems LES33A F4562 Series User manual

Installation Instructions

for Dryers

Original Instructions

Keep These Instructions for Future Reference.

CAUTION: Read the instructions before using the machine.

(If this machine changes ownership, this manual must accompany machine.)

www.alliancelaundry.com Part No. D510953ENR10

January 2017

WARNING

FOR YOUR SAFETY, the information in this manual

must be followed to minimize the risk of fire or ex-

plosion or to prevent property damage, personal in-

jury or death.

W033

WARNING

• Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

• WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use

any phone in your building.

• Clear the room, building or area of all occu-

pants.

• Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s in-

structions.

• If you cannot reach your gas supplier, call the

fire department.

• Installation and service must be performed by a

qualified installer, service agency or the gas sup-

plier.

W052

IMPORTANT: Purchaser must consult the local gas

supplier for suggested instructions to be followed if

the dryer user smells gas. The gas utility instructions

plus the SAFETY and WARNING note directly above

must be posted in a prominent location near the dryer

for customer use.

WARNING

• Installation of unit must be performed by a quali-

fied installer.

• Install clothes dryer according to manufacturer’s

instructions and local codes.

• DO NOT install a clothes dryer with flexible plas-

tic venting materials. If flexible metal (foil type)

duct is installed, it must be of a specific type

identified by the appliance manufacturer as suita-

ble for use with clothes dryers. Refer to section

on connecting exhaust system. Flexible venting

materials are known to collapse, be easily crush-

ed, and trap lint. These conditions will obstruct

clothes dryer airflow and increase the risk of fire.

W729R1

WARNING

FOR YOUR SAFETY

Do not store or use gasoline or other flammable va-

pors and liquids in the vicinity of this or any other

appliance.

W053

DO NOT COPY or TRANSMIT

3 Part No. D510953ENR10

Table of Contents

...............................................................................................................3

Dimensions............................................................................................. 5

Installation............................................................................................. 7

Before You Start............................................................................................. 7

Supplies..................................................................................................... 7

Order of Installation Steps............................................................................7

Position and Level the Dryer............................................................................7

Connect Dryer Exhaust System...................................................................... 10

Exhaust Direction......................................................................................11

Exhaust System.........................................................................................11

Gas Dryers - Connect Gas Supply Pipe........................................................... 13

Electric Dryer Only - Connect Electrical Plug..................................................14

Models Without Power Cords..................................................................... 14

Reverse Door, if Desired................................................................................15

Wipe Out Inside of Dryer...............................................................................16

Connect Dryer to Electrical Power..................................................................17

Electrical Requirements............................................................................. 17

Recheck Steps.............................................................................................. 19

Check Heat Source........................................................................................19

Electric Dryers.......................................................................................... 19

Gas Dryers................................................................................................19

Installer Checklist.................................................................................20

written consent of the publisher.

DO NOT COPY or TRANSMIT

4 Part No. D510953ENR10

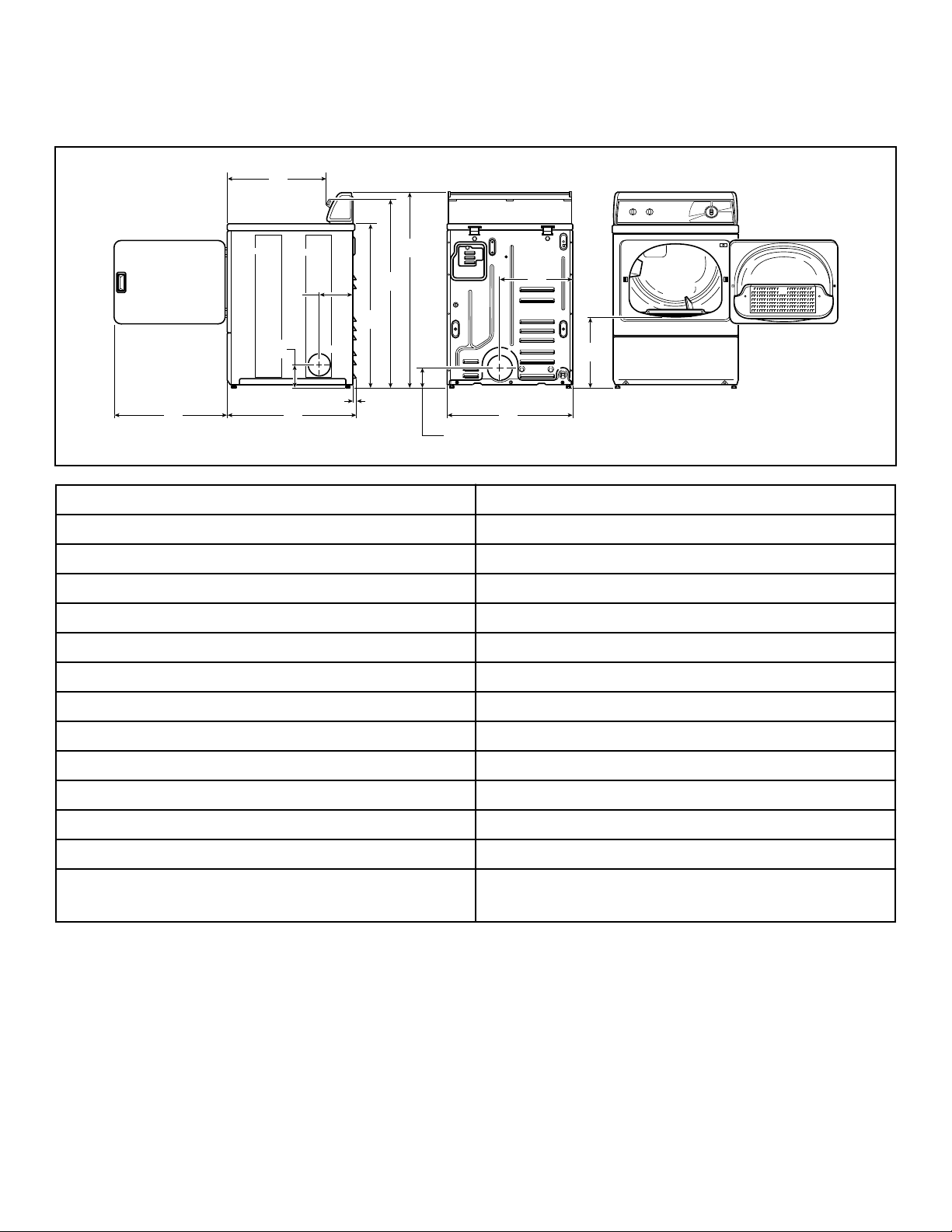

Dimensions

Electric Dryers

DRY2258N_SVG

A 569 mm [22.38 in.]

B 203 mm [8.0 in.]

C * 914 mm [36 in.]

D * 1022 mm [40.25 in]

E * 1092 mm [43 in.]

F 391 mm [15.4 in.]

G * 392 mm [15.44 in.]

H 683 mm [26.875 in.]

I 102 mm [4.0 in.]

J 11 mm [0.4 in.]

K * 114 mm [4.5 in.]

L 711 mm [28 in.]

M 597 mm [23.5 in.]

NOTE: Exhaust openings are 102 mm [4 inch] metal

ducting.

* With leveling legs turned into base.

Dimensions

DO NOT COPY or TRANSMIT

5 Part No. D510953ENR10

Gas Dryers

DRY2259N_SVG

1. 3/8 in. N.P.T. Gas Connection

A 569 mm [22.38 in.]

B 203 mm [8.0 in.]

C * 914 mm [36 in.]

D * 1022 mm [40.25 in.]

E * 1092 mm [43 in.]

F 391 mm [15.4 in.]

G * 392 mm [15.44 in.]

H * 70 mm [2.8 in.]

I 60 mm [2.3 in.]

J 683 mm [26.875 in.]

K * 102 mm [4 in.]

L 11 mm [0.4 in.]

M * 114 mm [4.5 in.]

N 711 mm [28 in.]

O 597 mm [23.5 in.]

NOTE: Exhaust openings are 102 mm [4 inch] metal

ducting.

* With leveling legs turned into base.

Dimensions

DO NOT COPY or TRANSMIT

6 Part No. D510953ENR10

Installation

Before You Start

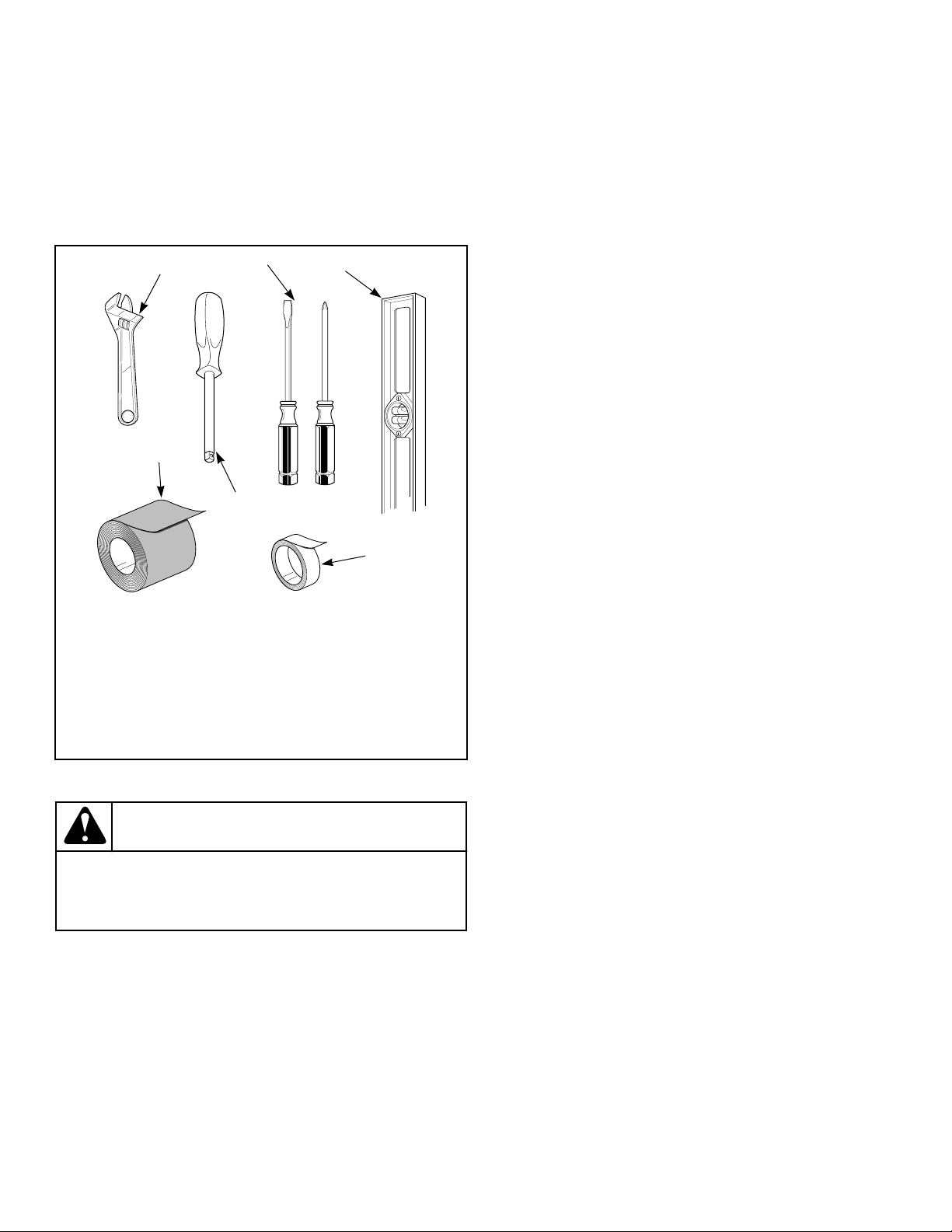

Supplies

For most installations, the basic supplies you will need are:

DRY911N_SVG

1. Wrench

2. Screwdriver

3. Level

4. Duct Tape

5. Teflon Tape (Gas Models)

6. 1/4 in. Driver

Figure 1

WARNING

Any disassembly requiring the use of tools must be

performed by a suitably qualified service person.

W299

Order of Installation Steps

1. Position and level the dryer.

2. Connect dryer to exhaust system.

3. For gas models only, connect the gas supply pipe. Check for

gas leaks.

4. Models without power cords, connect electrical cord.

5. Reverse the door, if desired.

6. Wipe out the inside of the dryer.

7. Connect the dryer to electrical power.

8. Recheck steps.

9. Check heat source.

Position and Level the Dryer

1. Install dryer before washer. This allows room for attaching

exhaust duct.

2. Select a location with a solid floor. Dryers installed in resi-

dential garages must be elevated 457 mm [18 inches] above

the floor.

No other fuel burning appliance should be installed in the same

closet with the dryer.

The dryer must not be installed or stored in an area where it will

be exposed to water and/or weather.

Leveling legs can be adjusted from inside the dryer with a 1/4

inch driver. All four legs must rest firmly on the floor so the

weight of the dryer is evenly distributed.

The dryer needs sufficient clearance and an adequate air supply

for proper operation and ventilation, and for easier installation

and servicing. (Minimum clearances are shown in Figure 3 ).

The dryer must not be installed behind a lockable door, a sliding

door or a door with a hinge on the opposite side to that of the dry-

er, in such a way that a full opening of the dryer door is restricted.

Leveling legs can be adjusted from outside the dryer with a

wrench.

3. Place the dryer in position, and adjust the legs until the dryer

is level from side to side and front to back. The dryer must

not rock.

Installation

DO NOT COPY or TRANSMIT

7 Part No. D510953ENR10

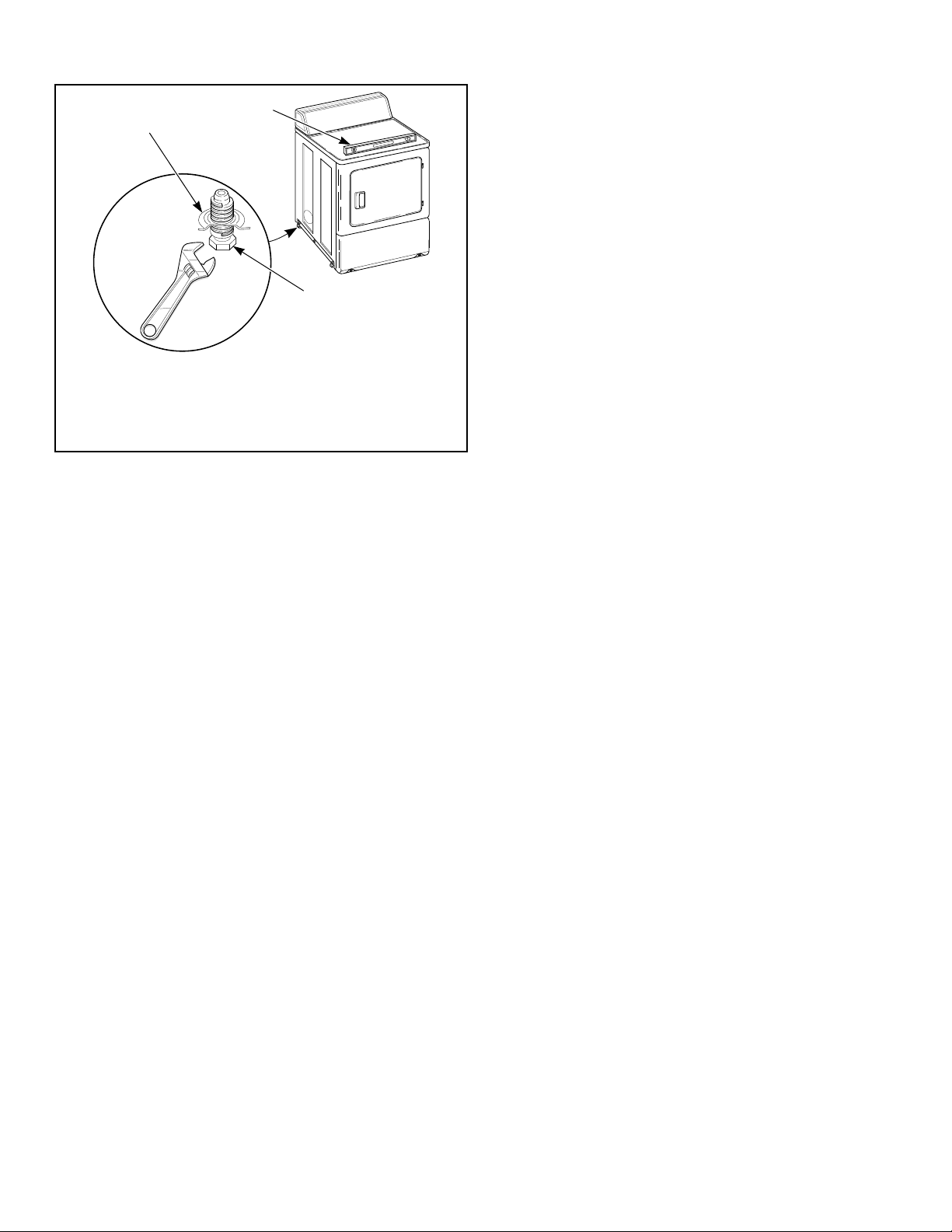

D669I_SVG

1. Dryer Base

2. Level

3. Leveling Leg

Figure 2

Installation

DO NOT COPY or TRANSMIT

8 Part No. D510953ENR10

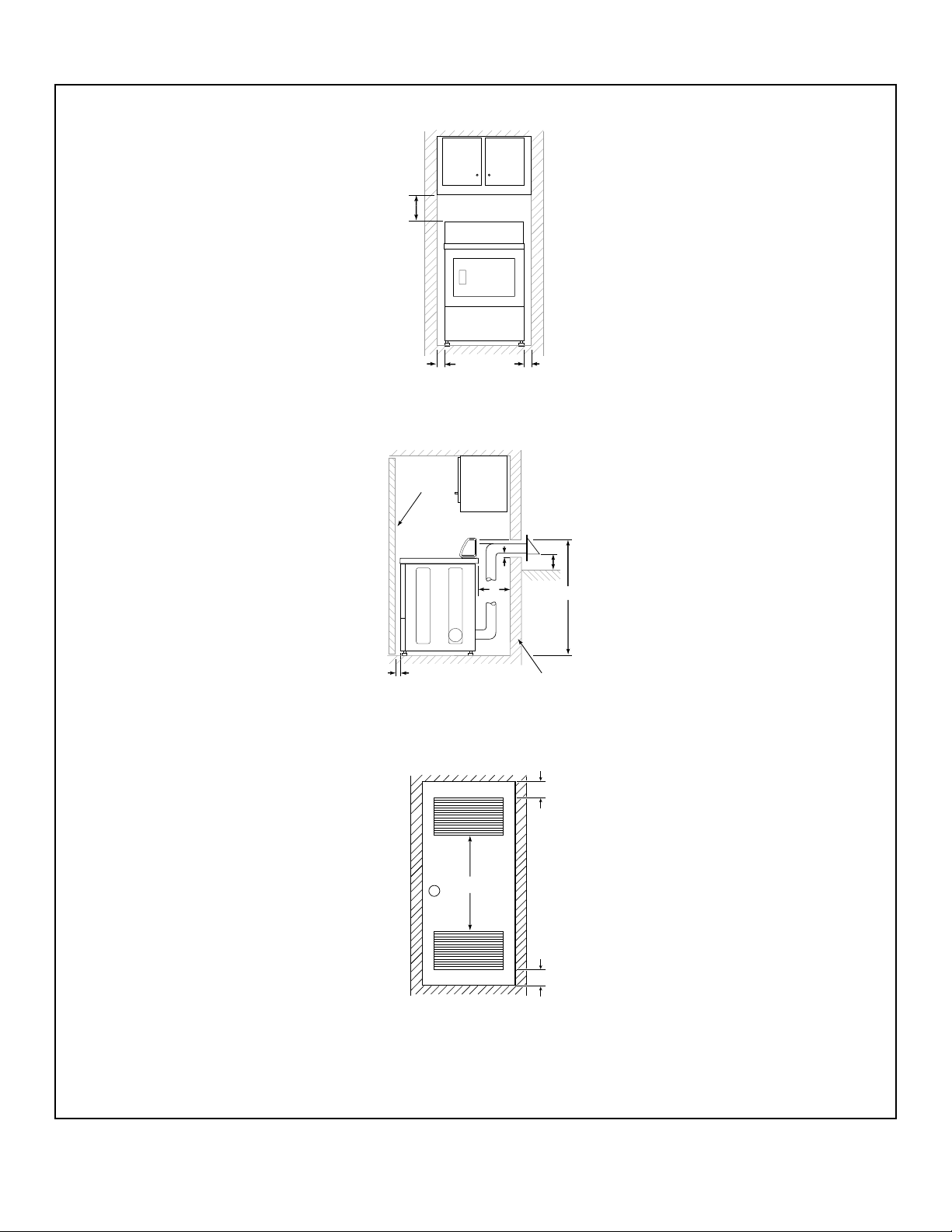

Front View (Without Closet Door)

DRY2663N_SVG

A A

Side View (Closet Door)

DRY2664N_SVG

Front View (Closet Door)

DRY2637N_SVG

2 (G)

1. Closet Door

2. Centered Air Openings (G) (2 Openings minimum)

3. Outer Wall of Enclosure

Figure 3

Installation

DO NOT COPY or TRANSMIT

9 Part No. D510953ENR10

Area Description

Free Standing/Alcove In-

stallation Closet Installation

A* Dryer sides and rear clearance 0 mm [0 in.] 0 mm [0 in.]

B Dryer top clearance 305 mm [12 in.] 305 mm [12 in.]

C Dryer front clearance Not Applicable 51 mm [2 in.]

D Exhaust duct clearance to com-

bustible material

51 mm [2 in.] 51 mm [2 in.]

E Weather hood to ground clear-

ance

305 mm [12 in.] 305 mm [12 in.]

F Distance from floor or ceiling

to air opening edge

Not Applicable 76 mm [3 in.]

G Area of centered air openings

in closet door. Louvered door

with equivalent air openings is

acceptable. (Minimum clearan-

ces are shown.)

Not Applicable 260 sq. cm/open [40 sq. in./

open]

H For new installations, it is sug-

gested to locate top of wall vent

1067 mm [42 inches] above

floor to make venting easier to

connect.

1067 mm [42 in.] 1067 mm [42 in.]

* Rear clearance is minimum. 51 mm [2 inches] is recommended for utility connection. 152 mm [6

inches] is recommended when venting through rear of unit.

Table 1

IMPORTANT: In mobile home installations, gas dryers

MUST be permanently attached to the floor at the time

of installation. Order No. 526P3 Dryer Installation Kit

(available at extra cost) for a manufactured (mobile)

home installation. Follow the instructions supplied with

the kit.

Connect Dryer Exhaust System

WARNING

To reduce the risk of fire and combustion gas accu-

mulation the dryer MUST be exhausted to the out-

doors.

W604

WARNING

To reduce the risk of fire and the accumulation of

combustion gases, DO NOT exhaust dryer air into a

window well, gas vent, chimney or enclosed, unven-

tilated area, such as an attic, wall, ceiling, crawl

space under a building or concealed space of a

building.

W045

WARNING

This gas appliance contains or produces a chemical

or chemicals which can cause death or serious ill-

ness and which are known to the State of California

to cause cancer, birth defects, or other reproductive

harm. To reduce the risk from substances in the fuel

or from fuel combustion, make sure this appliance is

installed, operated, and maintained according to the

instructions in this manual.

W115

Installation

DO NOT COPY or TRANSMIT

10 Part No. D510953ENR10

This manual suits for next models

Table of contents

Other Alliance Laundry Systems Dryer manuals

Alliance Laundry Systems

Alliance Laundry Systems 505828 User manual

Alliance Laundry Systems

Alliance Laundry Systems SDE907 Guide

Alliance Laundry Systems

Alliance Laundry Systems 602004144 Instruction Manual

Alliance Laundry Systems

Alliance Laundry Systems ADG3SRGS117TW01 User manual

Alliance Laundry Systems

Alliance Laundry Systems BA025E User manual

Alliance Laundry Systems

Alliance Laundry Systems 25 Series User manual

Alliance Laundry Systems

Alliance Laundry Systems ADE3TFWS431AW01 Operating instructions

Alliance Laundry Systems

Alliance Laundry Systems DCB30CG User manual

Alliance Laundry Systems

Alliance Laundry Systems DR5000WG User manual

Alliance Laundry Systems

Alliance Laundry Systems 25 Pound Capacity Manual

Alliance Laundry Systems

Alliance Laundry Systems DCB50EG User manual

Alliance Laundry Systems

Alliance Laundry Systems 25 Pound Capacity User manual

Alliance Laundry Systems

Alliance Laundry Systems 50 Pound Series User manual

Alliance Laundry Systems

Alliance Laundry Systems SFG109*F Guide

Alliance Laundry Systems

Alliance Laundry Systems DRY684C User manual

Alliance Laundry Systems

Alliance Laundry Systems LEB07A*-1709 User manual

Alliance Laundry Systems

Alliance Laundry Systems AES17AWF Assembly instructions

Alliance Laundry Systems

Alliance Laundry Systems D715I User manual

Alliance Laundry Systems

Alliance Laundry Systems LTS87A*H User manual

Alliance Laundry Systems

Alliance Laundry Systems D310IE3B User manual

Alliance Laundry Systems

Alliance Laundry Systems TMB1276C Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems Stacked Drying Tumbler Operating manual

Alliance Laundry Systems

Alliance Laundry Systems JT30XG Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems D677I Guide

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
