Alliance Laundry Systems 602004144 Instruction Manual

Operation/Maintenance

www.comlaundry.com

Tumble Dryers

Stacked 30 Pound Capacity

Stacked 45 Pound Capacity

Starting Serial No. 0602004144

Refer to Page 3 for Model Numbers

Part No. 70400101R9EN

July 2011

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

Installation must conform with local codes or in the absence of local codes with:

In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/

NFPA 54 “National Fuel Gas Code” and Standard ANSI/NFPA 70 “National Electric Code.”

In Canada, installation must comply with Standards CAN/CSA-B149.1 or Natural Gas and Propane Code

CSA C22.1, latest edition, Canadian Electric Code, Part I.

In Australia, installation must comply with the Australian Gas Association Installation Code for Gas

Burning Appliances and Equipment.

IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the

user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the

above safety information must be posted in a prominent location near the tumble dryer for customer use.

FOR YOUR SAFETY, the information in this

manual must be followed to minimize the

risk of fire or explosion or to prevent

property damage, personal injury or death.

W033

WARNING

• Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do

not use any phone in your building.

– Clear the room, building or area of all

occupants.

– Immediately call your gas supplier from

a neighbor’s phone. Follow the gas

supplier’s instructions.

– If you cannot reach your gas supplier,

call the fire department.

• Installation and service must be

performed by a qualified installer, service

agency or the gas supplier.

W052

FOR YOUR SAFETY

Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

W053

• Ne pas entreposer ou utiliser d’essence

ou toutes autres vapeurs et liquides

inflammables à proximité de cette

machine ou de tout autre appareil.

• QUE FAIRE EN CAS D’ODEUR DE GAZ :

– Ne pas mettre d’appareil en marche.

– Ne pas toucher aux interrupteurs

électriques ; ne pas utiliser le téléphone

des lieux.

– Évacuer la pièce, le bâtiment ou la zone

de tous les occupants.

– Appeler immédiatement le fournisseur

de gaz de la maison d’un voisin.

Respecter les instructions

communiquées par le fournisseur.

– Si vous ne pouvez pas joindre le

fournisseur de gaz, appeler le service

d’incendie.

• L’installation et l’entretien doivent être

effectués par un installateur, service

d’entretien qualifiés ou par le fournisseur

de gaz.

W052R5QU

•POUR VOTRE SÉCURITÉ

Ne pas entreposer ou utiliser d’essence ou

toutes autres vapeurs et liquides

inflammables à proximité de cette unité ou

de tout autre appareil.

W053R2QU

POUR VOTRE SÉCURITÉ, les informations

de ce guide doivent être respectées afin de

réduire les risques d’incendie, d’explosion

ou d’éviter les dommages matériels,

personnels ou blessures mortelles.

W033R3QU

MISE EN GARDE

means without the expressed written consent of the publisher.

270400101 (EN)

Table of

Contents

Introduction......................................................................................... 3

Model Identification ............................................................................. 3

Customer Service.................................................................................. 4

Serial Plate Location............................................................................. 4

Wiring Diagram .................................................................................... 4

Safety Information.............................................................................. 5

Explanation of Safety Messages........................................................... 5

Important Safety Instructions ............................................................... 6

Operating Instructions ....................................................................... 8

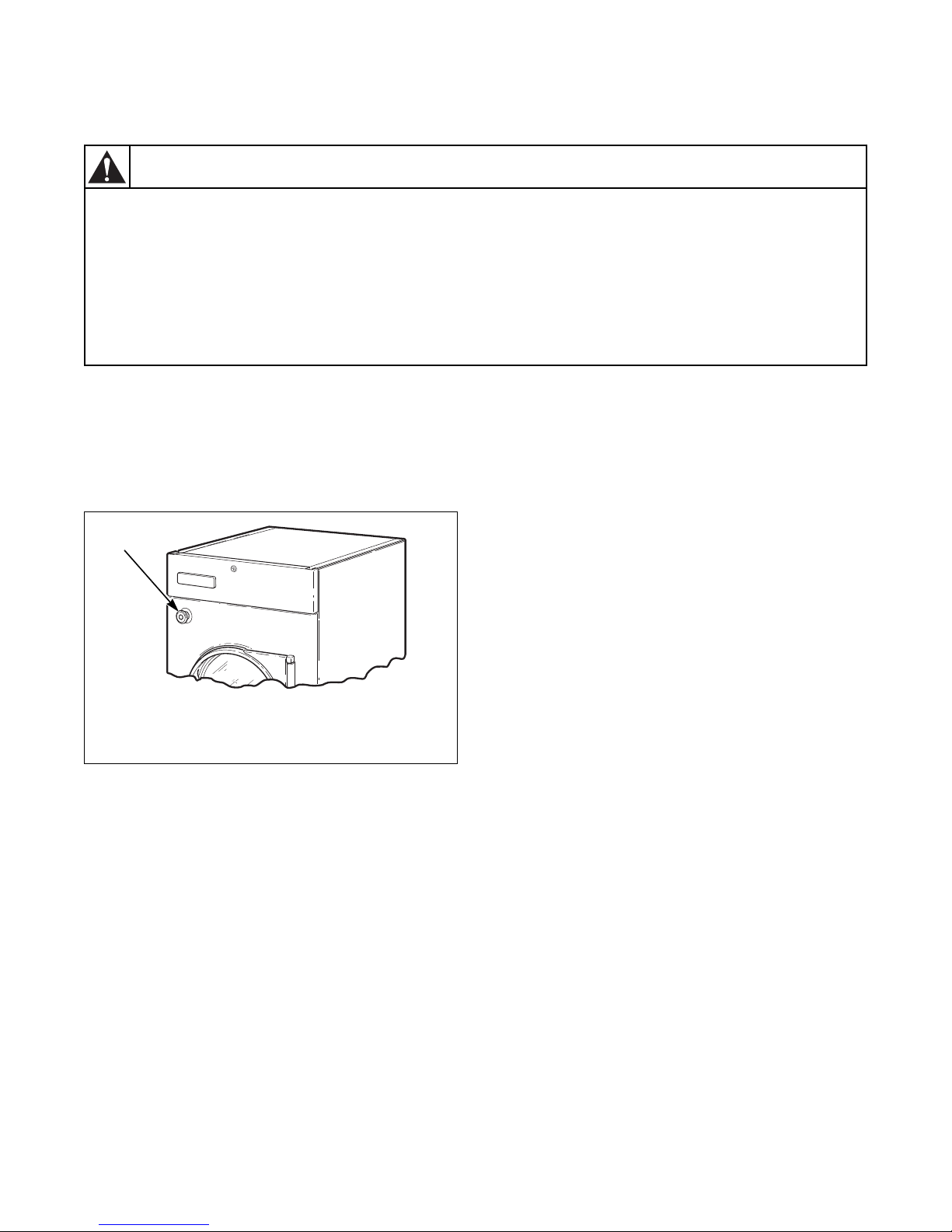

Emergency Stop Button on CE Models................................................ 8

Operating Instructions .......................................................................... 8

Control Instructions .............................................................................. 9

LED OPL Control ............................................................................ 9

Dual Digital Timer Control.............................................................. 10

Single Drop Control......................................................................... 13

DX4 Coin Control............................................................................ 15

DX4 OPL Control ............................................................................ 16

Ignition Control Operation for Non-CE Models .................................. 17

Ignition Control Operation for CE Models........................................... 18

Maintenance ........................................................................................ 20

Daily ..................................................................................................... 20

Monthly................................................................................................. 22

Quarterly ............................................................................................... 22

Bi-Annually .......................................................................................... 22

Annually ............................................................................................... 22

Before You Call for Service ............................................................... 26

Customer Service.................................................................................. 26

70400101 (EN)

Introduction

Model Identification

Information in this manual is applicable to these models:

Includes models with control suffixes:

Gas Steam Electric

T30

CHD30STG2-CAT30L

CHD30STG2-CAT30N

CHD30STG2-CTT30L

CHD30STG2-CTT30N

CHD30STG2-CUT30L

CHD30STG2-CUT30N

DRST30G2-BAT30L

DRST30G2-BAT30N

DRST30G2-BTT30D

DRST30G2-BTT30L

DRST30G2-BTT30N

DRST30G2-BUT30L

DRST30G2-BUT30N

IPD30STG2-ITT30L

IPD30STG2-ITT30N

CHD30STS2-CTT30S

CHD30STS2-CUT30S

DRST30S2-BTT30S

DRST30S2-BUT30S

IPD30STS2-ITT30S

CHD30STE2-CTT30E

CHD30STE2-CUT30E

DRST30E2-BTT30E

DRST30E2-BUT30E

IPD30STE2-ITT30E

T45

CTT45L

CTT45N

DRST45G2-BAT45L

DRST45G2-BAT45N

DRST45G2-BTT45D

DRST45G2-BTT45L

DRST45G2-BTT45N

DRST45G2-BUT45L

DRST45G2-BUT45N

IPD45STG2-ITT45L

IPD45STG2-ITT45N

Not Applicable Not Applicable

3O – DX4 OPL

3V – DX4 vended

3X – DX4 prep for coin

EO – LED OPL

QT – dual digital timer

SD – single drop

SX – single drop, prep for coin

Introduction

70400101 (EN)

Customer Service

If literature or replacement parts are required, contact

the source from which the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

For technical assistance, call (920) 748-3121.

Serial Plate Location

When calling or writing for information about your

product, be sure to mention model and serial numbers.

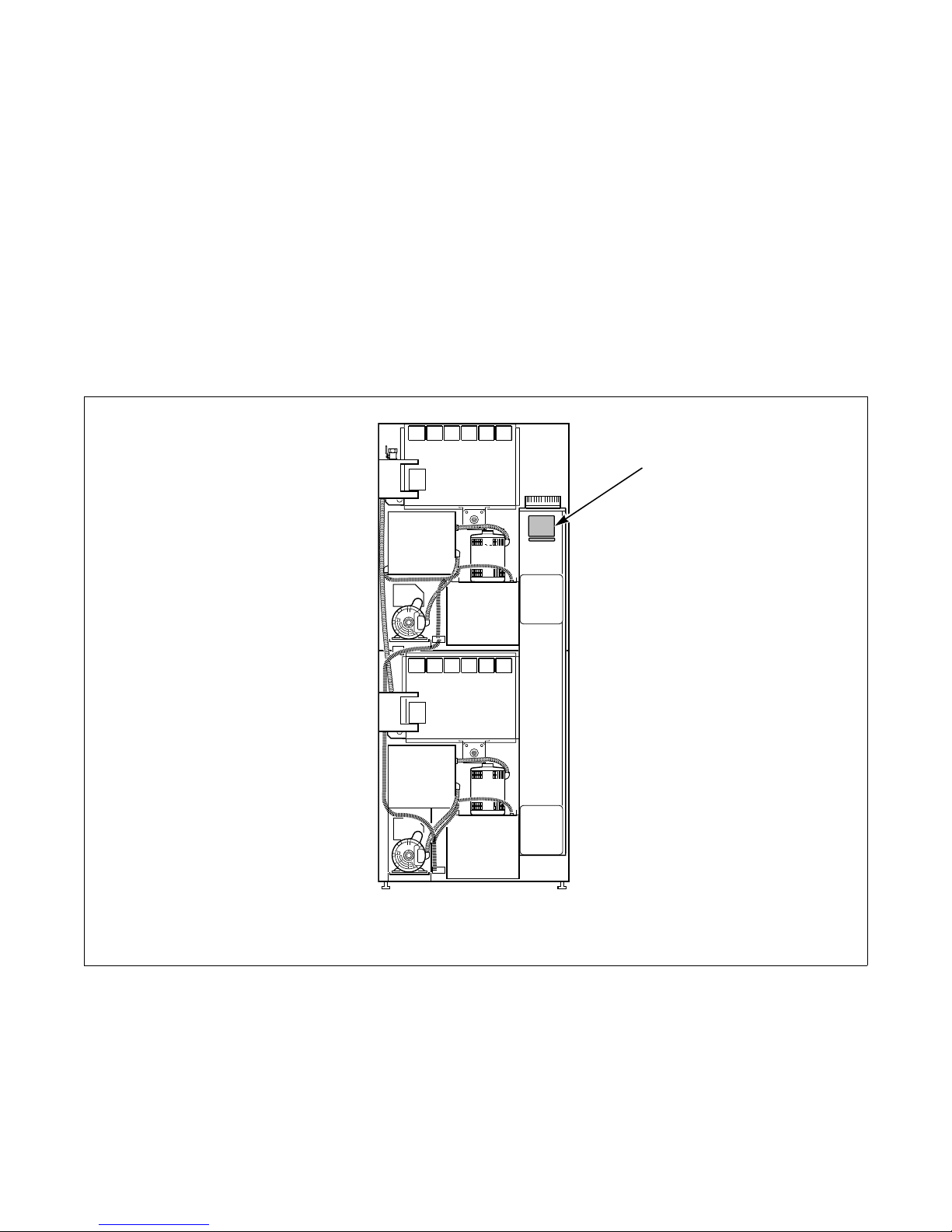

Model and serial numbers are found on serial plate on

the rear of machine and inside door. Refer to Figure 1.

Wiring Diagram

The wiring diagram is located in the upper junction or

upper contactor box. The wiring diagram part number

is located in the lower portion of the electrical data on

the serial plate.

Figure 1

TMB1974N

1Serial Plate

70400101 (EN)

Safety Information

Explanation of Safety Messages

Precautionary statements (“DANGER,” “WARNING,”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer, and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

IMPORTANT: Warranty is void unless tumble

dryer is installed according to instructions in the

Installation Manual. Compliance with minimum

specifications and requirements detailed herein,

and with applicable local gas fitting regulations,

municipal building codes, water supply regulations,

electrical wiring regulations, and any other

relevant statutory regulations. Because of varied

requirements, applicable local codes should be

thoroughly understood and all pre-installation

work arranged for accordingly.

NOTE: The WARNING and IMPORTANT

instructions appearing in this manual are not

meant to cover all possible conditions and

situations that may occur. It must be understood

that common sense, caution and carefulness are

factors which CANNOT be built into this tumble

dryer. These factors MUST BE supplied by the

person(s) installing, maintaining or operating the

tumble dryer.

Always contact your dealer, distributor, service agent

or the manufacturer on any problems or conditions you

do not understand.

Indicates an imminently hazardous

situation that, if not avoided, will cause

severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not

avoided, could cause severe personal

injury or death.

WARNING

Indicates a hazardous situation that, if not

avoided, may cause minor or moderate

personal injury or property damage.

CAUTION

Failure to install, maintain, and/or operate

this machine according to manufacturer’s

instructions may result in conditions which

can produce serious injury, death and/or

property damage.

W051R1

WARNING

Safety Information

70400101 (EN)

Important Safety Instructions

Save These Instructions

1. Read all instructions before using the tumble

dryer.

2. Refer to the GROUNDING INSTRUCTIONS

for the proper grounding of the tumble dryer.

3. Do not dry articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry cleaning solvents, other flammable

or explosive substances as they give off vapors

that could ignite or explode.

4. Do not allow children on or in the tumble dryer.

This appliance is not intended for use by young

children or infirm persons without supervision.

Young children should be supervised to ensure

that they do not play with the appliance.

5. Before the tumble dryer is removed from service

or discarded, remove the door to the drying

compartment and the door to the lint

compartment.

6. Do not reach into the tumble dryer if the cylinder

is revolving.

7. Do not install or store the tumble dryer where it

will be exposed to water and/or weather.

8. Do not tamper with the controls.

9. Do not repair or replace any part of the tumble

dryer, or attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

10. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

11. To reduce the risk of fire, DO NOT DRY plastics

or articles containing foam rubber or similarly

textured rubberlike materials.

12. Always clean the lint filter daily.

13. Keep area around the exhaust opening and

adjacent surrounding area free from the

accumulation of lint, dust and dirt.

14. The interior of the tumble dryer and the exhaust

duct should be cleaned periodically by qualified

service personnel.

15. If not installed, operated and maintained in

accordance with the manufacturer’s instructions

or if there is damage to or mishandling of this

product’s components, use of this product could

expose you to substances in the fuel or from fuel

combustion which can cause death or serious

illness and which are known to the State of

California to cause cancer, birth defects or other

reproductive harm.

16. Tumble dryer will not operate with the loading

door open. DO NOT bypass the door safety

switch to permit the tumble dryer to operate with

the door open. The tumble dryer will stop

tumbling when the door is opened. Do not use the

tumble dryer if it does not stop tumbling when

the door is opened or starts tumbling without

pressing or turning the START mechanism.

Remove the tumble dryer from use and call for

service.

17. Tumble dryer will not operate with lint panel

open. DO NOT bypass lint panel safety switch to

permit the tumble dryer to operate with the lint

panel open.

18. Do not put articles soiled with vegetable or cooking

oil in the tumble dryer, as these oils may not be

removed during washing. Due to the remaining

oil, the fabric may catch on fire by itself.

19. To reduce the risk of fire, DO NOT put clothes

which have traces of any flammable substances

such as machine oil, flammable chemicals,

thinner, etc. or anything containing wax or

chemicals such as in mops and cleaning cloths, or

anything dry-cleaned at home with dry-cleaning

solvent in the tumble dryer.

20. Use the tumble dryer only for its intended

purpose, drying fabrics.

21. ALWAYS disconnect and lockout the electrical

power to the tumble dryer before servicing.

Disconnect power by shutting off appropriate

breaker or fuse.

22. Install this tumble dryer according to the

INSTALLATION INSTRUCTIONS. All

connections for electrical power, grounding, and

gas supply must comply with local codes and be

made by licensed personnel when required.

Hazardous Voltage. Can cause shock, burn

or cause death. Allow machine power to

remain off for two minutes prior to working

in and around AC inverter drive.

W359

WARNING

Safety Information

70400101 (EN)

23. Remove laundry immediately after tumble dryer

stops.

24. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of reach of children at all times

(preferably in a locked cabinet).

25. Do not tumble fiberglass curtains and draperies

unless the label says it can be done. If they are

dried, wipe out the cylinder with a damp cloth to

remove particles of fiberglass.

26. Always follow the fabric care instructions

supplied by the garment manufacturer.

27. Never operate the tumble dryer with any guards

and/or panels removed.

28. DO NOT operate the tumble dryer if it is

smoking, grinding, has missing or broken parts.

29. DO NOT bypass any safety devices.

30. Solvent vapors from dry-cleaning machines

create acids when drawn through the heater of the

drying unit. These acids are corrosive to the

tumble dryer as well as to the laundry load being

dried. Be sure make-up air is free of solvent

vapors.

31. Failure to install, maintain, and/or operate this

machine according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

WARNING

To reduce the risk of serious injury, install

lockable door(s) to prevent public access

to rear of tumble dryers.

W055R1

Operating Instructions

Emergency Stop Button on CE

Models

All CE approved OPL tumble dryers are factory

equipped with an emergency stop button located on

the front panel. Refer to Figure 2.

Figure 2

To operate emergency stop button:

a. Press red emergency stop button to stop all

action.

b. To restart machine, pull red emergency stop

button out and press START pad or button.

NOTE: Activation of the emergency stop button

stops all machine control circuit functions, but

DOES NOT remove all electrical power from

machine.

Operating Instructions

Step 1: Clean Lint Screen/Compartment

Remove any accumulated lint from the lint screen and

compartment. Close panel tightly against tumble dryer

frame and lock panel securely, if applicable.

IMPORTANT: Clean lint screen and lint

compartment daily. Failure to clean the lint screen

daily will result in higher than normal

temperatures that may damage laundry.

Step 2: Load Laundry

Open loading door and load cylinder with laundry. DO

NOT OVERLOAD.

NOTE: Overloading causes slow drying and

wrinkling.

Close loading door. Tumble dryer will not operate with

the door open.

Step 3: Determine Control Type and

Temperature Setting

Refer to the various controls, pages 9-16, follow

instructions for the appropriate control type.

Use the correct coin slot and control panel for the top

or bottom cylinder.

The type of fabric being dried will determine the

temperature setting. Consult the fabric care label or

fabric manufacturer to determine proper temperature

setting.

IMPORTANT: Always follow the fabric care

instructions supplied by the garment manufacturer.

Step 4: Remove Laundry

When the cycle is complete, open door and remove the

laundry.

WARNING

To reduce the risk of fire:

• DO NOT DRY articles containing foam rubber or similarly textured rubberlike materials.

• DO NOT DRY plastics, anything containing wax or chemicals such as mops and cleaning

cloths, or anything dry-cleaned at home with a dry-cleaning solvent.

• DO NOT TUMBLE fiberglass curtains and draperies unless the label says it can be done. If

they are dried, wipe out the cylinder with a damp cloth to remove particles of fiberglass.

W076

To reduce the risk of serious injury, allow cylinder to stop before cleaning lint screen.

W412

TMB2264N

1Emergency Stop Button

Other manuals for 602004144

This manual suits for next models

Table of contents

Other Alliance Laundry Systems Dryer manuals

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumbler 110 Pound Capacity Part No.... Installation and operation manual

Alliance Laundry Systems

Alliance Laundry Systems HA025E User manual

Alliance Laundry Systems

Alliance Laundry Systems 70269701R4 User manual

Alliance Laundry Systems

Alliance Laundry Systems Stacked Clothes Dryer User manual

Alliance Laundry Systems

Alliance Laundry Systems Dryer Tumblers User manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C User manual

Alliance Laundry Systems

Alliance Laundry Systems DRY684C User manual

Alliance Laundry Systems

Alliance Laundry Systems DCB50EG User manual

Alliance Laundry Systems

Alliance Laundry Systems D355IE1B Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems T453I Troubleshooting guide

Alliance Laundry Systems

Alliance Laundry Systems 505048R2 Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems 512042R4 User manual

Alliance Laundry Systems

Alliance Laundry Systems DR7000WE User manual

Alliance Laundry Systems

Alliance Laundry Systems 70223701R2 User manual

Alliance Laundry Systems

Alliance Laundry Systems 907003062 User manual

Alliance Laundry Systems

Alliance Laundry Systems Huebsch DR5102WG User manual

Alliance Laundry Systems

Alliance Laundry Systems CTSA9AWN User manual

Alliance Laundry Systems

Alliance Laundry Systems BDEE6BGS173CW01 Operating instructions

Alliance Laundry Systems

Alliance Laundry Systems LEB07A*-1709 User manual

Alliance Laundry Systems

Alliance Laundry Systems DRY724C_SVG Guide

Alliance Laundry Systems

Alliance Laundry Systems ADG41F1 User manual

Alliance Laundry Systems

Alliance Laundry Systems AT120FG User manual

Alliance Laundry Systems

Alliance Laundry Systems CHD25G2-CA025L Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems LES37AW User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
