Alliance Laundry Systems 505828 User manual

D311IE3A

m"dd"apm"m=zF"amVm¤4apm

phF"¤m=©

¤ph"a4dp^F©F

|dF4a4p=Fd}

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. (If the dryer changes ownership,

be sure this manual accompanies the dryer.)

Part No. 505828

August 1999

505828 1

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

• Installation and service must be performed by a qualified installer or service agency. W257

FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of

fire or explosion or to prevent property damage, personal injury or death. W033

WARNING

the expressed written consent of the publisher.

2505828

Fzd"4FhFm"

If replacement parts are required, contact the source

where you purchased your dryer, or contact Alliance Laundry Systems LLC

Shepard Street

P.O. Box 990

Ripon, WI 54971-0990

Phone:

(920) 748-3950

for thename and address of the nearest authorized parts

distributor.

"*dFpO

pmFm

Replacement Parts ...............................................................................2

Important Safety Instructions .............................................................3

Roughing In Dimensions .....................................................................5

Tools .......................................................................................................5

Installing the Dryer

STEP 1 (Position and Level the Dryer) ...........................................6

STEP 2 (Connect Dryer Exhaust System)........................................6

STEP 3 (Connect Electrical Cord) ...................................................7

STEP 4 (Wipe Out Inside of Dryer).................................................8

STEP 5 (Connect Dryer to Electrical Power)...................................8

Heat Source Check ...............................................................................8

Reversing Door Procedure ..................................................................9

Electrical Requirements (240 Volt, 60 Hertz, 2-Wire).....................10

Electrical Requirements (240 Volt, 60 Hertz, 3-Wire).....................11

Location Requirements .....................................................................12

Dryer Exhaust Requirements ............................................................13

Before Drying ......................................................................................16

Available Drying Cycles .....................................................................17

To Dry Clothes ....................................................................................18

User-Maintenance Instructions .........................................................19

Motor Overload Protector .................................................................19

Lint Filter ............................................................................................20

Before You Call for Service ...............................................................21

If Service is Required .........................................................................21

Information for Handy Reference ....................................................22

505828 3

 

|"¦F ^FF m¤4apm}

1. Read all instructions before using the dryer.

2. RefertotheGROUNDINGINSTRUCTIONSin

the INSTALLATION manual for the proper

grounding of the dryer.

3. Do not dry articles that have been previously

cleaned in,soakedin, washed in,or spottedwith

gasoline, dry-cleaning solvents, other

flammable or explosive substances as they give

off vapors that could ignite or explode.

4. Do not allow children to play on or in the dryer.

Close supervision of children is necessary when

the dryer is used near children. This is a safety

rule for all appliances.

5. Before the dryer is removed from service or

discarded, remove the door to the drying

compartment.

6. Do not reach into the dryer if the cylinder is

revolving.

7. Do not install or store the dryer where it will be

exposed to the water and/or weather.

8. Do not tamper with the controls.

9. Donotrepairorreplaceanypartofthedryer,or

attempt any servicing unless specifically

recommended in the User-Maintenance

Instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

10. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

11. To reducetheriskoffire,DO NOT DRYplastics

or articles containing foam rubber or similarly

textured rubberlike materials.

12. Always clean the lint filter after every load. A

layer of lint in the filter reduces drying

efficiency and prolongs drying time.

13. Keep area around the exhaust opening and

adjacent surrounding area free from the

accumulation of lint, dust and dirt.

14. The interior of the dryer and the exhaust duct

should be cleaned periodically by qualified

service personnel.

15. Dryer will not operate with the loading door

open. DO NOT by-pass the door safety switch

by permitting the dryer tooperate with the door

open. The dryer will stop tumbling when the

door is opened. Do not use the dryer if it does

not stop tumbling when the door is opened or

starts tumbling without pressing or turning the

START mechanism.Removethe dryer from use

and call the service person.

16. Do not put articles soiled with vegetable or

cooking oil in the dryer, as these oils may not be

removed during washing. Due to the remaining

oil, the fabric may catch on fire by itself.

17. To reduce the risk of fire, DO NOT put clothes

which have traces of any flammable substances

such as machine oil, flammable chemicals,

thinner, etc. or anything containing wax or

chemicals such as in mops and cleaning cloths,

or anything dry-cleaned at home with dry-

cleaning solvent in the dryer.

18. Use the dryer only for its intended purpose,

drying clothes.

19. Always disconnect the electrical power to the

dryer before attempting service. Disconnect the

power cord by grasping the plug, not the cord.

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your dryer, follow these basic

precautions:

WARNING

4505828

20. Replace worn power cords and/or loose plugs.

21. Install this dryer according to the

INSTALLATION INSTRUCTIONS. All

connections for electrical power and grounding

must comply with local codes and be made by

licensed personnel when required. Do not do it

yourself unless you know how!

22. Remove laundry immediately after the dryer

stops.

23. Always read and follow manufacturer’s

instructions on packages of laundry and

cleaning aids.Heed allwarnings or precautions.

To reduce the risk of poisoning or chemical

burns, keep them out of reach of children at all

times (preferably in a locked cabinet).

24. Do nottumble fiberglass curtains and draperies

unless the label says it can be done. If theyare

dried,wipe outthecylinderwithadampclothto

remove particles of fiberglass.

25. ALWAYS follow the fabric care instructions

supplied by the garment manufacturer.

26. Never operate the dryerwith any guardsand/or

panels removed.

27. DO NOT operate the dryer with missing or

broken parts.

28. DO NOT by-pass any safety devices.

29. Failure to install, maintain, and/or operate this

machine according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNING AND IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the dryer.

Always contact your dealer, distributor, service agent

or the manufacturer about any problems or conditions

you do not understand.

505828 5

p¤V^amVmahFmapm

ppd

For most installations, the basictools you will need are:

19.6 cm

(7.7")

10.2 cm

(4.0")

59.7 cm

(23.5") 71.1 cm

(28")

1.1 cm

(0.4") 68.3 cm

(26.9")

10.2 cm

(4.0")

39.1 cm

(15.4")

*91.4 cm (36")

*109.2 cm (43")

* WITH LEVELING LEGS TURNED INTO BASE D312IE3H

D074IE1K

DUCT TAPE

WRENCH

LEVEL

SCREWDRIVERS

6505828

m"ddamV^F©F

Fz s9

Position and Level

the Dryer

For further assistance refer to Section on Location

Requirements.

Place the dryer in position, and adjust the legs until the

dryer is level.

Fz ¢9

Connect Dryer Exhaust System

Refer to Sections on Location Requirements and

Dryer Exhaust Requirements.

NOTE: Failure to exhaust dryer properly will void

warranty.

NOTE: Venting materials are not supplied with the

dryer (obtain locally).

D298IE1A

DRYER

BASE

LEVELING

LEG

LEVEL

D259I

A clothes dryer produces combustible lint.

To reduce the risk of fire and combustion

gas accumulation the dryer MUST be

exhausted to the outdoors. W116

WARNING

DOD314IE0C DON'T

D315IE0C

505828 7

Fz 9 ¢T¬ pd ¬ F«

Connect Electrical Cord

Consult Section on Electrical Requirements.

D276IE1B

Three-Wire Connection

D189IE1C

Two-Wire Connection

NOTE: Dryer is shown with access cover removed for illustration purposes only. NEVER operate dryer

with access cover removed.

8505828

Fz T9

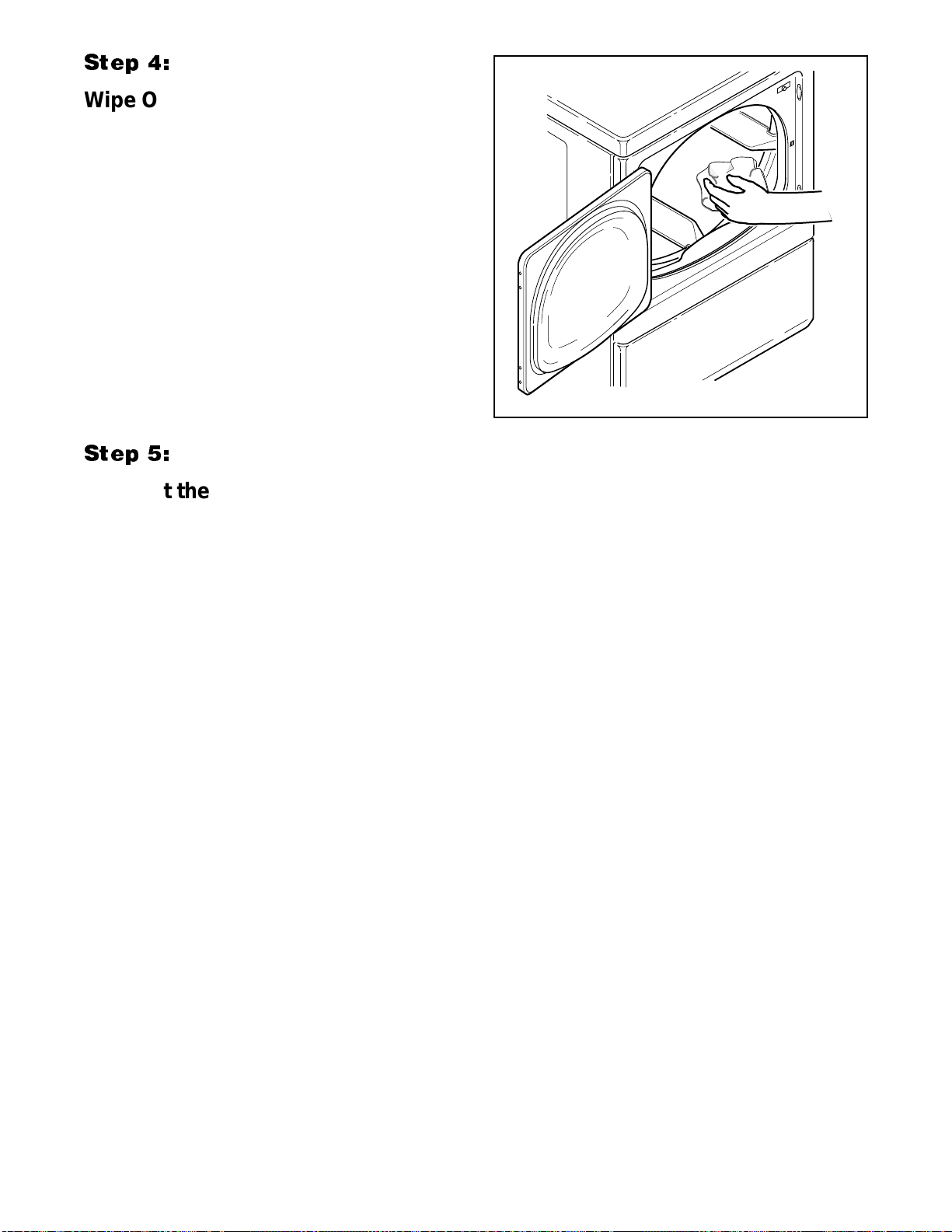

Wipe Out Inside Of Dryer

Before using dryer for the first time, use an all-purpose

cleaner, or a detergent and water solution, and a damp

cloth to remove shipping dust from inside dryer drum.

Fz Q9

Connect the Dryer to Electrical Power

Refer to Section on Electrical Requirements, and

connect the dryer to an electrical power source.

F"p¤4F^F4c

Close the loading door and start the dryer in a heat

setting (refer to the Operating Instructions). After the

dryer has operated for three minutes, the exhaust air or

exhaust pipe should be warm.

D327IE2A

Table of contents

Other Alliance Laundry Systems Dryer manuals

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DR3003WG User manual

Alliance Laundry Systems

Alliance Laundry Systems LGS19A-1188 User manual

Alliance Laundry Systems

Alliance Laundry Systems DRY2030N User manual

Alliance Laundry Systems

Alliance Laundry Systems LES33A User manual

Alliance Laundry Systems

Alliance Laundry Systems 50 Pound Series User manual

Alliance Laundry Systems

Alliance Laundry Systems BDEE6BGS173CW01 Operating instructions

Alliance Laundry Systems

Alliance Laundry Systems UA025L User manual

Alliance Laundry Systems

Alliance Laundry Systems BA025E User manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C User manual

Alliance Laundry Systems

Alliance Laundry Systems CHD25G2-CA025L Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DR5003WG User manual

Alliance Laundry Systems

Alliance Laundry Systems ADE3SRGS173CW01 User manual

Alliance Laundry Systems

Alliance Laundry Systems 506126R5 User manual

Alliance Laundry Systems

Alliance Laundry Systems JE2870 User manual

Alliance Laundry Systems

Alliance Laundry Systems SFE107*A User manual

Alliance Laundry Systems

Alliance Laundry Systems DRY725C User manual

Alliance Laundry Systems

Alliance Laundry Systems JCD32DG User manual

Alliance Laundry Systems

Alliance Laundry Systems 512685R5 Guide

Alliance Laundry Systems

Alliance Laundry Systems CHD25G2 Operating instructions

Alliance Laundry Systems

Alliance Laundry Systems 510977R9 Guide

Alliance Laundry Systems

Alliance Laundry Systems SWD439C User manual

Alliance Laundry Systems

Alliance Laundry Systems ADG3SRGS117TW01 User manual

Alliance Laundry Systems

Alliance Laundry Systems KE Series User manual

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DF7000WG User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
