Alliance Laundry Systems ADE3SRGS173CW01 User manual
Troubleshooting
Home Dryers
Refer to Page 6 for Model Numbers
DRY726C_SVG
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
www.alliancelaundry.com Part No. D515517ENR3
June 2018
Table of Contents
Safety Information..................................................................................5
Locating an Authorized Service Person.............................................................6
Introduction........................................................................................... 7
Customer Service............................................................................................7
Serial Plate Location....................................................................................... 7
Model Identification........................................................................................7
How Your Dryer Works...................................................................................9
Troubleshooting....................................................................................10
No Timer Advance in Automatic Cycles......................................................... 10
Electric Dryers.......................................................................................... 10
Gas Dryers................................................................................................10
Troubleshooting Flowcharts..................................................................12
Dryer Motor Does Not Run............................................................................13
Dryer Stops in Cycle; Quits After the First Few Loads; Has a BurningSmell; Cy-
cles on Motor Thermal Protector.................................................................15
Dryer Motor Runs but Cylinder Does Not Turn................................................16
Dryer Motor Does Not Stop........................................................................... 18
Dry Runs Only When Door is Open................................................................19
Dryer Heating Assembly Does Not Heat or Burner Does Not Ignite...................20
Igniter Does Not Glow (Gas Supply Sufficient) - Gas Dryer Models..................22
Burner Ignites and Goes Out Repeatedly (Gas Dryer Models)........................... 23
Igniter Glows but Burner Does Not Ignite (Gas Dryer Models)......................... 24
Dryer Heater Assembly or Burner Shuts Off Prematurely................................. 25
Dryer Heater Assembly or Burner Repeatedly Cycles Off On Limit Thermostat.27
Dryer Heater Assembly or Burner Does Not Shut Off.......................................29
Clothes Do Not Dry in Dryer......................................................................... 30
Timer/Electronic Control Does Not Advance in Automatic Cycle......................32
Clothes Are Too Hot When Removed from Dryer............................................ 34
Excessive Chattering or Vibrating Noise in Dryer............................................ 35
Excessive Humming or Whistling Noise in Dryer............................................ 36
Error Codes - Electronic Control Models.............................................. 37
Adjustments......................................................................................... 39
Leveling Legs...............................................................................................39
Burner Flame (Gas Models)........................................................................... 39
© Copyright 2018, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
3 Part No. D515517ENR3
Test Procedures.....................................................................................41
Timer Contacts............................................................................................. 41
Fabric Selector Switch...................................................................................41
Drive Motor................................................................................................. 42
Drive Motor - Motor Switch.......................................................................... 43
Drive Motor - Motor Windings.......................................................................45
Motor Switch................................................................................................45
Burner System Operation - Gas Models.......................................................... 47
Electrical Circuit Ignition System (Gas Models).............................................. 48
Gas Valve Coils Check (Gas Models)..............................................................48
Sensor Check (Gas Models)........................................................................... 49
Igniter Check (Gas Models)........................................................................... 49
Thermal Fuse Electric (Models)..................................................................... 49
Heater Assembly (Electric Models)................................................................ 49
Cycling or Limit Thermostat.......................................................................... 50
Door Switch................................................................................................. 50
Internal Wiring of Dryer Motor Switch.................................................51
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
4 Part No. D515517ENR3
Safety Information
Precautionary statements (“DANGER,” “WARNING,” and
“CAUTION”), followed by specific instructions, are found in this
manual and on machine decals. These precautions are intended
for the personal safety of the operator, user, servicer, and those
maintaining the machine.
DANGER
Indicates an imminently hazardous situation that, if
not avoided, will cause severe personal injury or
death.
WARNING
Indicates a hazardous situation that, if not avoided,
could cause severe personal injury or death.
CAUTION
Indicates a hazardous situation that, if not avoided,
may cause minor or moderate personal injury or
property damage.
Additional precautionary statements (“IMPORTANT” and
“NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used to in-
form the reader of specific procedures where minor
machine damage will occur if the procedure is not fol-
lowed.
NOTE: The word “NOTE” is used to communicate in-
stallation, operation, maintenance or servicing informa-
tion that is important but not hazard related.
In the interest of safety, some general precautions relating to the
operation of this machine follow.
WARNING
• Failure to install, maintain and/or operate this
product according to the manufacturer’s instruc-
tions may result in conditions which can produce
serious injury, death and/or property damage.
• Do not repair or replace any part of the product or
attempt any servicing unless specifically recom-
mended or published in this Service Manual and
unless you understand and have the skills to car-
ry out the servicing.
• Whenever ground wires are removed during serv-
icing, these ground wires must be reconnected to
ensure that the product is properly grounded and
to reduce the risk of fire, electric shock, serious
injury or death.
W006R2
WARNING
To reduce the risk of electric shock, fire, explosion,
serious injury or death:
• Disconnect electric power to the dryer before
servicing.
• Close gas shut-of valve to gas dryer before serv-
icing.
• Never start the Dryer with any guards/panels re-
moved.
• Whenever ground wires are removed during serv-
icing, these ground wires must be reconnected to
ensure that the dryer is properly grounded.
W001R1
CAUTION
If you or an unqualified person perform service on
your product, you must assume the responsibility
for any personal injury or property damage which
may result. The manufacturer will not be responsible
for any injury or property damage arising from im-
proper service and/or service procedures.
W008
Safety Information
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
5 Part No. D515517ENR3
NOTE: The WARNINGS and IMPORTANT INSTRUC-
TIONS appearing in this manual are not meant to cover
all possible conditions and situations that may occur.
Common sense, caution and care must be exercised
when installing, maintaining or operating the machine.
Always contact your dealer, distributor, service agent or the man-
ufacturer about any problems or conditions you do not under-
stand.
Locating an Authorized Service Person
Alliance Laundry Systems is not responsible for personal injury
or property damage resulting from improper service. Review all
service information before beginning repairs.
Warranty service must be performed by an authorized technician,
using authorized factory parts. If service is required after the war-
ranty expires, Alliance Laundry Systems also recommends con-
tacting an authorized technician and using authorized factory
parts.
Safety Information
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
6 Part No. D515517ENR3
Introduction
Customer Service
If literature or replacement parts are required, contact the source
from whom the machine was purchased or contact Alliance
Laundry Systems at (920) 748-3950 for the name and address of
the nearest authorized parts distributor.
For technical assistance, call (920) 748-3121.
Serial Plate Location
When calling or writing about your product, be sure to mention
model and serial numbers. Model and serial numbers are located
on Serial Plate as shown.
DRY2527N_SVG
1
1. Serial Plate
Figure 1
Model Identification
Information in this manual is applicable to these washer models:
ADE3SRGS173CW01 ADEE9BSS543DN01 ADGE9BGS115CW01 ADLE9RGS303XW34
ADE3SRGS173TW01 ADEE9BSS543FN01 ADGE9BGS115CW14 ADLE9RGS305XW34
ADE3SRGS175CW01 ADEE9RGS173CW01 ADGE9BGS115TW01 ASEE8AGW173TW01
ADE3SRGS175CW14 ADEE9RGS173TW01 ADGE9BGS123DW01 ASGE8AGW113TW01
ADE3SRGS175TW01 ADEE9RGS175CW01 ADGE9BGS125DW01 ZDE3SRGS173CW01
ADE4BRGS175CW01 ADEE9RGS175CW14 ADGE9BGS543DW01 ZDE3SRGS173FW28
ADE4BRGS175CW14 ADEE9RGS175TW01 ADGE9BGS545DW01 ZDEE8RGS173CW01
ADE4BRGS175TW01 ADEE9RGS433XW34 ADGE9BSS113CN01 ZDEE8RGS543FW01
ADEE8BWS435AW01 ADEE9RGS435XW34 ADGE9BSS113FN01 ZDEE8RGS545FW01
ADEE8RGS173CW01 ADEE9RGS453NW29 ADGE9BSS113TN01 ZDEE8RWS545RW01
ADEE8RGS173TW01 ADEE9RGS453NW36 ADGE9BSS115CN01 ZDEE9BGS173CW01
ADEE8RWS455SW01 ADEE9RGS455LW26 ADGE9BSS115CN14 ZDEE9BGS543FW01
Table continues...
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. D515517ENR3
ADEE8RWS545RW01 ADEE9RGS455NW29 ADGE9BSS115TN01 ZDEE9BGS545FW01
ADEE9BGS173CW01 ADEE9RGS455NW36 ADGE9BSS123DN01 ZDEE9BSS173CN01
ADEE9BGS173TW01 ADEE9RGS543DW01 ADGE9BSS303XN01 ZDEE9BSS543FN01
ADEE9BGS175CW01 ADEE9RGS543FW01 ADGE9BSS303XN26 ZDEE9RGS173CW01
ADEE9BGS175CW14 ADEE9RGS545FW01 ADGE9BSS543DN01 ZDEE9RGS543FW01
ADEE9BGS175TW01 ADEE9RGS565XW01 ADGE9RGS113CW01 ZDEE9RGS545FW01
ADEE9BGS433XW34 ADEE9RGS565XW34 ADGE9RGS113FW01 ZDG3SRGS113CW01
ADEE9BGS435NW29 ADG3SRGS113CW01 ADGE9RGS113TW01 ZDG3SRGS113FW28
ADEE9BGS435XW34 ADG3SRGS113TW01 ADGE9RGS115CW01 ZDGE8RGS113CW01
ADEE9BGS453NW36 ADG3SRGS115CW01 ADGE9RGS115CW14 ZDGE8RGS113FW01
ADEE9BGS455NW36 ADG3SRGS115CW14 ADGE9RGS115FW01 ZDGE8RGS115FW01
ADEE9BGS543DW01 ADG3SRGS115TW01 ADGE9RGS115TW01 ZDGE9BGS113CW01
ADEE9BGS545DW01 ADG4BRGS115CW01 ADGE9RGS123DW01 ZDGE9BGS113FW01
ADEE9BSS173CN01 ADG4BRGS115CW14 ADGE9RGS303XW01 ZDGE9BGS115FW01
ADEE9BSS173TN01 ADG4BRGS115TW01 ADGE9RGS303XW26 ZDGE9BSS113CN01
ADEE9BSS175CN01 ADGE8BWS305AW01 ADGE9RGS305XW01 ZDGE9BSS113FN01
ADEE9BSS175CN14 ADGE8RGS113CW01 ADGE9RGS543DW01 ZDGE9RGS113CW01
ADEE9BSS175TN01 ADGE8RGS113TW01 ADLE9BGS303XW34 ZDGE9RGS113FW01
ADEE9BSS433LN01 ADGE9BGS113CW01 ADLE9BGS305XW34 ZDGE9RGS115FW01
Table continues...
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
8 Part No. D515517ENR3
ADEE9BSS433XN34 ADGE9BGS113TW01 ADLE9BSS303XN34
How Your Dryer Works
1. Lint Filter
2. Cylinder
3. Exhaust Fan
4. Gas Valve
5. Air Duct
6. Heater Duct
The dryer uses heated air to dry loads of laundry. When the motor
is started, the exhaust fan pulls room temperature air in through
louvers at the rear of the dryer and over the heat source (burner
flame for gas and heating element for electric). The heated air
moves through the heater duct and into the cylinder, where it cir-
culates through the wet load. The air then passes through the lint
filter, air duct, and exhaust fan, where it is vented to the outdoors.
The dryer has an automatic drying feature. At cycle start, when
fabric is wet and the temperature inside dryer is cool, the heat
source (burner on gas models and heating element on electric
models) is energized and heats the cylinder until operating tem-
perature (as set on Fabric Selector) is reached. Power is not sup-
plied to timer motor while heat source is energized during an au-
tomatic cycle. The heat source runs for longer periods of time in
the beginning of the cycle, when it is working to reach the operat-
ing temperature, resulting in very little timer advancement. As
the fabric dries and the cylinder heat is maintained, the heat
source is powered less, allowing the timer to advance to cycle
end. If dryer heats but timer does not advance, refer to No Timer
Advance in Automatic Cycles.
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
9 Part No. D515517ENR3
Troubleshooting
WARNING
To reduce the risk of electric shock, fire, explosion,
serious injury or death:
• Disconnect electric power to the dryer before
servicing.
• Close gas shut-of valve to gas dryer before serv-
icing.
• Never start the Dryer with any guards/panels re-
moved.
• Whenever ground wires are removed during serv-
icing, these ground wires must be reconnected to
ensure that the dryer is properly grounded.
W001R1
IMPORTANT: Refer to wiring diagram for aid in testing
dryer components.
No Timer Advance in Automatic Cycles
For a description of Automatic drying feature, refer to How Your
Dryer Works. If dryer heats but the timer does not advance, per-
form the following service procedures:
Electric Dryers
1. Remove any damp clothing from the dryer.
2. Set the timer to an Automatic cycle. Set fabric selector switch
to Regular.
3. Remove the top 3 screws holding the control hood to the rear
panel.
4. Start dryer by pushing in timer knob.
5. Using a volt/ohm meter set to AC voltage, measure the volt-
age across terminal “T” and terminal “M” on timer. Refer to
Figure 2 .
6. Meter should read no voltage when the unit is first started and
the dryer is still heating. Continue to monitor these points un-
til the heating element has shut off (this will take several mi-
nutes even with an empty load). When the heating element
shuts off, meter should read 120 Volts and the timer motor
should advance the cycle.
7. If meter does not read 120 Volts after the unit has reached
proper operating temperature use meter to check for 120 AC
Voltage between terminal “A” and terminal “N” (neutral) on
the timer.
8. If voltage is present, recheck voltage between “T” and “M”.
9. If voltage is present, but timer does not advance, replace tim-
er.
10. If meter does not read 120 Volts at “A” and “N”, check the
wire connections at the heating element and timer (blue/black
wire). If the connections are good, UNPLUG dryer, remove
wire at terminal “A” on timer and perform an ohms check on
wire continuity between the heating element and timer. If the
wire shows continuity, replace timer.

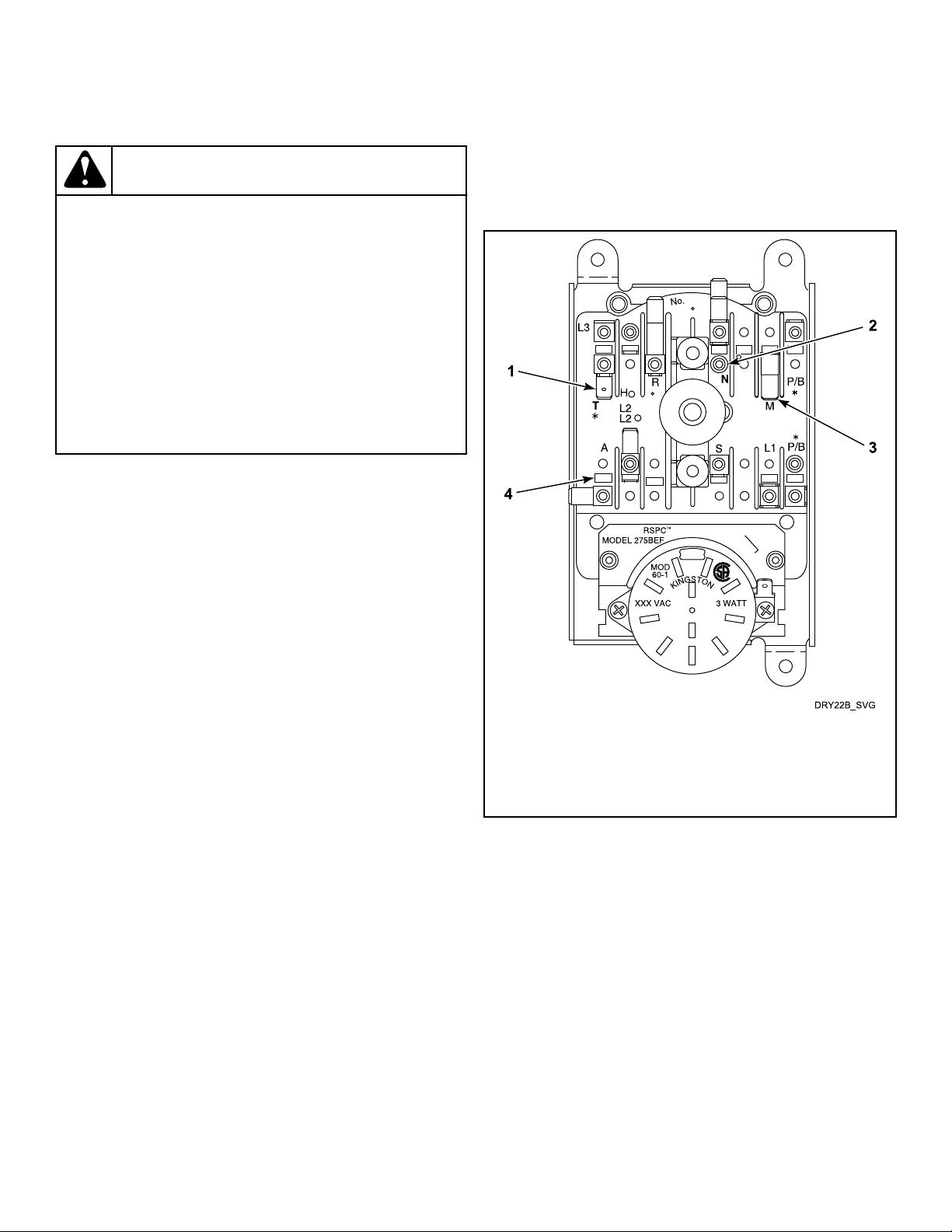

1. "T"
2. "N"
3. "M"
4. "A"
Figure 2
Gas Dryers
1. Remove any damp clothing from the dryer.
2. Set the timer to an Automatic cycle. Set fabric selector switch
to Regular.
3. Remove the top 3 screws holding the control hood to the rear
panel.
4. Start dryer by pushing in timer knob.
5. Using a volt/ohm meter set to AC voltage, measure the volt-
age across terminal “T” and terminal “N” on timer. Refer to
Figure 2 .
6. Meter should read no voltage when the unit is first started and
the dryer is still heating. Continue to monitor these points un-
til the burner has shut off (this will take several minutes even
Troubleshooting
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. D515517ENR3
This manual suits for next models
126
