Advantech PCA-6774 User manual

PCA-6774

ISA Socket370 SlotPC,

VGA/LCD/LVDS/LAN/CFC

with optional second LAN and

Gigabit LAN

Users Manual

PCA-677

User’s Manual ii

inal manufacturer reserves the right to make improvements to the prod-

ucts described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated or transmit-

ted in any form or by any means without the prior written permission of

the original manufacturer. Information provided in this manual is

intended to be accurate and reliable. However, the original manufacturer

assumes no responsibility for its use, nor for any infringements upon the

rights of third parties that may result from such use.

Acknowledgements

Award is a trademark of Award Software International, Inc.

VIA is a trademark of VIA Technologies, Inc.

IBM, PC/AT, PS/2 and VGA are trademarks of International Business

Machines Corporation.

Intel and Pentium are trademarks of Intel Corporation.

Microsoft Windows® is a registered trademark of Microsoft Corp.

RTL is a trademark of Realtek Semi-Conductor Co., Ltd.

ESS is a trademark of ESS Technology, Inc.

UMC is a trademark of United Microelectronics Corporation.

SMI is a trademark of Silicon Motion, Inc.

Creative is a trademark of Creative Technology LTD.

All other product names or trademarks are properties of their respective

owners.

For more information on this and other Advantech products, please visit

our websites at: http://www.advantech.com

http://www.advantech.com/epc

For technical support and service, please visit our support website at:

http://support.advantech.com

This manual is for the PCA-6774.

Part No. 2006677410

1st Edition, Mar, 2004

iii

Packing List

Before you begin installing your card, please make sure that the following

materials have been shipped:

• 1 PCA-6774all-in-one single board computer

• 1 startup manual

• CD-ROM or disks for utility, drivers, and manual (in PDF format)

• 1 power cable p/n: 1703080101

• 1 PS/2 KB/M cable p/n: 1700060202

• 1 COM port cable p/n:1700100250

• 1 Printer cable p/n:1700260250

• 1 FDD cable p/n:1703340400

• 1 EIDE cable p/n:1701400452

If any of these items are missing or damaged, contact your distributor or

sales representative immediately.

Optional item:

1700100170 USB cable adapter (2.54 mm)

Model No. List Description

PCA-6774F-00A1 ISA Socket 370 half-sized CPU Card with

VGA/LCD/LVDS/LAN/CFC

PCA-6774FG-00A1 ISA Socket 370 half-sized CPU card with

VGA/LCD/LVDS/Giga LAN/CFC

PCA-6774F-02A1 ISA Eden 400 half-sized CPU card with

VGA/LCD/LVDS/2LAN/CFC

PCA-677

User’s Manual iv

Additional Information and Assistance

1. Visit the Advantech web site at www.advantech.com where you can

find the latest information about the product.

2. Contact your distributor, sales representative, or Advantech's customer

service center for technical support if you need additional assistance.

Please have the following information ready before you call:

• Product name and serial number

• Description of your peripheral attachments

• Description of your software (operating system, version, application

software, etc.)

• A complete description of the problem

• The exact wording of any error messages

1 Chapter 1 General Information

General Information

This chapter gives background

information on the PCA-6774.

Sections include:

• Introduction

• Features

• Specifications

• Board layout and dimensions

CHAPTER

PCA-677

User’s Manual 2

Chapter 1 Introduction

1.1 Introduction

Advantech's new PCA-6774 is a new Socket 370 half-sized CPU card

that will support up to 1.26GHz Pentium III with 512KB using VIA

VT8606"TwisterT" chipset. This SBC includes a 4X AGP controller, a

PCI Ethernet interface, and 36-bit TTL interface. Its design is based on

the half-sized CPU card and supports ISA bus expansion. Other on-board

features include an FDD, LPT, 2 USBs (4 USBs optional), and 2 serial

ports. The SSD solution supports CompactFlash cards. This product

uses a VIA TwisterT chip with Integrated Savage4 2D/3D/Video

Accelerator and supports 4X AGP VGA/LCD interface and up to

8/16/32 MB frame buffer using system memory. With the selection of

daughter boards, the PCA-6774 board can support a second LAN at

10/100Mbps, also this CPU card can support GigaLAN with Intel 82540.

3 Chapter 1 General Information

1.2 Features

• Supports Socket 370 for VIA C3 and Intel processors up to

Pentium III 1.26GHz with 512K (Tualatin).

• ISA bus half-sized CPU card

• Supports selectable LAN(1 x 10/100BASE-T LAN or 2 x 10/

100BASE-T LAN or 1 x Gigabit LAN)

• 4X AGP graphics for high performance applications

• Supports boot from USB device.

• Supports wake-on-LAN.

• Supports Ring-up by Modem.

• Supports LVDS interface.

• Supports LCD backlight turn-off function.

• RS-485 Auto-flow.

1.3 Specifications

1.3.1 Standard SBC Functions

• CPU: Supports Socket 370 for VIA C3 and Intel processors up to Pen-

tiumIII 1.26 GHz with 512K cache (Tualatin)

• System chipsets: VIA VT8606"TwisterT"+VT82C686B

• BIOS: Award 256 KB Flash memory

• System memory: One DIMM socket accepts 64 MB up to 512 MB

SDRAM

• 2nd cache memory: 128/256/512KB on Celeron/PentiumIII processor,

or 64 KB on the VIA C3 processor

• Enhanced IDE interface: One channel supports up to two EIDE

devices. Supports ATA-100, ATA-33 and PIO modes.

• FDD interface: Supports up to two FDDs

PCA-677

User’s Manual 4

• Serial ports: Two serial RS-232 ports:

COM1:RS-232

COM2:RS-232/422/485

RS-485 supports AUTO-flow

• Parallel port: Parallel port supports SPP/EPP/ECP mode

• Keyboard/mouse connector: Supports standard PC/AT keyboard and a

PS/2 mouse

• Power management: Supports power saving modes including Normal/

Standby/Suspend modes. APM 1.2 compliant

• Watchdog timer: 62 level timer intervals

• USB: Two universal serial bus ports, Optional 4 ports.

1.3.2 VGA/LCD Interface

• Chipset: VIA VT8606"TwisterT" chip with integrated Savage4 2D/3D/

Video Accelerator

• Frame buffer: Supports 8/16/32MB frame buffer with system memory

• Interface: 4X AGP VGA/LCD interface, Support for up to 36 bit TFT

• Display modes:

CRT Modes: 1280 x 1024@16bpp (60Hz),

1024 x 768@16bpp (85Hz),

LCD/Simultaneous Modes:

1280 x 1024@16bpp (60Hz),

1024 x 768@16bpp (60Hz);

LVDS interface:

Supports LVDS interface.

1.3.3 Solid State disk

• Supports CompactFlash Type I/II disks

1.3.4 PCI bus Ethernet interface

• Chipset: Intel 82551/82540

• Ethernet interface: IEEE 802.3u compatible10/100Base-T interface.

Supports selectable LAN(1 x 10/100base-T LAN or 2 x 10/100base-

T LAN or 1x Gigabit LAN)

• I/O address switchless setting

5 Chapter 1 General Information

1.3.5 Mechanical and Environmental

• Dimensions (L x W): 185 x 122 mm(7.28” x 4.80”)

• Power supply voltage: +5 V, +12V ±5%

• Power requirements:

• Max:

6.18 A @ +5 V, 0.22 A @+12 V

Typical:

5.5 A @ +5 V, (with PC133 128MB SDRAM,1 GHz)

0.17 A @ +5 V, (with PC133 128MB SDRAM,1 GHz)

• Operating temperature: 0 ~ 60°C (32 ~ 140°F)

• Operating humidity: 0% ~ 90% Relative Humidity, Non condensing

• Weight: 0.27 kg (weight of total package)

PCA-677

User’s Manual 6

1.4 Board layout: dimensions

Figure 1.1: Board layout: dimensions (component side)

Other manuals for PCA-6774

This manual suits for next models

Table of contents

Other Advantech Motherboard manuals

Advantech

Advantech GMB-945GC User manual

Advantech

Advantech PCN-6351 Series Installation and operation manual

Advantech

Advantech PCM-9387 Installation and operation manual

Advantech

Advantech PCM-5820 Series User manual

Advantech

Advantech PCA-6751 Series User manual

Advantech

Advantech MIOe-DB5000 User manual

Advantech

Advantech PCA-6013 User manual

Advantech

Advantech PCM-9570/S User manual

Advantech

Advantech AKMB-G41M User manual

Advantech

Advantech ASMB-786 User manual

Advantech

Advantech PCM-9588 Installation and operation manual

Advantech

Advantech AIMB-787 User manual

Advantech

Advantech PCE-5129 Installation and operation manual

Advantech

Advantech PCM-9386 Installation and operation manual

Advantech

Advantech PCE-7128 Installation and operation manual

Advantech

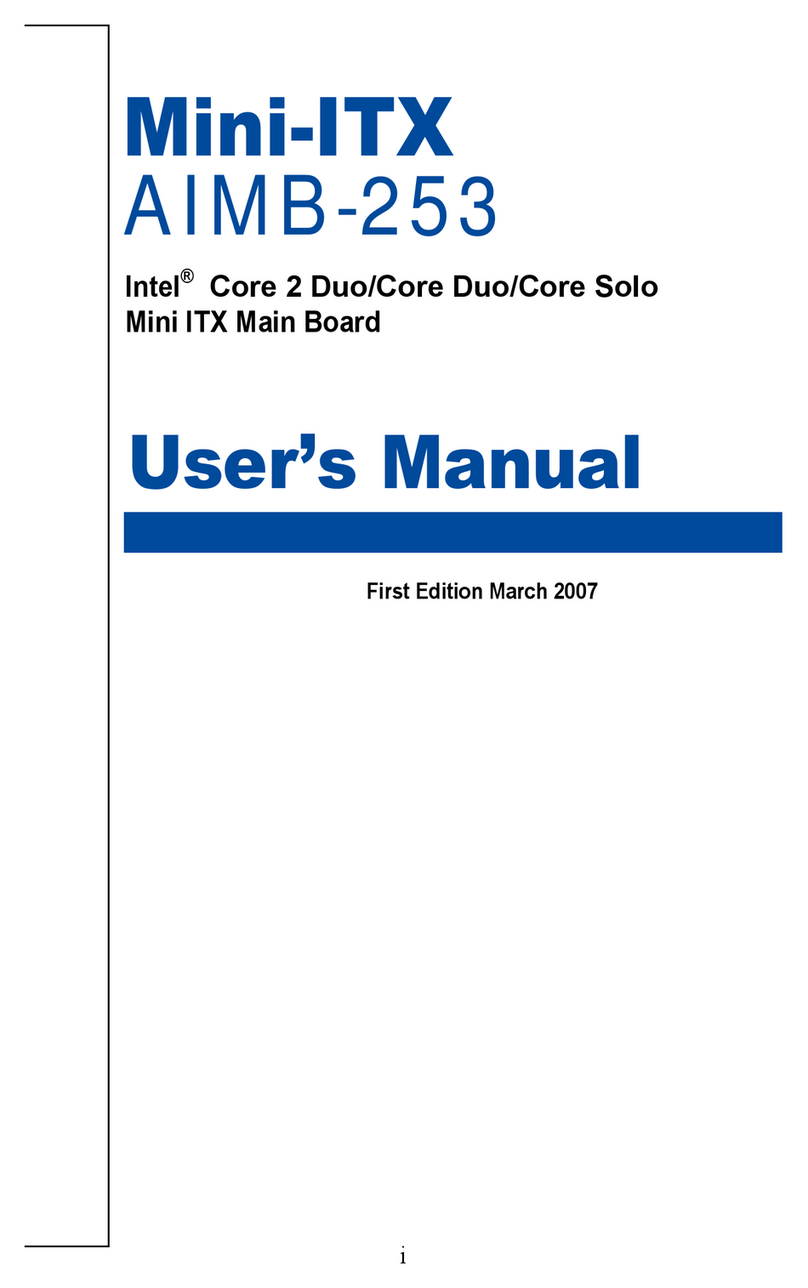

Advantech AIMB-253 Series User manual
